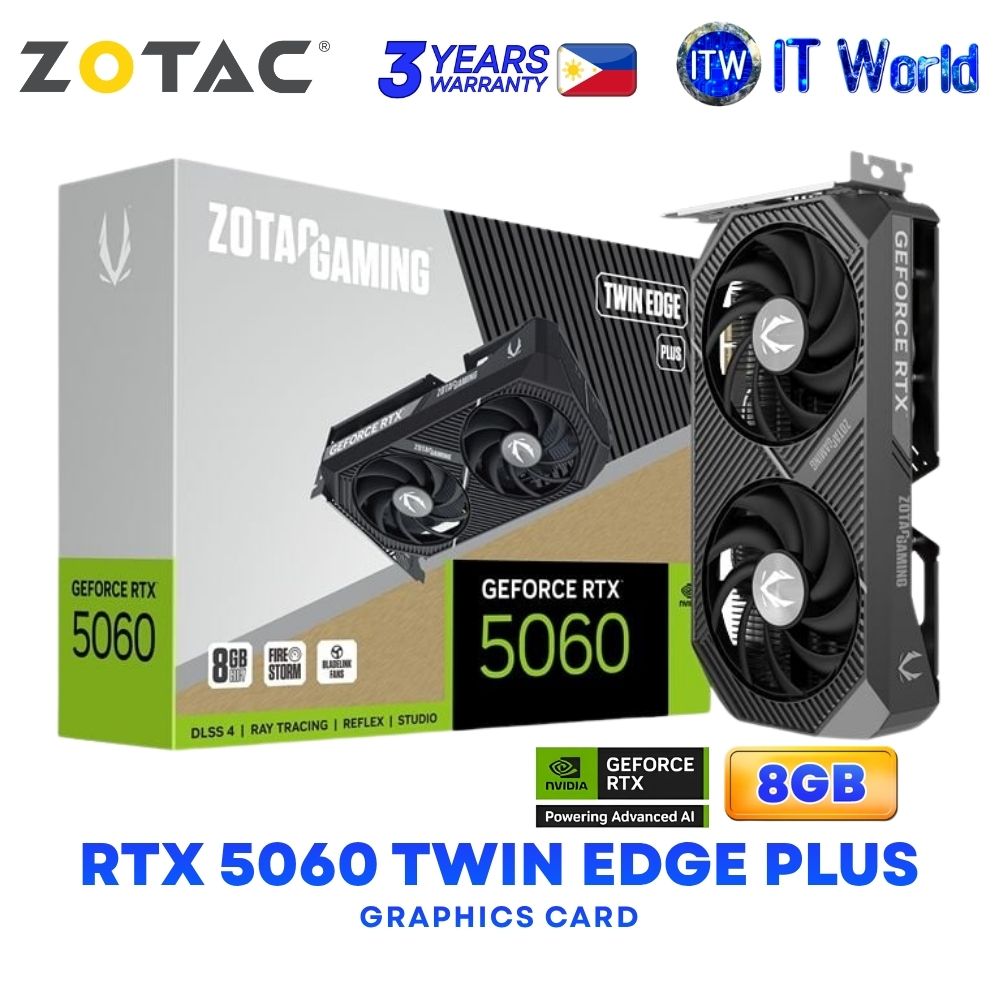

Zotac Gaming Geforce RTX 5060 Twin Edge Plus 8GB GDDR7 Dual Fans Graphics Card ZT-B50600E2-10M
✨ Upgrade your gaming setup with the ZOTAC GAMING GeForce RTX 5060 Twin Edge Plus, featuring NVIDIA Blackwell architecture, DLSS 4.5, and 8GB GDDR7 memory. Designed with enhanced cooling performance compared to the RTX 5060 Twin Edge, this compact, SFF-ready graphics card delivers smooth frame rates and performance for the latest game titles.
Key Features & Highlights
🚀 NVIDIA Blackwell Architecture & DLSS 4.5 – Powered by NVIDIA's cutting-edge graphics architecture and DLSS 4.5.
🎮 GeForce RTX 5060 GPU – Equipped with 3,840 CUDA cores for graphics processing.
💾 8GB GDDR7 Memory – Features a 128-bit memory interface and 28 Gbps memory clock.
❄️ Enhanced Cooling Performance – Improved cooling compared to the GeForce RTX 5060 Twin Edge.
🌬️ BladeLink Fans & Freeze Fan Stop – Equipped with BladeLink fans and Freeze Fan Stop technology.
🛡️ Metal Backplate – Designed with a metal backplate.
📏 Compact SFF-Ready Design – Measures 220.5 × 120.25 × 41.6 mm.
🔌 8-Pin PCIe Power Input – Requires one 8-pin power connector.
🖥️ Quad Display Support – Supports up to four displays with 3 × DisplayPort 2.1b and 1 × HDMI.
🛠️ FireStorm Utility – Supports the all-new FireStorm utility for graphics card management.
Technical Specifications
✨ Brand: ZOTAC GAMING
✨ Model: GeForce RTX 5060 Twin Edge Plus
✨ Product Type: Graphics Card / GPU
✨ GPU: NVIDIA GeForce RTX 5060
✨ Architecture: NVIDIA Blackwell
✨ CUDA Cores: 3,840
✨ Video Memory: 8GB GDDR7
✨ Memory Bus: 128-bit
✨ Engine Clock: 2,497 MHz
✨ Memory Clock: 28 Gbps
✨ AI Performance: 614 AI TOPS
✨ Interface: PCI Express 5.0 x8
✨ Display Outputs: 3 × DisplayPort 2.1b (UHBR20), 1 × HDMI
✨ DisplayPort Capability: Up to 4K at 480Hz or 8K at 165Hz with DSC
✨ HDMI Capability: Up to 4K at 480Hz HDR or 8K at 120Hz HDR with DSC; Gaming VRR support
✨ HDCP Support: 2.3
✨ Multi-Display Capability: Quad Display
✨ DirectX: Microsoft DirectX 12 Ultimate
✨ OpenGL: 4.6
✨ Cooling: Air Cooled
✨ Slot Size: 2 slots
✨ Power Consumption: 145W
✨ Recommended Power Supply: 550W
✨ Power Connector: 1 × 8-pin
✨ SLI Support: No
✨ Supported Operating System: Windows 11
✨ Card Dimensions (W × L × H): 120.25 × 220.5 × 41.6 mm
✨ Included Accessory: User Manual
