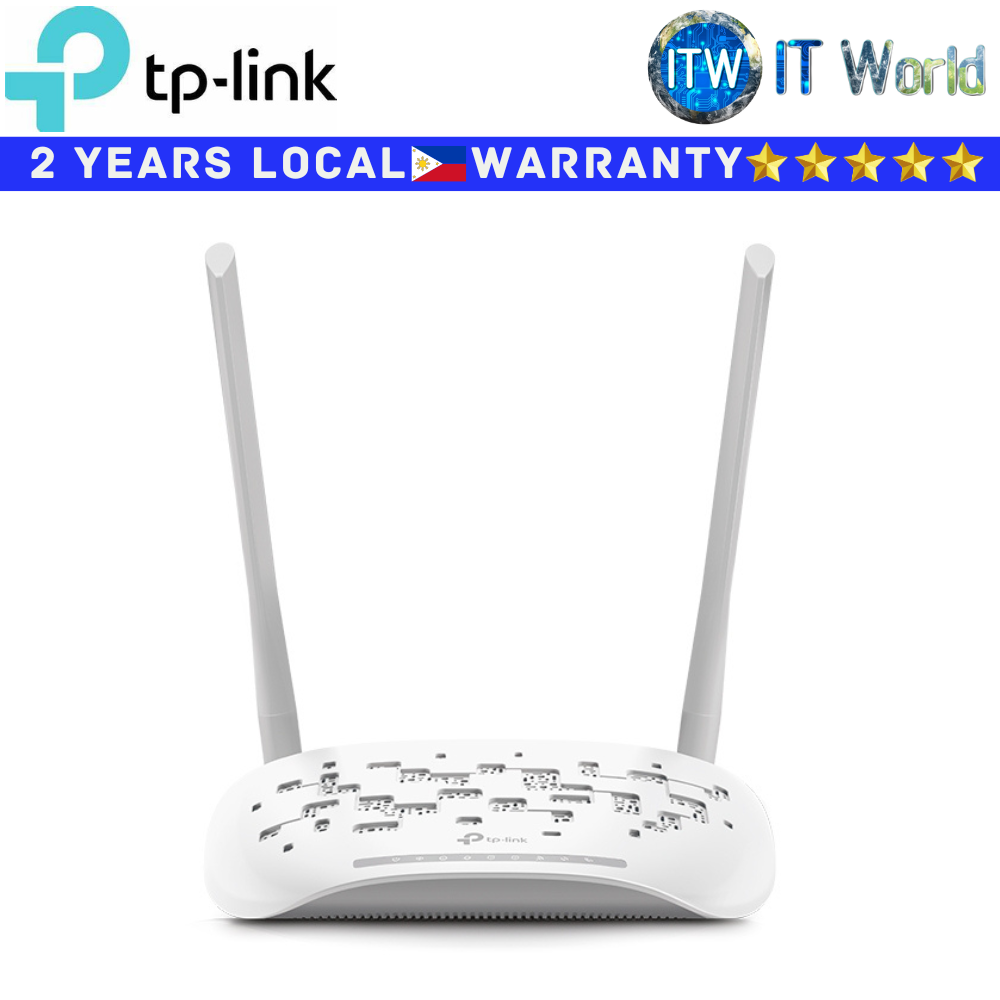

Product Name: Itw | TP-Link Wireless Router XN020-G3v 300Mbps N Gigabit VoIP GPON
300Mbps Wireless N Gigabit VoIP GPON Router
> A GPON modem with wireless AP and 2-port Switch

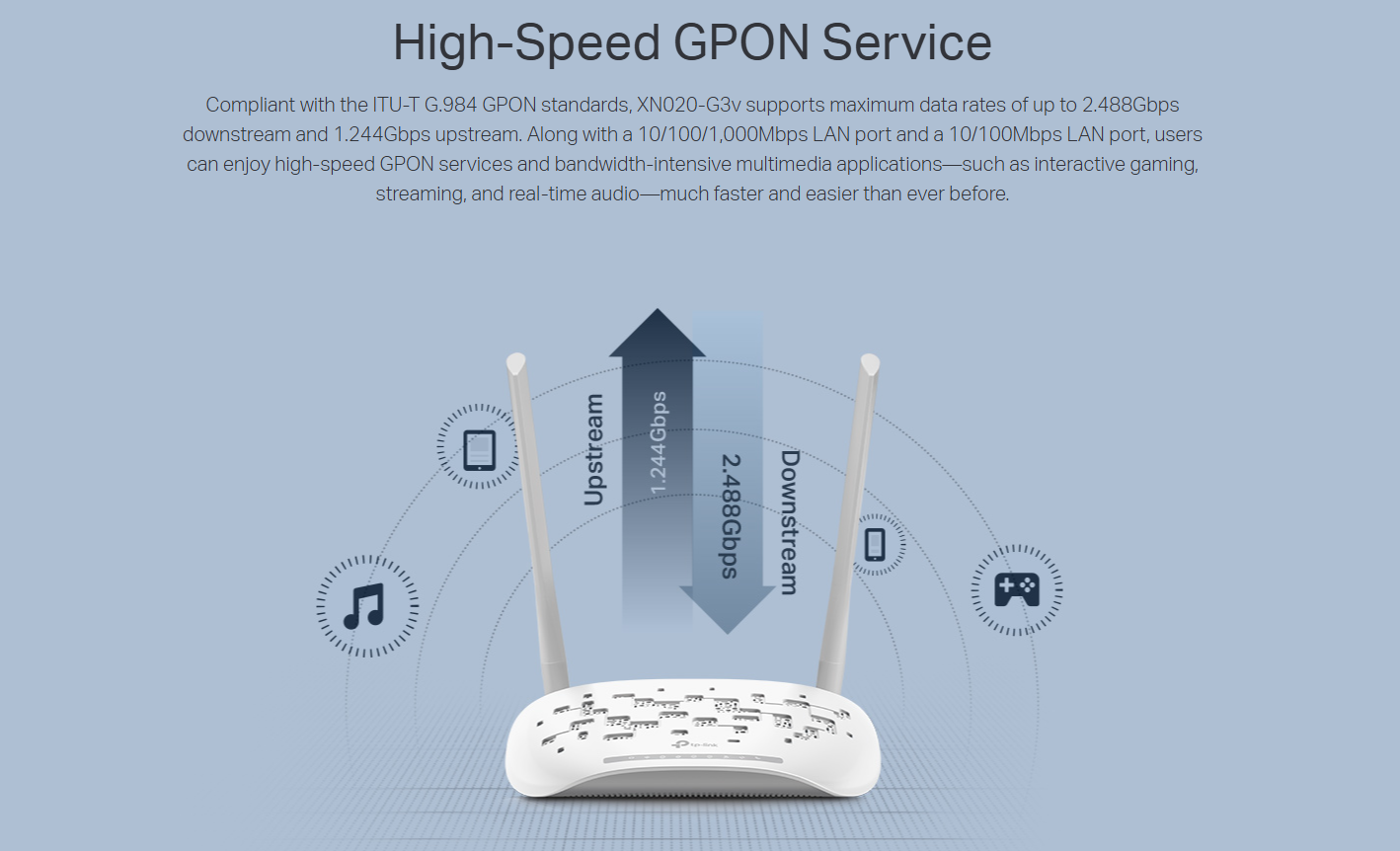

> Compliant with the ITU-T G.984/G.988 GPON standards, XN020-G3 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream.

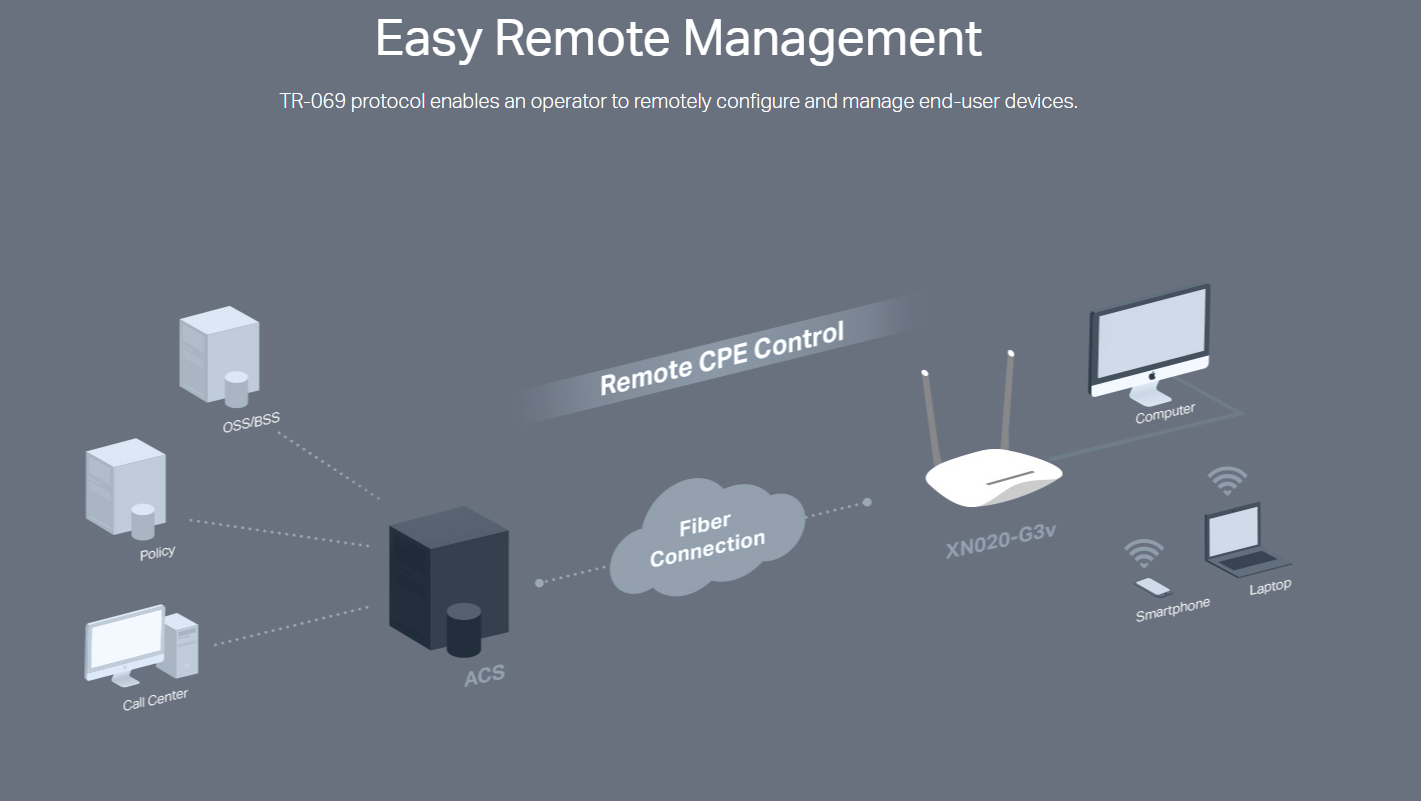

> TR-069 protocol enables an operator to remotely configure and manage end-user devices.
Specification
HARDWARE FEATURES
* Transmission Distance: 0 ~ 20Km Max

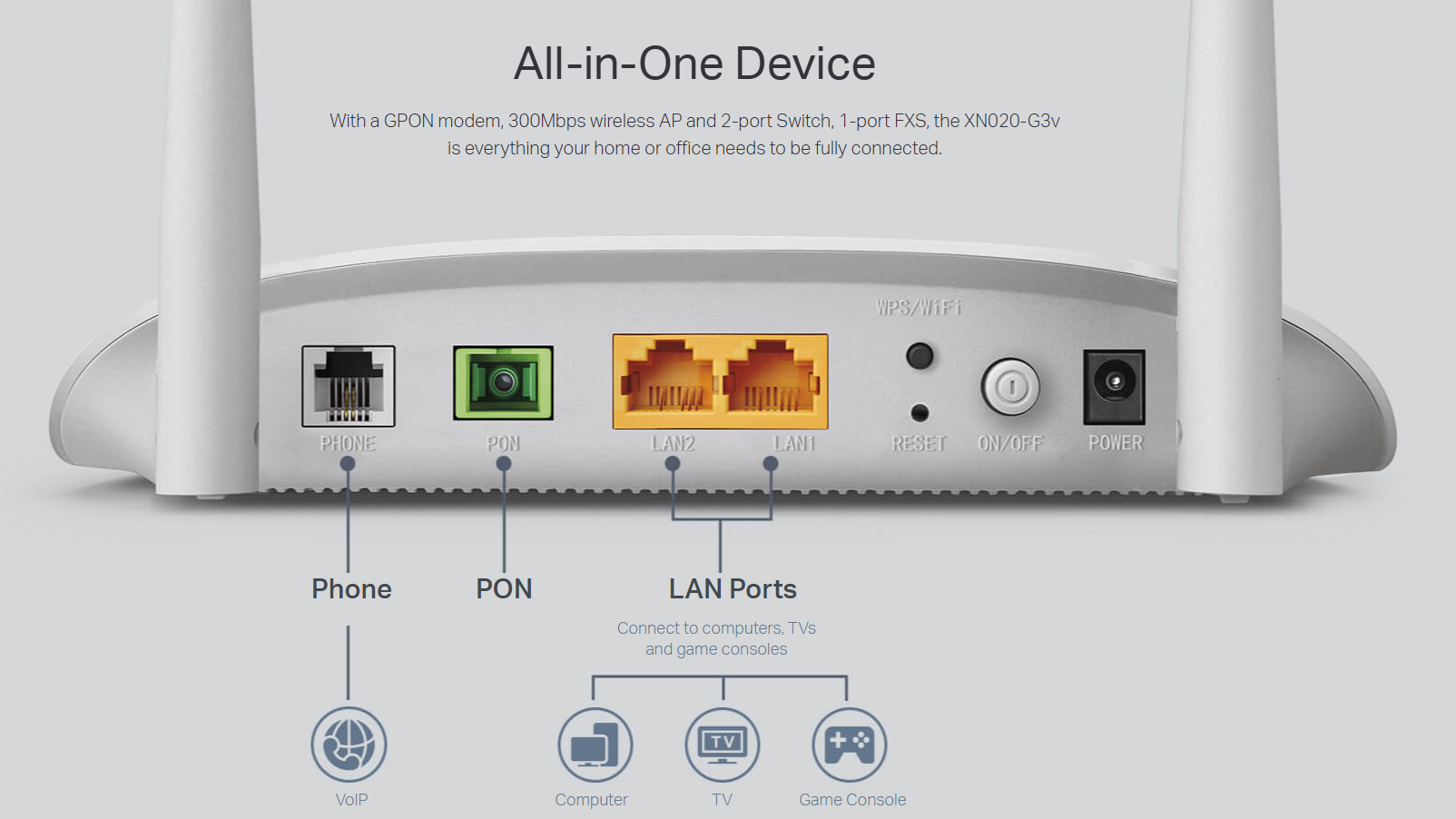

* Interface
> 1* SC/APC port
> 1* 10/100/1000Mbps LAN Port
> 1* 10/100Mbps LAN Port
> 1 FXS Port
* Button: Power On/Off Button, Reset Button, WPS/Wi-Fi Buttion
* External Power Supply: 12V/0.6A
* Wireless Standards: IEEE 802.11g, 802.11b,802.11n
* IEEE Standards: IEEE 802.3, IEEE 802.3u, 802.3ab
* Dimensions (W x D x H): 7.1 ×4.9× 1.4 in. (181.5 ×125.7 ×36.2mm)
* Antenna Gain: 2X2, 2.4G 5dBi
* GPON Standards
> ITU G.984.1
> ITU G.984.2
> ITU G.984.3
> ITU G.984.4
* Optical Module: Class C+
* Optical Wavelength: Transmit at 1310nm Receive at 1490nm
* Bandwidth: Downstream up to 2.488Gbps Upstream up to 1.244Gbps Max
* Receiver: APD-TIA
* Transmitter: DFB Laser
WIRELESS FEATURES
* Frequency: 2.4GHz
* Signal Rate: 300Mbps at 2.4GHz
* Transmit Power: <20dBm (2.4GHz)
* Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
* Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
* Wireless Schedule: Support 2.4GHz Schedule
SOFTWARE FEATURES
* Quality of Service: Hardware QoS
* Security: NAT Firewall, SPI Firewall, Access Control, MAC/URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
* Management: OMCI, Web Based Configuration, Command Line Interface, SSL for TR-069, OMCI Based Firmware Upgrade
* WAN Connection Type: PPPoE, Dynamic IP, Static IP, Bridge
* DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
* Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
* Dynamic DNS: DynDns, NO-IP
* Protocols: Support IPv4 and IPv6
* Advanced Functions
> SN, Password, SN + Password Authentication Mode
> Upstream and Downstream FEC, AES encryption
> Dynamic Bandwidth Allocation(DBA) support NSR/SR
> 802.1Q VLAN, Static Routing;
> IGMP v1/v2 /v3
> 16 T-CONTs, 256 GEM Ports
* IGMP: IGMP v1/v2/v3
* IPSec VPN: Support up to 10 IPSec VPN tunnels
OTHERS
* Package Contents
> 300Mbps Wireless N Gigabit VoIP GPON Router XN020-G3v
> RJ11 Phone Cable
> RJ45 Ethernet Cable
> Quick Installation Guide
> Power Adapter
* System Requirements
> Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
> Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 , or other Java-enabled browser
> Cable or DSL Modem
* Certifications: CE, Anatel
* Environment
> Operating Temperature: 0℃~40℃(32℉~104℉)
> Storage Temperature: -40℃~70℃(-40℉~158℉)
> Operating Humidity: 10%~90% non-condensing
> Storage Humidity: 5%~90% non-condensing
