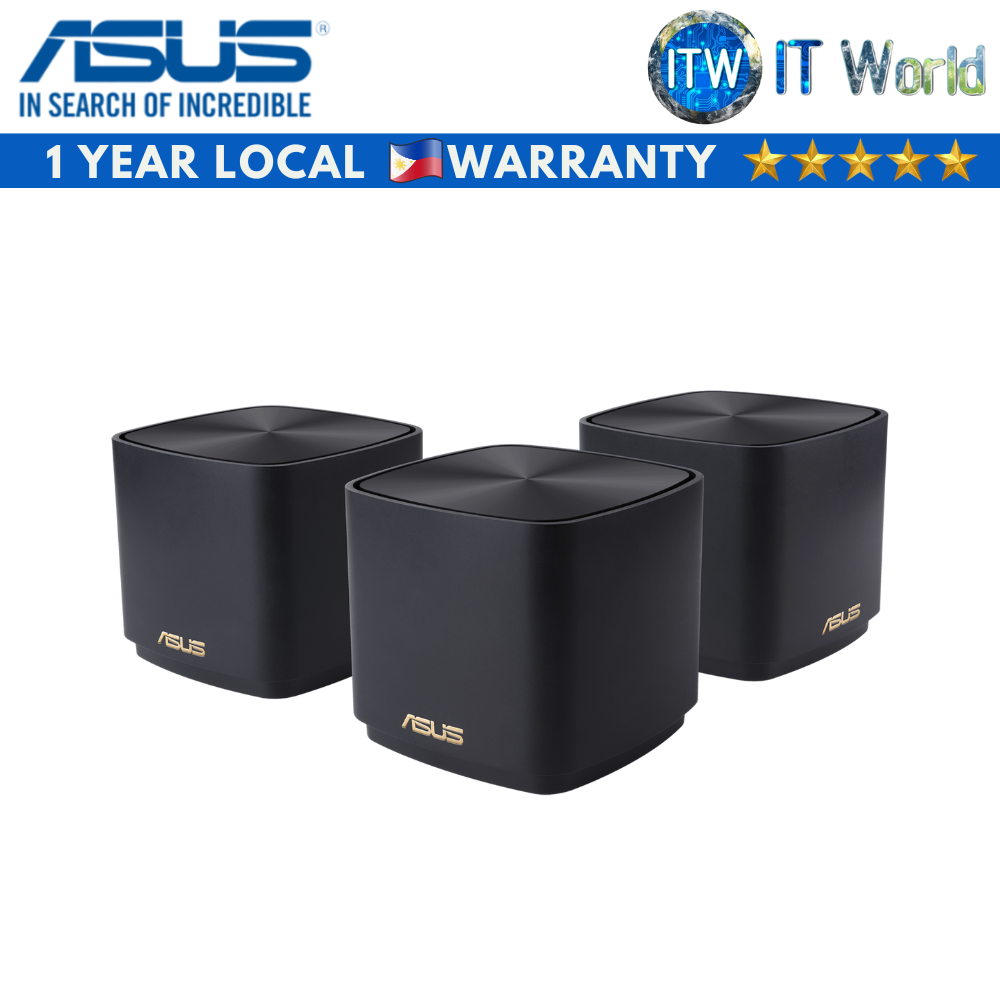

ASUS ZenWiFi AX Mini (XD5) Dual-band Whole Home Mesh WiFi System (3 Pack)

Product Name: ASUS ZenWiFi AX Mini (XD5) Dual-band Whole Home Mesh WiFi System (3 Pack)

Specification

Network Standard

• IEEE 802.11a

• IEEE 802.11b

• IEEE 802.11g

• WiFi 4 (802.11n)

• WiFi 5 (802.11ac)

• WiFi 6 (802.11ax)

• IPv4

• IPv6

Product Segment: AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps

• 802.11b : up to 11 Mbps

• 802.11g : up to 54 Mbps

• WiFi 4 (802.11n) : up to 300 Mbps

• WiFi 5 (802.11ac) : up to 867 Mbps

• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

• WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna: Internal dual-band antenna x 2

Transmit / Receive

• 2.4GHz 2x2

• 5GHz 2x2

Processor: 1.7 GHz quad-core processor

Memory

• 128 MB Flash

• 512 MB RAM

Boosts Speed: MIMO technology

Operating Frequency

• 2.4 GHz

• 5 GHz

Operating Mode

• Wireless Router Mode

• AiMesh Node Mode

• Access Point Mode

I/O Ports

• RJ45 for Gigabits BaseT for WAN/LAN x 1

• RJ45 for Gigabits BaseT for LAN x1

Buttons: WPS Button, Reset Button

LED Indicator: Power x 1

Power Supply

• AC Input: 110V~240V(50~60Hz)

• DC Output: 12 V with max. 1.5 A current

Package Content

• ZenWiFi XD5

• RJ45 Ethernet cable

• Power adapter

• Quick start guide

• Warranty Card

• Screw Pack

Product Weight (g): 307 g

Product Dimensions: 90 x 90 x 85 mm

AiMesh

• Primary AiMesh Router

• AiMesh Node

Parental Control

• "Allow you to block access to unwanted websites and apps."

• Time Scheduling

• Reward

• Parental Control - Safe Browsing

• Customized Internet Schedule

Router APP: APP: ASUS Router APP

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."

• Support Guest Network

• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3

• Guest Network Connection Time Limit

• Open system, WPA/WPA2/WPA3-Personal

Security

• AiProtection

• VPN

• WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support

• WPS

• Let's Encrypt

• DNS-over-TLS

• SSH

• Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection

AiProtection Classic

• Router Security Assessment

• Malicious Site Blocking

• Infected Device Prevention and Blocking

VPN

• Instant Guard

• VPN Client L2TP

• VPN Client Open VPN

• VPN Client PPTP

• VPN Client WireGuard

• VPN Server IPSec

• VPN Server Open VPN

• VPN Server PPTP

• VPN Server WireGuard

• VPN Fusion

Traffic Control

• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Internet Connection Type

• PPPoE

• PPTP

• L2TP

• Automatic IP

• Static IP

Port Forwarding

• Maximum Port Forwarding Rule : 64

Port Triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

LAN

DHCP Server

IGMP Snooping

IPTV

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 64

Wake on LAN (WOL)

Wireless

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Airtime Fairness

Universal Beamforming

Explicit Beamforming

Administration

• Configuration Backup and Restore

• Diagnosis Tools

• Feedback System

• System Log

• New Device Connect Notification

• Login Captcha

• Connection Diagnosis

• Auto Firmware Update
