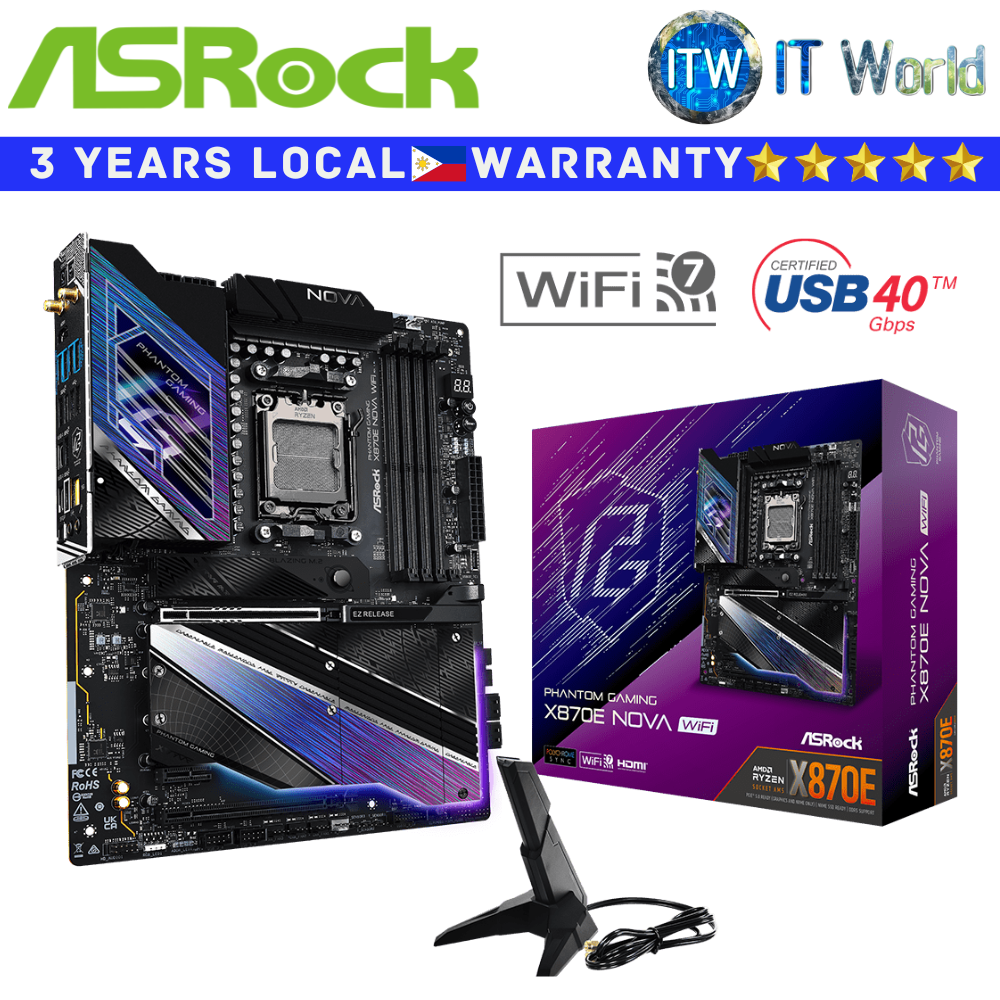

Product Name: Itw | ASRock Motherboard Phantom Gaming X870E Nova Wifi ATX AM5 DDR5

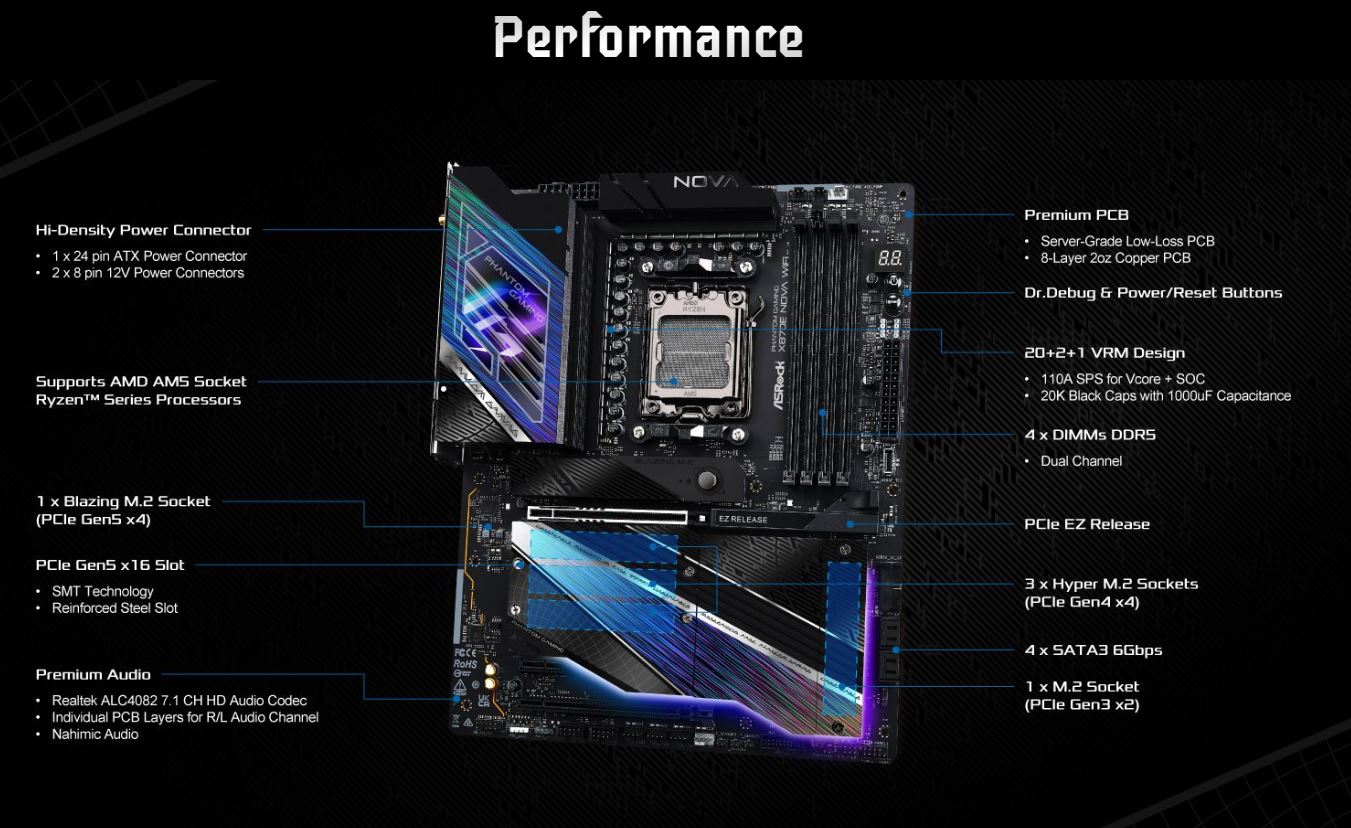

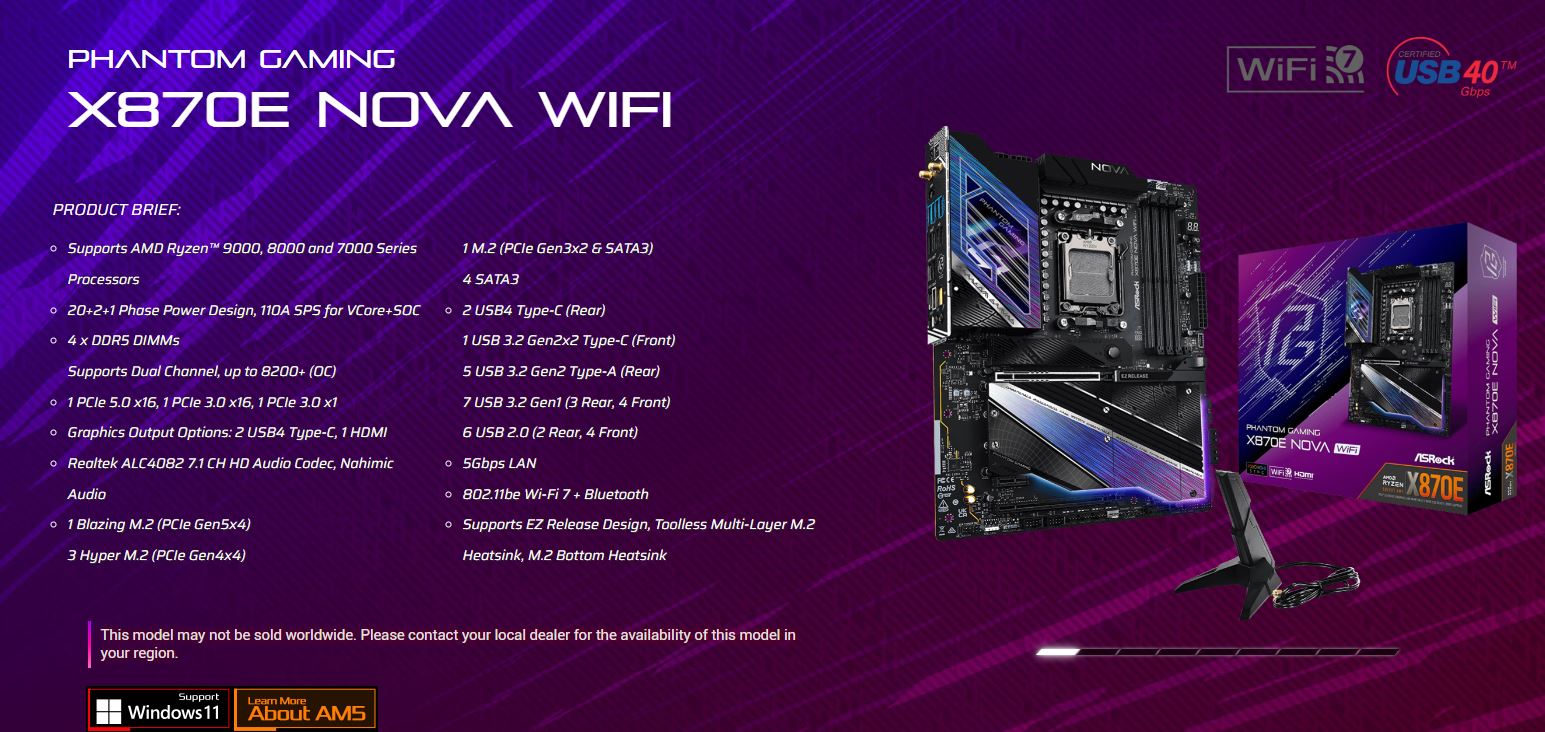

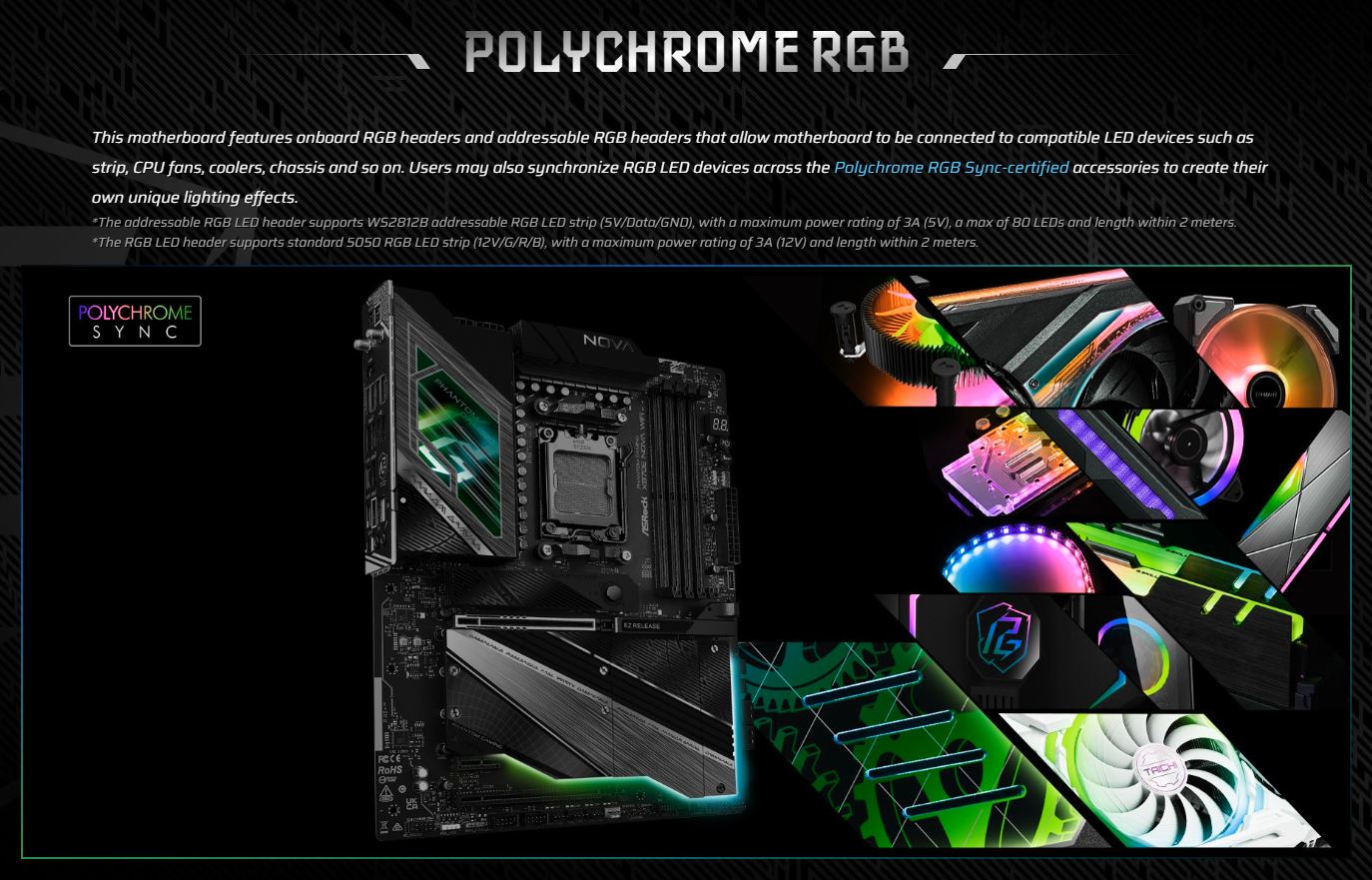

PRODUCT BRIEF
> Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors

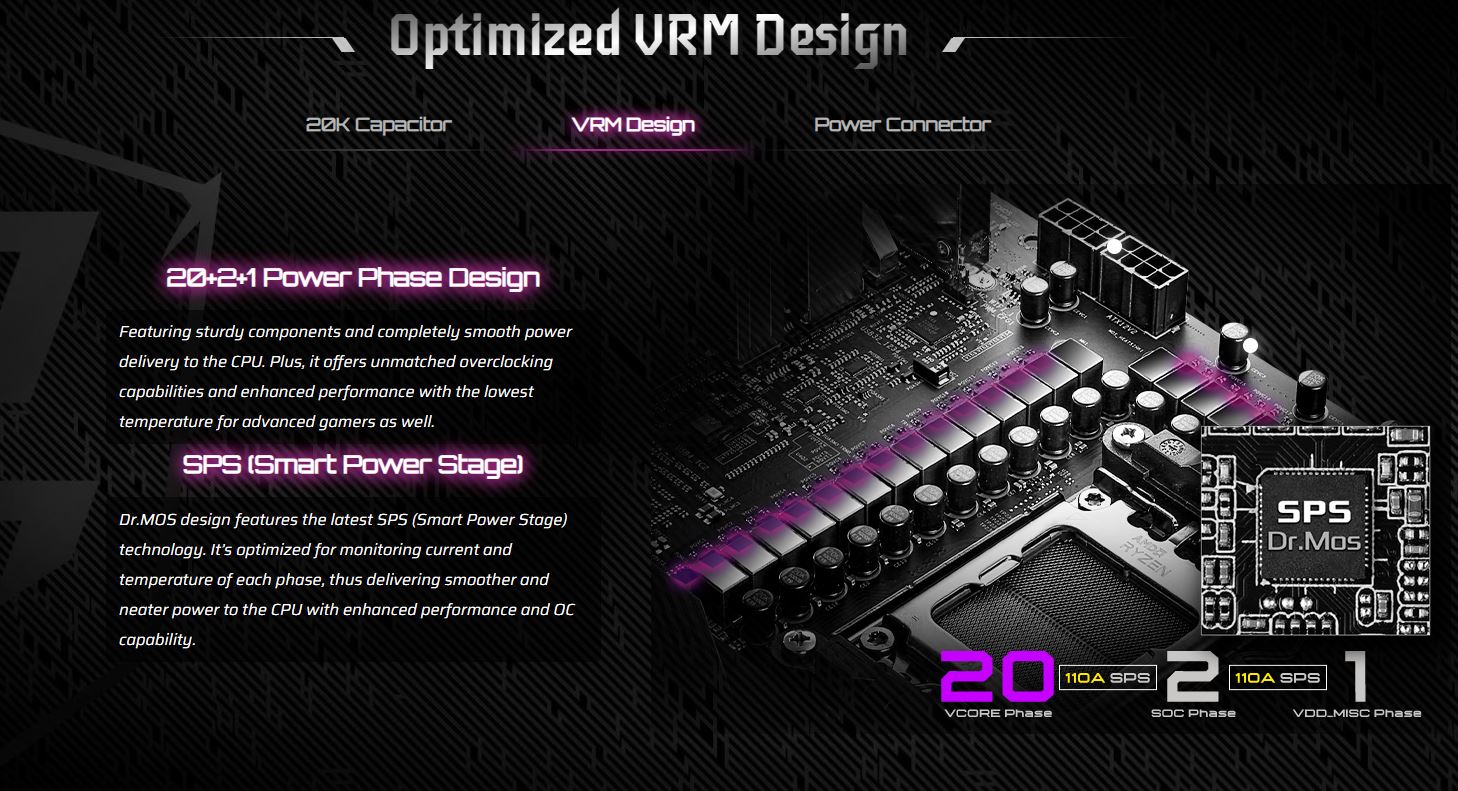

> 20+2+1 Phase Power Design, 110A SPS for VCore+SOC
> 4 x DDR5 DIMMs
> Supports Dual Channel, up to 8200+ (OC)
> 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
> Graphics Output Options: 2 USB4 Type-C, 1 HDMI
> Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio

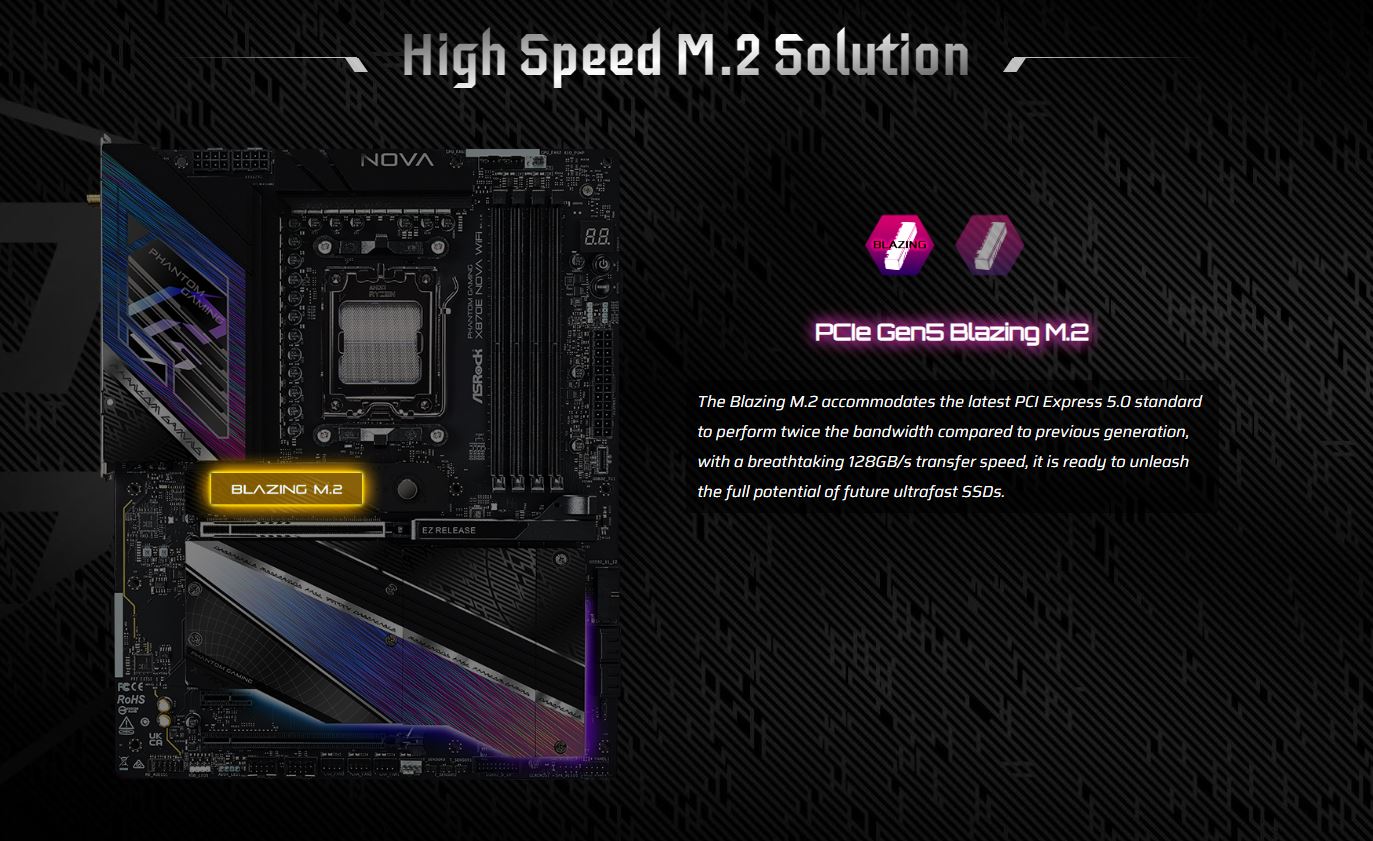

> 1 Blazing M.2 (PCIe Gen5x4)
> 3 Hyper M.2 (PCIe Gen4x4)
> 1 M.2 (PCIe Gen3x2 & SATA3)
> 4 SATA3

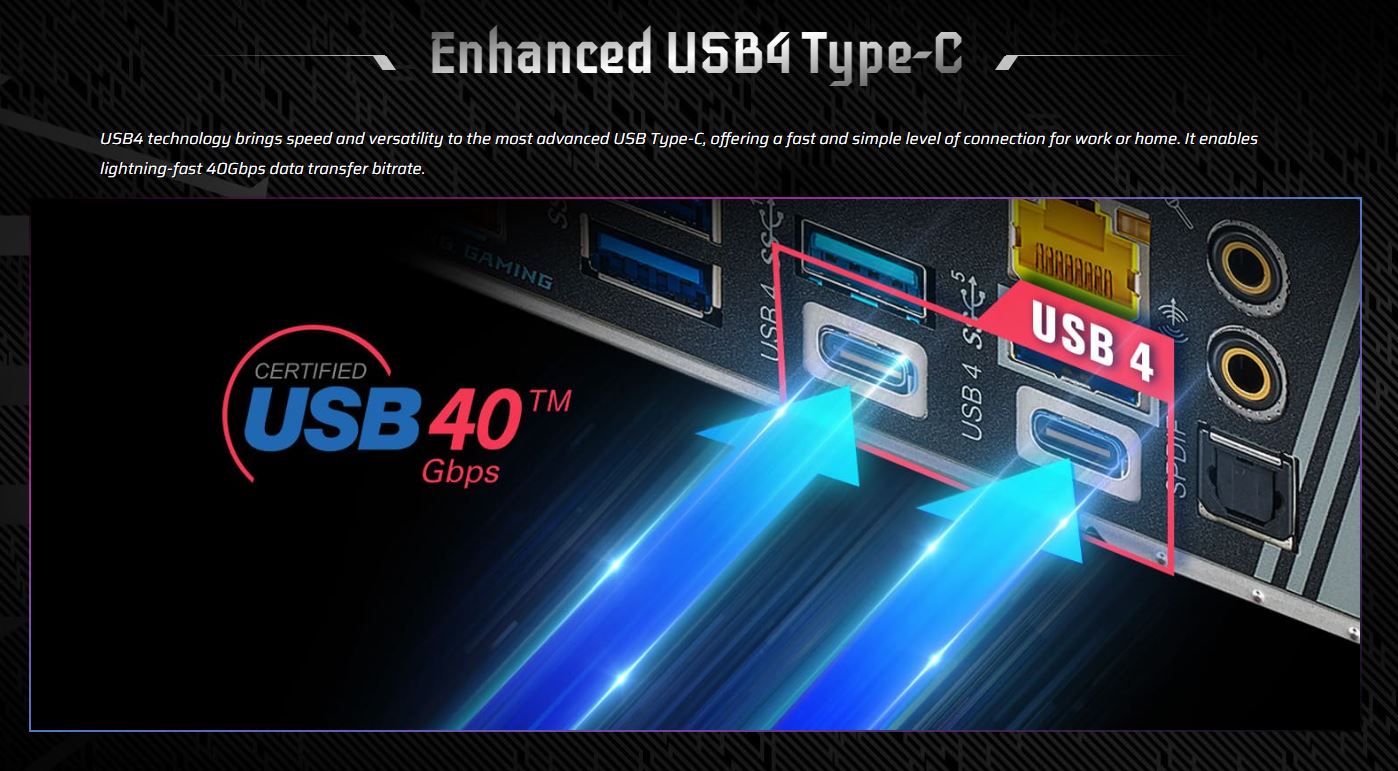

> 2 USB4 Type-C (Rear)
> 1 USB 3.2 Gen2x2 Type-C (Front)
> 5 USB 3.2 Gen2 Type-A (Rear)
> 7 USB 3.2 Gen1 (3 Rear, 4 Front)
> 6 USB 2.0 (2 Rear, 4 Front)
> 5Gbps LAN
> 802.11be Wi-Fi 7 + Bluetooth

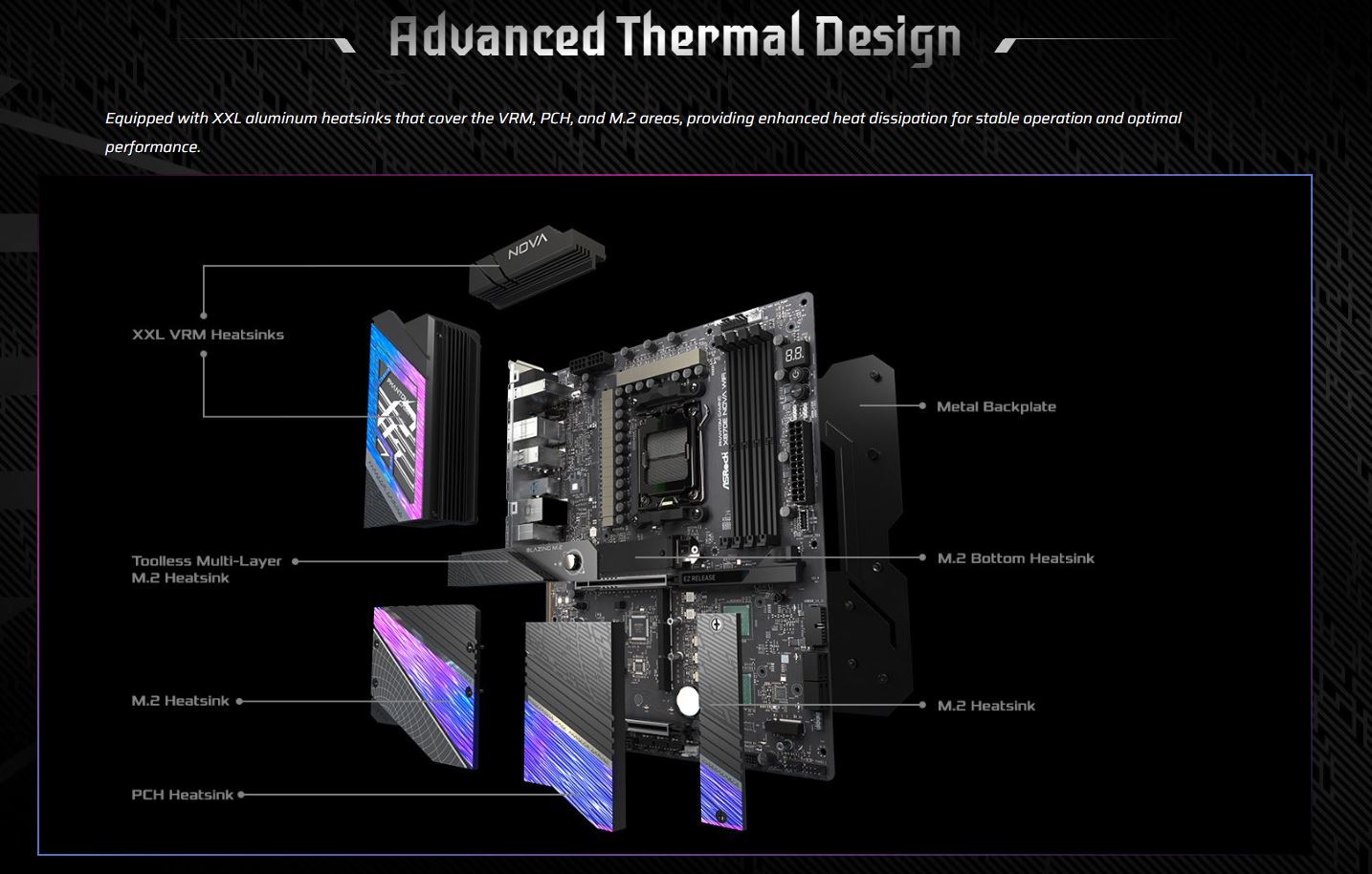

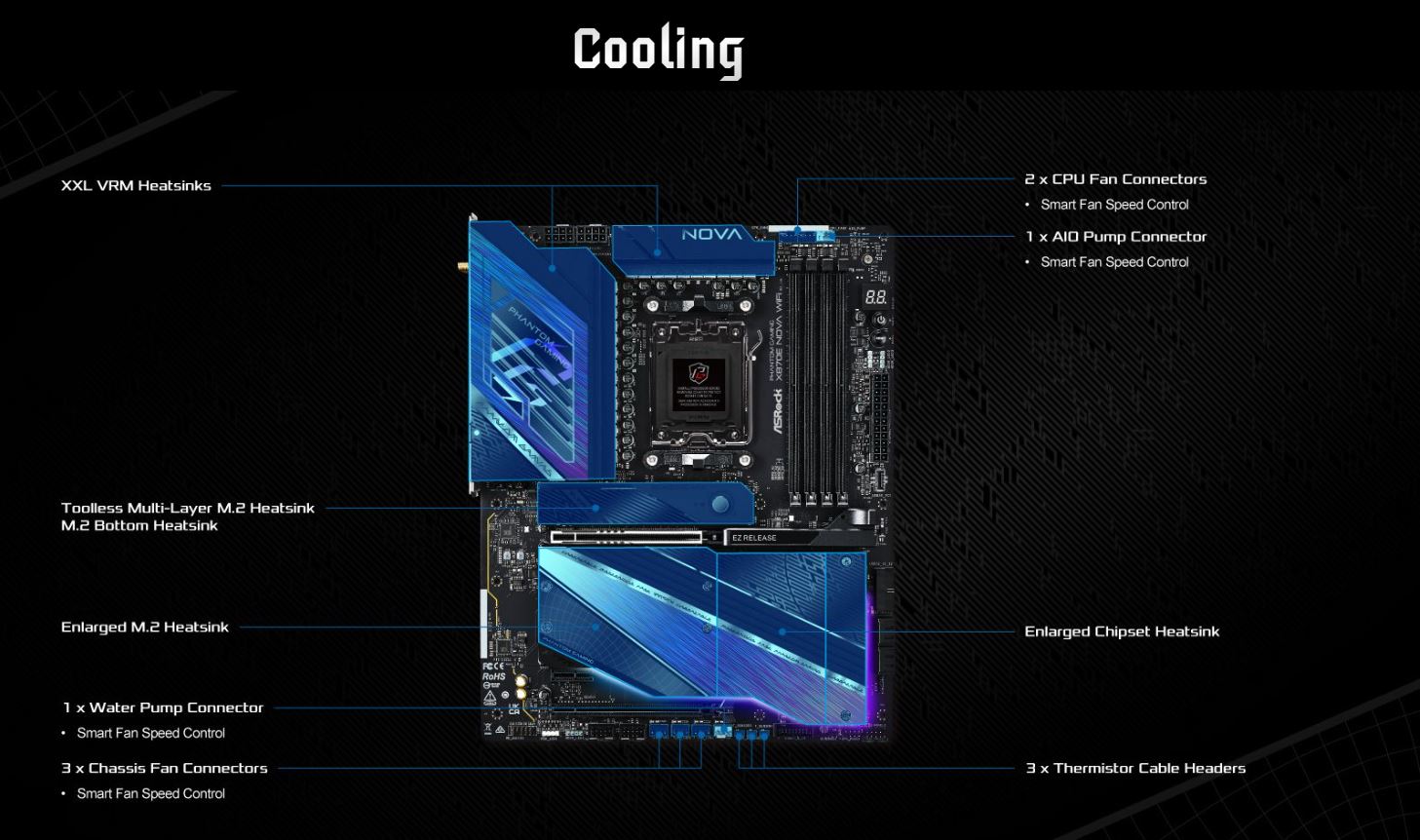

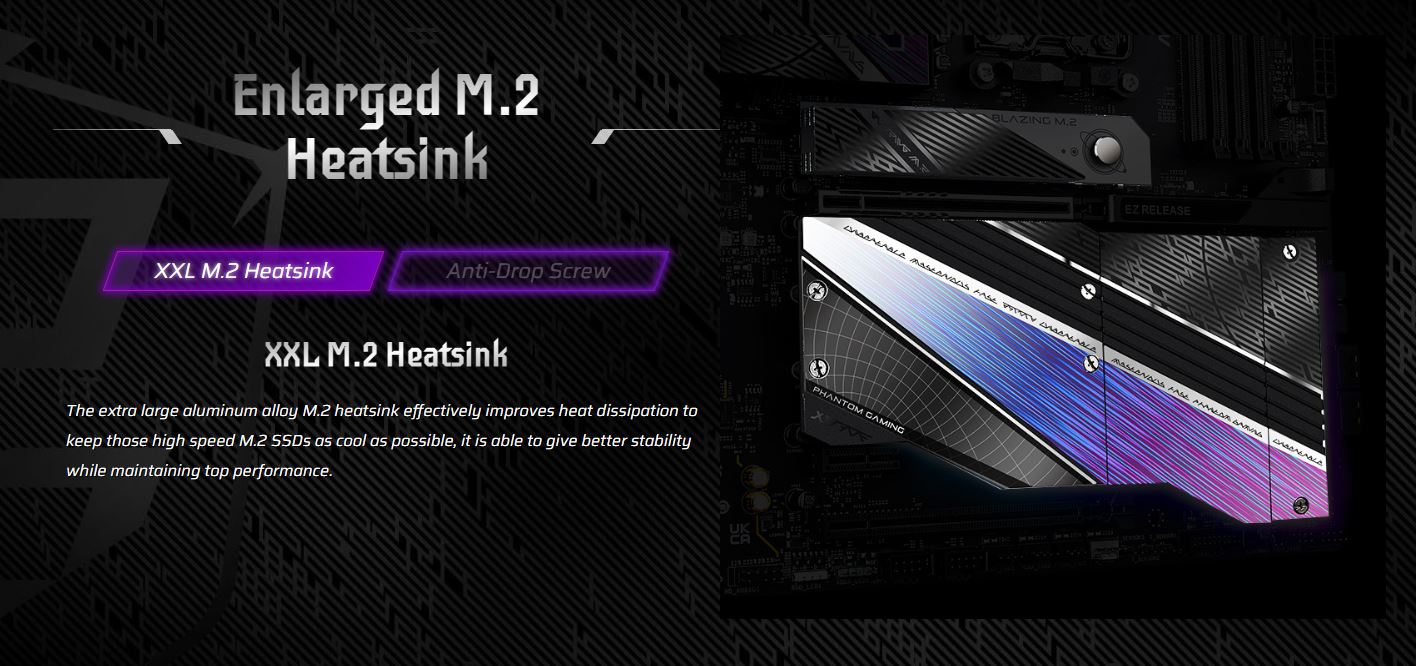

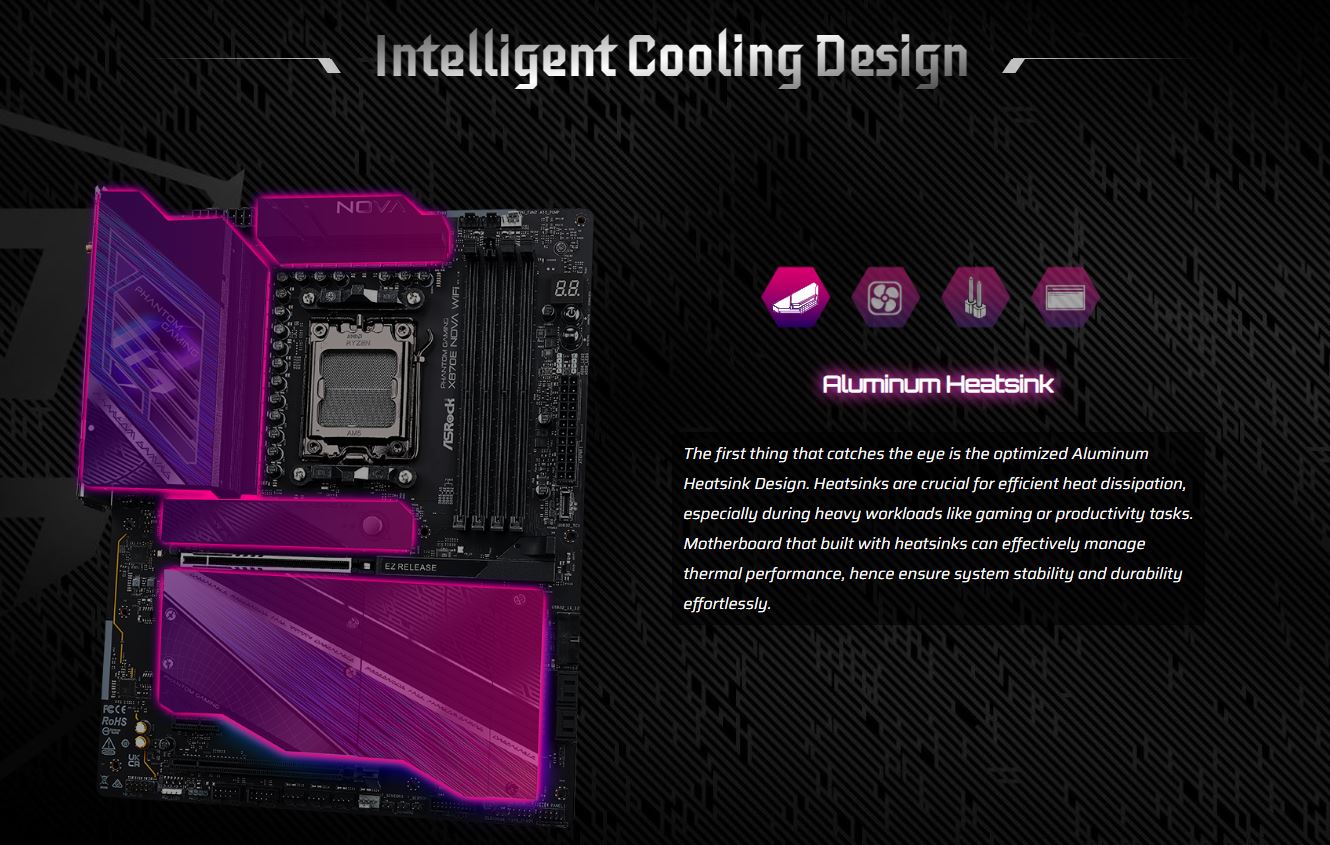

> Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
Specification
CPU
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
Chipset
> AMD X870E
Memory
> Dual Channel DDR5 Memory Technology
> 4 x DDR5 DIMM Slots
> Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*
> Max. capacity of system memory: 256GB

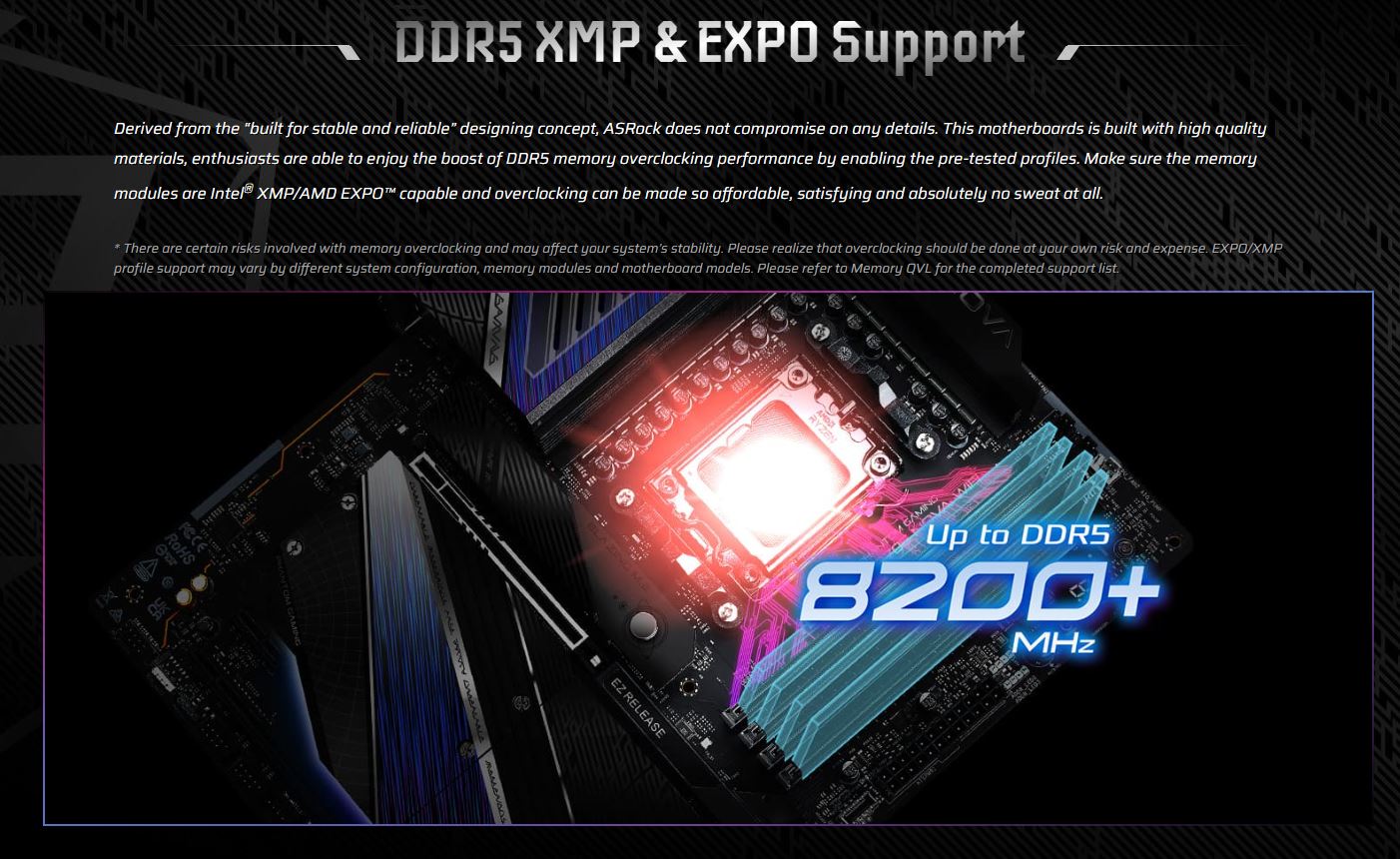

> Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Graphics
> Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*
* Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.
Audio
> 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
> Individual PCB Layers for R/L Audio Channel
> Nahimic Audio
LAN

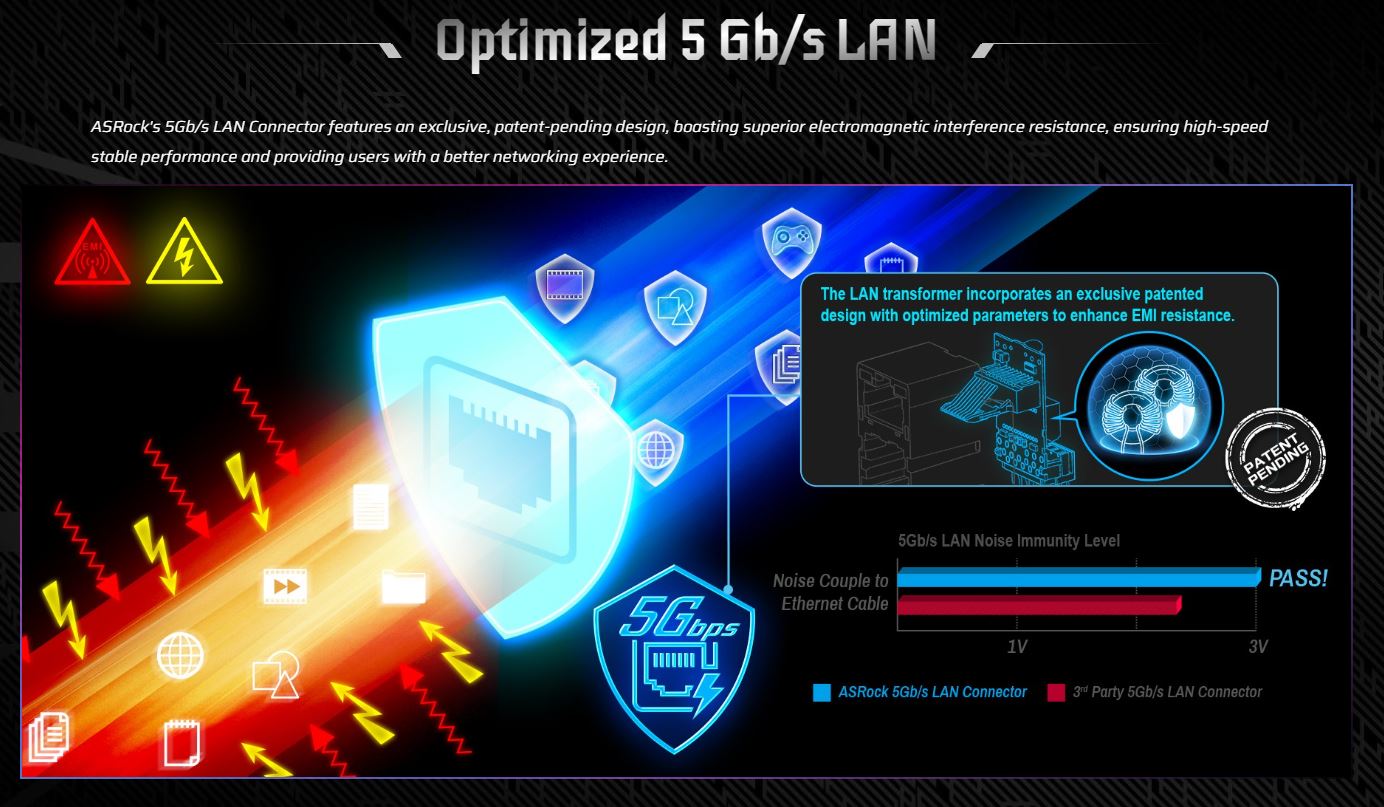

> 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
> Realtek RTL8126
Wireless LAN
> 802.11be 2x2 Wi-Fi 7 Module
> Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
> Supports 2.4GHz/5GHz/6GHz* frequency band
> Supports 160MHz channel bandwidth with 6GHz* frequency band
> 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
> Supports Bluetooth 5.4
> Supports MU-MIMO
* Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
Slots
> CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
> Chipset
- 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode*
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
> CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
> Chipset
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
- 2 x SATA3 6.0 Gb/s Connectors
> ASMedia ASM1061: 2 x SATA3 6.0 Gb/s Connectors
* M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. Supports NVMe SSD as boot disks
If M2_5 is occupied, PCIE3 will be disabled.
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. If M2_5 is occupied, PCIE3 will be disabled.
Supports NVMe SSD as boot disks
USB
> CPU
- 2 x USB4 Type-C (Rear)
- 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7))
> Chipset
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56))
- 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection

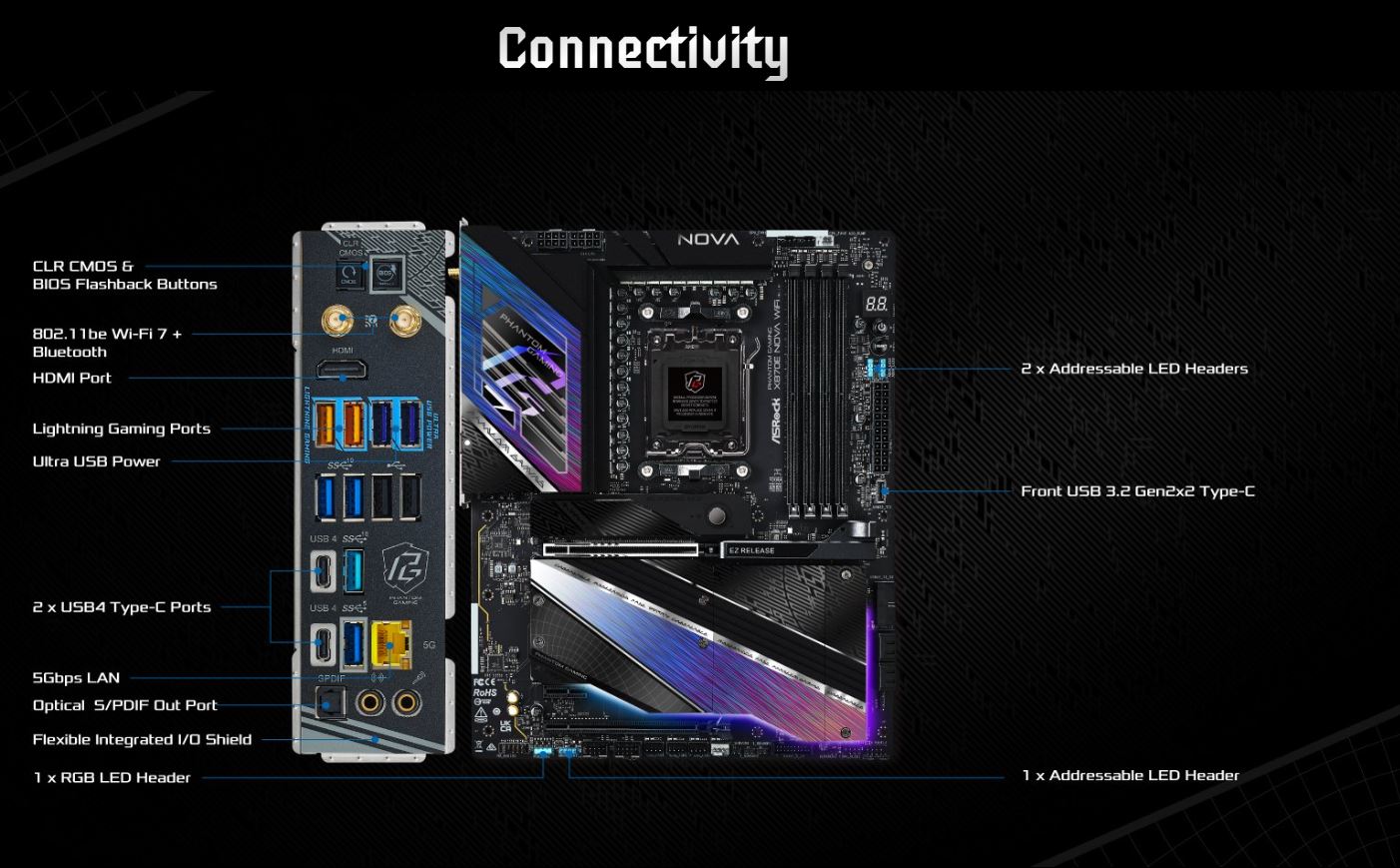

Rear Panel I/O
> 2 x Antenna Ports
> 1 x HDMI Port
> 1 x Optical SPDIF Out Port
> 2 x USB4 Type-C Ports (40 Gb/s)*

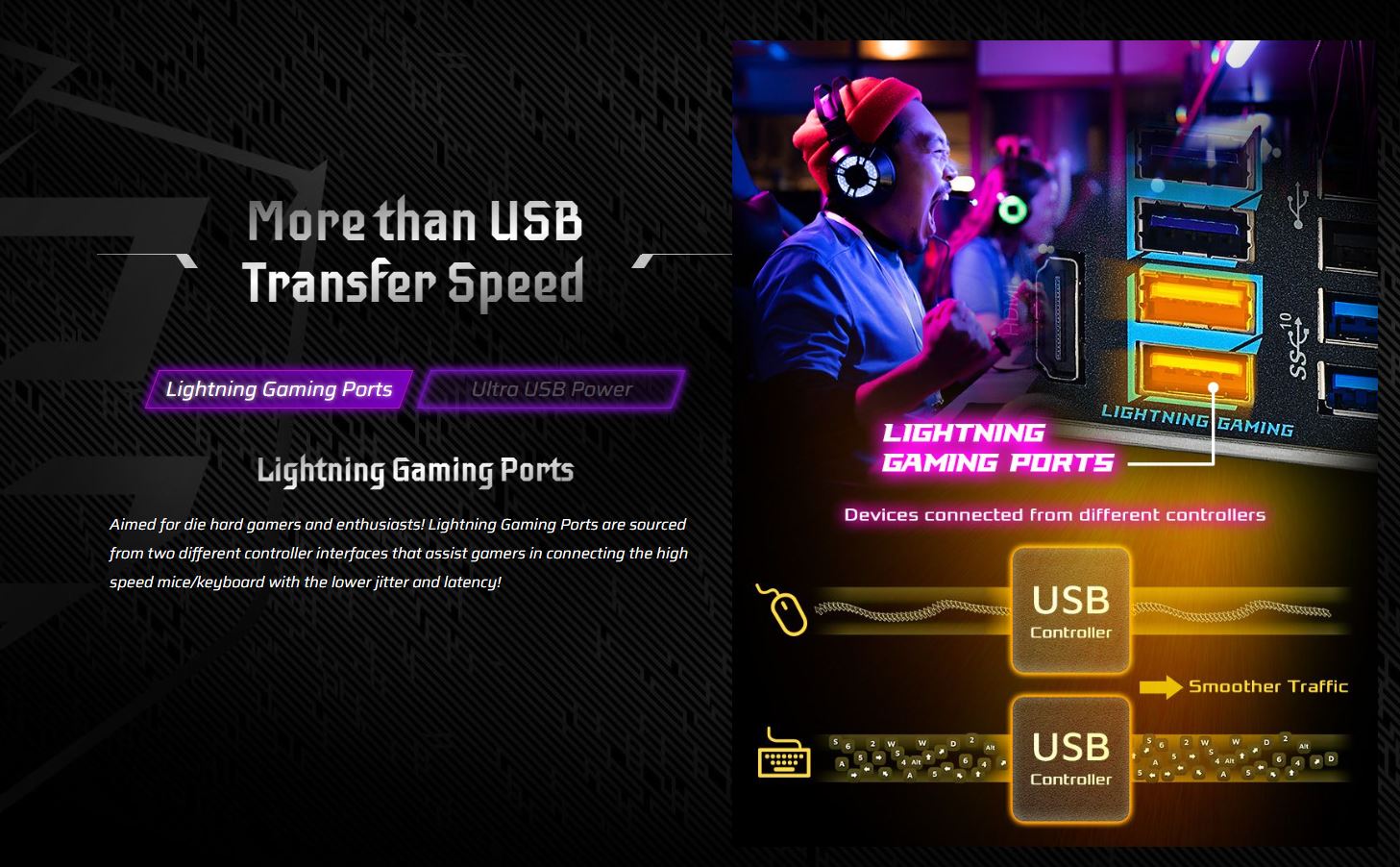

> 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
> 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
> 2 x USB 2.0 Ports
> 1 x RJ-45 LAN Port
> 1 x Clear CMOS Button
> 1 x BIOS Flashback Button
> 1 x Line Out Jack (Gold Audio Jack)
> 1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging

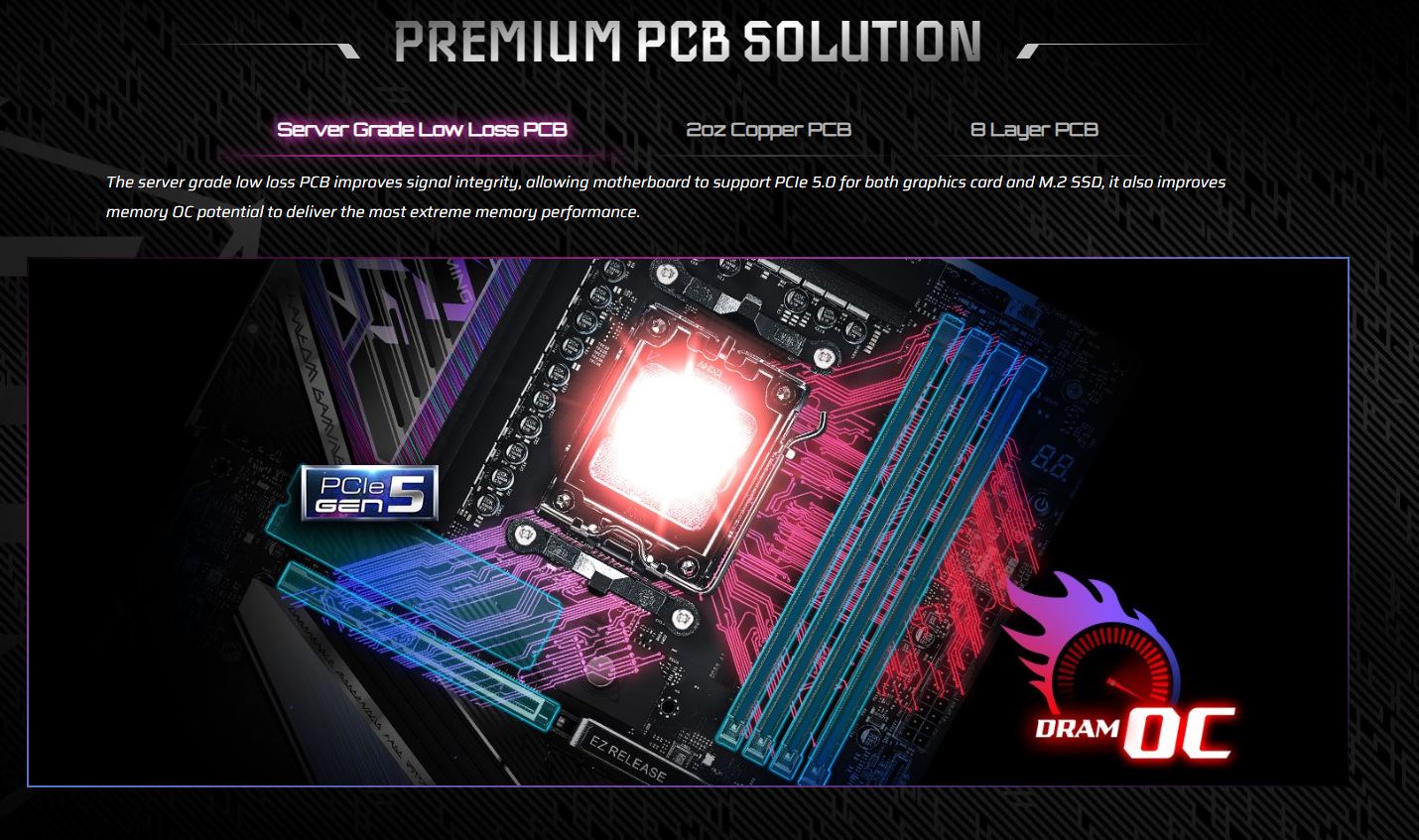

Form Factor
> ATX: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
> 8 Layer PCB
> 2oz Copper PCB
