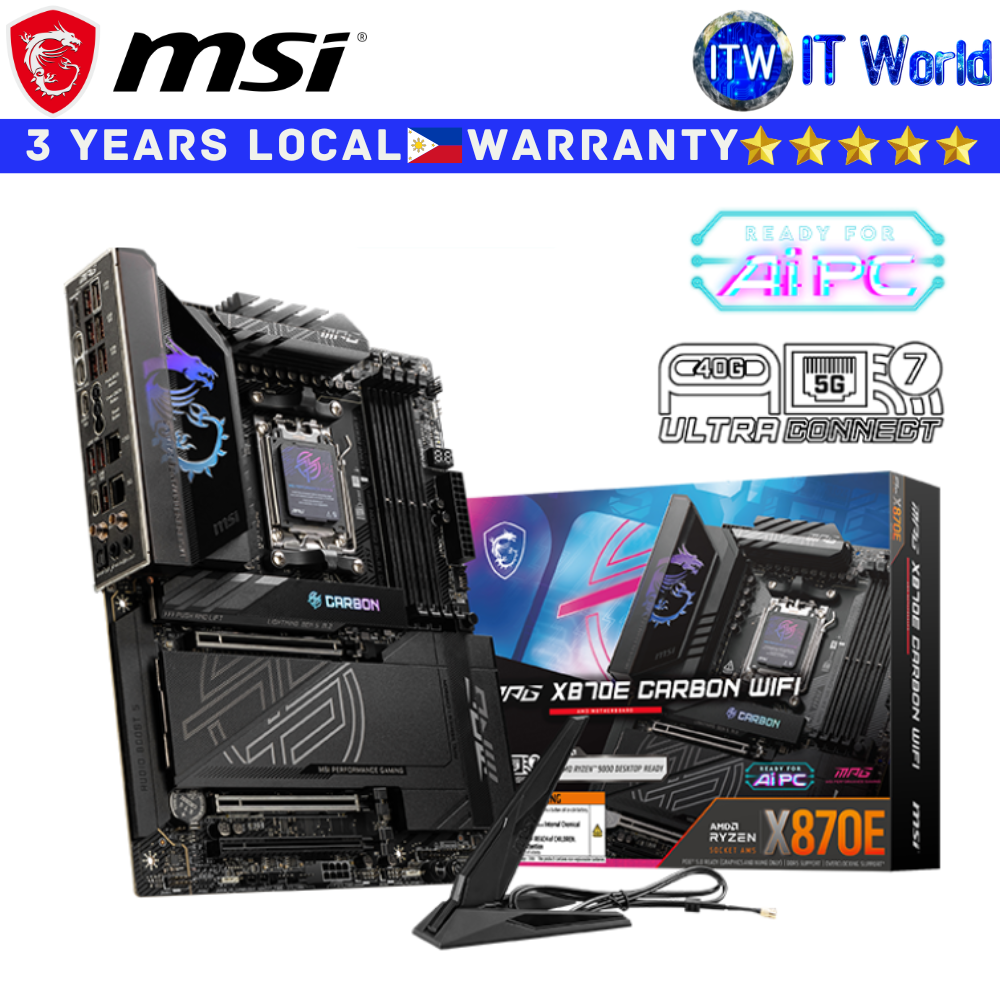

Product Name: Itw | MSI Motherboard MPG X870E Carbon Wifi ATX AM5 DDR5
MPG X870E CARBON WIFI
> Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
> Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
> Ultra Performance: 18+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
> Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
> EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
> Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
> Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
> Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification
Chipset
> AMD X870E
CPU
> Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
> Socket AM5
Chipset
> AMD X870E
Memory
> 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
> Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
> Supports AMD POR Speed and JEDEC Speed
> Supports Memory Overclocking and AMD EXPOTM
> Supports Dual-Channel mode
> Supports Non-ECC, Un-buffered memory
> Supports CUDIMM, Clock Driver bypass mode only*
Onboard Graphics
> 1x HDMI™
> Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
> 2x Type-C DisplayPort
> USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
Slot
> 3x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
> PCI_E1 & PCI_E2 slots
• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
> PCI_E3 slot
• Supports up to PCIe 4.0 x4
Audio
> Realtek® ALC4080 Codec
> 7.1-Channel USB High-Performance Audio
> Supports up to 32-Bit/384 kHz playback on front panel
> Supports S/PDIF output
Storage
> 4x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G
> M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
> M.2_2 slot*
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors
USB
> 4x USB 2.0 (Front)
> 4x USB 5Gbps Type A (Front)
> 9x USB 10Gbps Type A (Rear)
> 2x USB 10Gbps Type C (Rear)
> 1x USB 20Gbps Type C (Front)
> 2x USB 40Gbps Type C (Rear)
LAN
> 1x Realtek® 8126 5G LAN
> 1x Realtek® 8125 2.5G LAN
WIRELESS LAN & BLUETOOTH
> Wi-Fi 7 Solution
> The Wireless module is pre-installed in the M.2 (Key-E) slot
> Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
> Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
> Supports Bluetooth® 5.4**, MLO, 4KQAM
BACK PANEL PORTS
> USB 10Gbps Type-A
> Flash BIOS Button
> Clear CMOS Button
> Smart Button
> 2.5G LAN
> 5G LAN
> Audio Connectors
> HDMI™
> USB 40Gbps Type-C
> USB 10Gbps Type-C
> USB 10Gbps Type-A
> USB 10Gbps Type-C
> Wi-Fi / Bluetooth
> Optical S/PDIF Out
PCB Info
> ATX / 243.84mm x 304.8mm
