Product Name:

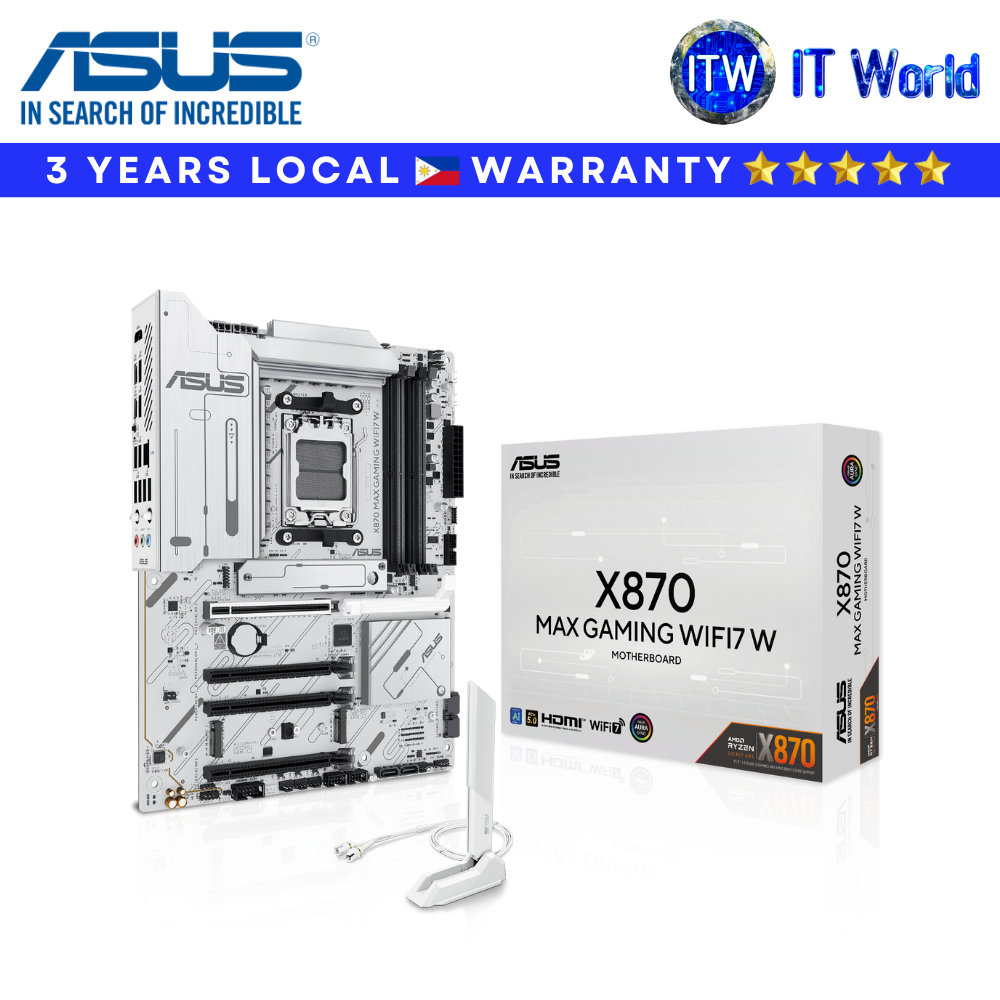

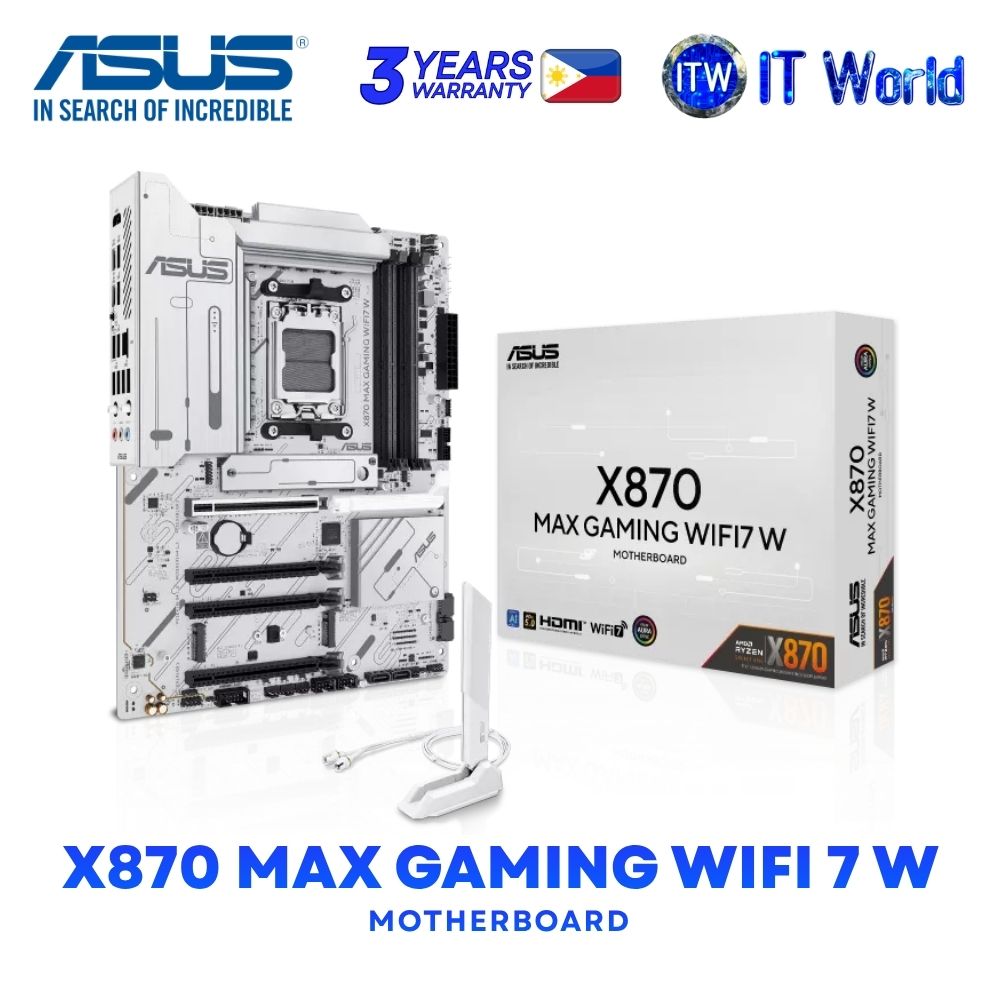

Itw | Asus Motherboard X870 Max Gaming Wifi7 W - AM5 / DDR5 / PCIe 5.0 / WiFi 7 / USB4 / ATX
Description:
The ASUS X870 MAX GAMING WIFI7 W is purpose-built for the AMD Ryzen™ 9000 Series, featuring robust power delivery, PCIe 5.0, WiFi 7, and cutting-edge USB4 connectivity. Engineered for performance, reliability, and next-gen AI-ready PCs.
Key Features:
Socket: AM5
Chipset: AMD X870
Form Factor: ATX (30.5 cm x 24.4 cm)
Memory: 4 x DDR5 DIMM, up to 256GB
Up to 8000+ MT/s (OC)
Dual channel, ECC/Non-ECC support
Supports AMD EXPO™ & ASUS AEMP
Graphics Output:
1 x HDMI 2.1 (4K@60Hz)
2 x USB4® Type-C (DisplayPort 1.4a, 4K@60Hz)
Expansion Slots:
1 x PCIe 5.0 x16
2 x PCIe 4.0 x16 (x1 mode)
1 x PCIe 3.0 x16 (x1 mode, shared with SATA6G_3/4)
Storage Support:
3 x M.2 slots (PCIe 5.0/4.0)
4 x SATA 6Gb/s ports
RAID 0/1/5/10 support (varies by CPU)
Networking:
Realtek 2.5Gb Ethernet with ASUS LANGuard
WiFi 7 (802.11be) – 2x2 (2.4/5/6GHz)
Bluetooth® 5.4
USB Ports:
Rear I/O (10 ports):
2 x USB4® Type-C (40Gbps)
1 x USB-A 10Gbps
3 x USB-A 5Gbps
4 x USB 2.0
Front I/O (7 ports):
1 x USB-C 20Gbps
2 x USB 5Gbps
4 x USB 2.0 (via headers)
Audio:
Realtek 7.1 Surround HD Audio CODEC
Premium capacitors & shielding
S/PDIF Out header
Cooling & Fan Headers:
1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump
4 x Chassis Fan headers
3 x Gen 2 Addressable RGB headers
Rear I/O Ports:
2 x USB4® Type-C
1 x USB-A 10Gbps
3 x USB-A 5Gbps
4 x USB-A 2.0
1 x HDMI
1 x 2.5Gb LAN
3 x Audio jacks
1 x Wi-Fi antenna module
1 x BIOS FlashBack™ button
Special Features:
PCIe Slot Q-Release, Q-DIMM, Q-LED
BIOS FlashBack™, pre-mounted I/O shield
AI Cooling II, Armoury Crate, Aura Sync
Fan Xpert 4, ASUS AI Advisor, CPU-Z
Included Accessories:
2 x SATA cables
1 x WiFi Q-Antenna
1 x M.2 Rubber + Screw Pack
1 x Quick Start Guide
Operating System:
Windows 11 (24H2 recommended for full WiFi 7 support)
Warranty: 3 Years (Local Warranty)
