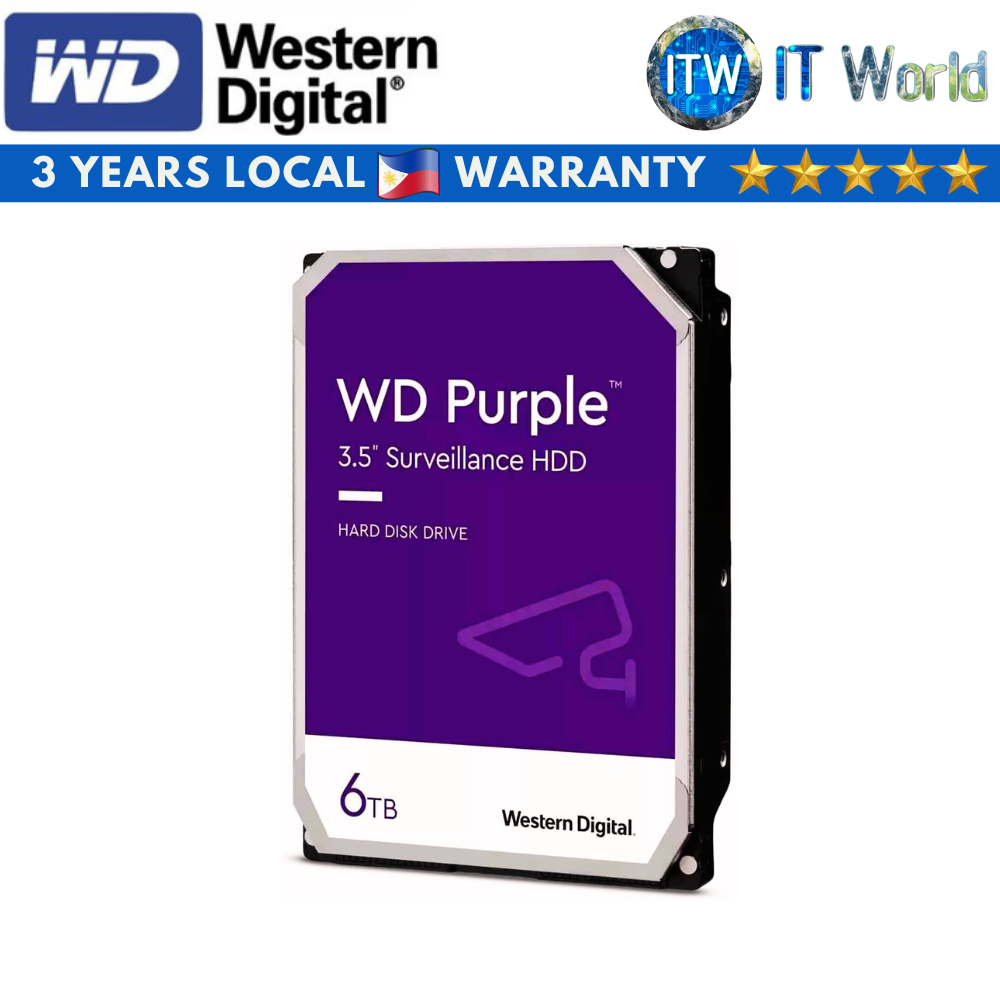

Product Name: Itw | Western Digital Purple 6TB 256MB Cache 3.5-inch SATA 6Gb/s Internal HDD (WD64PURZ)
Product Highlights
■ Designed for mainstream surveillance systems
■ WD AllFrame™ technology delivers optimizations for write-intensive, low bit-rate, high stream-count workloads typical to surveillance applications
■ Supports up to 180 TB/yr workload rate
■ 3-year limited warranty
Specifications
✎ Model Number: WD64PURZ
✎ Formatted Capacity: 6TB
✎ Form Factor: 3.5-inch
✎ Advanced Format (AF): Yes
✎ Recordig Technology: CMR
✎ RoHS compliant: Yes
Product Features
✎ Cameras supported: Up to 64 HD
✎ Maximum Drive Bays Supported: 16
✎ Firmware Feature Name: AllFrame
✎ Tarnish resistant components: Yes
✎ RV Sensors: Yes
Performance
✎ Interface
■ Buffer to host: 6 Gb/s
■ Host to/from drive (sustained): 180MB/s
✎ Cache (MB): 256
Reliability/Data Integrity
✎ Load/uncload cycles: 300,000
✎ Annualized workload rating: 180TB/yr
✎ Non-recoverable read errors per bits read: <1 in 10^14
✎ MTBF: 1,000,000
✎ Limited warranty (years): 3
Power Management
✎ Average power requirements (W)
■ Read/Write: 4.7
■ Idle: 4.3
■ Standby and Sleep: 0.3
Environmental Specifications
✎ Temperature (°C, on the base casting)
■ Operating: 0 to 65
■ Non-operating: -40 to 70
✎ Shock (Gs)
■ Operating (2ms, read/write): 30
■ Operating (2ms, read): 65
■ Non-operating (2ms): 250
✎ Acoustic (dBA)
■ Idle: 23
■ Seek (average): 27
Physical Dimensions
✎ Height (in./mm, max): 1.028/26.1
✎ Length (in./mm, max): 5.787/147
✎ Width (in./mm, ± .01 in.): 4/101.6
✎ Weight (lb/kg, ± 3%): 1.26/0.57
