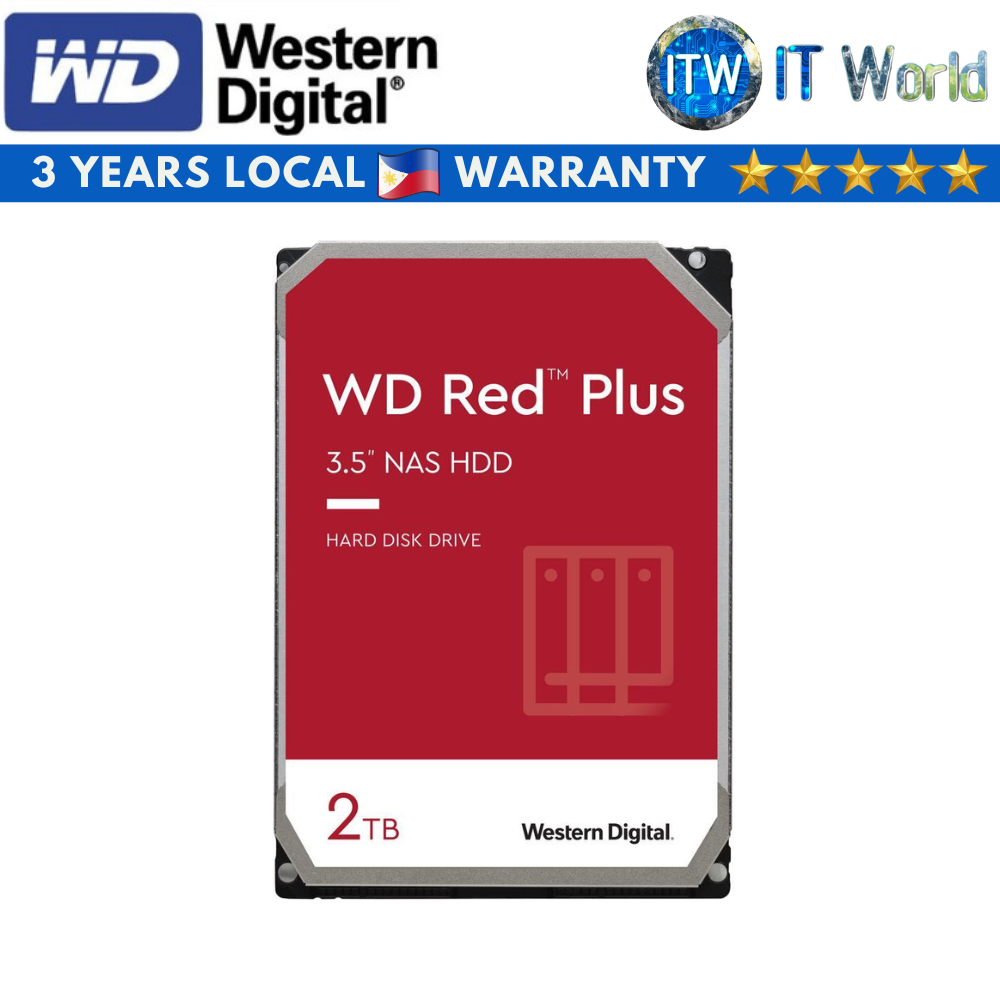

Western Digital WD Red 2TB Plus NAS 3.5" Internal Hard Drive (WD20EFPX)

Product Name: ITW | Western Digital WD Red 2TB Plus NAS 3.5" Internal Hard Drive (WD20EFPX)

Product Highlights

■ Available in capacities ranging from 1-14TB with support for NAS system with up to 8 bays

■ Supports up to 180TB/year workload rate

■ NASware™ firmware for compatibility

■ Built for small or medium business NAS systems in a 24/7 environment

■ 3-year limited warranty

Specifications

✎ Model Number: WD20EFPX

✎ Recording technology: CMR

✎ Interface: SATA 6 Gb/s

✎ Formatted capacity: 2TB

✎ Form factor: 3.5-inch

✎ Native command queuing: Yes

✎ Advanced Format (AF): Yes

✎ RoHS compliant: Yes

Performance

✎ Internal transfer rate: 180 MB/s

✎ Cache (MB): 64 MB

✎ RPM: 5400

Reliability/Data Integrity

✎ Load/unload cycles: 600,000

✎ Non-recoverable read errors per bits read: <1 in 1014

✎ MTBF (hours): 1,000,000

✎ Workload rate (TB/year): 180

✎ Limited warranty (years): 3

Power Management

✎ 12VDC ±5% (A, peak): 1.2

✎ Average power requirements (W)

■ Read/write: 4.8

■ Idle: 3.1

■ Standby and sleep: 0.4

Environmental Specifications

✎ Temperature (°C)

■ Operating: 0 to 65

■ Non-operating: -40 to 70

✎ Shock (Gs)

■ Operating, (2 ms, read/write): 70

■ Operating, (2 ms, read): 70

■ Non-operating (2 ms): 300

✎ Acoustics (dBA)

■ Idle: 21

■ Seek (average): 26

Physical Dimensions

✎ Height (in./mm, max): 1.028/26.1

✎ Length (in./mm, max): 5.787/147

✎ Width (in./mm, ± .01 in.): 4/101.6

✎ Weight (lb/kg , ± 10%): 0.99/0.45
