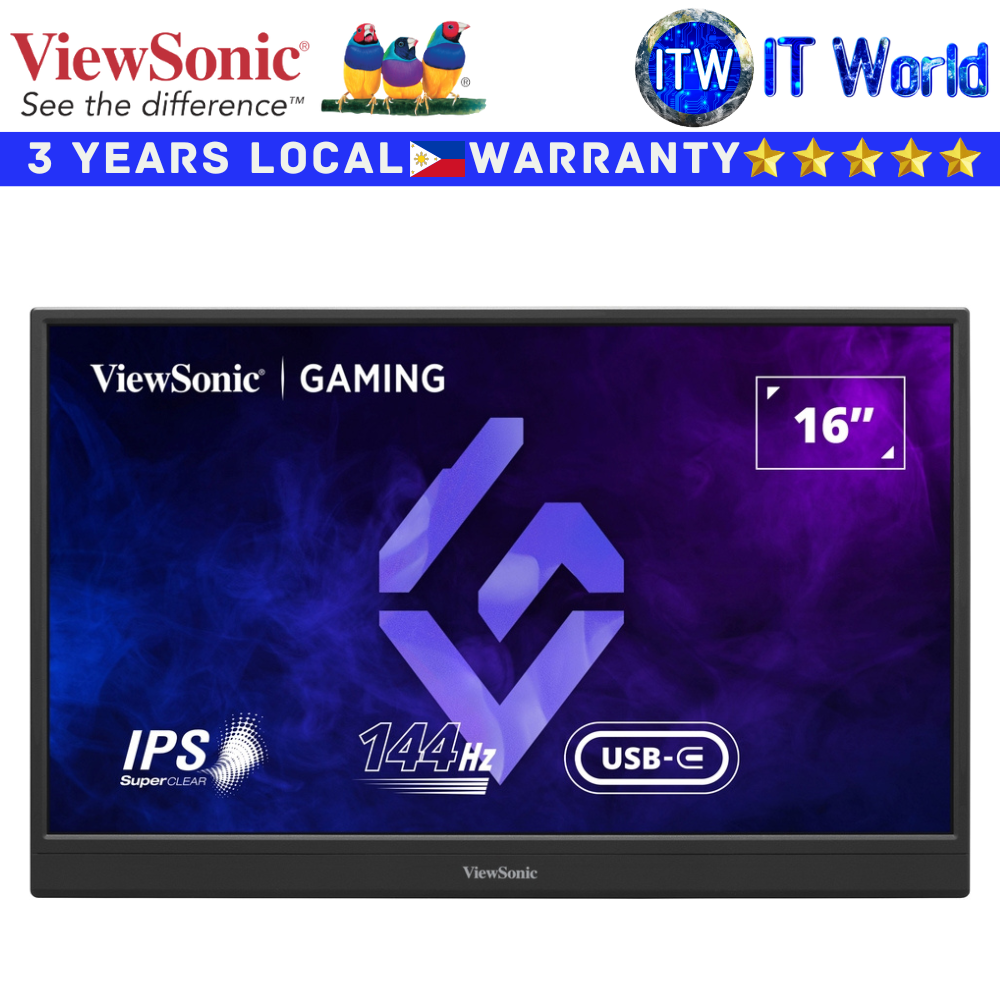

Product Name: Itw | Viewsonic Portable Gaming Monitor VX1654 16" 1920x1080 FHD / 144Hz / IPS / 4.67ms / Anti-Glare

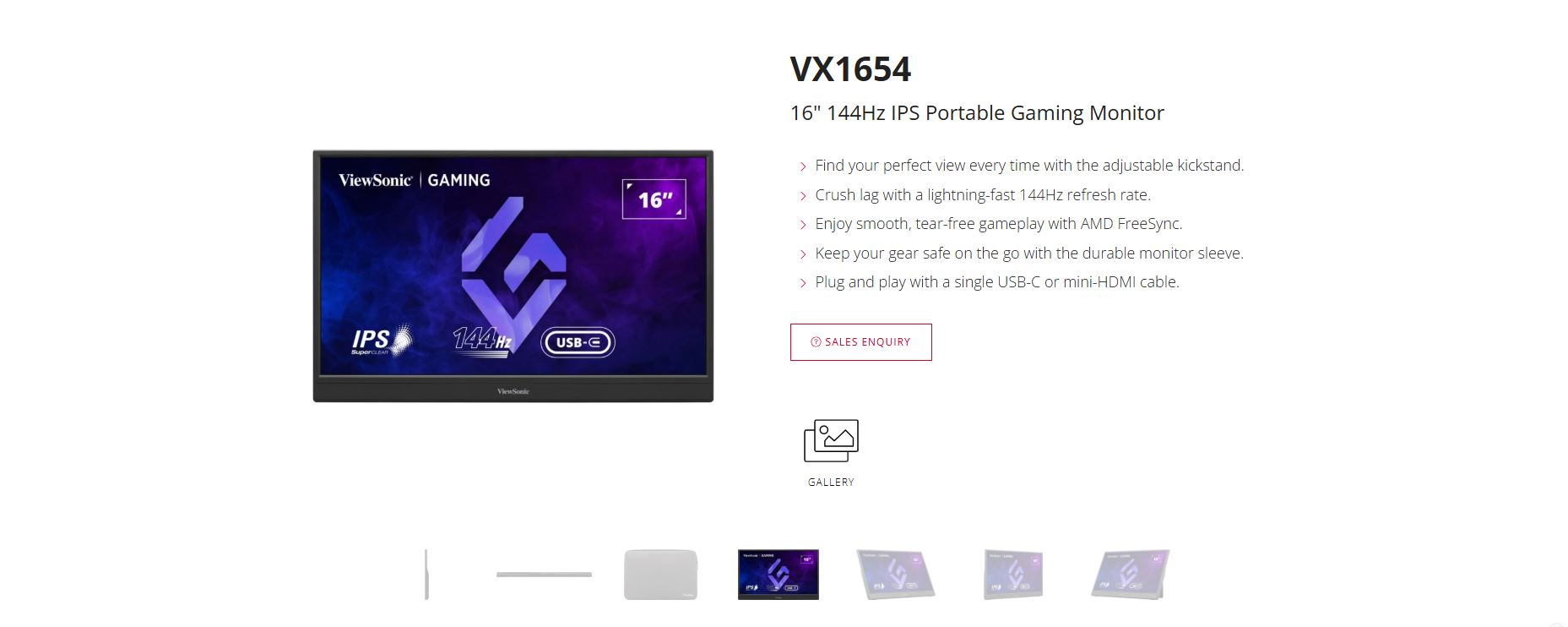

16" 144Hz IPS Portable Gaming Monitor

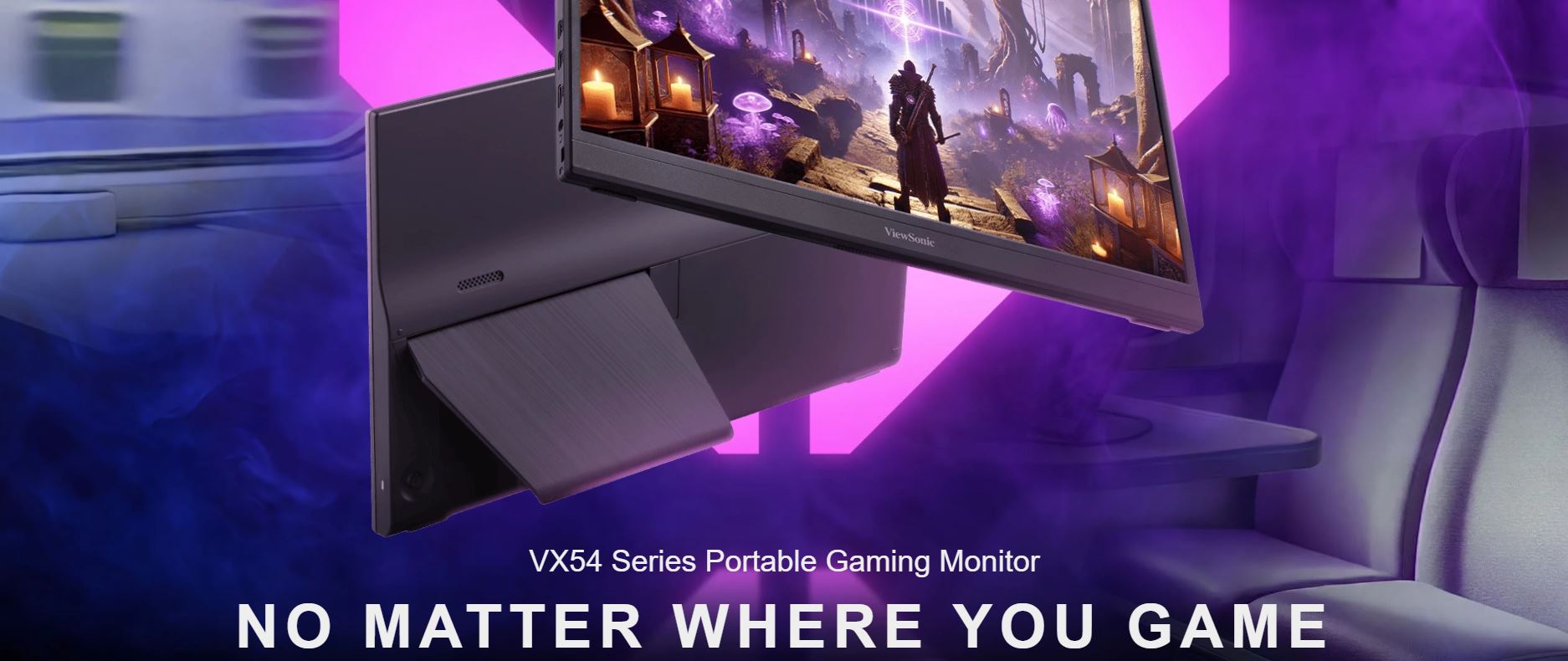

> Find your perfect view every time with the adjustable kickstand.
> Crush lag with a lightning-fast 144Hz refresh rate.
> Enjoy smooth, tear-free gameplay with AMD FreeSync.
> Keep your gear safe on the go with the durable monitor sleeve.

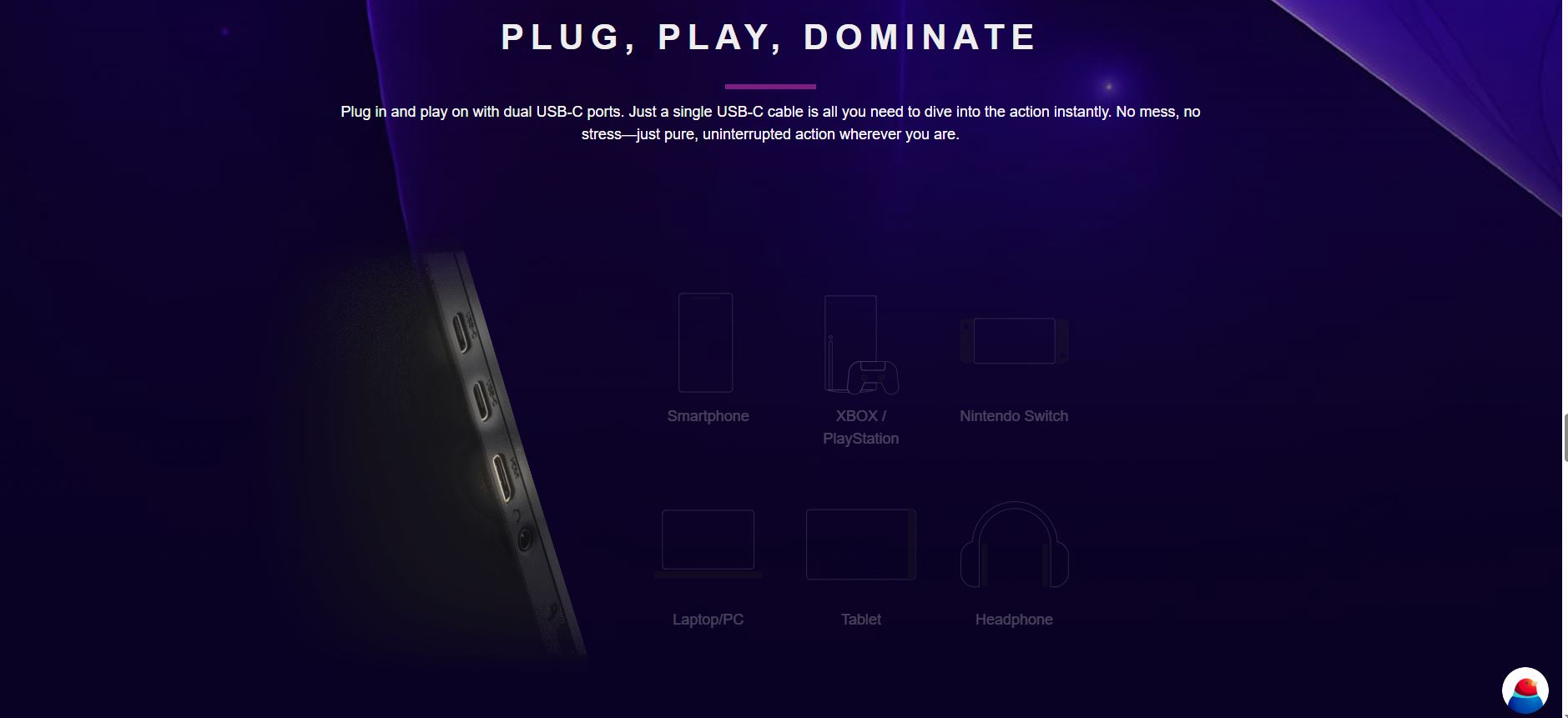

> Plug and play with a single USB-C or mini-HDMI cable.
Specification
Display
> Display Size (in.): 16
> Viewable Area (in.): 15.6
> Panel Type: IPS Technology
> Resolution: 1920 x 1080
> Resolution Type: FHD (Full HD)
> Static Contrast Ratio: 800:1 (typ)
> Dynamic Contrast Ratio: 80M:1
> Light Source: LED
> Brightness: 250 cd/m² (typ)
> Colors: 16.7M
> Color Space Support: 8 bit (6 bit + FRC)
> Aspect Ratio: 16:9
> Response Time (GTG w/OD): 4.67ms
> Viewing Angles: 170º horizontal, 170º vertical
> Backlight Life (Hours): 15000 Hrs (Min)
> Curvature: Flat
> Refresh Rate (Hz): 144
> Variable Refresh Rate Technology: FreeSync
> Low Blue Light: Software solution
> Color Gamut: NTSC: 45% size (Typ)
> sRGB: 64% size (Typ)
> Pixel Size: 0.179 mm (H) x 0.179 mm (V)
> Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
> PC Resolution (max): 1920x1080
> Mac® Resolution (max): 1920x1080
> PC Operating System: Windows 10/11 certified; macOS tested
> Mac® Resolution (min): 1920x1080
Connector
> USB 3.2 Type C DisplayPort Alt mode only : 2 (60W power charger)
> 3.5mm Audio Out: 1
> Mini HDMI: 1
> Power in: USB Type C (with video & data)
Audio
> Internal Speakers: 0.8Watts x2
Power
> Eco Mode (Conserve): 9.5W
> Eco Mode (optimized): 10.4W
> Consumption (typical): 11.3W
> Consumption (max): 11.6W
> Voltage: DC 5V/9V/12V/15V/20V
> Stand-by: 0.5W
> Power Supply: External (Optional)
Additional Hardware
> Kensington Lock Slot: 1
Controls
> Physical Controls: Up, Right, Down, Left, Power
> On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
> Temperature: 32°F to 104°F (0°C to 40°C)
> Humidity (non-condensing): 20% to 90%
Input Signal
> Frequency Horizontal: mini HDMI (v2.0): 24 ~ 165KHz, Type C: 165 ~ 165KHz
> Frequency Vertical: mini HDMI (v2.0): 48 ~ 144Hz, Type C: 48 ~ 144Hz
Video Input
> Digital Sync: TMDS - mini HDMI (v2.0), Micro-Packet - Type C
Ergonomics

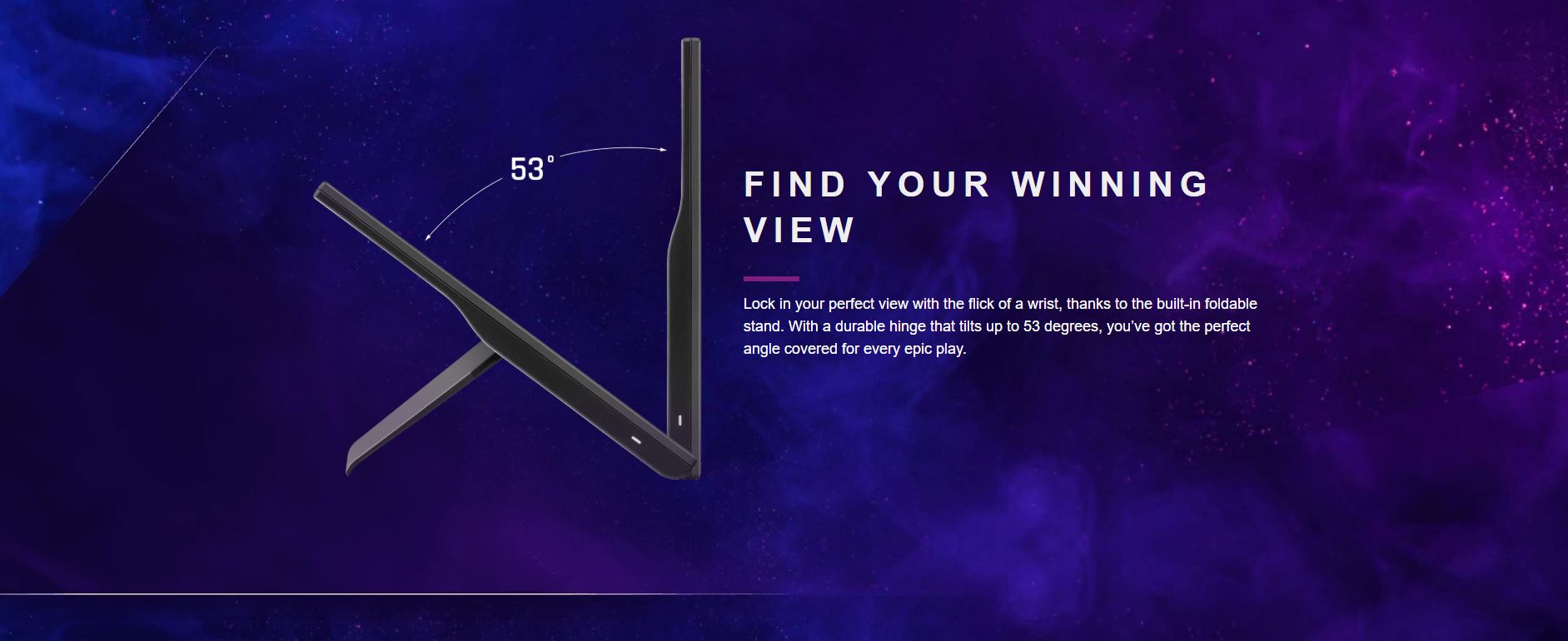

> Tilt (Forward/Back): 30º / 53º
Weight (imperial)

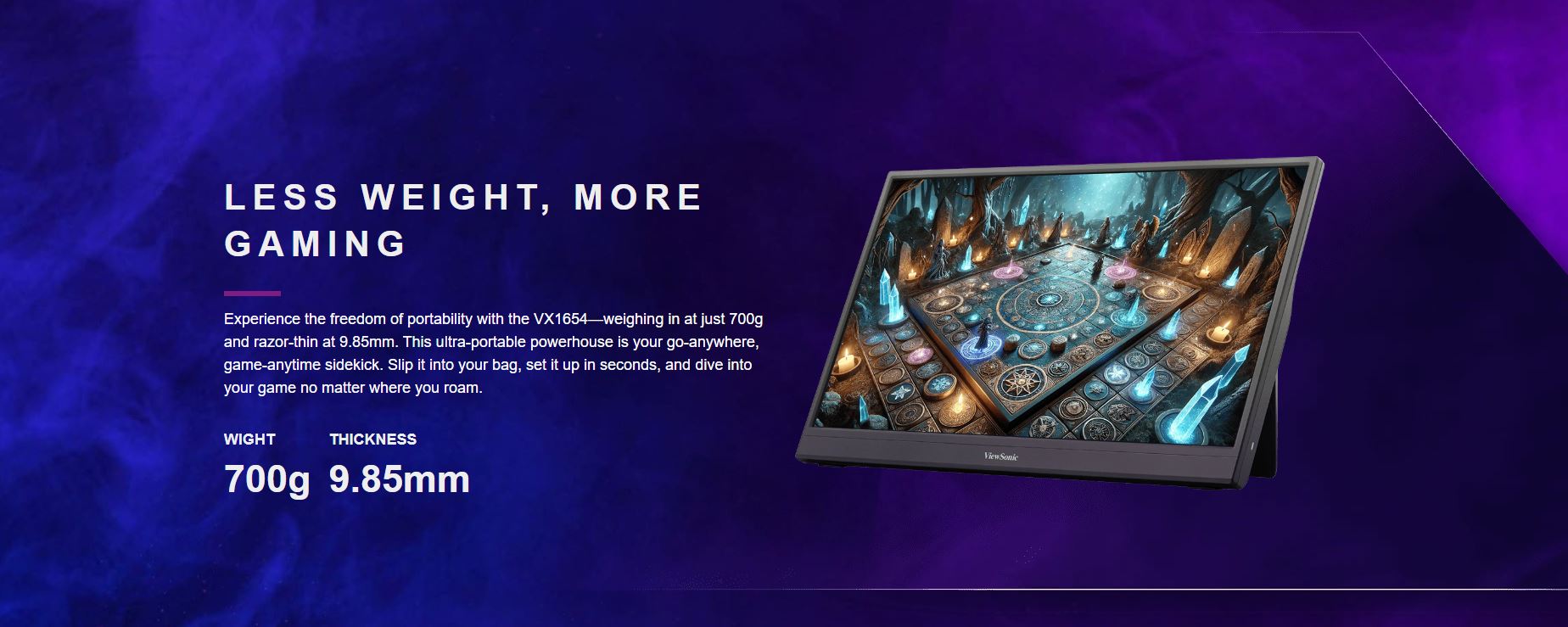

> Net (lbs): 1.5
> Net Without Stand (lbs): 1.5
> Gross (lbs): 3.5
Weight (metric)
> Net (kg): 0.7
> Net Without Stand (kg): 0.7
> Gross (kg): 1.6

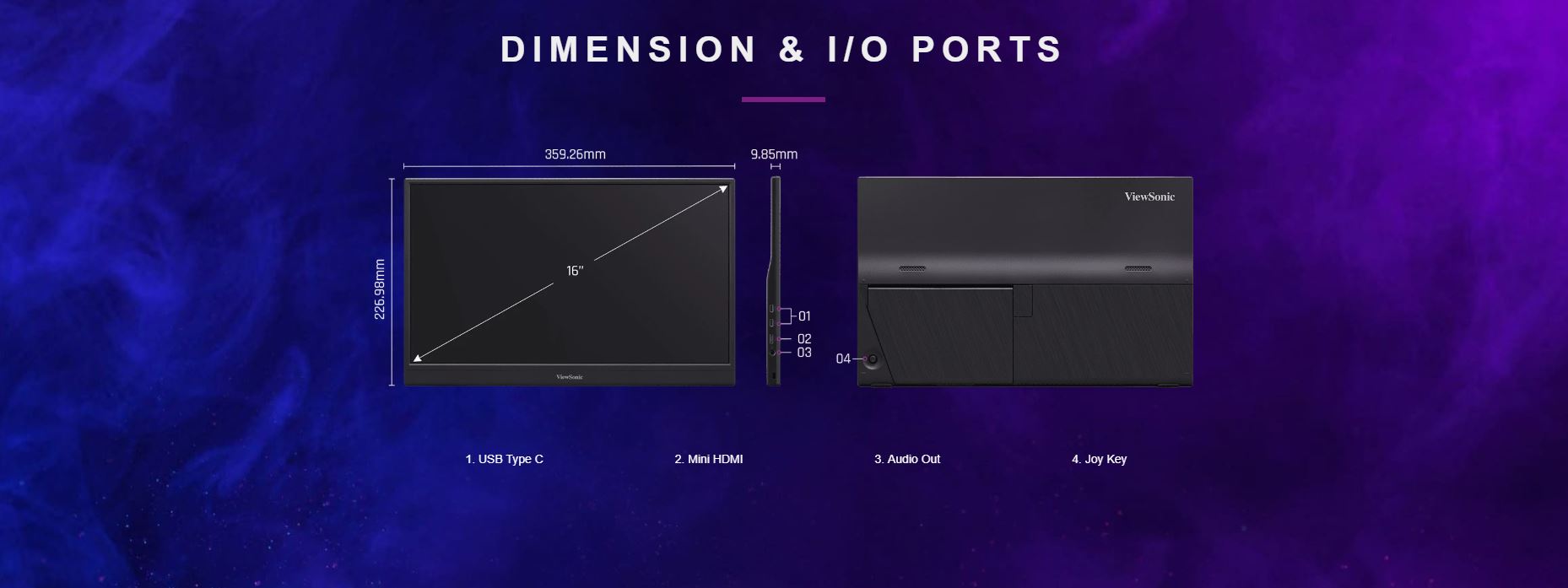

Dimensions (imperial) (wxhxd)
> Packaging (in.): 17.6 x 15.1 x 3.7
> Physical (in.): 14.14 x 8.94 x 0.7
> Physical Without Stand (in.): 14.14 x 8.94 x 0.7
Dimensions (metric) (wxhxd)
> Packaging (mm): 446 x 383 x 93
> Physical (mm): 359.26 x 226.98 x 17.85
> Physical Without Stand (mm): 359.26 x 226.98 x 17.85
General
> Regulations: cTUVus, FCC-B, ICES003, Energy Star, CEC, NRCan, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI
> PACKAGE CONTENTS: VX1654 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, Sleeve case x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
> Warranty: *Warranty offered may differ from market to market
> Power Management: Energy Star standards
