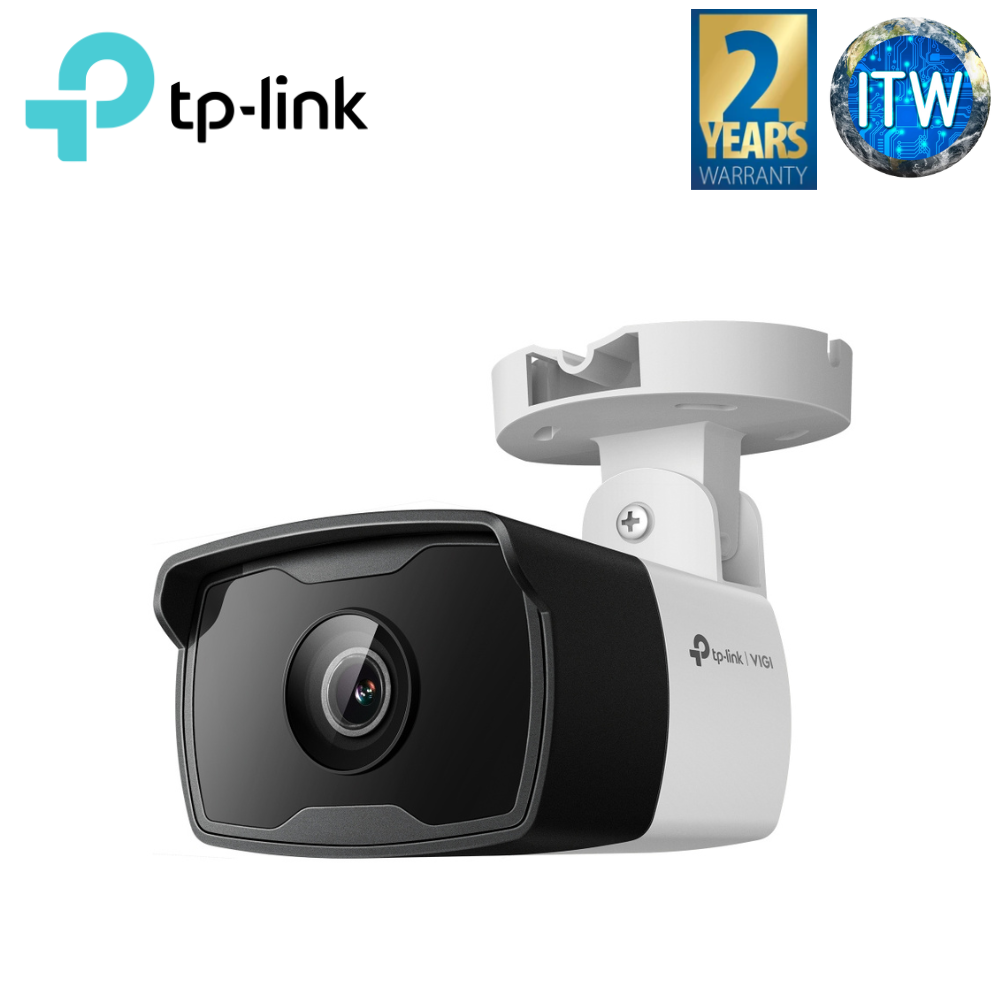

TP-Link VIGI C340I 4MP Outdoor IR Bullet Network Camera(4mm)

Product Name: TP-Link VIGI C340I 4MP Outdoor IR Bullet Network Camera(4mm)

■ 4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.

■ Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

■ Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

■ Smart Video Enhancement: VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

■ H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

■ Waterproof: Reliable IP67 for stable outdoor performance.

■ PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

■ 2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.

■ Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Specification

CAMERA

✎ Image Sensor: 1/3” Progressive Scan CMOS

✎ Lens: 2.8 mm/ 4 mm/ 6 mm

✎ Aperture

■ 2.8 mm: F2.2

■ 4 mm: F2.2

■ 6 mm: F2.0

✎ Lens Mount: M12

✎ Viewing Angle

■ 2.8mm: 88.8°/48.9°/106.5°(H/V/D)

■ 4mm: 75.1°/41.5°/88.7°(H/V/D)

■ 6mm: 47.7°/26.5°/56°(H/V/D)

✎ Day/Night Mechanism: IR Cut Filter

✎ IR Working Distance: 30m

✎ Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR

✎ Weatherproof Rating: IP67

✎ Digital Noise Reduction: 3D DNR

✎ WDR: DWDR

NETWORK

✎ Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

✎ Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,

RTSP, NTP, UPnP UDP, SSL/TLS

✎ API: ONVIF

✎ Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

✎ Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

GENERAL

✎ Package Contents

■ VIGI Network Camera

■ Quick Start Guide

■ Waterproof Cable Attachments

■ Mounting Accessories

✎ Operating Temperature: -30–60 °C

✎ Certifications: CE/BSMI/VCCI/ONVIF

✎ Dimensions( H X W X D ): 174 × 74 × 71 mm

✎ Material: Plastic

✎ General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

POWER REQUIREMENTS

✎ Power Supply

■ 12V DC ± 5%, 5.5mm Coaxial Power Plug

■ PoE (802.3af/at, class 0)

✎ Power Consumption

■ 12V DC: Max 5W

■ PoE: Class 0

VIDEO/IMAGE

✎ Video Compression

■ Main Stream: H.265+/H.265/H.264+/H.264

■ Sub-Stream: H.265/H.264

✎ Frame Rate & Resolutions

■ Main Stream:

*Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

*Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720

■ Sub-Stream:

*Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

*Resolution: 640x480,352x288, 320x240

✎ Max. Resolution: 4MP (2560 × 1440)

✎ Video Streaming

■ Main Stream

■ Sub-Stream

✎ Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

✎ Image Enhancement: BLC/3D DNR/HLC/SmartIR

✎ Video Bit Rate: 64 Kbps to 4 Mbps

✎ Day/Night Switch: Day/Night/Auto/Schedule

SMART FEATURE-SET

✎ Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

✎ Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

✎ Linkage Method: Trigger Notification: ONVIF, HTTPS

✎ Region of Interest: 1 Region

INTERFACES

✎ Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port

✎ Button: -

✎ Video Output: -
