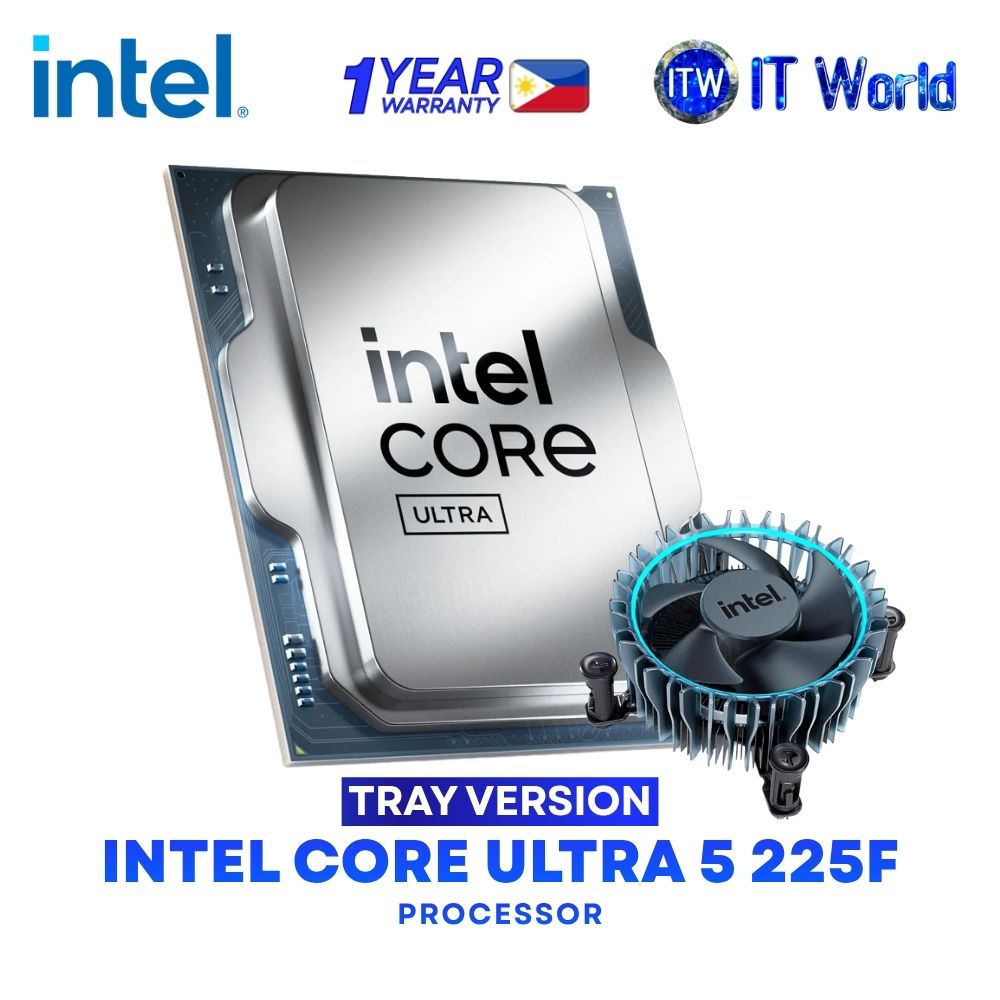

Intel Core Ultra 5 225F 20M Cache, up to 4.90Ghz Desktop Processor - Tray Type
Powerful 10-Core Performance
🔥 10 Cores / 10 Threads — 6 Performance-cores + 4 Efficient-cores
⚡ Max Turbo Frequency: Up to 4.90 GHz
🎯 Performance-core Max Turbo: 4.90 GHz
⚙️ Efficient-core Max Turbo: 4.40 GHz
💨 Performance-core Base: 3.30 GHz
🔧 Efficient-core Base: 2.70 GHz
Cache & Processing
💾 Intel Smart Cache: 20 MB
💾 Total L2 Cache: 22 MB
🏗️ CPU Lithography: TSMC N3B
⚡ Processor Base Power: 65 W
🔥 Maximum Turbo Power: 121 W
AI-Ready Processing
🧠 Intel AI Boost NPU
🚀 NPU Peak Performance: 13 TOPS (Int8)
💡 Supports Intel Deep Learning Boost (Intel DL Boost)
🔗 AI software frameworks supported: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
✨ Windows Studio Effects Support
📈 Sparsity Support
Memory Support
🧩 Supports up to 256 GB maximum memory size
⚡ DDR5 up to 6400 MT/s
🔄 2 Memory Channels
❌ ECC Memory Supported: No
Expansion & Connectivity
🛠️ PCI Express 5.0 & 4.0
🔗 Up to 24 PCI Express lanes
📡 DMI Revision 4 with up to 8 DMI lanes
🖥️ PCIe configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
❌ Intel Thunderbolt 4: No
Graphics
🚫 Integrated Graphics Output: N/A
🚫 Xe-cores: 0
🚫 Displays Supported: 0
🚫 Intel Quick Sync Video: No
Package & Thermal Specifications
🔧 Socket: FCLGA1851
📦 Processor Package Size: 45 mm × 37.5 mm
🌡️ Maximum Operating Temperature: 105°C
🧊 Thermal Solution Specification: PCG 2022C
Advanced Technologies
🧠 Intel Thread Director
⚡ Intel Speed Shift Technology
🚀 Intel Turbo Boost Technology 2.0
🔐 Intel Virtualization Technology (VT-x)
🔌 Intel Virtualization Technology for Directed I/O (VT-d)
🛡️ Intel Secure Key, Control-Flow Enforcement Technology, AES New Instructions
🔒 Intel Trusted Execution Technology & Execute Disable Bit
🛡️ Intel OS Guard & Intel Boot Guard
💻 64-bit Instruction Set with Intel SSE4.1, SSE4.2 & AVX2 extensions
Product Type: Tray Type Desktop Processor
🏷️ Model: Intel Core Ultra 5 225F
🔌 Socket: FCLGA1851
