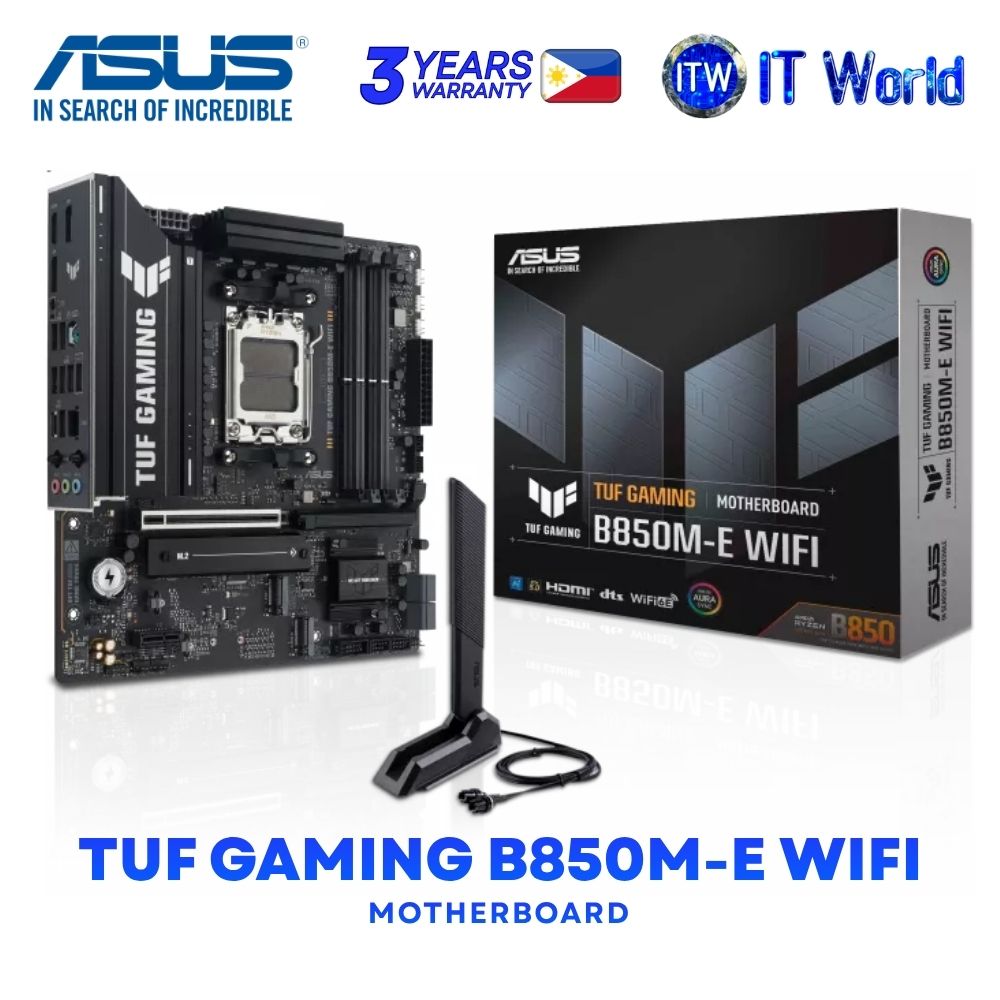

ASUS TUF Gaming B850M-E Wifi micro-ATX DDR5 AM5 AMD B850 Chipset Motherboard
Built for Gaming. Engineered for Durability

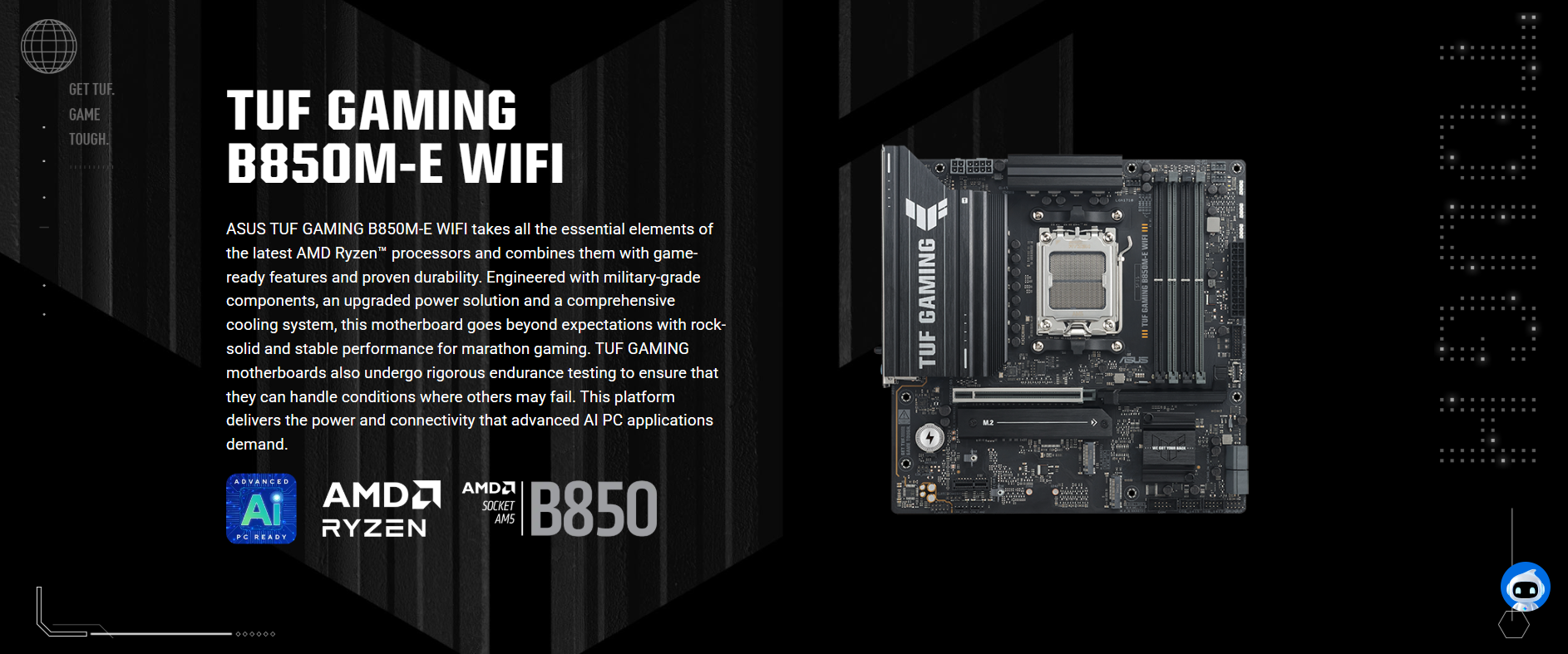

🎮 The ASUS TUF GAMING B850M-E WIFI motherboard combines support for the latest AMD Ryzen™ desktop processors with gaming-ready features, reliable power delivery, and comprehensive cooling. Built with military-grade components and tested for endurance, this micro-ATX motherboard delivers stable performance for gaming, productivity, and AI PC applications.
Key Features & Specifications
Processor & Chipset
🧠 CPU Socket: AMD AM5
🧠 Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
🧠 Chipset: AMD B850
Memory Support
💾 4 × DDR5 DIMM slots
💾 Maximum memory capacity: 256GB
💾 Supports up to 8000+ MT/s (OC), depending on processor and memory configuration
💾 Dual-channel memory architecture
💾 Supports AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP)
💾 Supports ECC and non-ECC unbuffered DIMMs
Graphics & Expansion
🎨 2 × DisplayPort 1.4, supporting up to 8K at 30Hz
🎨 1 × HDMI 2.1, supporting up to 4K at 60Hz
🎨 1 × PCIe 5.0 x16 slot with supported Ryzen 9000 and 7000 Series processors
🎨 Ryzen 8000 Series processors support a PCIe 4.0 x16 slot operating in x8/x4 mode
🎨 1 × PCIe 4.0 x1 slot
Storage & RAID
💽 3 × M.2 slots for NVMe SSDs
💽 Supports PCIe 5.0 x4 and PCIe 4.0 x4 modes, depending on the processor and slot
💽 M.2 sizes: 2242, 2260, and 2280, depending on the slot
💽 4 × SATA 6Gb/s ports
💽 Supports AMD RAIDXpert2 technology, with RAID options depending on the processor series
Networking & Wireless Connectivity
🌐 Wi-Fi 6E with 2×2 802.11ax support
🌐 Supports 2.4GHz, 5GHz, and 6GHz frequency bands
🌐 Bluetooth® 5.3
🌐 1 × Realtek 2.5Gb Ethernet port
🌐 TUF LANGuard protection
USB Connectivity
🔌 Rear: 2 × USB 10Gbps ports (1 Type-A and 1 Type-C®)
🔌 Rear: 2 × USB 5Gbps Type-A ports
🔌 Rear: 4 × USB 2.0 Type-A ports
🔌 Front: USB 5Gbps Type-C® connector
🔌 Additional front USB headers supporting 2 × USB 5Gbps ports and 4 × USB 2.0 ports
Audio Features
🔊 Realtek 7.1 Surround Sound High Definition Audio CODEC
🔊 Supports up to 24-bit/192kHz playback
🔊 Audio shielding
🔊 Premium audio capacitors
🔊 Dedicated audio PCB layers
ASUS TUF Protection
🛡️ DIGI+ VRM digital power design with DrMOS
🛡️ ESD Guards and overvoltage protection
🛡️ TUF LANGuard
🛡️ SafeSlot
🛡️ Stainless-steel back I/O
Cooling & Thermal Design
❄️ M.2 heatsink
❄️ VRM heatsink design
❄️ 1 × CPU fan header
❄️ 1 × CPU OPT fan header
❄️ 1 × AIO pump header
❄️ 2 × chassis fan headers
Convenient DIY & Customization
✨ BIOS FlashBack™ button and LED
✨ Pre-mounted I/O shield
✨ M.2 Q-Latch and PCIe Slot Q-Release
✨ Q-LED diagnostic indicators
✨ ASUS Q-Design features
✨ 3 × Addressable RGB Gen 2 headers
✨ Aura Sync support
Software & BIOS
🖥️ ASUS Armoury Crate
🖥️ Aura Creator and Aura Sync
🖥️ Fan Xpert 2+
🖥️ ASUS AI Advisor
🖥️ ASUS DriverHub and GlideX
🖥️ TurboV Core and TUF GAMING CPU-Z
🖥️ UEFI AMI BIOS with 256Mb Flash ROM
🖥️ ASUS CrashFree BIOS 3 and EZ Flash 3
Operating System Support
💻 Windows 11 (22H2 and later)
💻 Windows 10 64-bit (21H2 and later)
Form Factor & Dimensions
📐 Motherboard Form Factor: micro-ATX
📐 Motherboard Dimensions: 24.4 × 24.4 cm (9.6 × 9.6 inches)
Included Accessories
📦 2 × SATA 6Gb/s cables
📦 1 × ASUS Wi-Fi Q-Antenna
📦 1 × TUF Gaming sticker
📦 1 × M.2 Rubber Package
📦 1 × M.2 SSD screw package
📦 1 × Quick Start Guide
