Product Name:

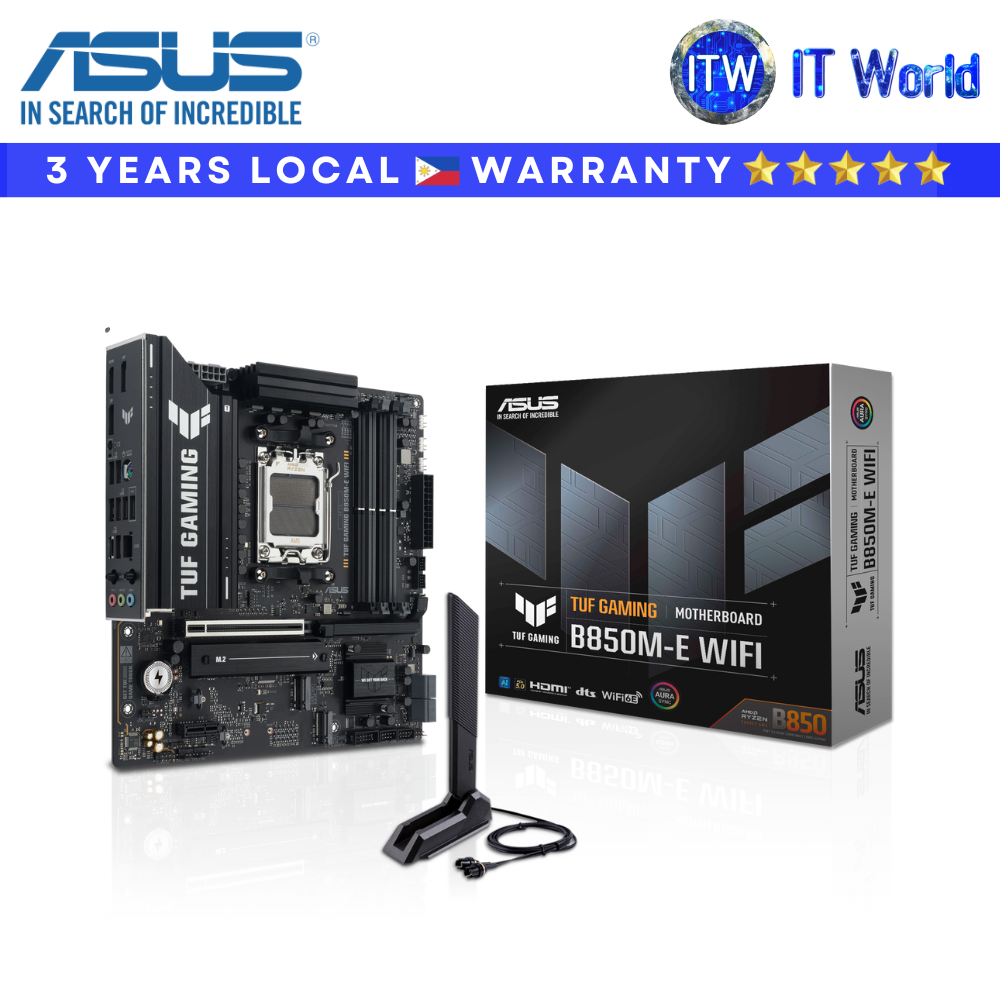

Itw | Asus Motherboard TUF GAMING B850M-E WIFI DDR5/ AM5 / PCIe 5.0 / WiFi 6E / USB-C / mATX
Description:

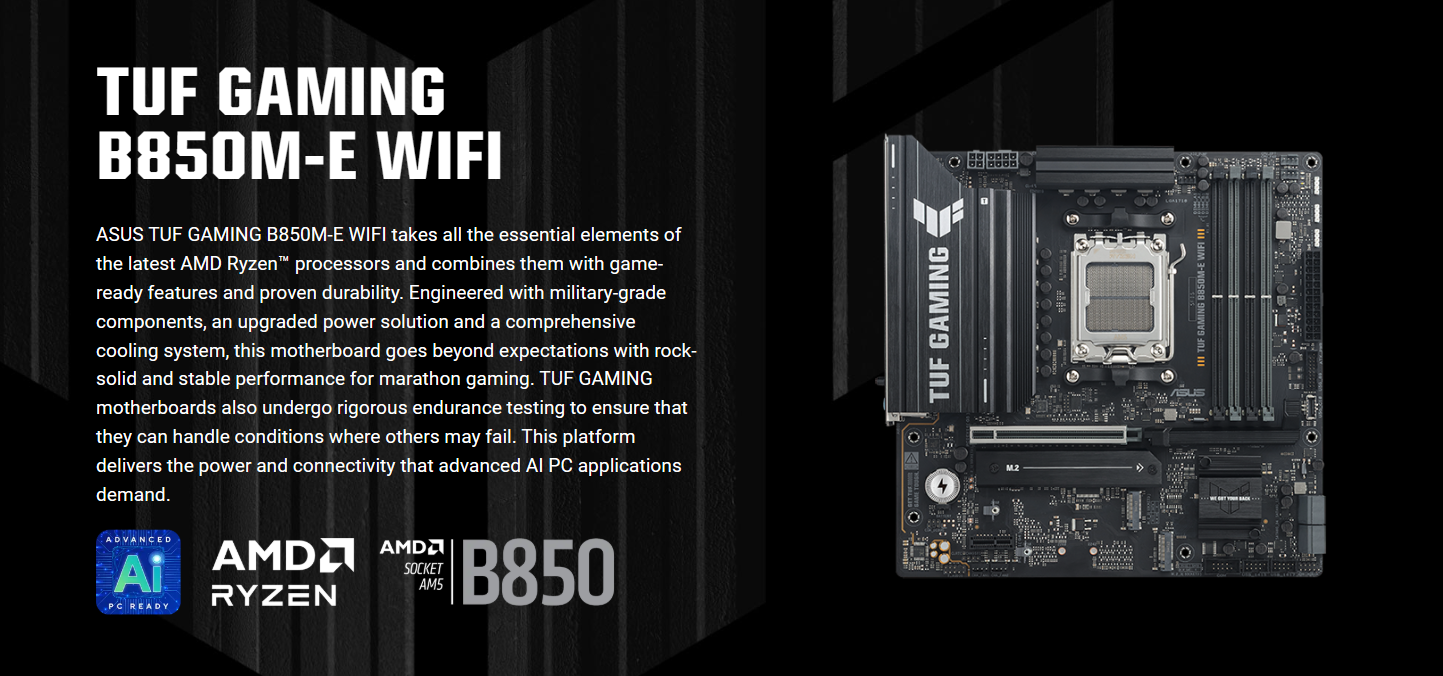

The ASUS TUF GAMING B850M-E WIFI is built for gamers and creators seeking stability, speed, and next-gen support. Designed with military-grade components and robust thermal solutions, it supports the latest AMD Ryzen™ 9000/8000/7000 processors, blazing-fast DDR5 memory, and PCIe 5.0, making it ideal for AI-powered and high-performance PC builds.
Key Features:
Socket: AM5
Chipset: AMD B850
Form Factor: micro-ATX (24.4 x 24.4 cm)

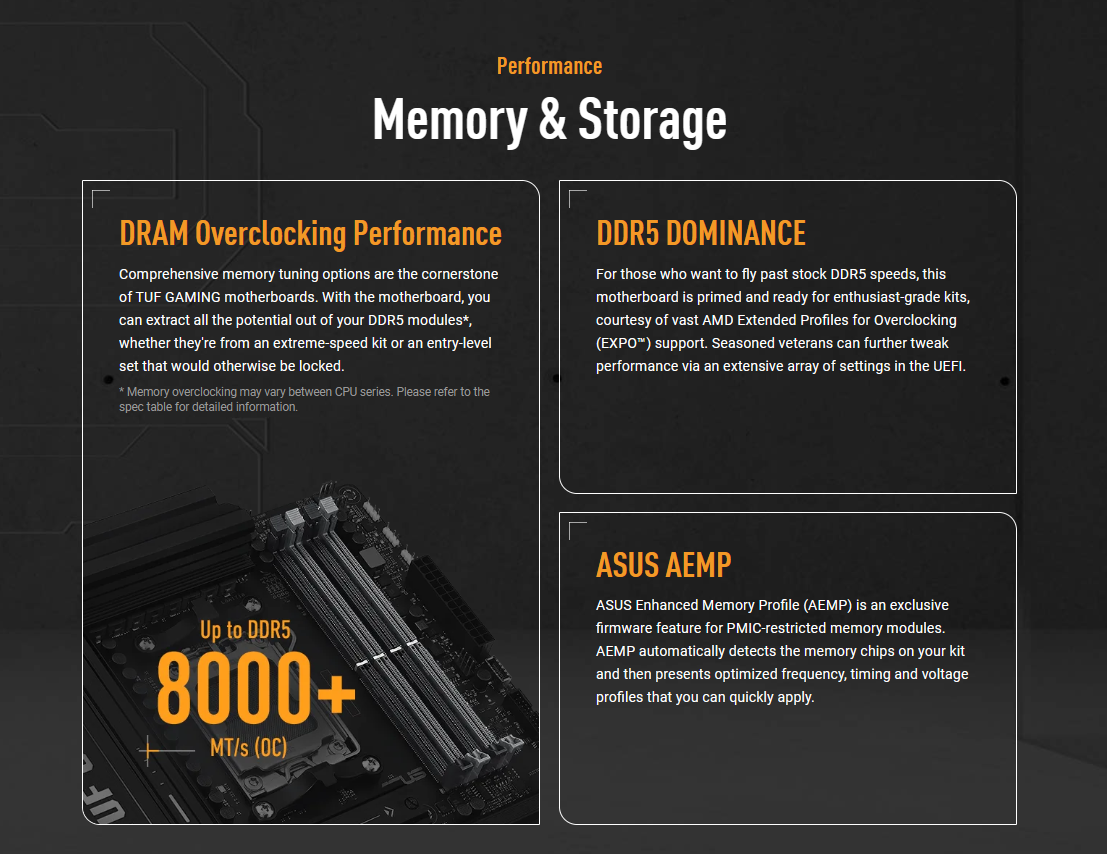

Memory: 4 x DDR5 DIMM slots, up to 256GB
Supports up to 8000+ MT/s (OC)
AMD EXPO™ & ASUS AEMP profiles
Graphics Output: 2 x DisplayPort 1.4, 1 x HDMI 2.1 (up to 8K/4K)
Expansion Slots:
1 x PCIe 5.0 x16 (Ryzen 9000/7000)
1 x PCIe 4.0 x1
Storage Support:

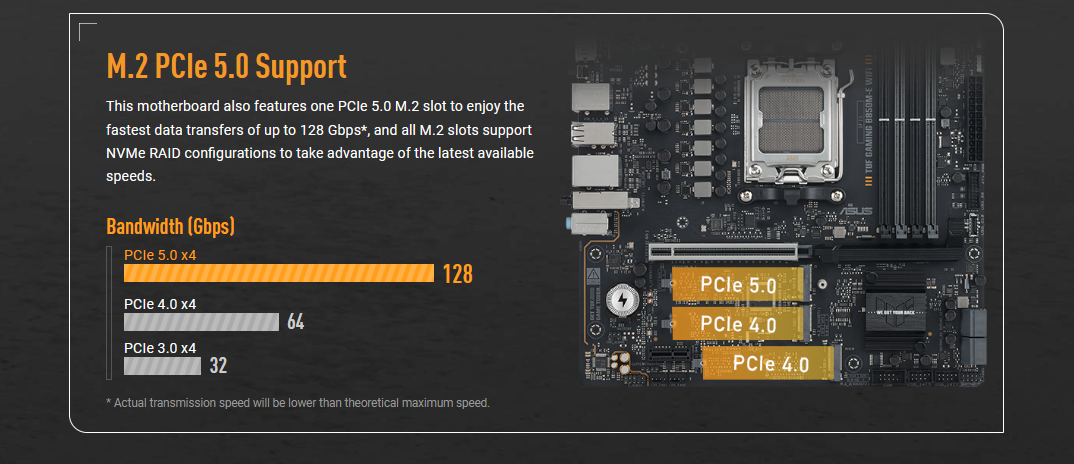

3 x M.2 Slots (up to PCIe 5.0 x4)
4 x SATA 6Gb/s
AMD RAIDXpert2 Technology (RAID 0/1/5/10*)
Connectivity:
LAN: Realtek 2.5Gb Ethernet + TUF LANGuard
Wireless: Wi-Fi 6E (2.4/5/6GHz), Bluetooth 5.3
Rear USB Ports (8 Total):
1 x USB-C 10Gbps
1 x USB-A 10Gbps
2 x USB-A 5Gbps
4 x USB 2.0
Front USB Ports (7 Total):

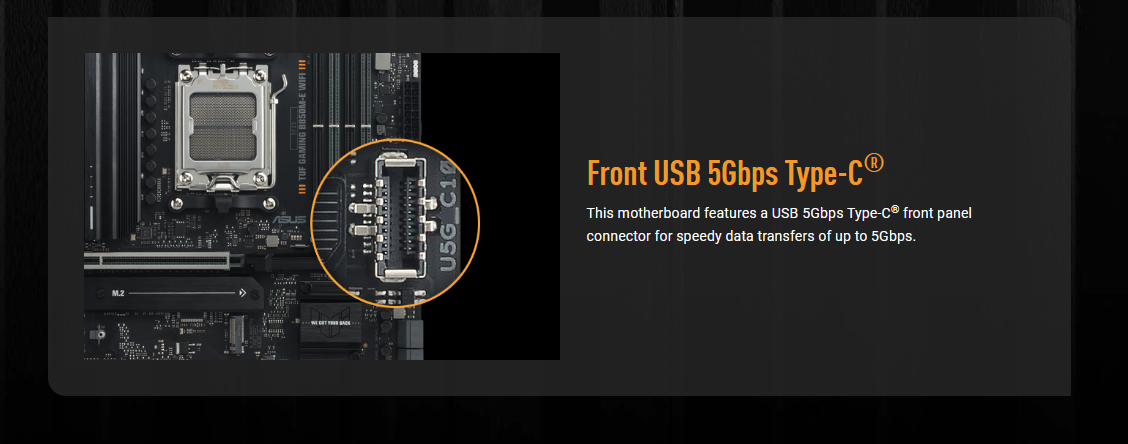

1 x USB-C 5Gbps
2 x USB-A 5Gbps
4 x USB 2.0 via headers
Audio:
Realtek 7.1 Surround Sound HD Audio CODEC
Premium audio capacitors & shielding
Cooling & Headers:
1 x CPU Fan, 1 x CPU OPT Fan
1 x AIO Pump
2 x Chassis Fan
3 x Gen 2 Addressable RGB headers
Durability & Features:
Military-grade TUF components

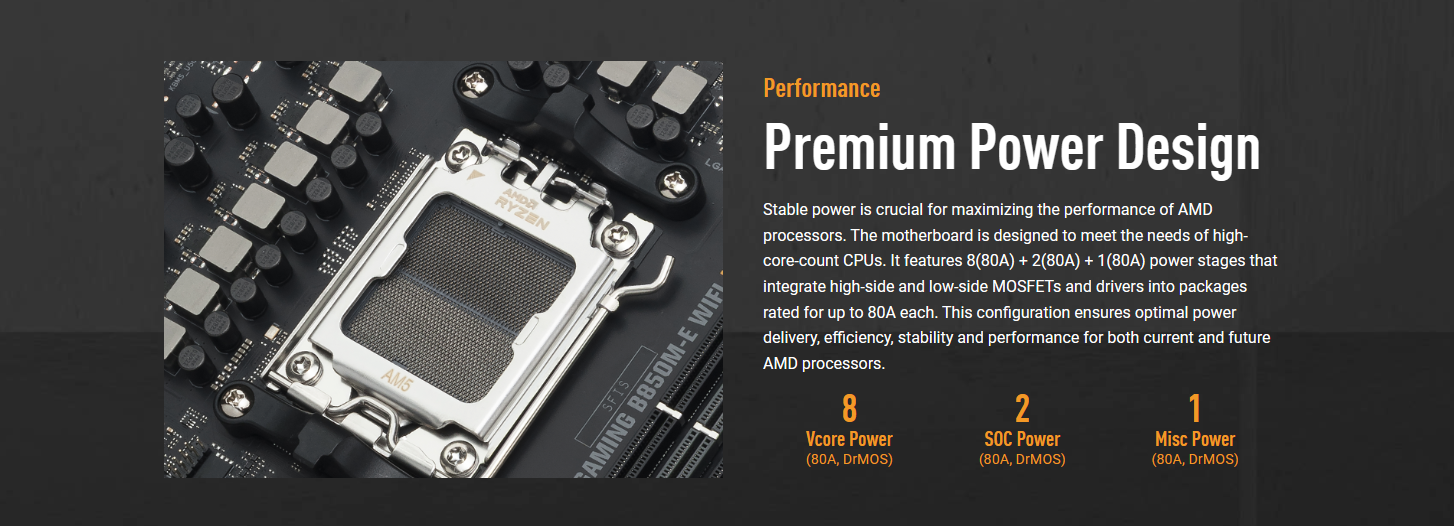

DIGI+ VRM, SafeSlot, Q-LED, Q-Latch
Pre-mounted I/O shield
M.2 & VRM heatsinks

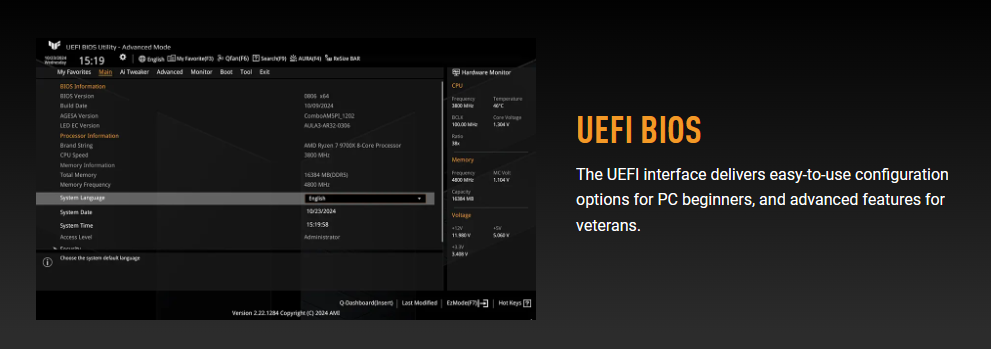

BIOS FlashBack™ support
Armoury Crate, Fan Xpert 2+, Aura Sync
Back Panel I/O:
1 x USB-C 10Gbps
1 x USB-A 10Gbps
2 x USB-A 5Gbps
4 x USB 2.0
2 x DisplayPort
1 x HDMI
3 x Audio jacks
1 x PS/2 combo
1 x BIOS FlashBack™ button
1 x Wi-Fi Module
1 x RJ45 LAN (2.5Gb)
What's in the Box:
2 x SATA 6Gb/s Cables
1 x ASUS WiFi Q-Antenna
1 x M.2 Rubber Package
1 x M.2 Screw Package
1 x TUF Gaming Sticker
1 x Quick Start Guide
OS Compatibility:
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Warranty: 3 Years (Local Warranty)
