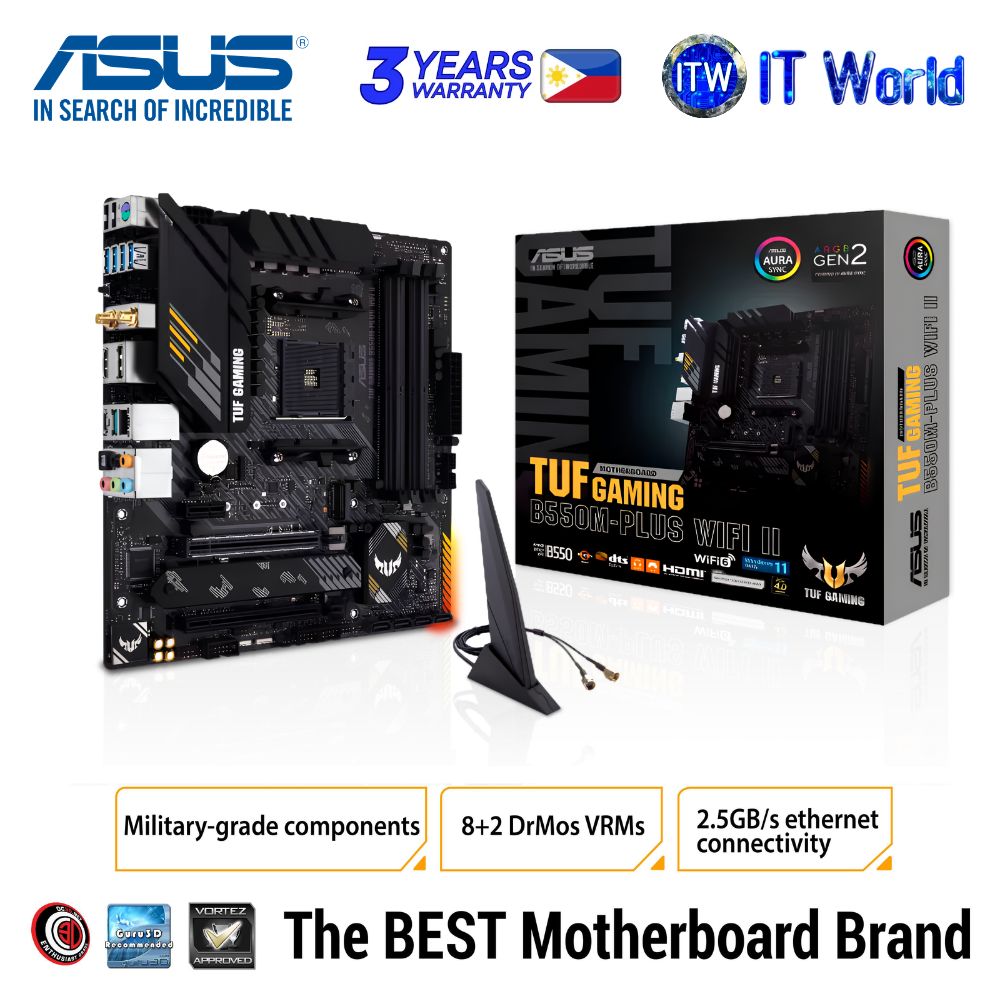

ASUS TUF Gaming B550M-Plus Wifi II micro-ATX AM4 DDR4 AMD B550 Chipset Motherboard
⚙️ Upgrade your gaming PC with the ASUS TUF Gaming B550M-Plus WiFi II, a micro-ATX motherboard featuring the AMD B550 chipset and AM4 socket. Designed for 3rd Gen AMD Ryzen™ processors, it combines enhanced power delivery, comprehensive cooling, high-speed connectivity, and durable TUF components for your PC build.
Key Features & Highlights
AMD AM4 Socket & B550 Chipset
⚙️ Supports 3rd Gen AMD Ryzen™ processors.
⚙️ Compatible with AMD Ryzen™ 5000 Series, 3000 Series, 5000 G-Series, and 4000 G-Series desktop processors, subject to CPU support specifications.
Enhanced Power Delivery
🛡️ 8+2 DrMOS power stages.
🛡️ DIGI+ VRM digital power design.
🛡️ ProCool power connector and military-grade TUF components.
🛡️ Enhanced DRAM overcurrent protection, overvoltage protection, ESD Guards, and SafeSlot.
Comprehensive Cooling
🌡️ VRM heatsinks and M.2 heatsink.
🌡️ Fanless PCH heatsink.
🌡️ Hybrid fan headers and Fan Xpert 2+ utility.
DDR4 Memory Support
🧠 4 x DIMM slots.
🧠 Supports up to 128GB of DDR4 memory.
🧠 Memory speeds up to DDR4-4866 (OC), depending on CPU and memory compatibility.
🧠 Dual-channel memory architecture.
PCIe Expansion
🎮 1 x PCIe 4.0 x16 slot with supported Ryzen™ 5000/3000 Series processors.
🎮 PCIe 3.0 expansion support with other supported processors and the AMD B550 chipset.
🎮 Additional PCIe 3.0 x16 and PCIe 3.0 x1 slots.
Flexible Storage Options
💾 2 x M.2 Key M slots supporting 2242, 2260, and 2280 SSDs; the second slot also supports 22110.
💾 PCIe and SATA mode support, depending on the M.2 slot and processor.
💾 4 x SATA 6Gb/s ports.
💾 Supports RAID 0, RAID 1, and RAID 10.
Wi-Fi 6 & High-Speed Networking
📶 Intel® Wi-Fi 6 with 2x2 wireless connectivity.
📶 Supports 2.4GHz and 5GHz frequency bands.
📶 Bluetooth 5.2.
📶 Realtek 2.5Gb Ethernet.
📶 TUF LANGuard and TurboLAN technology.
USB Connectivity
🔌 2 x USB 3.2 Gen 2 ports: 1 x Type-A and 1 x Type-C.
🔌 4 x USB 3.2 Gen 1 Type-A ports.
🔌 2 x USB 2.0 Type-A ports.
🔌 Additional internal USB headers for expansion.
Display Outputs
🖥️ 1 x DisplayPort supporting up to 4K at 60Hz.
🖥️ 1 x HDMI® port supporting 4K at 60Hz.
🖥️ Display output availability depends on the installed processor's graphics capabilities.
High-Definition Audio
🎧 Realtek 7.1 Surround Sound High Definition Audio CODEC.
🎧 Supports up to 24-bit/192kHz playback.
🎧 Audio shielding, premium audio capacitors, dedicated audio PCB layers, and optical S/PDIF output.
🎧 AI Two-Way Noise Cancelation for clearer voice communication.
RGB Lighting & Customization
🌈 AURA Sync support.
🌈 2 x AURA RGB headers.
🌈 1 x Addressable Gen 2 header.
Convenient DIY Features
🛠️ BIOS FlashBack™ button and LED.
🛠️ ASUS Q-DIMM, Q-LED, and Q-Slot.
🛠️ ASUS CrashFree BIOS 3 and EZ Flash 3.
🛠️ UEFI BIOS with EZ Mode.
Software & Operating System
💻 ASUS Armoury Crate, Aura Creator, Aura Sync, and AI Suite 3.
💻 Includes Fan Xpert 2+, TurboV EVO, EPU, and DIGI+ VRM utilities.
💻 Windows® 10 64-bit support.
💻 Windows® 11 ready.
Technical Specifications
⚙️ Brand: ASUS
⚙️ Model: TUF GAMING B550M-PLUS WIFI II
⚙️ Product Type: Micro-ATX Motherboard
⚙️ CPU Socket: AMD AM4
⚙️ Chipset: AMD B550
⚙️ Memory Type: DDR4
⚙️ Maximum Memory: 128GB
⚙️ Memory Slots: 4 x DIMM
⚙️ Expansion: PCIe 4.0 and PCIe 3.0, depending on processor and slot
⚙️ Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
⚙️ Wireless: Wi-Fi 6, Bluetooth 5.2
⚙️ Wired Networking: Realtek 2.5Gb Ethernet
⚙️ Audio: Realtek 7.1 Surround Sound HD Audio
⚙️ BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
⚙️ Operating System: Windows 10 64-bit; Windows 11 ready
Package Contents
📦 2 x SATA 6Gb/s cables
📦 1 x ASUS Wi-Fi moving antennas
📦 1 x I/O Shield
📦 1 x M.2 Rubber package
📦 1 x M.2 SSD screw package
📦 1 x TUF Gaming sticker
📦 1 x Support DVD
📦 1 x TUF Certification card
📦 1 x User guide
