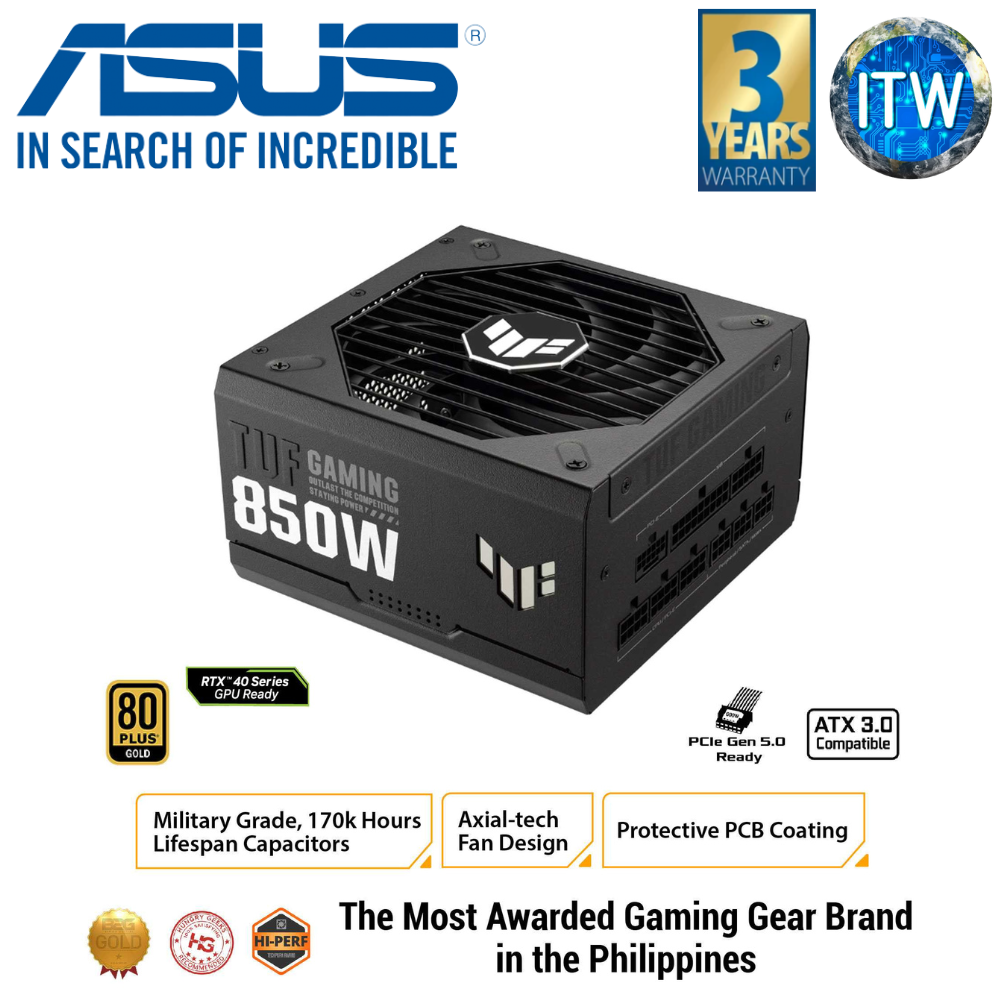

Product Name: ASUS TUF Gaming 850W 80+ Gold ATX12V Full Modular Power Supply Unit
The TUF Gaming 850W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.
■ Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
■ Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
■ A protective PCB coating protects against moisture, dust, and extreme temperatures.
■ An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
■ Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
■ Fully modular etched cables keep your rig neat and tidy.
Specification
✎ Model: TUF Gaming 850W Gold
✎ Intel Form Factor: ATX12V
✎ ATX 3.0: Yes
✎ Dimensions: 150 x 150 x 86 mm
✎ Efficiency: 80Plus Gold
✎ Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
✎ Hazardous Materials: ROHS
✎ AC Input Range: 100-240Vac
✎ DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
✎ Maximum Load: 25A25A70.8A 0.8A 3A
✎ Combined Load: 130W 130W 850W 9.6W 15W
✎ Total Output: 850W
✎ Connectors
■ MB 24/20-pin x 1
■ CPU 4+4-pin x 2
■ PCI-E 16-pin x 1
■ PCI-E 8-pin x 3
■ SATA x 5
■ PERIPHERAL x 4
✎ Package Contents
■ Power Cord x 1
■ Motherboard Power Cable x 1 (610mm)
■ CPU Cable x 2 (650mm)
■ PCI-E Gen 5 16-pin Cable x 1 (675mm)
■ PCI-E 1-to-1 Cable x 1 (675mm)
■ PCI-E 1-to-2 Cable x 1 (675mm)
■ SATA 1-to-2 Cable x 1 (400+120mm)
■ SATA 1-to-3 Cable x 1 (400+120+120mm)
■ Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
■ TUF Gaming Cable tie x 3
■ User Manual x 1
✎ Weight: 2.38kg (single PSU)
✎ 0dB Fan Button: No
