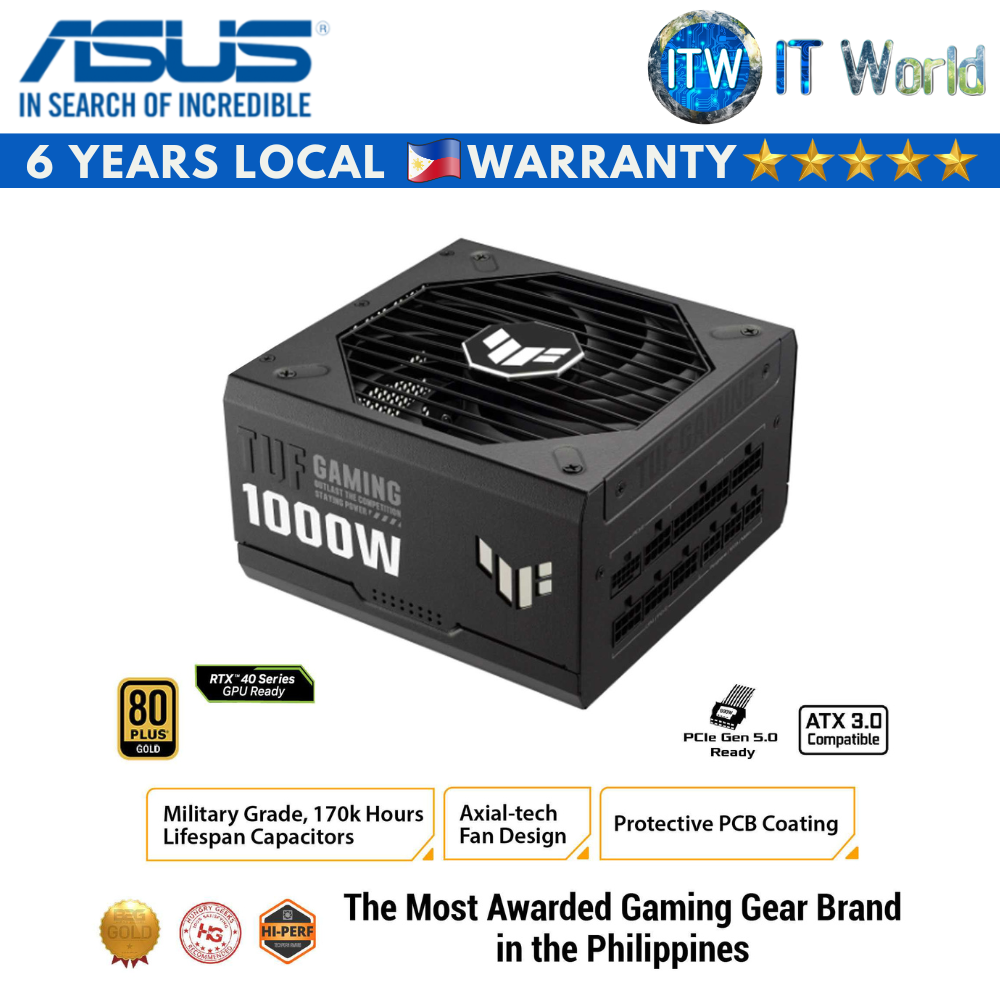

ASUS TUF Gaming 1000W 80+ Gold ATX Fully Modular PSU (TUF Gaming 1000W)

Product Name: ASUS TUF Gaming 1000W 80+ Gold ATX Fully Modular PSU (TUF Gaming 1000W)

Key Feature

• Capacitors and chokes pass demanding tests to achieve Military-grade Certification.

• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

• A protective PCB coating protects against moisture, dust, and extreme temperatures.

• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

• Fully modular etched cables keep your rig neat and tidy.

Specification

• Model: TUF Gaming 1000W Gold

• Intel Form Factor: ATX12V

• PFC Type: Active PFC

• ATX 3.0: Yes

• Dimensions: 150 x 150 x 86 mm

• Efficiency: 80Plus Gold

• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP

• Hazardous Materials: ROHS

• AC Input Range: 100-240Vac

• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb

• Maximum Load: 25A25A83.3A 0.8A 3A

• Combined Load: 130W 130W 1000W 9.6W 15W

• Total Output: 1000W

Cable Connectors

• MB 24/20-pin x 1

• CPU 4+4-pin x 2

• PCI-E 16-pin x 1 (both PSU & component side)

• PCI-E 8-pin x 4

• SATA x 5

• PERIPHERAL x 4

Package Contents

• Power Cord x 1

• Motherboard Power Cable x 1 (610mm)

• CPU Cable x 2 (650mm)

• PCI-E Gen 5 16-pin Cable x 1 (675mm)

• PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)

• PCI-E 1-to-1 Cable x 2 (675mm)

• SATA 1-to-2 Cable x 1 (400+120mm)

• SATA 1-to-3 Cable x 1 (400+120+120mm)

• Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)

• TUF Gaming Cable Tie x 3

• User Manual x 1

Weight: 2.48kg (single PSU)
