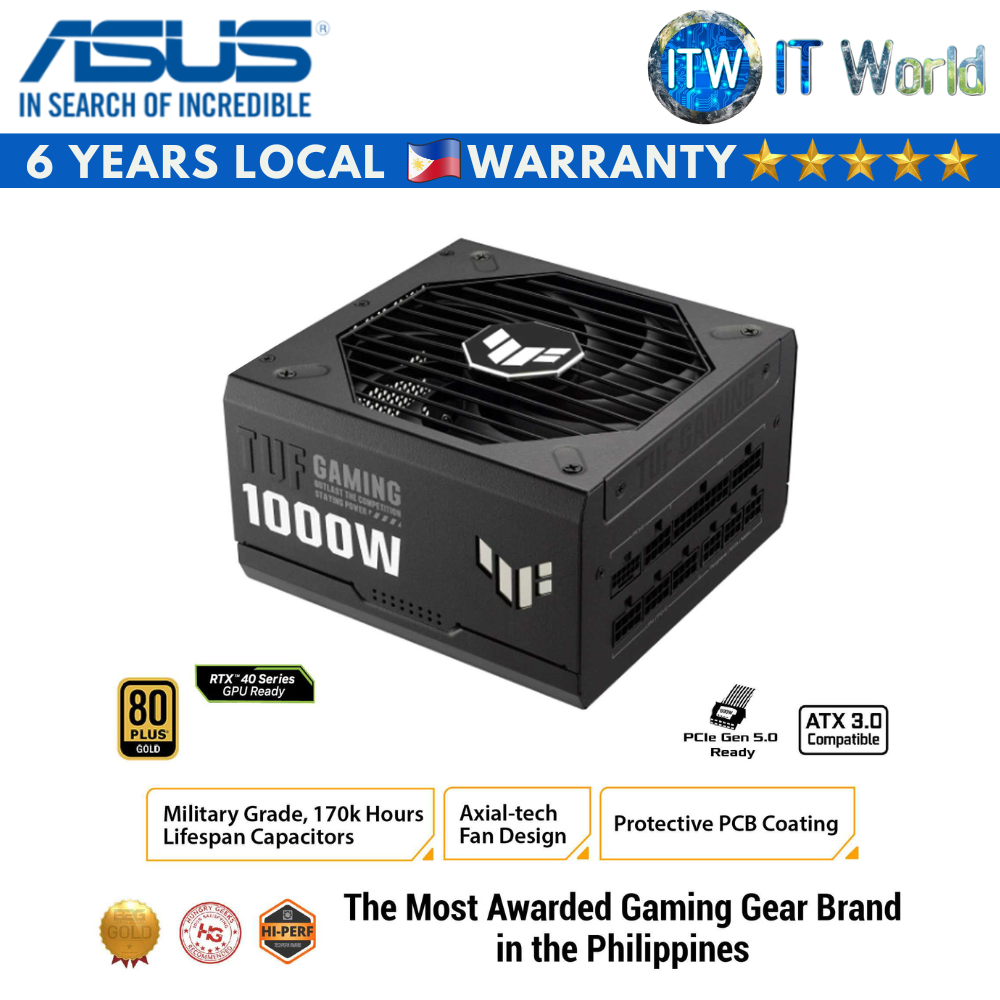

Product Name: ASUS TUF Gaming 1000W 80+ Gold ATX Fully Modular PSU (TUF Gaming 1000W)
Key Feature
• Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• A protective PCB coating protects against moisture, dust, and extreme temperatures.
• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• Fully modular etched cables keep your rig neat and tidy.
Specification
• Model: TUF Gaming 1000W Gold
• Intel Form Factor: ATX12V
• PFC Type: Active PFC
• ATX 3.0: Yes
• Dimensions: 150 x 150 x 86 mm
• Efficiency: 80Plus Gold
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 25A25A83.3A 0.8A 3A
• Combined Load: 130W 130W 1000W 9.6W 15W
• Total Output: 1000W
Cable Connectors
• MB 24/20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 16-pin x 1 (both PSU & component side)
• PCI-E 8-pin x 4
• SATA x 5
• PERIPHERAL x 4
Package Contents
• Power Cord x 1
• Motherboard Power Cable x 1 (610mm)
• CPU Cable x 2 (650mm)
• PCI-E Gen 5 16-pin Cable x 1 (675mm)
• PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
• PCI-E 1-to-1 Cable x 2 (675mm)
• SATA 1-to-2 Cable x 1 (400+120mm)
• SATA 1-to-3 Cable x 1 (400+120+120mm)
• Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
• TUF Gaming Cable Tie x 3
• User Manual x 1
Weight: 2.48kg (single PSU)
