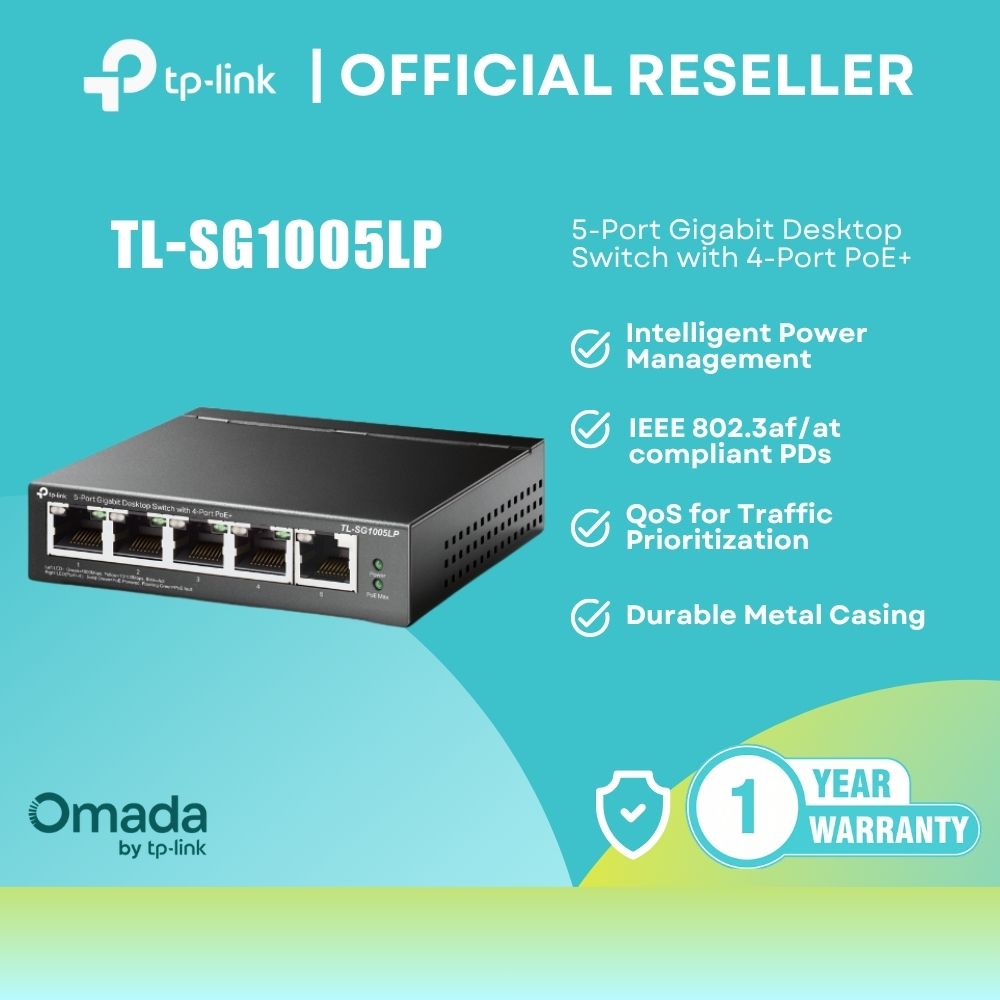

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+
Enhance your network setup with the TP-Link TL-SG1005LP—an efficient and compact Gigabit desktop switch designed for seamless data and power delivery. Ideal for IP cameras, access points, and VoIP devices, this plug-and-play solution ensures reliable performance for both home and business environments.
🔌 High-Speed Connectivity
⚡ 5× 10/100/1000 Mbps RJ45 ports
🔄 AUTO Negotiation & AUTO MDI/MDIX support
🚀 10 Gbps switching capacity
⚡ Power over Ethernet (PoE+)
🔋 4× PoE+ ports (Ports 1–4) for data + power in one cable
💡 Up to 30W per port
🔌 Total PoE power budget: 40W
✅ Compatible with IEEE 802.3af/at devices
📡 Smooth & Reliable Performance
🎯 802.1p/DSCP QoS for latency-sensitive traffic
📺 IGMP Snooping for optimized multicast performance
🔁 Store-and-forward transmission method
🧠 Efficient & Smart Operation
📊 7.44 Mpps packet forwarding rate
🗂️ 2K MAC address table with auto-learning & aging
📦 Supports Jumbo Frame up to 16 KB
🌡️ Compact & Durable Design
🔇 Fanless design for silent operation
📏 Compact size: 99.8 × 98 × 25 mm
🌡️ Operating temp: 0–40°C
🔌 Power & Consumption
⚡ External adapter: 53.5 VDC / 0.81 A
🔋 Max consumption: 47.5W (with PoE load)
📦 Package Includes
📦 TL-SG1005LP Switch
🔌 Power Adapter
📘 Installation Guide
📦 Approx. Package Details
📦 Dimensions: 14 cm x 14 cm x 8 cm (W x L x H)
⚖️ Weight: ~0.8 KG
