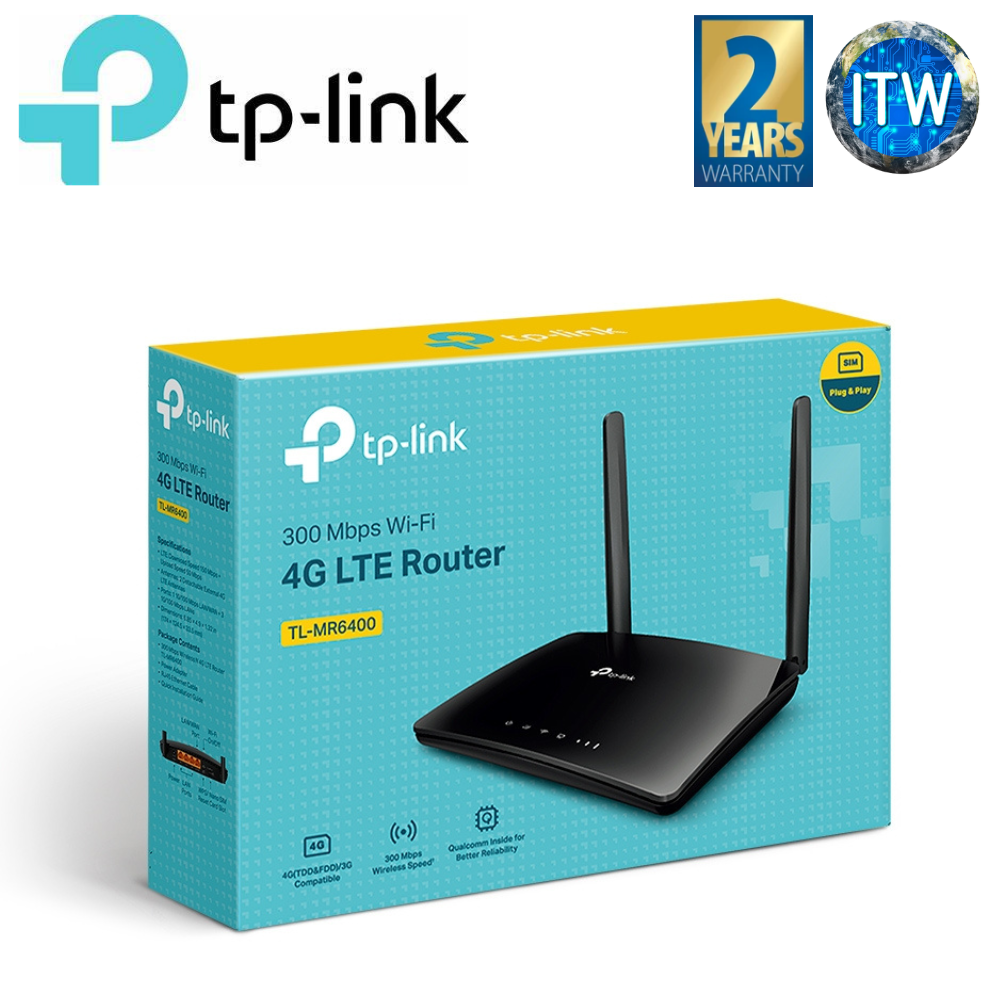

Product Name: TP-Link TL-MR6400 300Mbps Wireless N 4G LTE Router
■ Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
■ Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
■ Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
■ Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
Specification
HARDWARE FEATURES
✎ Interface
■ 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port,
■ 1 Micro SIM Card Slot
✎ Button: WPS/Reset Button, WiFi On/Off Button, Power On/Off Button
✎ External Power Supply(EU): 9V/0.85A
✎ External Power Supply(APAC): 12V/1A
✎ Dimensions ( W x D x H ): 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)
✎ Antenna Type
■ V3/APAC: 2 Internal 4G LTE Antennas
■ V4/V2/V1: 2 Detachable 4G LTE Antennas
WIRELESS FEATURES
✎ Wireless Standards: IEEE 802.11b/g/n 2.4GHz
✎ Frequency: 2.4GHz
✎ Signal Rate: 300Mbps at 2.4GHz
✎ Reception Sensitivity
■ 11g 54M: -74dBm
■ 11n HT20: -71dBm
■ 11n HT40: -67dBm
✎ Transmit Power: CE: <20dBm(2.4GHz)
✎ Wireless Functions
✎ Enable/Disable Wireless Radio, WMM,
✎ Wireless Statistics
✎ WAN Failover: Yes
✎ Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
✎ Network Type
■ 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
■ TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)
■ 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
SOFTWARE FEATURES
✎ Operating Modes: 3G/4G Router, Wireless Router
✎ Management: Access Control, Local Management, Remote Management
reboot schedule
✎ WAN Connection Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
✎ DHCP: Server, Client, DHCP Client List, Address Reservation
✎ Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
✎ Dynamic DNS: DynDns, NO-IP
✎ VPN: PPTP VPN, OpenVPN
✎ Access Control: Parental Control, Local Management Control
✎ Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding
✎ Protocols: Supports IPv4 and IPv6
✎ Guest Network: 2.4GHz guest network x 1
OTHERS
✎ Certification: CE, RoHS
✎ Package Contents
■ 3300Mbps Wireless N 4G LTE Router, TL-MR6400
■ RJ45 Ethernet Cable
■ Power Adapter
■ Quick Installation Guide
✎ System Requirements
■ Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10
■ MAC OS, NetWare, UNIX or Linux
■ Internet Explorer 11, Firefox 12.0, Chrome 20.0,
■ Safari 4.0 browsers or higher, or other Java-enabled browsers
■ Micro SIM Card
✎ Environment
■ Operating Temperature: 0℃~40℃ (32℉ ~104℉)
■ Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
■ Operating Humidity: 10%~90% non-condensing
■ Storage Humidity: 5%~90% non-condensing
