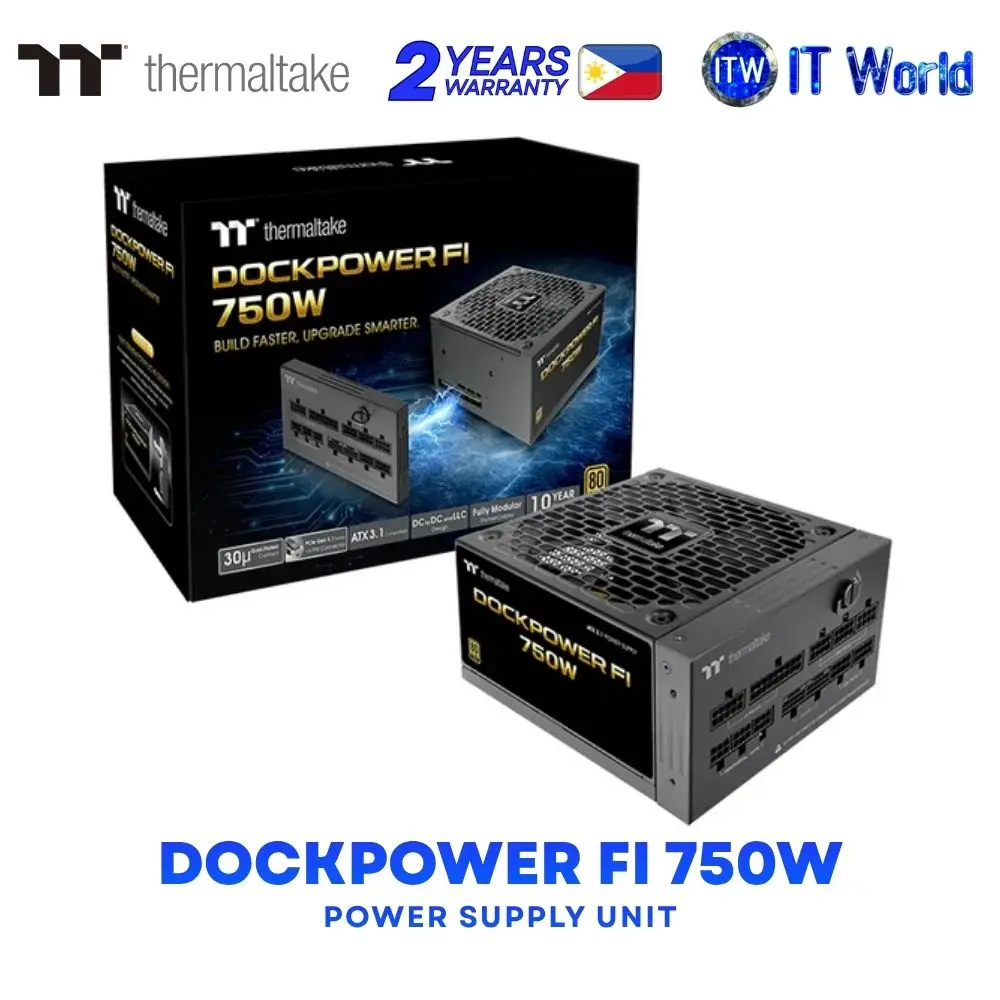

Thermaltake Dockpower FI 750W 80+ Gold Active PFC Pre-Route Cables Power Supply Unit - Black | Snow
⚡ Thermaltake DockPower FI 750W – A power supply designed with a docking architecture that makes installation, cable management, and future PSU upgrades easier.
PRODUCT HIGHLIGHTS
⚡ 750W Max Output Capacity – Delivers up to 750W of power.
🏆 80 PLUS® Gold Efficiency – Meets 80 PLUS® Gold at 115Vac input.
🔋 Active PFC – Helps provide efficient power delivery.

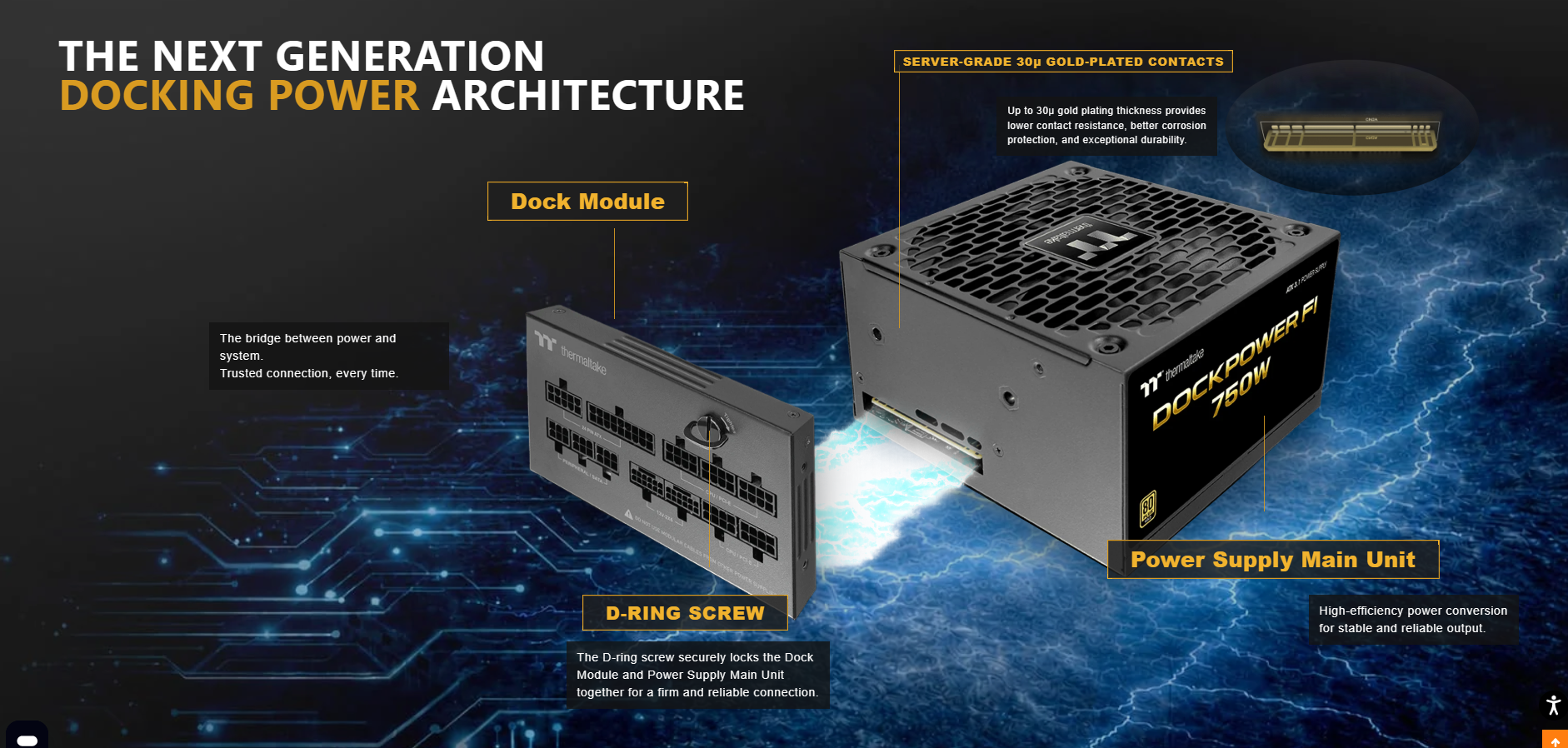

🧩 Docking Power Architecture – Separates the PSU main unit from the Dock Module for easier access in tight spaces.
🛠️ Pre-Route, Then Dock – Install and manage cables first, then dock and lock the power unit into place.
🔄 Upgrade Without Rewiring – Keep the Dock Module and installed cables when replacing the power unit.
🥇 30μ Gold-Plated Dock Connection – Durable high-current contacts with a secure D-ring locking mechanism.
🔌 Native 12V-2x6 Connector – Includes a 12V-2x6 PCI-E connector rated at 600W.
🧵 Low-Profile Modular Cables – Designed for easier cable routing and cleaner cable management.
🌬️ 135mm Hydraulic Bearing Fan – Cooling system for the power supply.
SPECIFICATIONS
📋 Brand: Thermaltake
📋 Series/Model: DockPower FI 750W
📋 Product Type: Power Supply Unit (PSU)
⚡ Wattage: 750W
⚡ Max Output Capacity: 750W
📐 PSU Dimensions: 150mm (W) × 86mm (H) × 160mm (D)
🔋 PFC: Active PFC
⚡ Power Good Signal: 100–250 msec
⏱️ Hold Up Time: >17msec at 80% load
🔌 Input Current: 10A Max.
⚡ Input Frequency: 50Hz–60Hz
🔋 Input Voltage: 100–240V~
🌡️ Operating Temperature: 0°C to +40°C
💧 Operating Humidity: 5% to 85%
🌡️ Storage Temperature: -40°C to +70°C
💧 Storage Humidity: 5% to 95%, non-condensing
🌬️ Cooling System: 135mm Hydraulic Bearing Fan
🔌 PCI-E 6+2 Pin: 4
🔌 PCI-E 12+4 Pin: 1 (600W)
🛡️ Safety Approvals: CE / UKCA / ICES / TUV / LVD / RCM / CB / FCC / cTUVus / BSMI / CCC / BIS / S-MARK / EAC
Color Variations
🎨 Black: PS-DCP-0750FNFAGU-2
🎨 Snow: PS-DCP-0750FNFAGU-S
