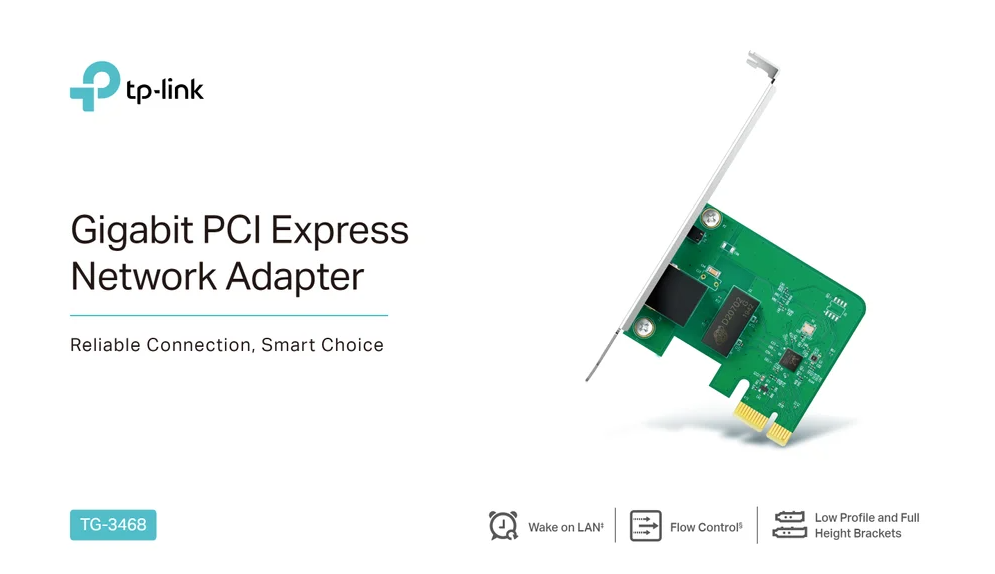

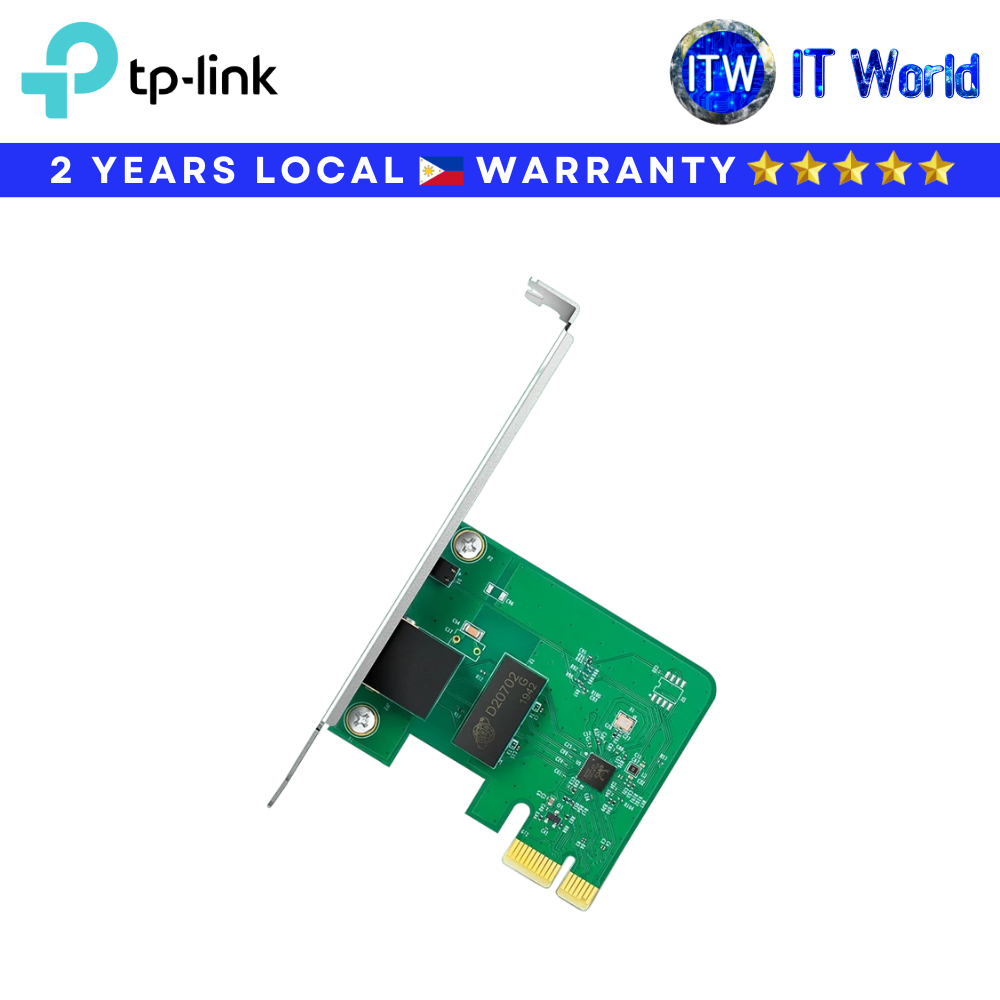

TP-Link 10/100/1000 Mbps LAN Card Gigabit PCI Express Network Adapter (TG-3468)

Product Name:

Itw | TP-Link 10/100/1000 Mbps LAN Card Gigabit PCI Express Network Adapter (TG-3468)

Product Highlights

PCI Express network adapter for desktops

Supports 10/100/1000Mbps data rates

Seamless wired network upgrade

Ideal for streaming, gaming, and file transfers

Plug & Play installation with standard PCIe slot

Specifications

Model: TG-3468

Interface: 32-bit PCI Express

Port: 1x RJ45 10/100/1000Mbps

Standards & Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

Data Rates:

Half-Duplex: 10/100/1000Mbps

Full-Duplex: 20/200/2000Mbps

Network Media:

10BASE-T: UTP Cat 3/4/5 (max 100m), STP (100Ω, max 100m)

100BASE-TX: UTP Cat 5/5e (max 100m), STP (100Ω, max 100m)

1000BASE-T: UTP Cat 5/5e (max 100m)

Flow Control: IEEE 802.3x (Full Duplex)

LED Indicators:

1000Mbps Link/Act

100Mbps Link/Act

10Mbps Link/Act

Dimensions: 78.5 x 120.8 x 21.5 mm (3.1 x 4.8 x 0.8 in)

Compatibility

Supports major operating systems including Windows 10/8.1/8/7/Vista/XP, Linux, and more
