Product Name:

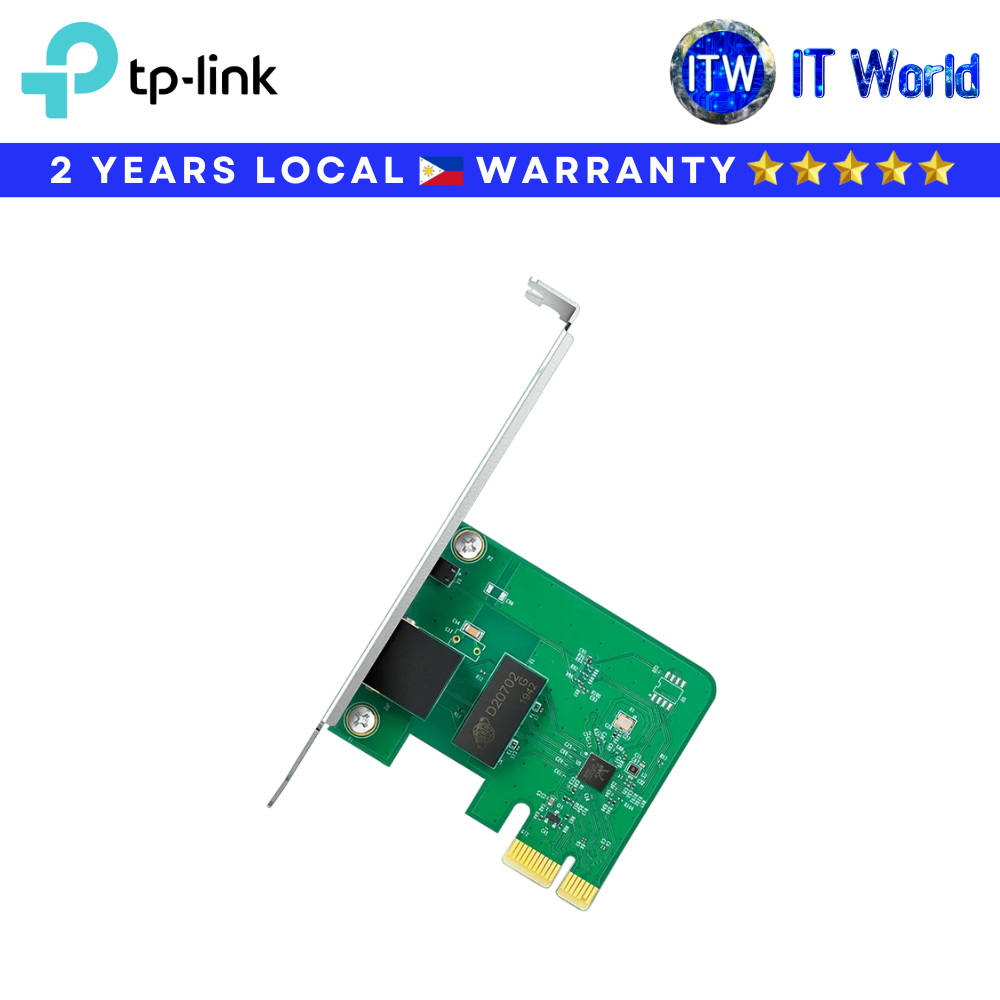

Itw | TP-Link 10/100/1000 Mbps LAN Card Gigabit PCI Express Network Adapter (TG-3468)
Product Highlights
PCI Express network adapter for desktops
Supports 10/100/1000Mbps data rates
Seamless wired network upgrade
Ideal for streaming, gaming, and file transfers
Plug & Play installation with standard PCIe slot
Specifications
Model: TG-3468
Interface: 32-bit PCI Express
Port: 1x RJ45 10/100/1000Mbps
Standards & Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Data Rates:
Half-Duplex: 10/100/1000Mbps
Full-Duplex: 20/200/2000Mbps
Network Media:
10BASE-T: UTP Cat 3/4/5 (max 100m), STP (100Ω, max 100m)
100BASE-TX: UTP Cat 5/5e (max 100m), STP (100Ω, max 100m)
1000BASE-T: UTP Cat 5/5e (max 100m)
Flow Control: IEEE 802.3x (Full Duplex)
LED Indicators:
1000Mbps Link/Act
100Mbps Link/Act
10Mbps Link/Act
Dimensions: 78.5 x 120.8 x 21.5 mm (3.1 x 4.8 x 0.8 in)
Compatibility
Supports major operating systems including Windows 10/8.1/8/7/Vista/XP, Linux, and more
