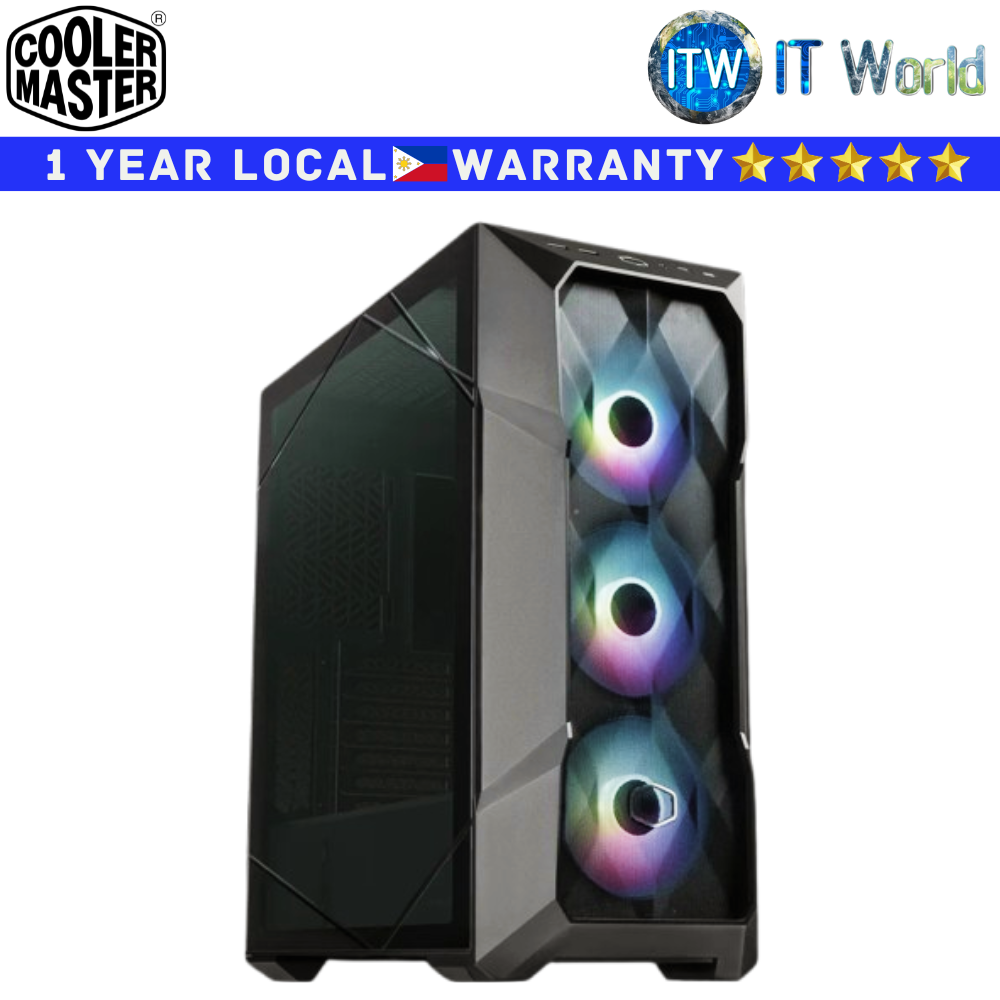

Product Name: Itw | Cooler Master Computer PC Case TD500 MESH V2 Mid Tower Tempered Glass Black/White
Specification
Model Number: TD500 Mesh V2: TD500V2-KGNN-S00, TD500 Mesh V2 White: TD500V2-WGNN-S00

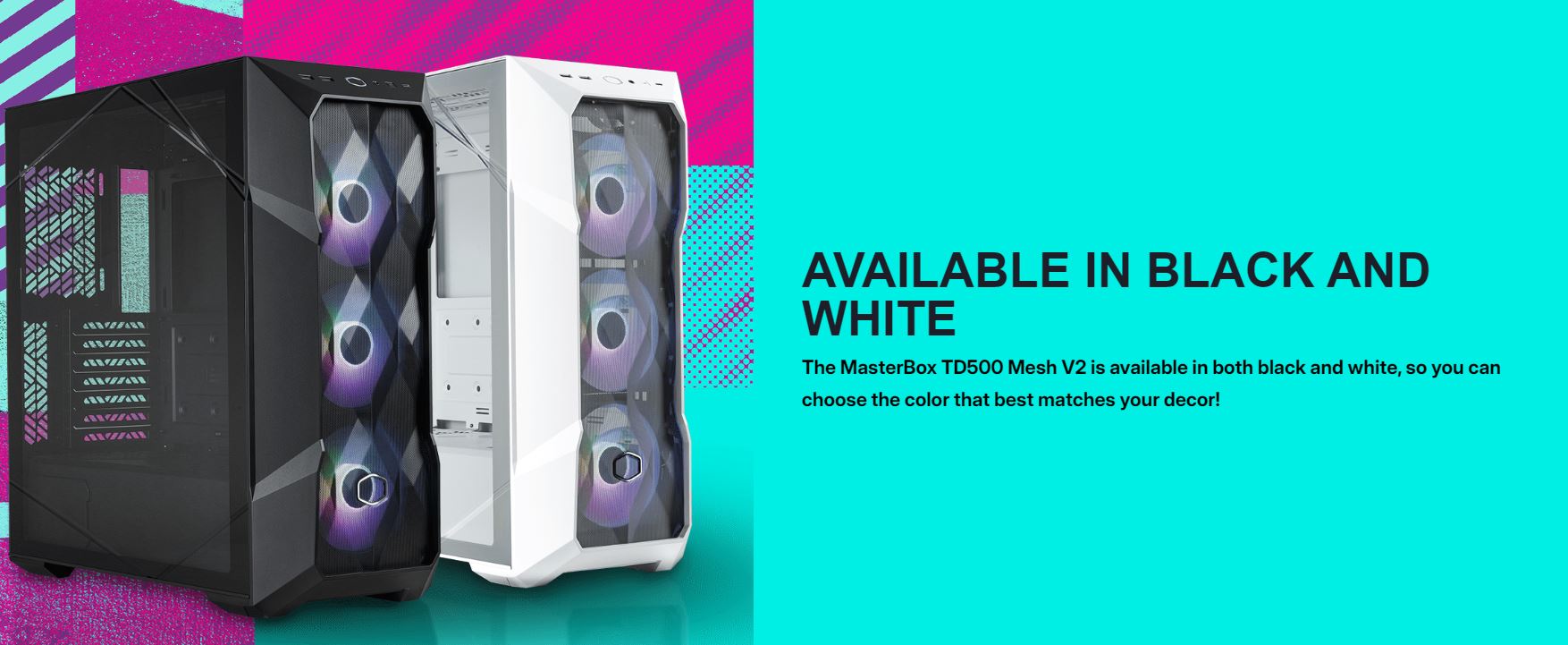

Exterior Color: Black, White

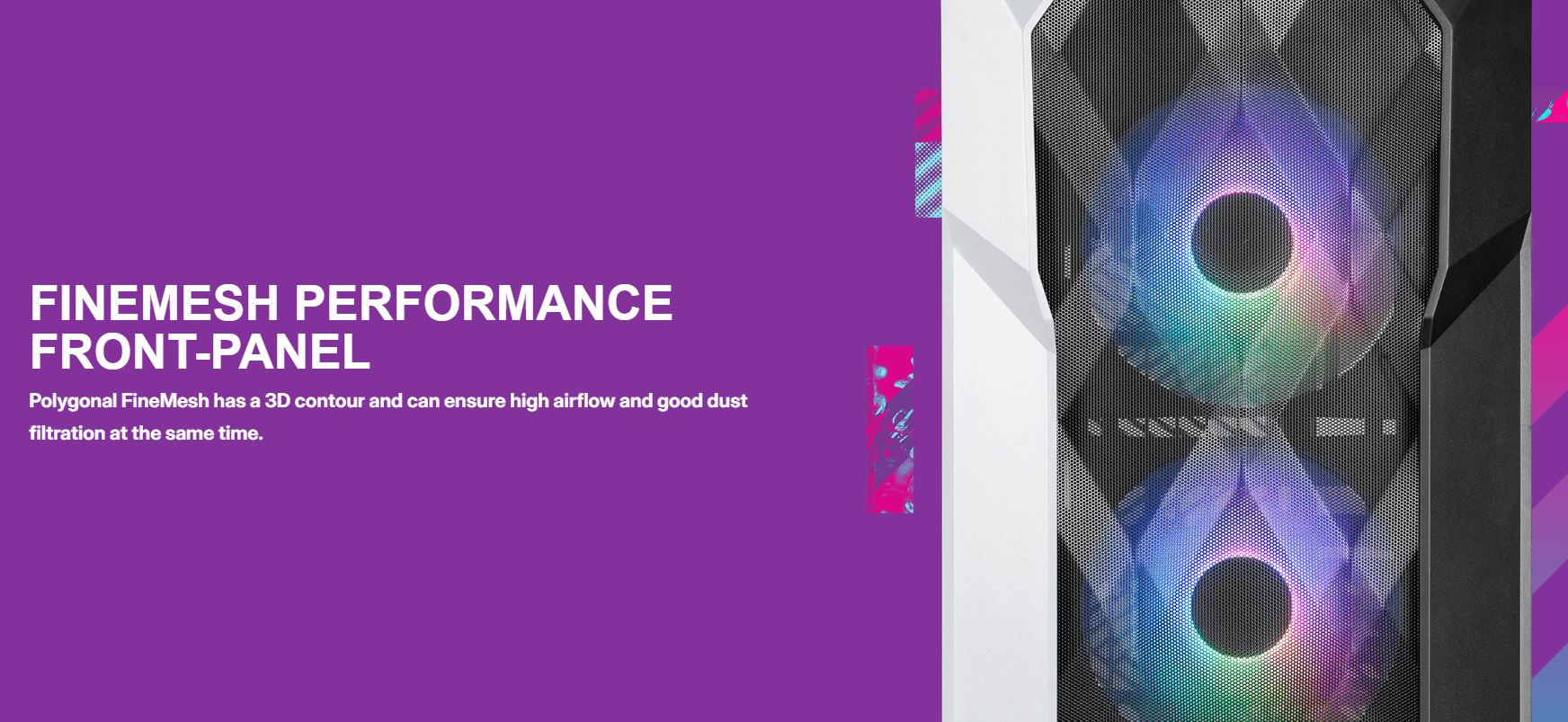

Materials - Exterior: Steel, Mesh, Plastic

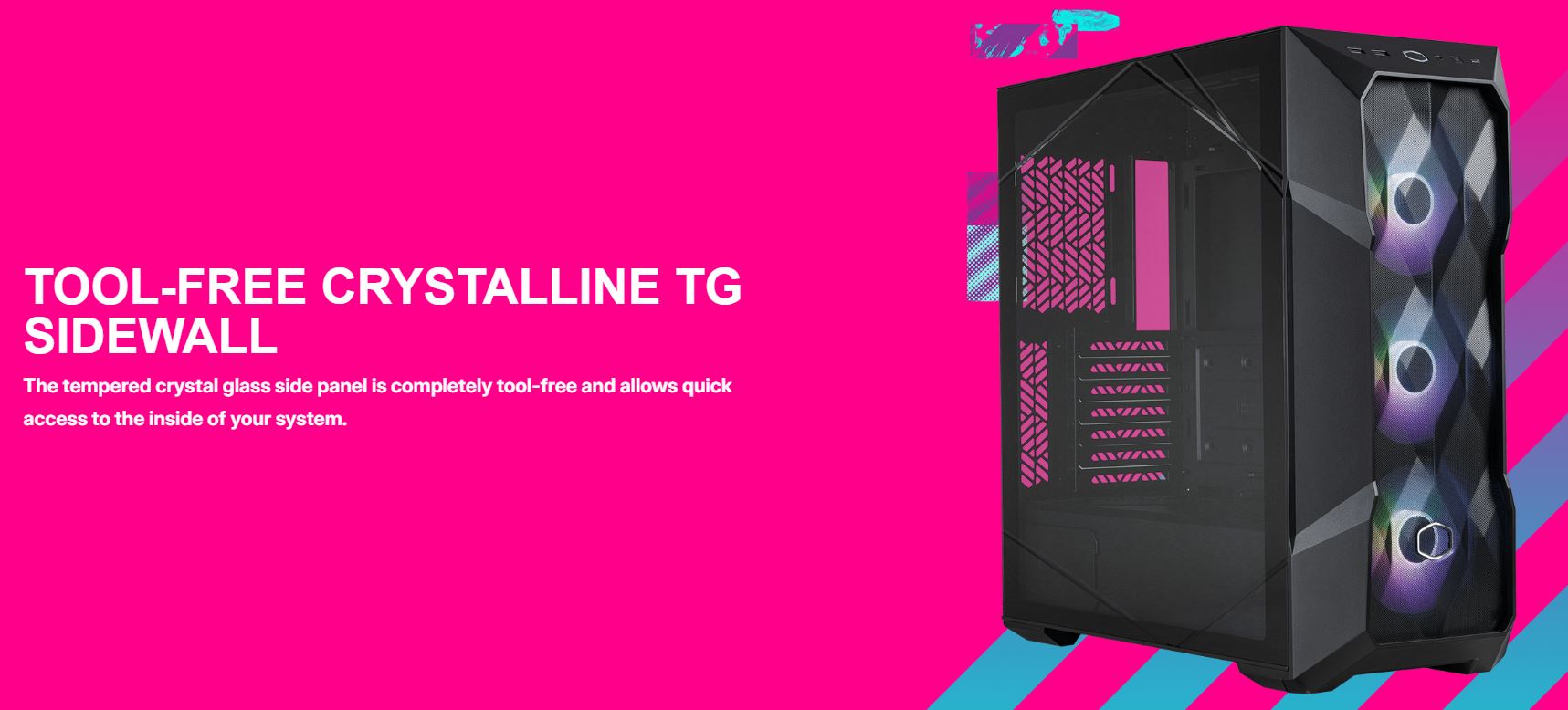

Materials - Left Side Panel: Tempered Glass
Dimensions (L x W x H): 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)

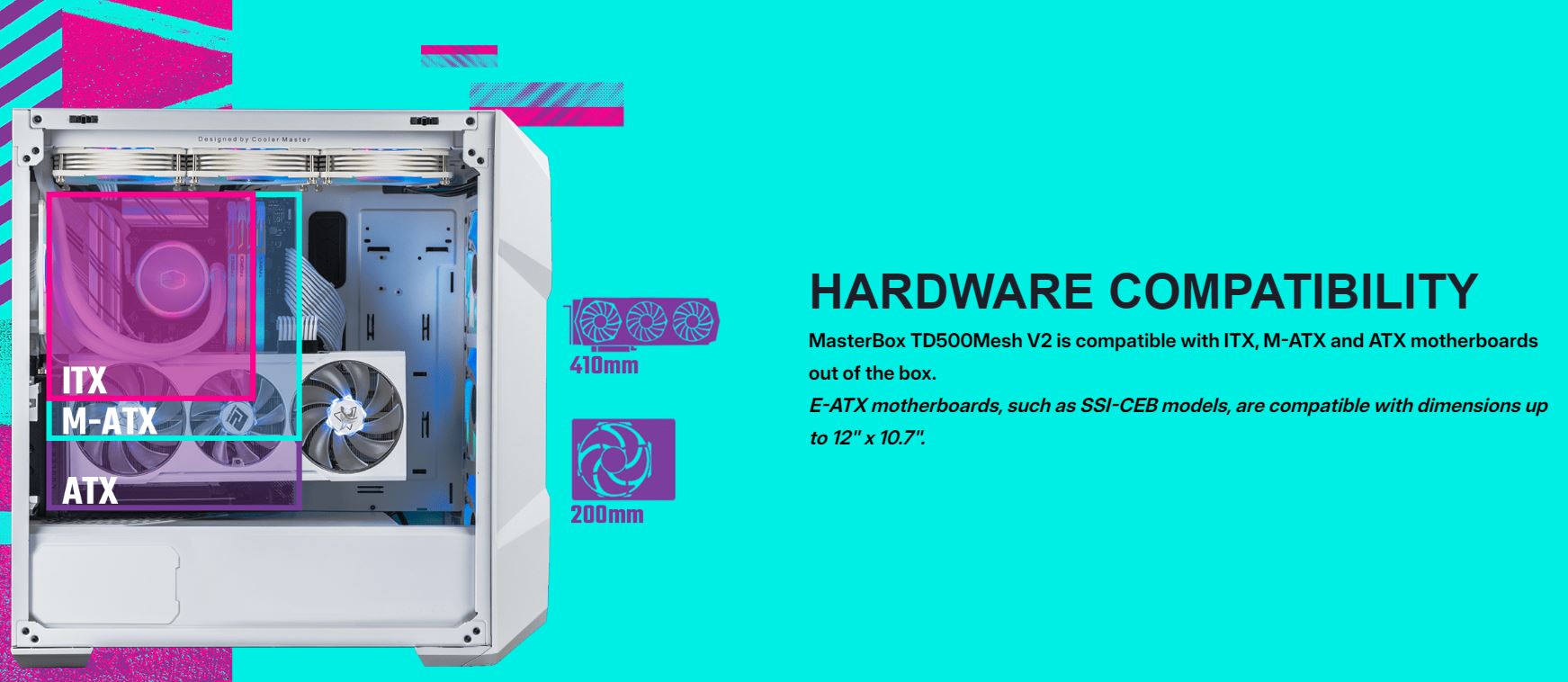

Motherboard Support: Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
Expansion Slots: 7
3.5" Drive Bays: 2
2.5" Drive Bays: 3

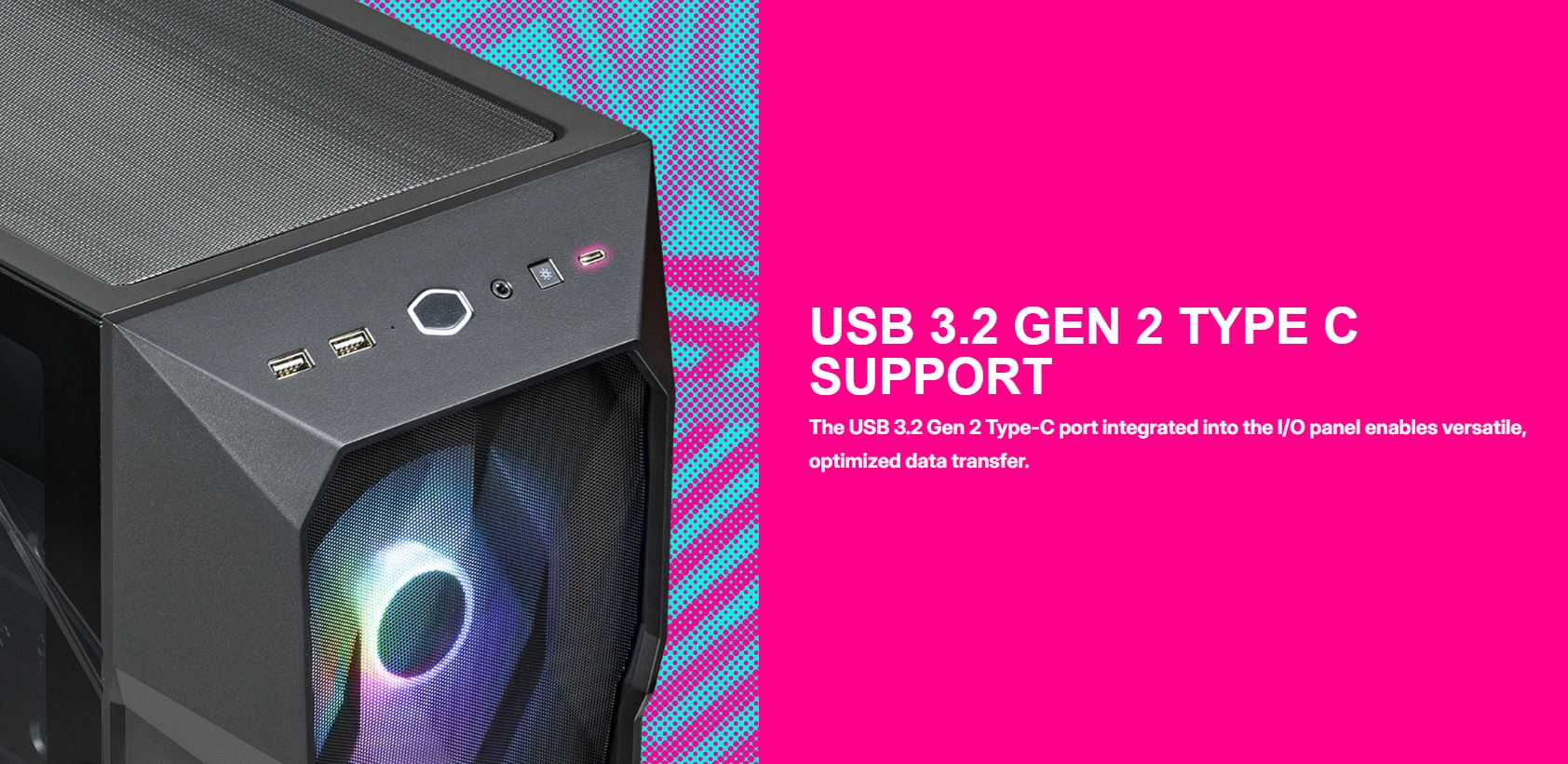

I/O Panel - USB Ports: 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C
I/O Panel - Audio In / Out: 1x Audio Jack
I/O Panel - Other: 1x ARGB Fan Hub
Pre-installed Fans - Top: N/A
Pre-installed Fans - Front: 3x 120mm CF120 ARGB
Pre-installed Fans - Rear: N/A

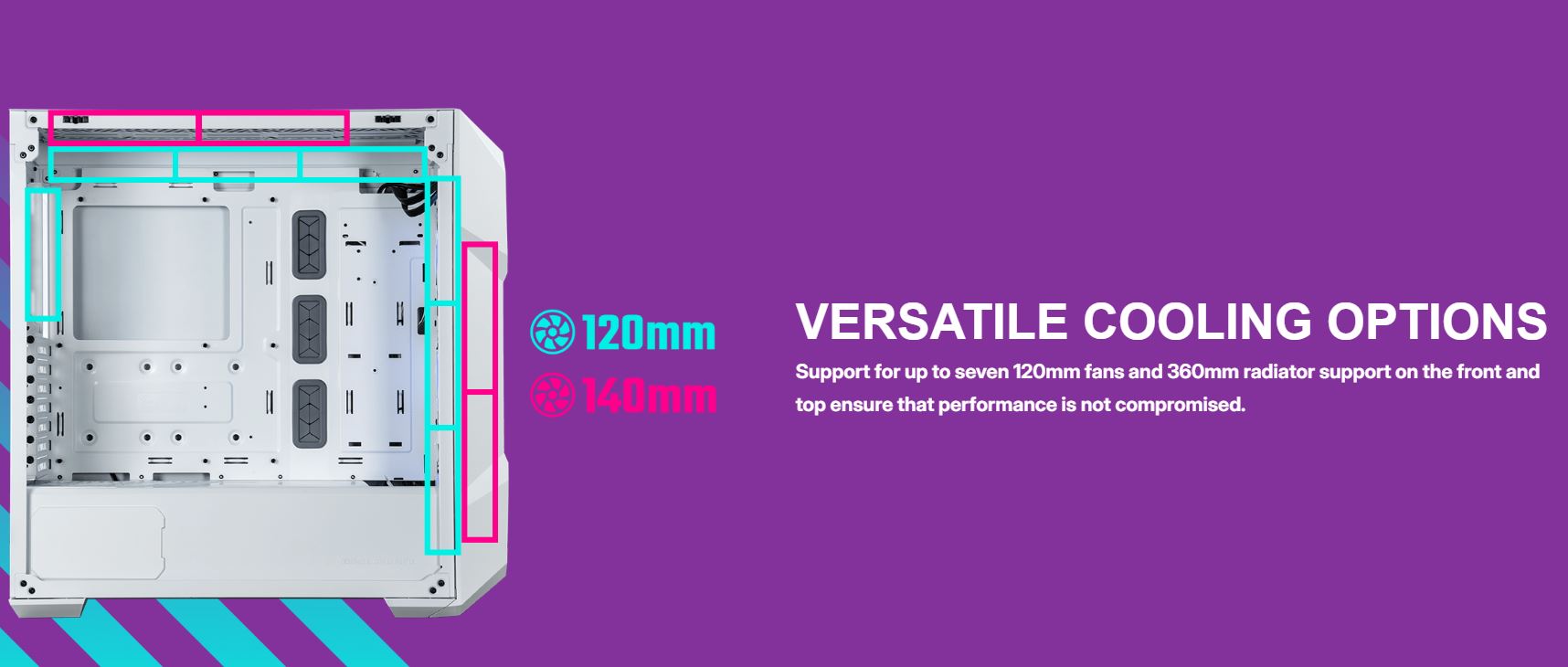

Fan Support - Top: 3x 120mm, 2x 140mm
Fan Support - Front: 3x 120mm, 2x 140mm
Fan Support - Rear: 1x 120mm
Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
Radiator Support - Front: 120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear: 120mm
Clearance - CPU Cooler: 165mm
Clearance - PSU: 200mm (Recommended up to 170mm)
Clearance - GFX: 410mm
Cable Routing - Behind Motherboard Tray: 19mm / 0.74"
Dust Filters: Front, Top, Bottom
Power Supply Support: Bottom Mount, ATX
Size: Mid Tower
Series: MasterBox Series
Back Connector Motherboard Support: No
