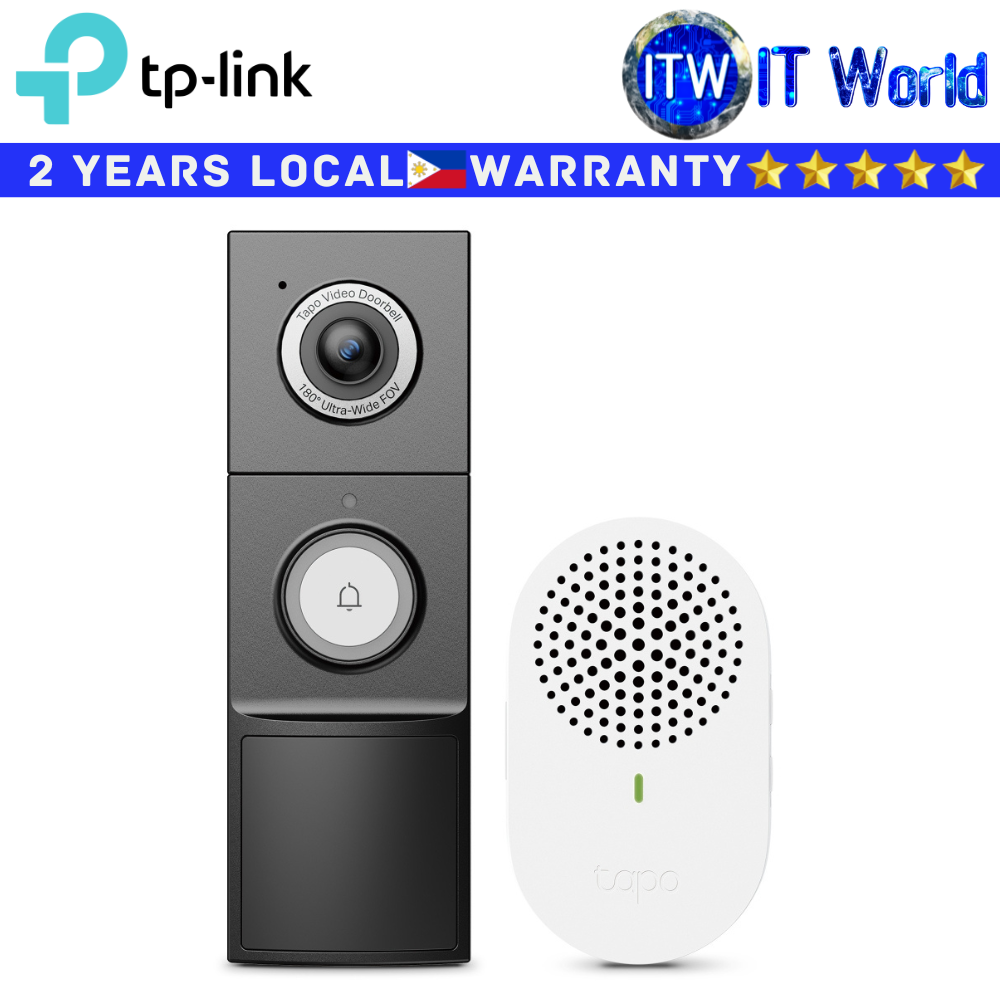

Product Name: Itw | TP-Link Tapo D235 2K 5MP / 180° Field Of View Video Doorbel Camera
* Tapo D235
* Tapo Video Doorbell Camera
- 2K 5MP Head-to-Toe View - D235’s 4:3 aspect ratio captures a 180° field of view with high resolution.
- Smart AI Detection and Notification - Smart AI identifies people, pets, and packages, notifying users as needed.
- 360 Days of Use - Tapo D235 supports being used for 360 days. No more worrying about missing what happens outside your door.

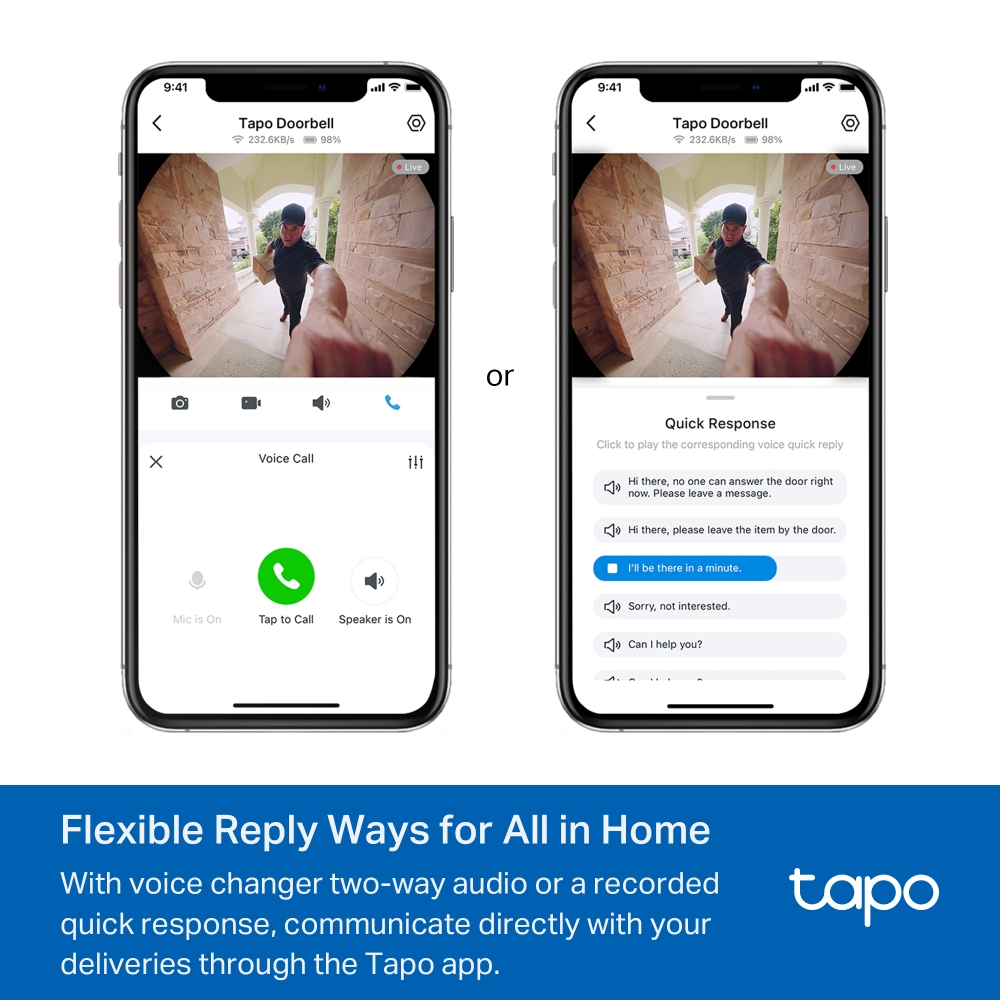

- Two-Way Audio - Enables communication through a built-in microphone and speaker.
- Powered by Hardwire or Battery - Place the doorbell anywhere you need.
Specification
* CAMERA
- Image Sensor: 1/2.7“ Progressive Scan CMOS Sensor
- Lens:
- Focal Length: 1.18mm
- Aperture: F1.8
- Field of View: 170.6° (Horizontal), 140.1° (Vertical)
- Night Vision:
- 850 nm IR LED (33 ft / 10 m)
- Full-Color Night Vision
- Lighting: Built-in Spotlights
- Interface & Button:
- 1× RESET /SYNC Button
- 1× Doorbell Button
- 1× Anti-Theft Button
- 1× Power ON/OFF Button
* VIDEO & AUDIO
- Maximum Resolution: 2K 5MP (2560 × 1920px)
- Frame Rate: 15/20 fps
- Digital Zoom: 16x
- Video Compression: H.264
- Live View: Yes
- Image Enhancement:
- 3DNR
- WDR
- Audio Input & Output: Built-in Microphone and Speaker
- Audio Communication: Two-Way Audio with Noise Cancellation
- Siren Volume: 98dB (Level measured at 4-inch/10-cm distance)
* STORAGE
- Local Storage: MicroSD Card Slot on Hub (Up to 512 GB)
- Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
* DETECTION and NOTIFICATIONS
- Sensor: Single PIR Motion Sensor (FOV: 130° horizontal)
One Ambient Light Sensor
- AI Detection:
- Motion Detection
- Person Detection
- Pet Detection
- Vehicle Detection
- Package Detection
- Activity Zones:
- Yes
- *Only works with Motion Detection.
- Output Notification:
- System Notification
- System Notification with Snapshot (Tapo Care Services)
* NETWORK
Network Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
* SECURITY
- Security On-Device Machine Learning
- 128-bit AES Encryption with SSL/TLS
- WPA/WPA2-PSK
* POWER
- Power Source:
- 10000 mAh Built-in Rechargeable Lithium-ion Battery
- Hardwire charge
- Hardwire supply
Input Voltage: Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz
Output Voltage: Doorbell Battery Pack Adapter Output: 5.0 V, 2.0 A
* GENERAL
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: IP66
System Requirements: Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options:
- Stick to a Wall
- Mount to a Wall
Operating Temperature: -20℃~45℃
Storage Temperature: -20℃~45℃
Operating Humidity: 10%~90% RH, Non-condensing
Storage Humidity: 0~90% RH, Non-condensing
Charging Temperature: 0-45℃
* Dimensions
- Doorbell Dimensions: 5.91 × 1.97 × 1.52 in (150 × 50 × 38.4 mm)
- Chime Dimensions:
- US/JP Version: 2.87×1.85×1.71 in (73×46.9×43.5 mm)
- EU Version: 2.87 × 2.15 × 1.89 in (73×54.6×48 mm)
- UK Version: 2.87×2.45×1.71 in (73×62.3×43.5 mm)
- KR Version: 2.87×2.46×1.71 in (73×62.4×43.5mm)
- AU Version: 2.87×2.01×1.71 in (73×51×43.5 mm)
* Package Contents
- Tapo Video Doorbell × 1
- Tapo Chime × 1
- Mounting Template × 1
- Mounting Bracket × 1
- Vertical Mounting Wedge× 1
- Horizontal Mounting Wedge × 1
- USB Adapter Cable × 1
- Jumper for Existing Chime × 1
- Extension Wires × 2
- Mounting Screws and Anchors × 3
- Hardwire Installation Screws × 2
- Doorbell Detaching Pin × 1
- Mounting Wedge Screws × 5
- 3M Adhesive × 1
- Foam Pad × 1
- Wire Nuts × 2
- Quick Start Guide
Certifications: CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA
