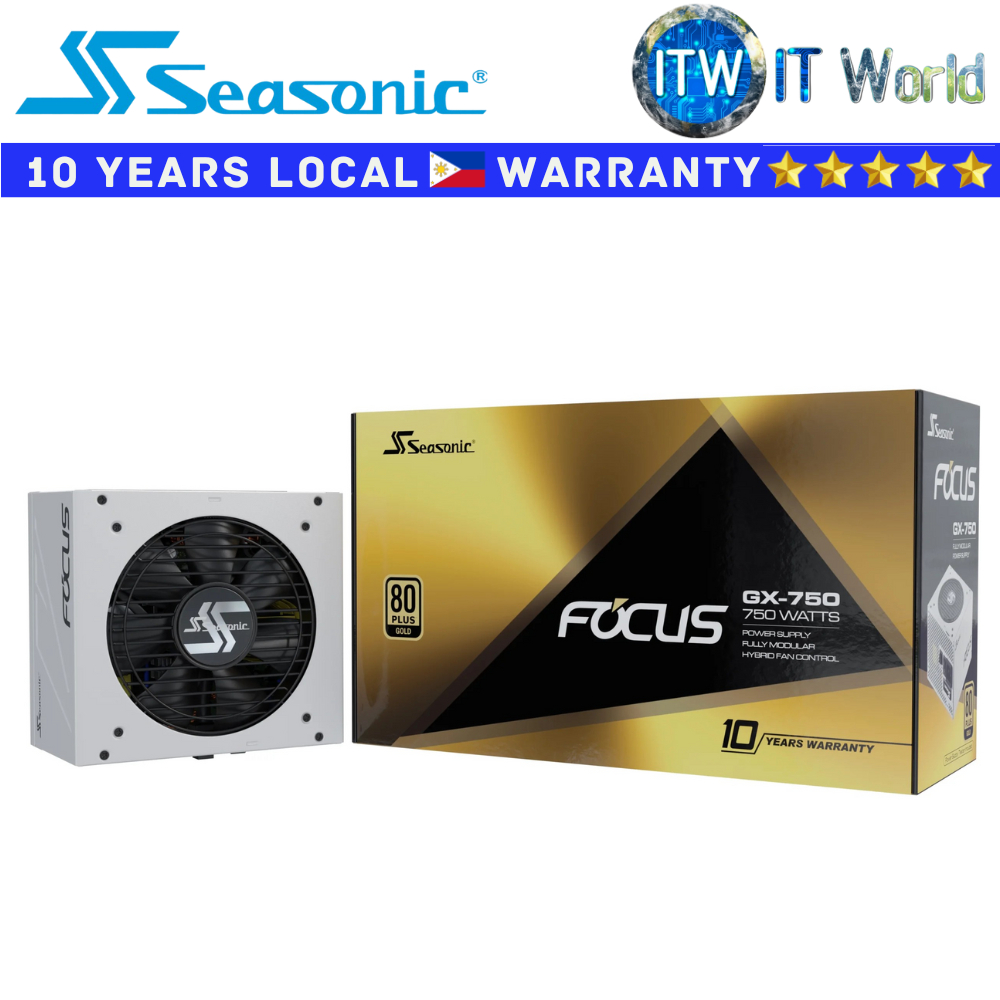

Product Name: Itw | Seasonic PSU 750W Power Supply Unit FOCUS GX White 80+ Gold ATX 12V Full Modular

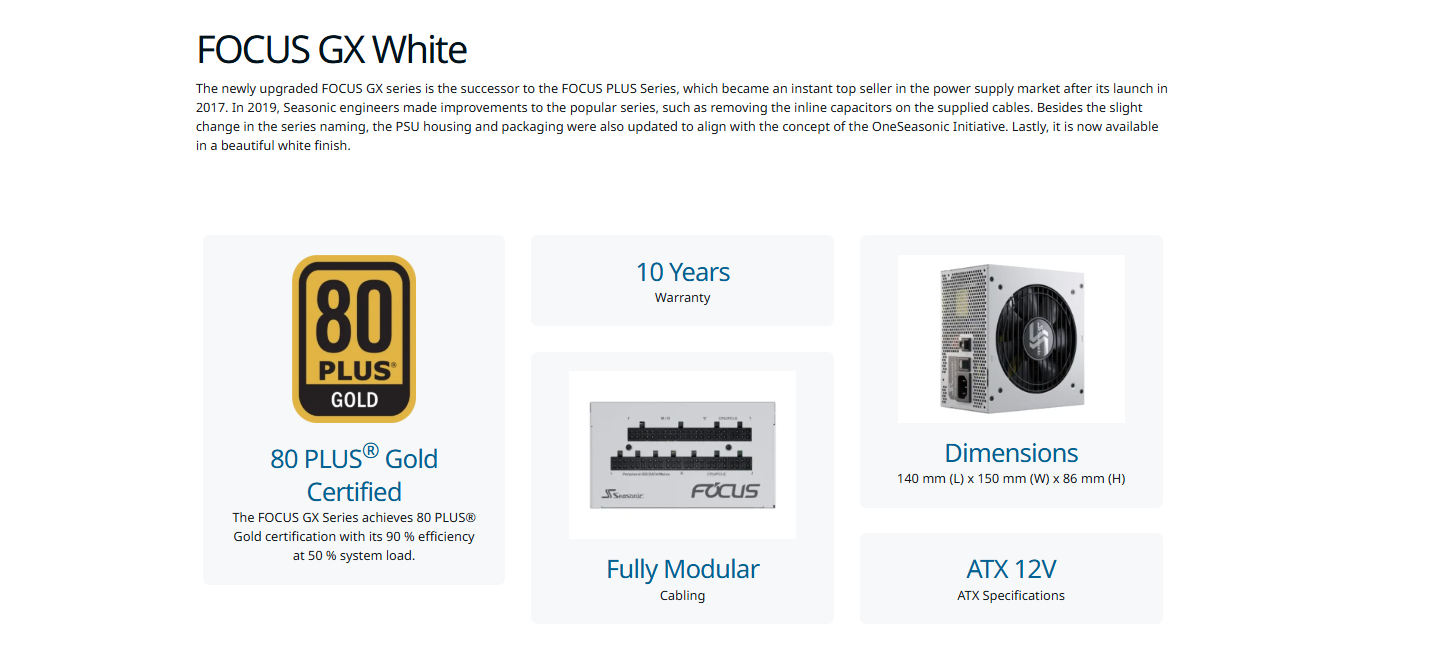

*FOCUS GX White
The newly upgraded FOCUS GX series is the successor to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers made improvements to the popular series, such as removing the inline capacitors on the supplied cables. Besides the slight change in the series naming, the PSU housing and packaging were also updated to align with the concept of the OneSeasonic Initiative. Lastly, it is now available in a beautiful white finish.
Specification
Technical Specifications
80PLUS®: Gold
Cybenetics Efficiency Level: TBA
Cybenetics Noise Level: TBA
Form Factor: ATX/EPS
Dimensions: 140 × 150 × 86 mm
Fan Information:
- Fan Size 120 mm

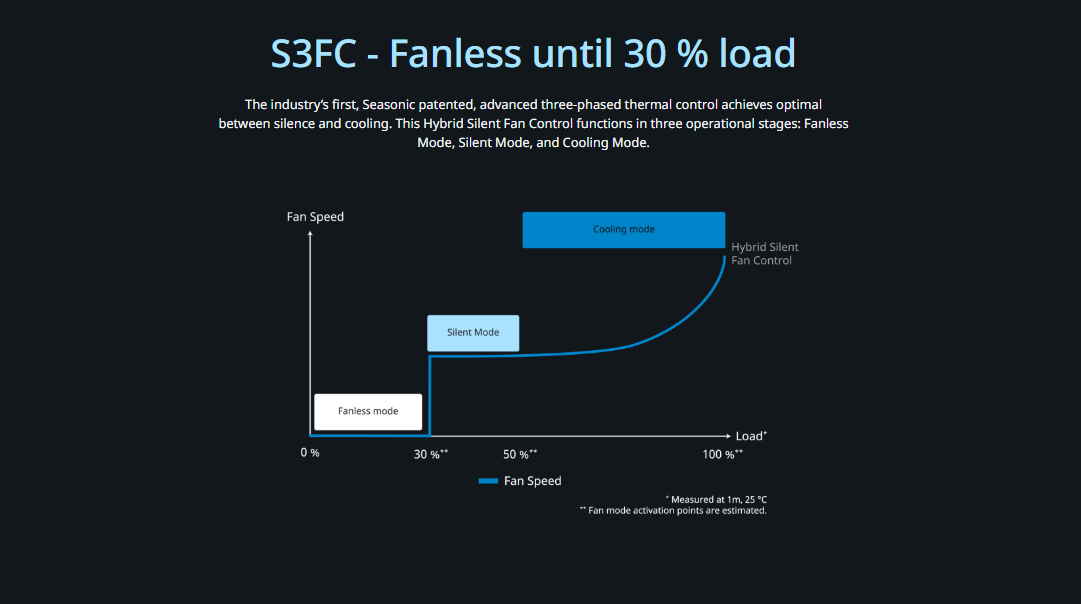

- Fan Control S3FC (including Fanless Mode)

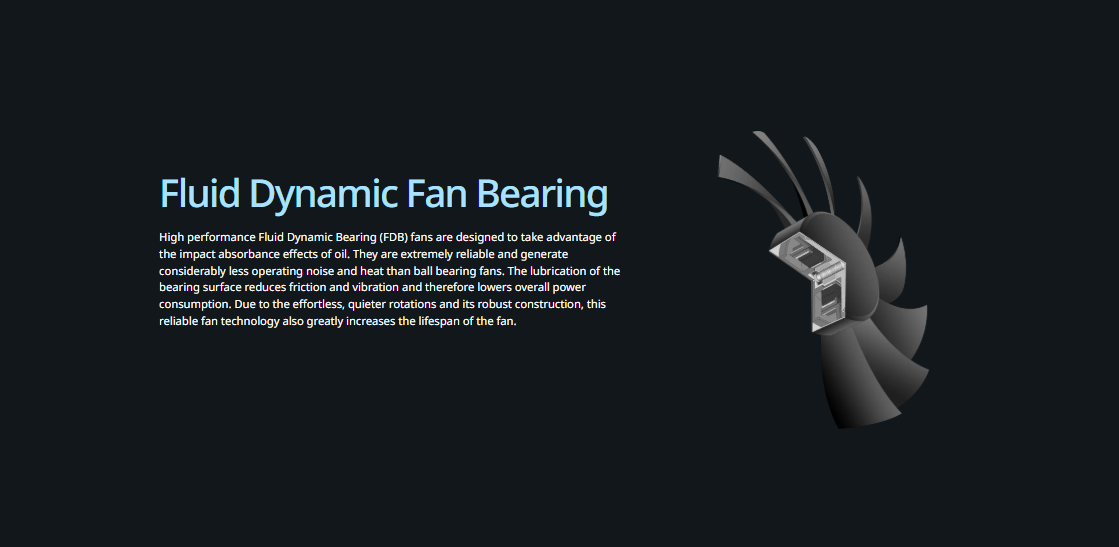

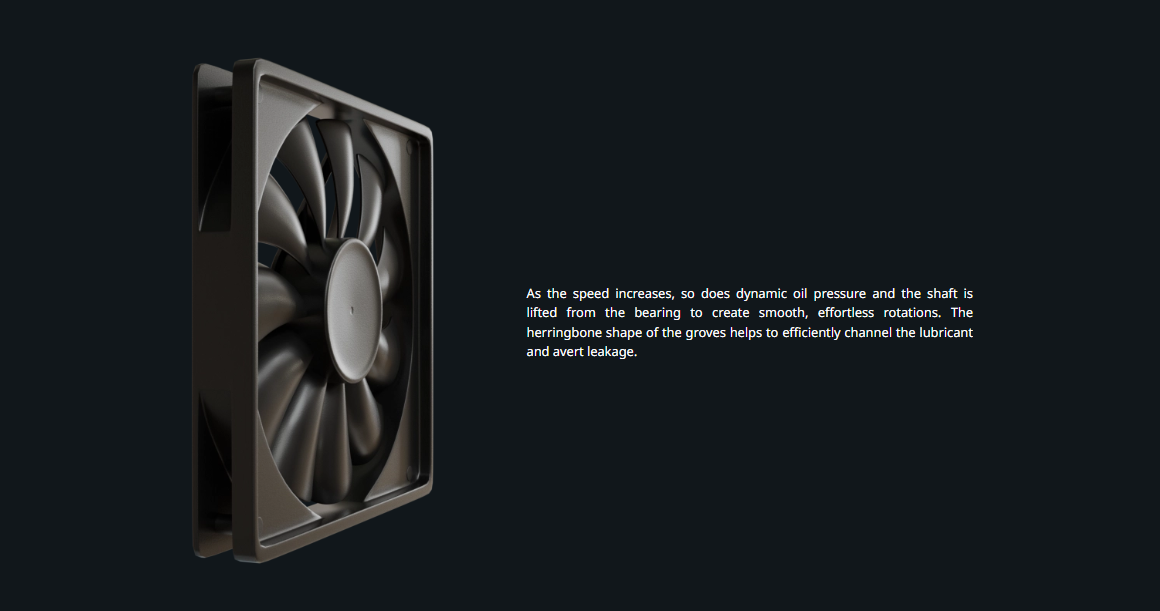

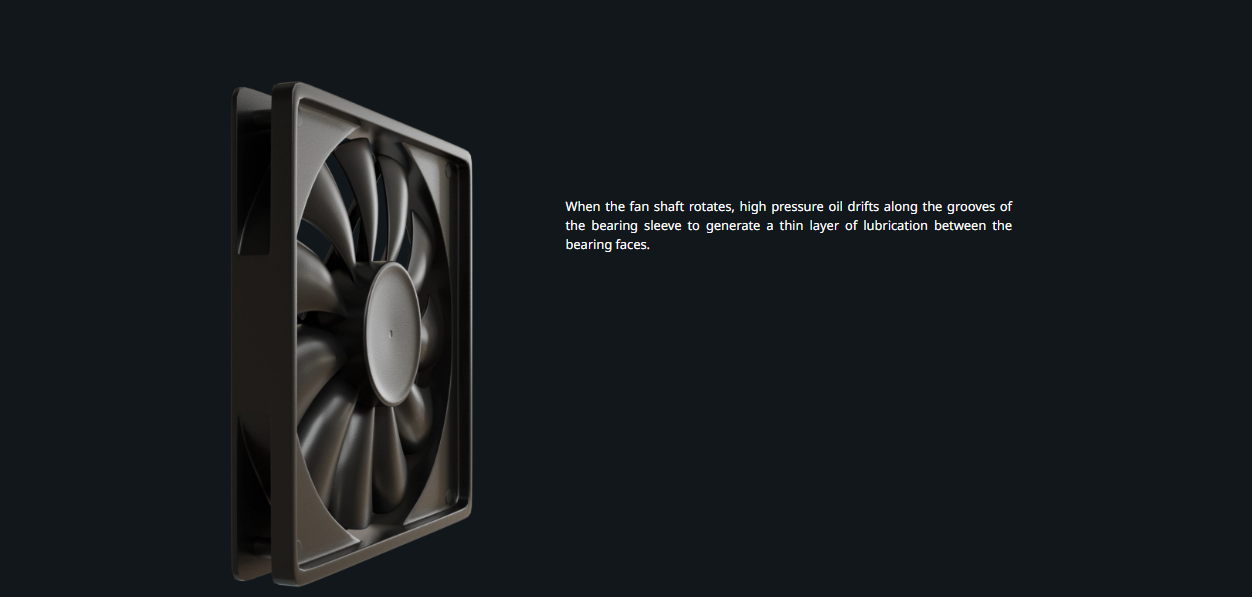

- Fan Bearing Fluid Dynamic Bearing
- Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

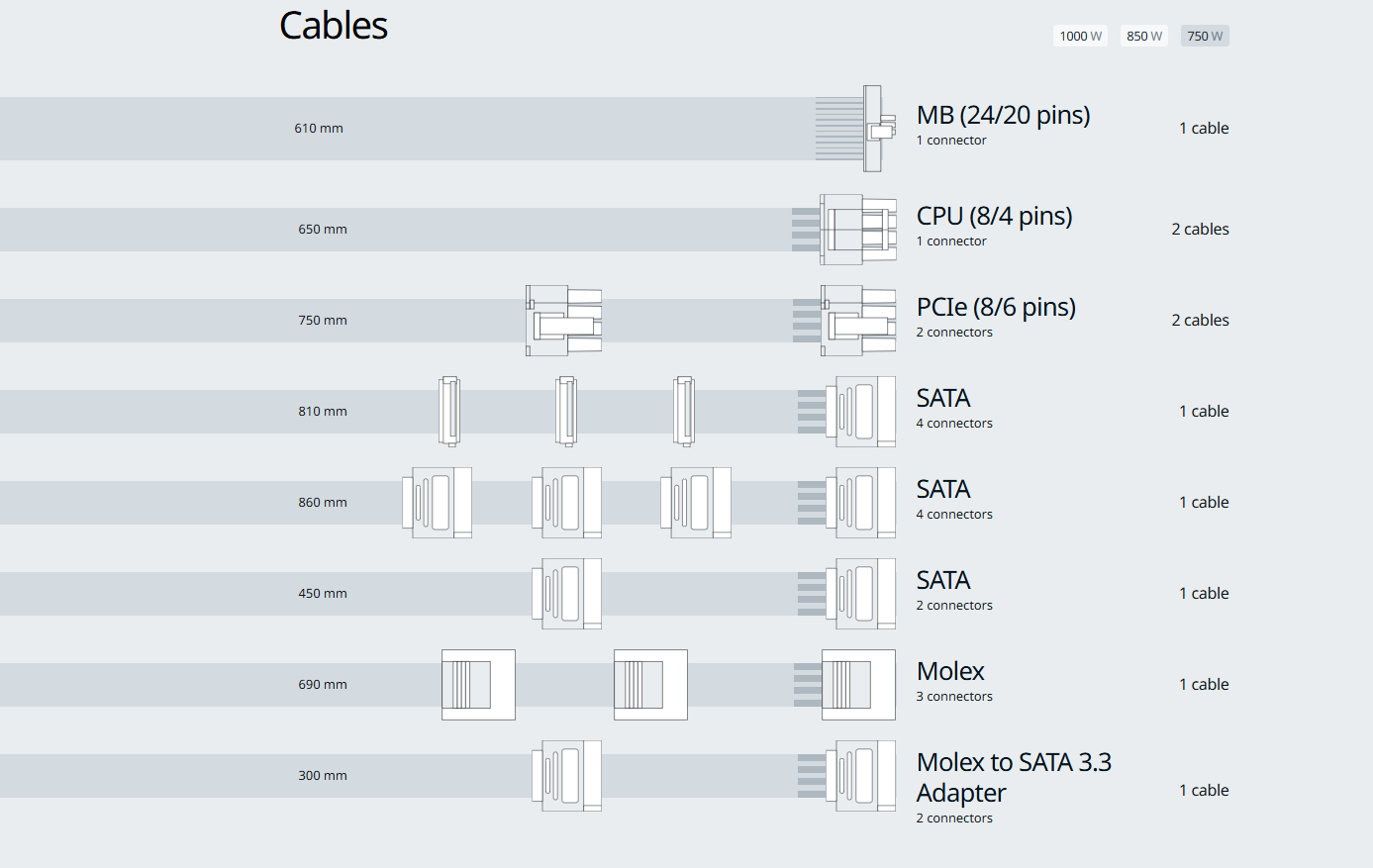

Cable Information:
- Modularity: Fully Modular
Electrical Features
- Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
- MTBF @ 25 °C, excl. fan: 100,000 hours
- AC Input: Full Range
- Protection: OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental:
- Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
- Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty: 10 Years
Power Output:
- AC Input: 100 V - 240 V
- 10 - 5 A
- 50 Hz - 60 Hz
DC Output
- Rail: +3.3 V +5 V +12 V -12 V +5 VSB
- Maximum Power: 20 A 20 A 62 A 0.3 A 3 A
100 W 744 W 3.6 W 15 W
Total continuous power: 750 W
