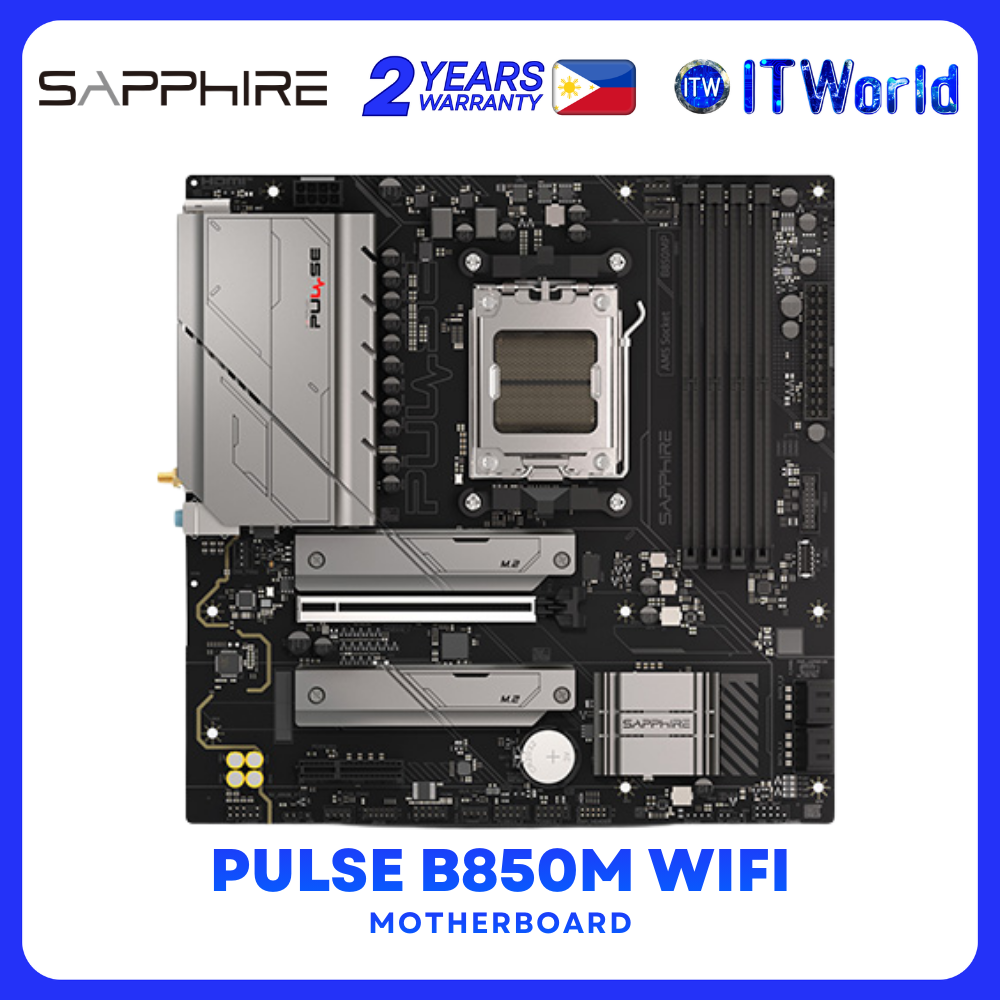

Build a powerful and modern AMD system with the SAPPHIRE PULSE B850M WIFI Micro-ATX Motherboard. Designed for AMD AM5 processors, this motherboard features DDR5 memory support up to 7600 MHz (OC), PCIe 5.0 M.2 storage, and WiFi 6 connectivity, delivering reliable performance for gaming, productivity, and next-generation PC builds.
⚡ AMD AM5 Processor Support
• Supports AMD Socket AM5 processors
• Compatible with Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Powered by AMD® B850 Chipset
🛡 Robust Power & Cooling Design
• 7+2+1 Phase CPU Power Design
• 60A per phase power delivery
• Robust cooling for VRM, M.2, and PCH
🧠 High-Speed DDR5 Memory
• 4× DDR5 DIMM slots
• Dual-channel memory architecture
• Supports up to 256GB memory capacity (4×64GB)
• Memory speeds up to 7600 MHz (OC)
🎮 Expansion & Graphics Support
• 1× PCIe 4.0 x16 slot
• 1× PCIe 4.0 x4 slot
💾 Advanced Storage Options
• 1× PCIe 5.0 M.2 slot
• 1× PCIe 4.0 M.2 slot
• 4× SATA ports
🌐 Networking & Wireless Connectivity
• Realtek® RTL8125BG 2.5 Gigabit Ethernet
• M.2 WiFi 6 Module
• Supports 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz)
• Bluetooth 5.3 support
🖥 Display Connectivity
• 1× HDMI
• 1× DisplayPort
🔌 USB Connectivity
Rear Ports:
• 6× USB 2.0
• 2× USB 3.2 Gen1 Type-A
• 1× RJ45 LAN
• 2× WiFi antenna connectors
• 3× Audio jacks
Front USB Headers:
• 1× USB 3.2 Gen1 (1× Type-C)
• 1× USB 3.2 Gen1 (2× Type-A)
• 2× USB 2.0 (4× Type-A)
🎧 Audio
• Realtek® ALC897 HD Audio
• 5.1 Channel audio support
💡 Debug LED Indicators
• DRAM: Yellow
• CPU: Red
• GPU: White
• Boot: Green
📏 Motherboard Form Factor
• Micro-ATX
• Dimensions: 244 × 244 mm
