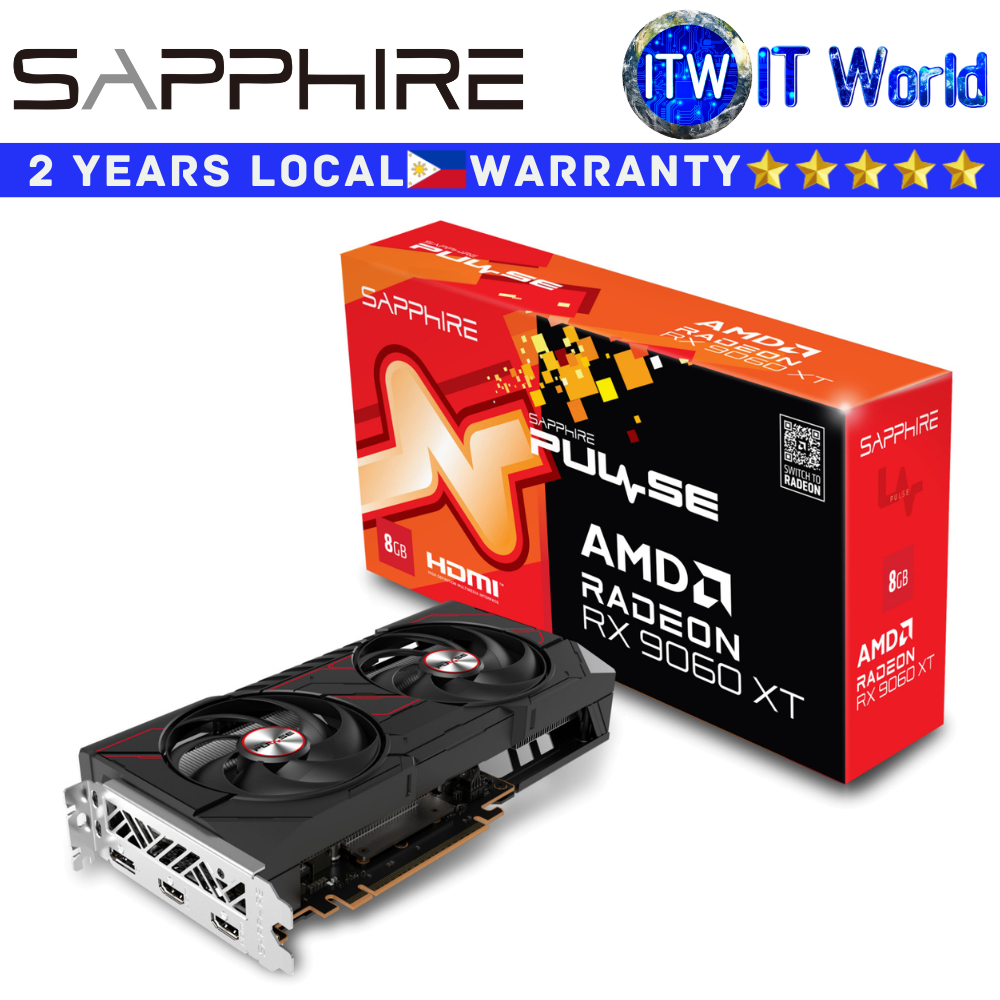

Sapphire RX 9060 XT 8GB GDDR6 Gaming OC PULSE AMD Radeon Graphic Card (SPR-11350-04-20G)

Product Name: Itw | Sapphire RX 9060 XT 8GB GDDR6 Gaming OC PULSE AMD Radeon Graphic Card (SPR-11350-04-20G)

AMD RDNA™ 4 Architecture

- 8GB of GDDR6 memory

- AMD HYPR-RX with AFMF 2

- DisplayPort™ 2.1a

- AMD FidelityFX™ Super Resolution 4 with AI Upscaling

- AMD Radiance Display™ Engine

- AMD Fluid Motion Frames 2 technology

Specification

GPU:

- AMD Radeon RX 9060 XT Graphics Card

- AMD RDNA™ 4 Architecture

Engine Clock:

- Boost Clock: Up to 3290 MHz

- Game Clock: Up to 2700 MHz

Stream Processors: 2048

Compute Units: 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache: 32MB

Ray Accelerators: 32

AI Accelerators: 64

Memory Size/Bus: 8GB/128 bit GDDR6

Memory Clock: 20 Gbps Effective

Displays: Maximum 3 Displays

Resolution:

- HDMI: 7680×4320

- DisplayPort 2.1a: 7680×4320

Interface: PCI-Express 5.0 x16

Output:

- 2x HDMI

- 1x DisplayPort 2.1a

BIOS Support: UEFI

Game Index: 1440P

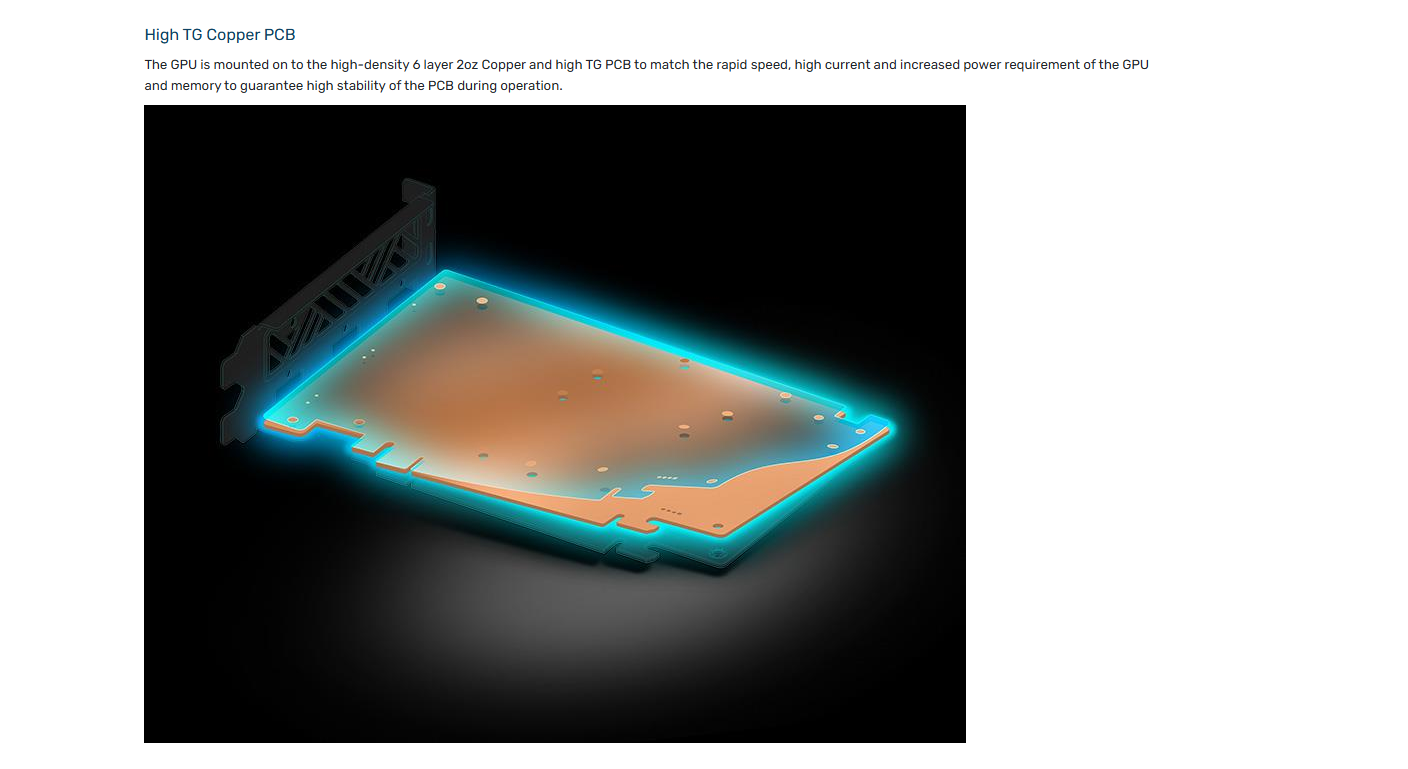

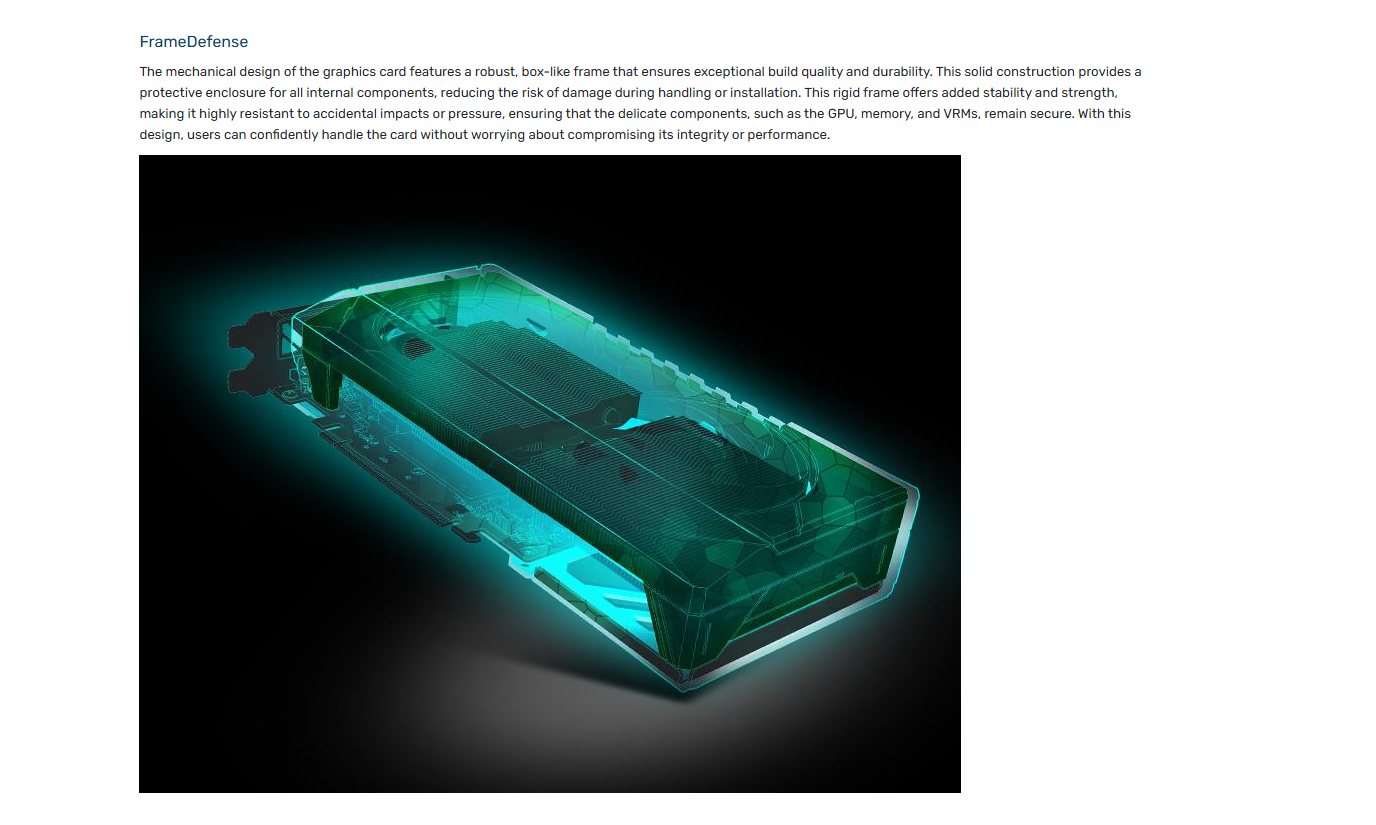

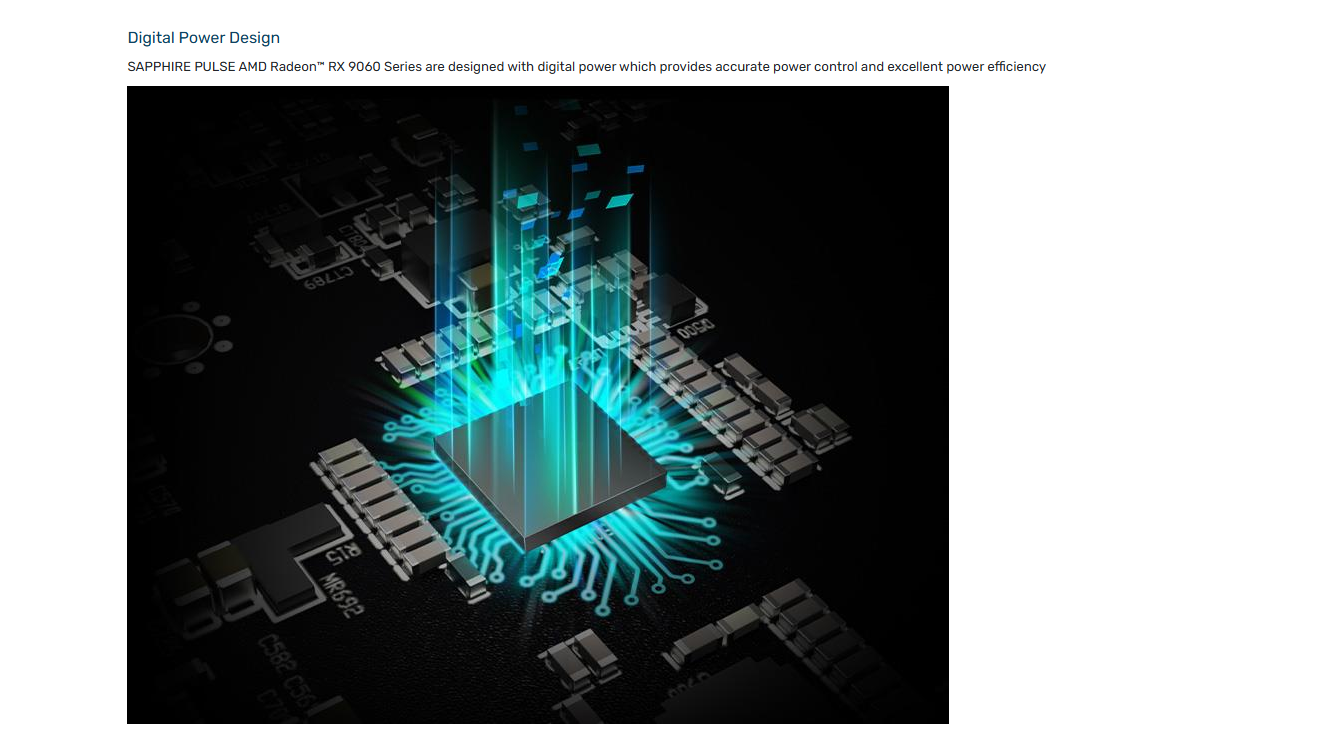

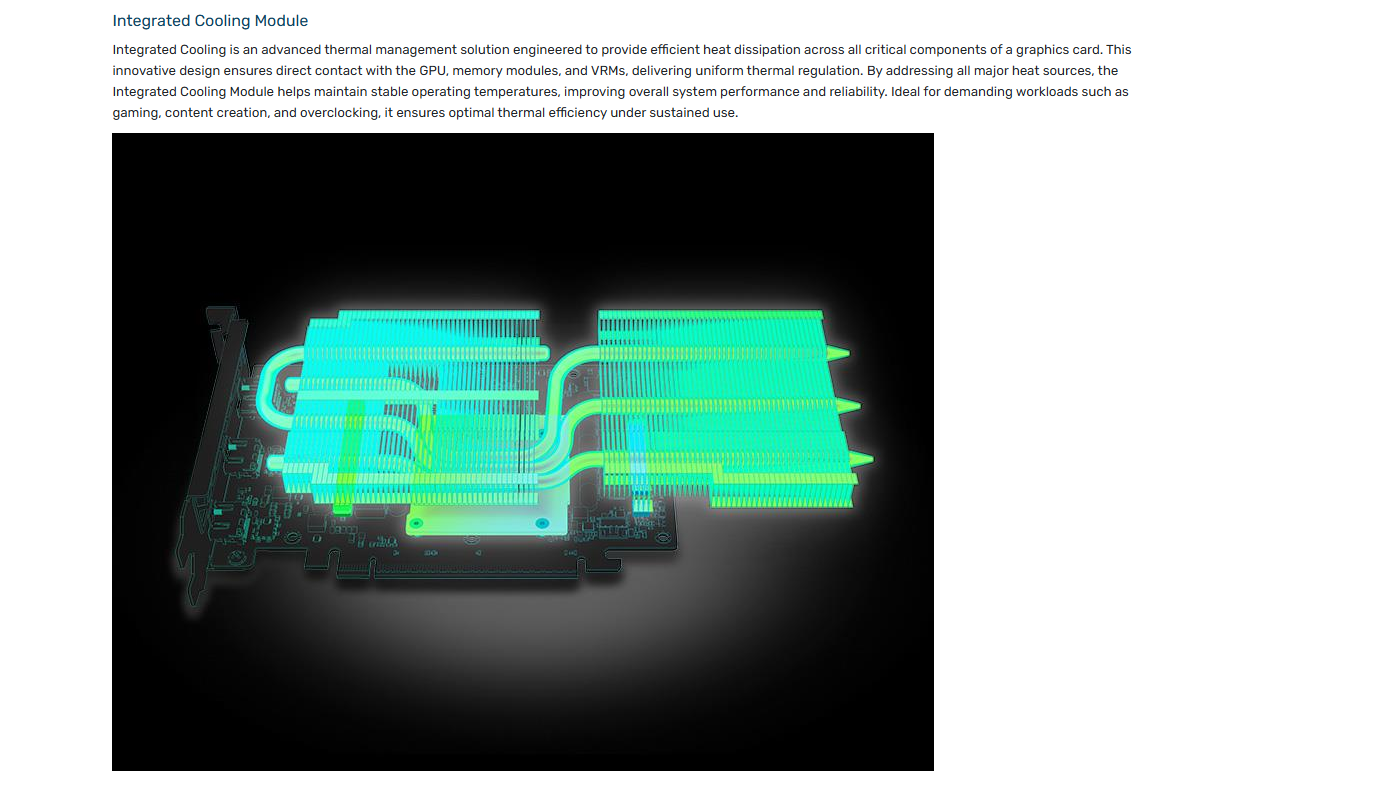

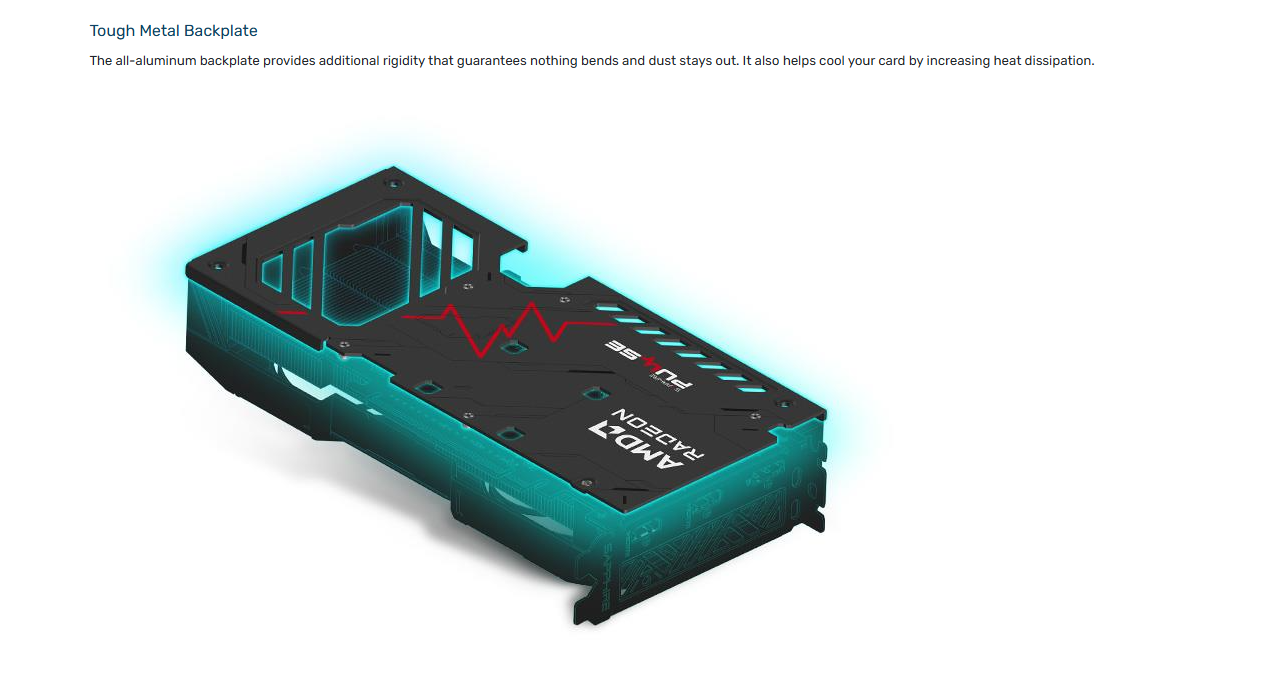

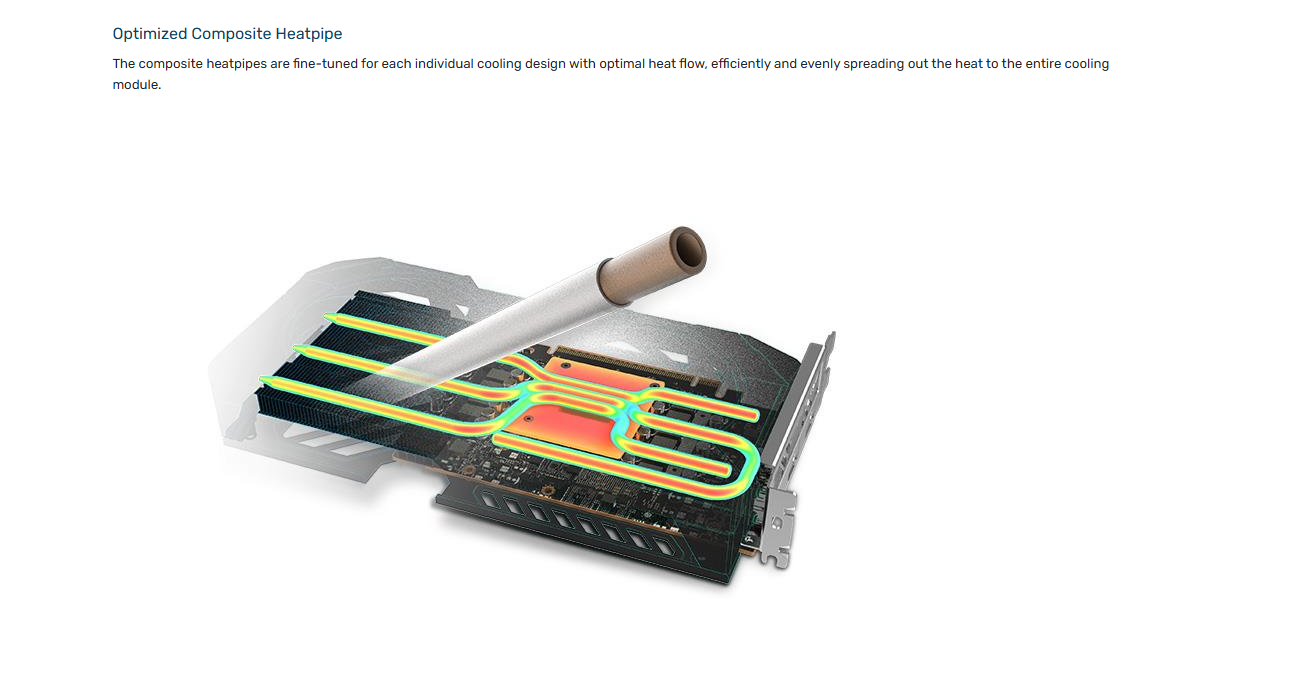

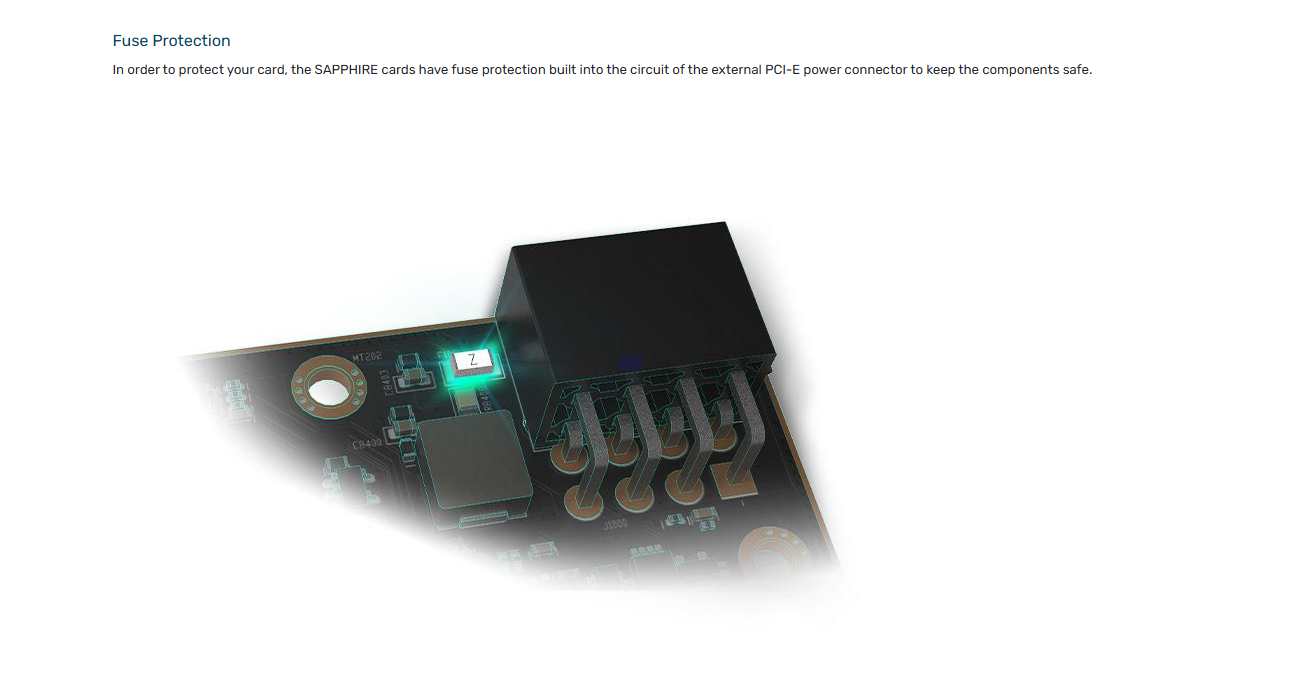

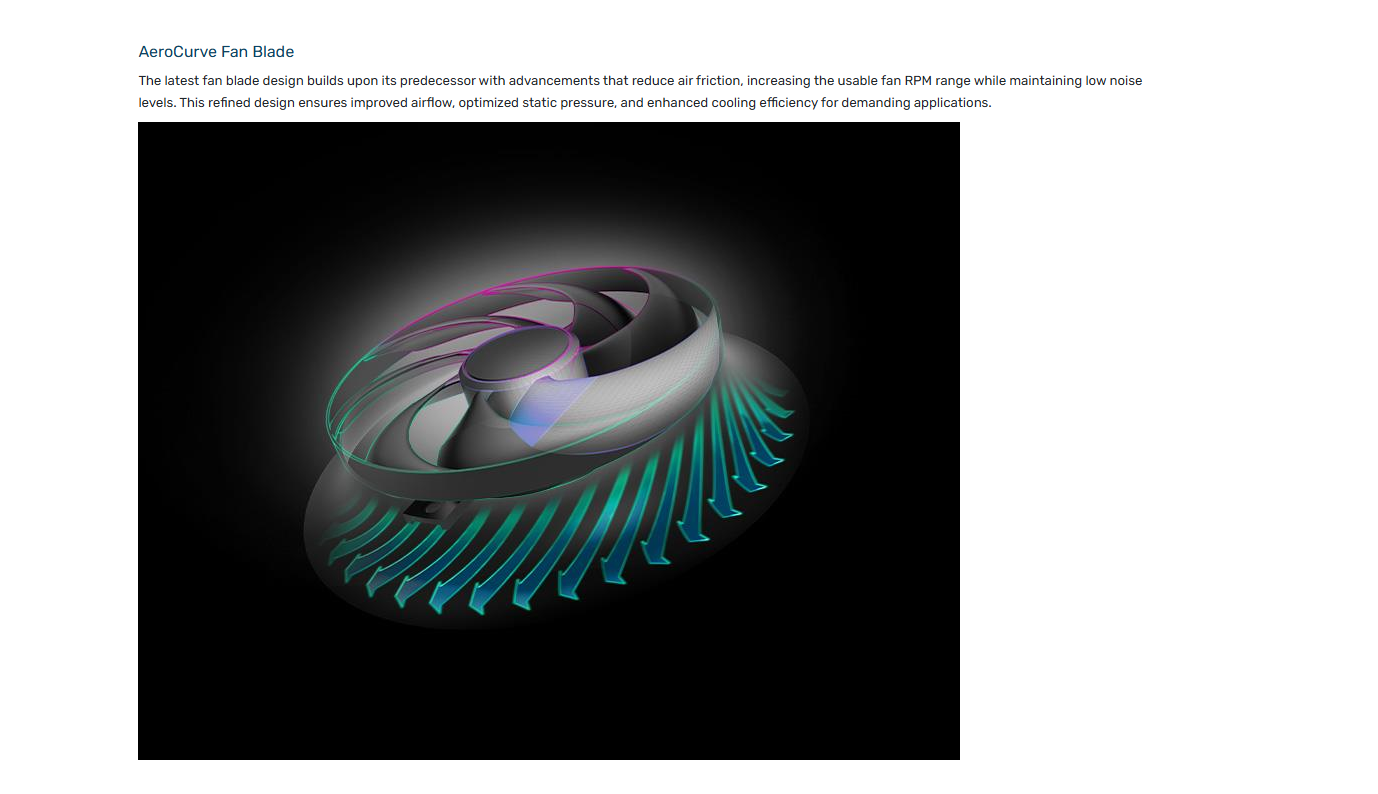

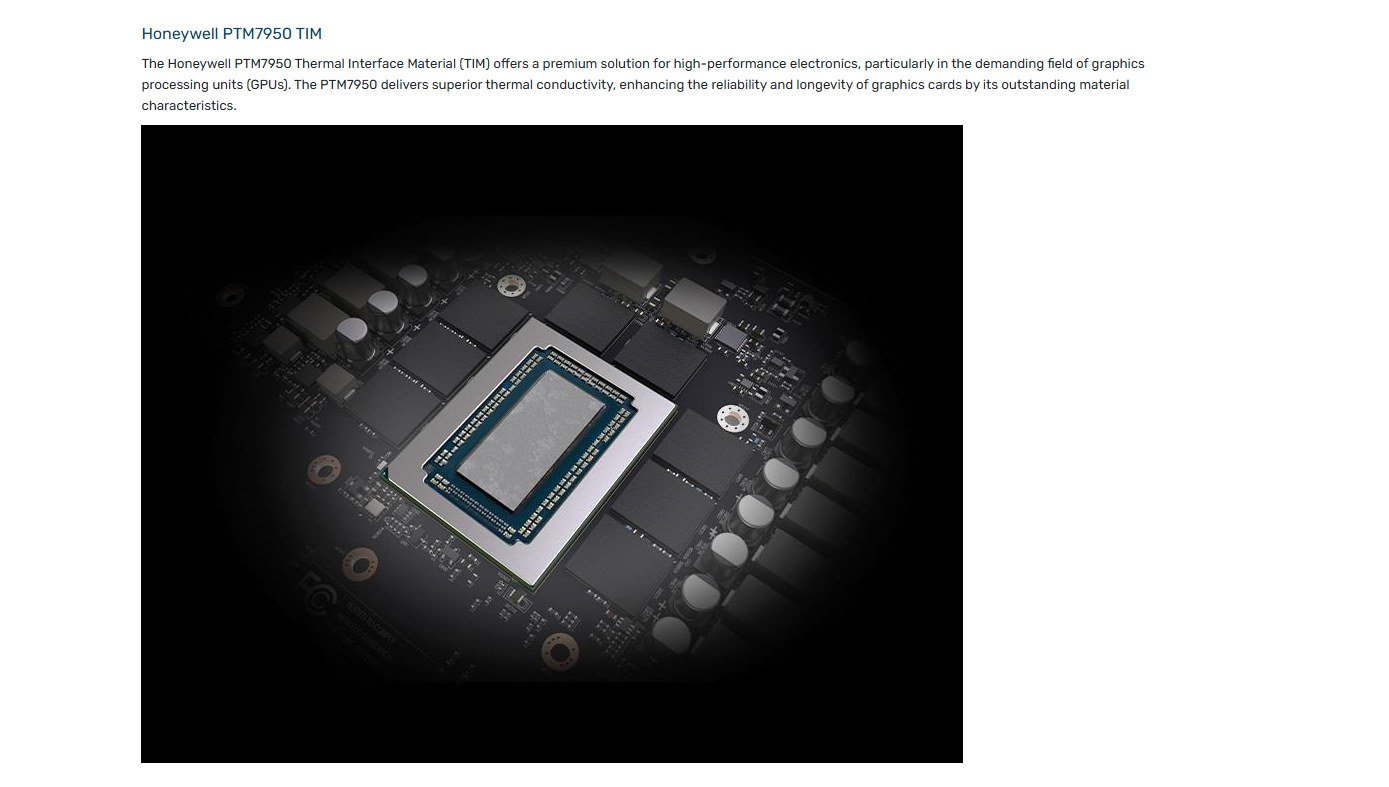

Sapphire Features: Honeywell PTM7950 Thermal Interface Material (TIM), AeroCurve Fan Blade, Free Flow, FrameDefense, Integrated Cooling Module, Dual-X Cooling Technology, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, Sleeve Bearing Fans, 9-Phase Digital Power Design, Fuse Protection, Intelligent Fan Control, Precision Fan Control, TriXX Supported, TriXX Boost

AMD Features: AMD RDNA 4 Architecture, 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators), AMD HYPR-RX with AFMF 2, AMD FidelityFX Super Resolution 4 with AI Upscaling, DisplayPort 2.1a, AMD Radiance Display Engine, AMD Fluid Motion Frames 2 technology, AMD Radeon Anti-Lag 2 technology, AV1 Encode/Decode, AMD FidelityFX technologies, Microsoft DirectX 12 Ultimate, AMD Noise Suppression, AMD Freesync technology, AMD Infinity Cache, 16 GB of GDDR6 on 128-bit Memory Bus, AMD smart technologies, AMD Software: Adrenalin Edition application

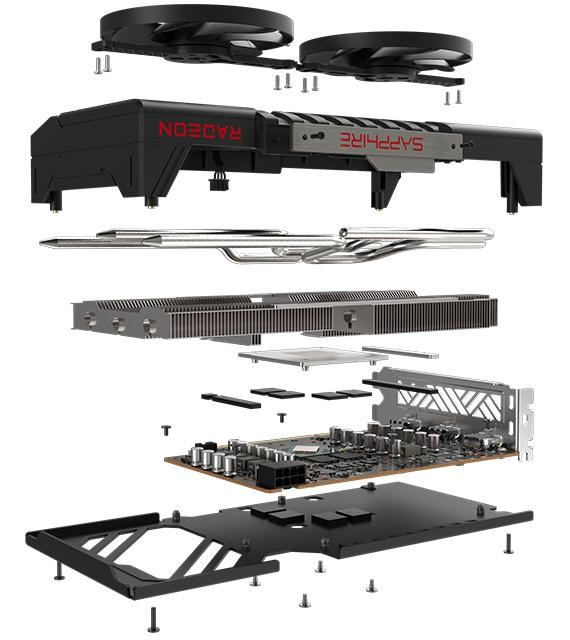

Cooler Type: Dual-X Cooling, AeroCurve Fan Blade, Free Flow, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Two-Ball Bearing

Form Factor:

- 2.3 slot, ATX

- Dimension: 240(L) x 124(W) x 46.1(H) mm

Power Consumption: 170W Typical Board Power

OS: Linux, Windows 10, Windows 11 (64-bit operating system required)

System Requirement: Minimum 450 Watt Power Supply, 1 x 8-pin Power Connector, PCI Express based PC with one X16 lane graphics slot, Minimum 8GB system memory (16GB recommended)
