Product Name:

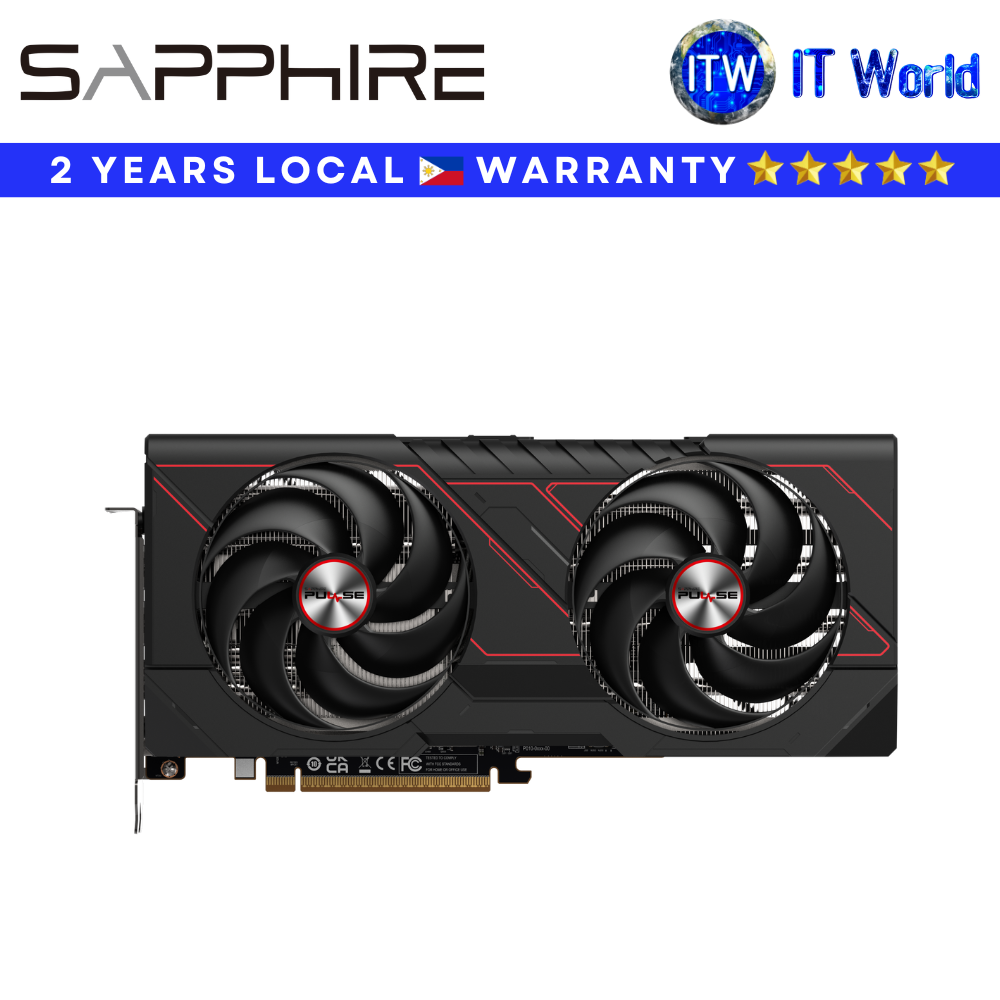

Itw | Sapphire PULSE RX 9070 Gaming 16GB GDDR6 /RDNA 4 / PCIe 5.0 / Dual-X Cooling Graphics Card
Description:
Experience next-gen performance with the Sapphire PULSE AMD Radeon™ RX 9070 Gaming 16GB, built on advanced AMD RDNA™ 4 architecture. Featuring 3584 Stream Processors, 56 Ray Accelerators, and Dual-X Cooling, this card delivers incredible efficiency, power, and thermal control for smooth 4K gaming.
Key Features:
GPU: AMD Radeon™ RX 9070

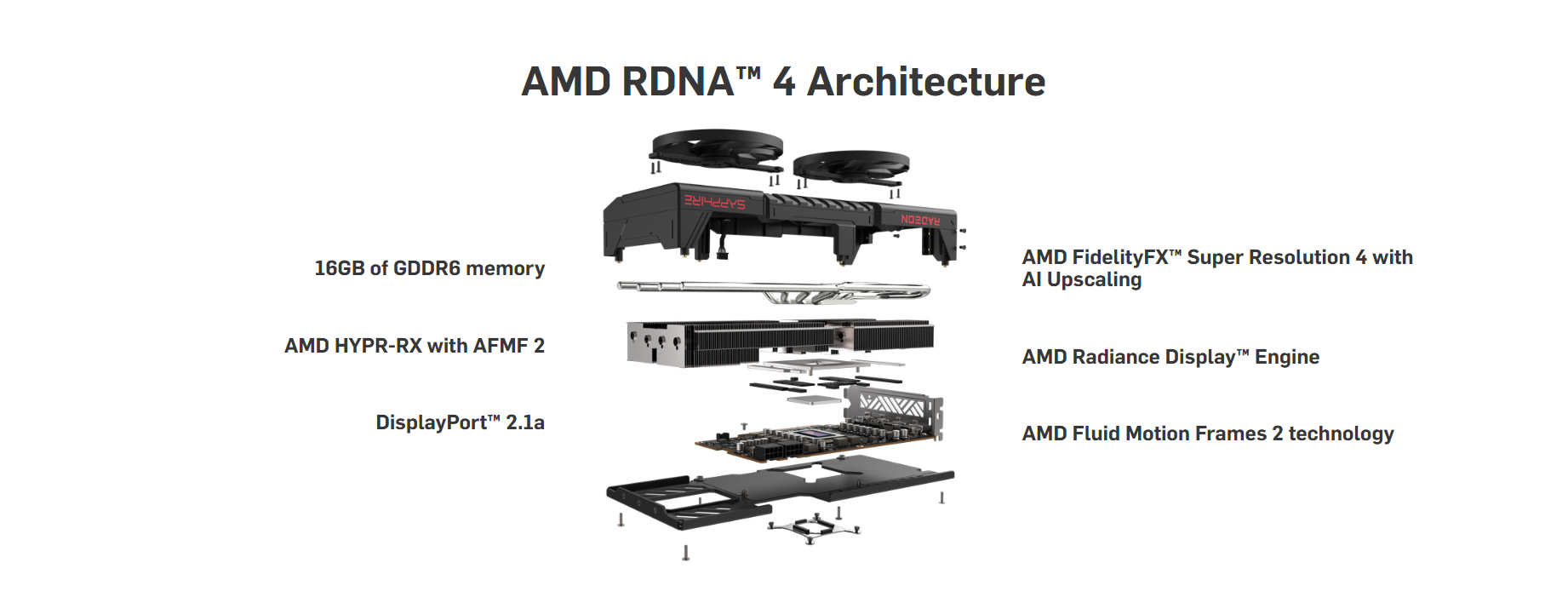

Architecture: AMD RDNA™ 4
Stream Processors: 3584
Compute Units: 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
AI Accelerators: 112
Ray Accelerators: 56
Infinity Cache: 64MB
Engine Clock:
Boost Clock: Up to 2520 MHz
Game Clock: Up to 2070 MHz
Memory: 16GB GDDR6, 256-bit, 20 Gbps Effective
Max Displays: 4
Max Resolution: 7680x4320 (HDMI & DisplayPort)
Interface: PCIe 5.0 x16
Outputs: 2x HDMI, 2x DisplayPort 2.1a
BIOS Support: UEFI
Game Index: 4K Gaming
Typical Board Power: 220W
Recommended PSU: 650W (2x 8-pin PCIe)
Form Factor: 2.5-Slot ATX

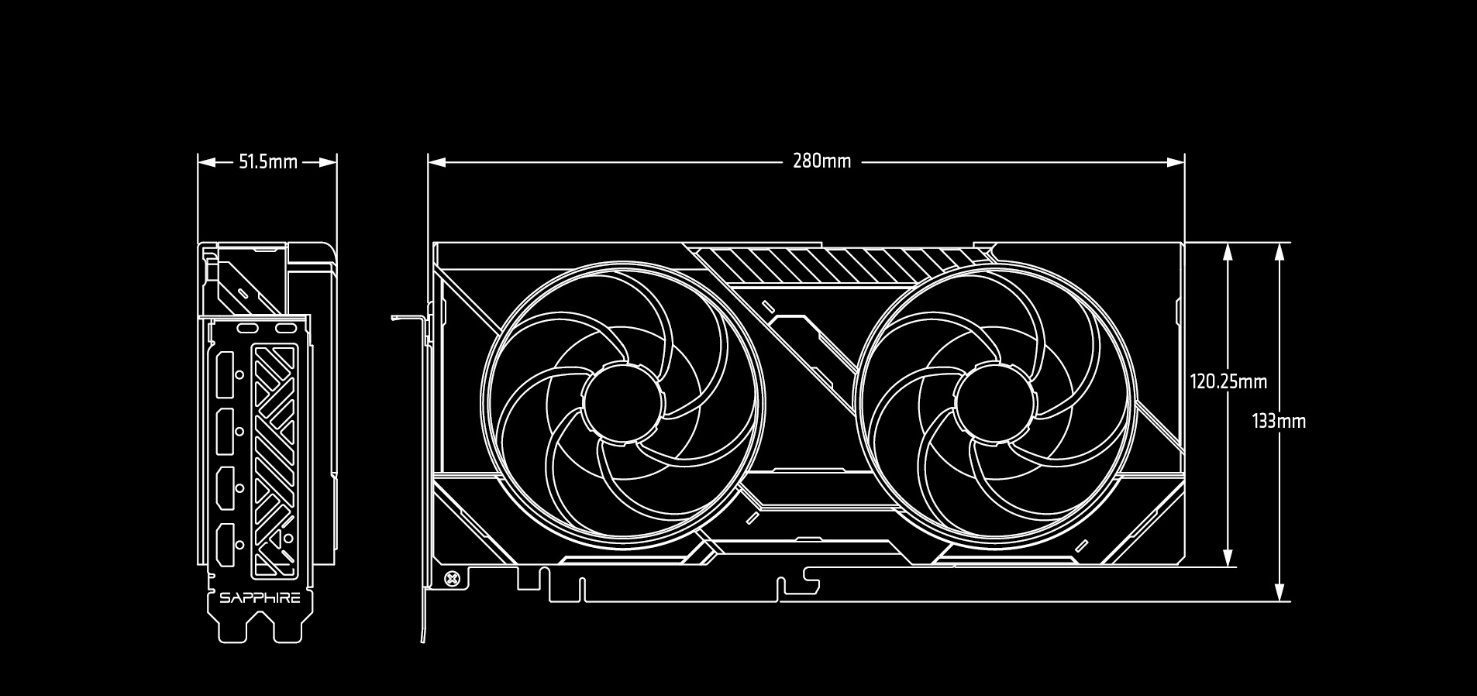

Dimensions: 280 x 120.25 x 51.5 mm
OS Support: Windows 10/11 (64-bit), Linux®
Sapphire Features:
Dual-X Cooling (2x Fans)
AeroCurve Fan Blade
Honeywell PTM7950 Thermal Interface
Free Flow Design
FrameDefense
Integrated Cooling Module
Optimized Composite Heatpipes
High TG Copper PCB
Metal Backplate
Intelligent & Precision Fan Control
Two-Ball Bearing Fans
12-Phase Digital Power Design
Fuse Protection
TriXX Supported + TriXX Boost
AMD Technologies:
AMD HYPR-RX with AFMF 2
AMD FidelityFX™ Super Resolution 4 with AI Upscaling
AMD Fluid Motion Frames 2
AMD Anti-Lag 2
AMD Noise Suppression
AV1 Encode/Decode
AMD Smart Technologies
AMD Radiance Display™ Engine
AMD Software: Adrenalin Edition
Microsoft® DirectX® 12 Ultimate
AMD FreeSync™ Technology
System Requirements:
Minimum 650W Power Supply
2 x 8-pin Power Connectors
PCIe x16 Slot Required
Minimum 8GB System RAM (16GB Recommended)
