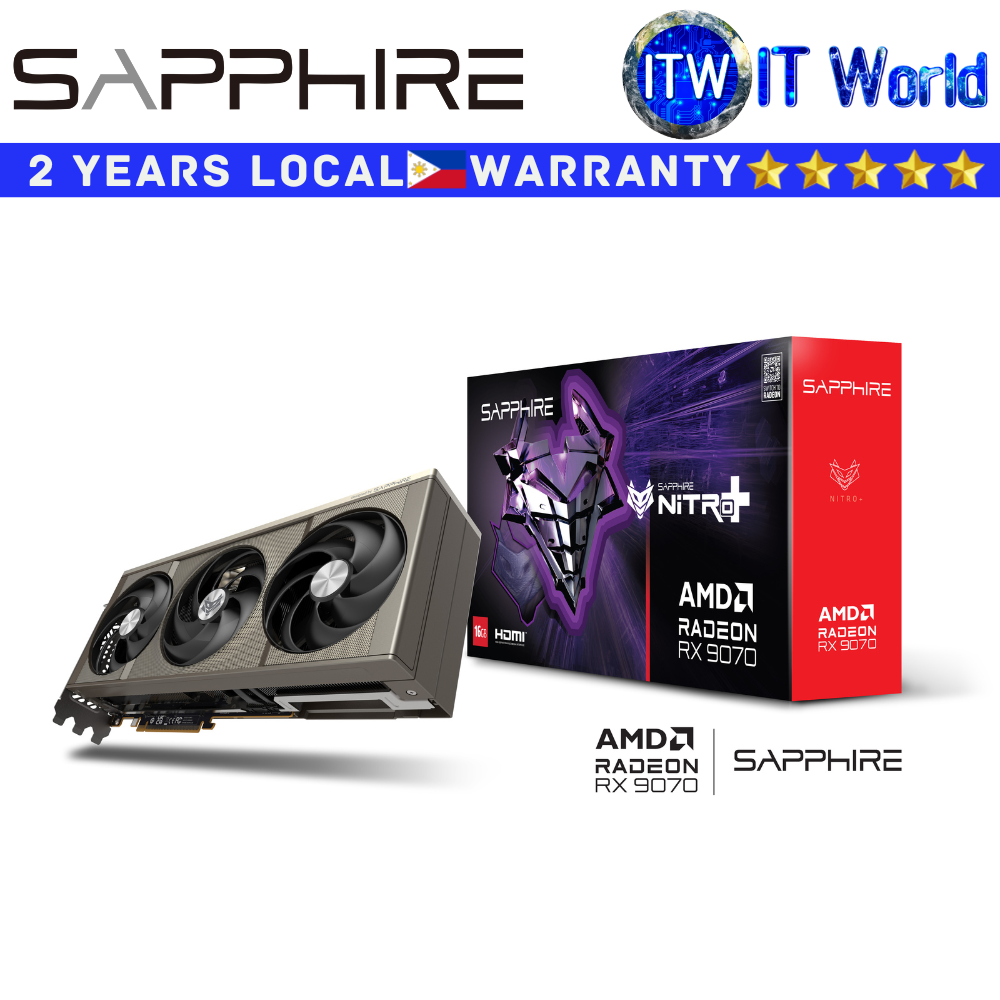

Product Name: Itw | Sapphire RX 9070 16GB GDDR6 Nitro+ AMD Radeon Graphic Card (SPR-11349-01-20G)
NITRO+ AMD Radeon™ RX 9070 GPU
> GPU: Boost Clock: Up to 2700 MHz
> GPU: Game Clock: Up to 2210 MHz
> Memory: 16GB/256 bit DDR6. 20 Gbps Effective
> Stream Processors: 3584
> AMD RDNA™ 4 Architecture
> Ray Accelerator: 56
Specifications
* GPU
> AMD Radeon™ RX 9070 Graphics Card
> AMD RDNA™ 4 Architecture
* Engine Clock
> Boost Clock: Up to 2700 MHz
> Game Clock: Up to 2210MHz
> Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
> Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
* Stream Processors: 3584
* Compute Units: 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
* Infinity Cache: 64MB
* Ray Accelerators: 56
* AI Accelerator: 112
* Memory Size/Bus: 16GB/256 bit GDDR6
* Memory Clock: 20 Gbps Effective
* Displays: Maximum 4 Displays
* Resolution
> HDMI®: 7680×4320
> DisplayPort™ 2.1a: 7680×4320
* Interface: PCI-Express 5.0 x16
* Output
> 2x HDMI®
> 2x DisplayPort™ 2.1a
* BIOS Support: UEFI
* Game Index: 4K
* Sapphire Features
> Quick Connect MagniPlate
> STEALTH Hidden Power Cable
> 12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
> Honeywell PTM7950 Thermal Interface Material (TIM)

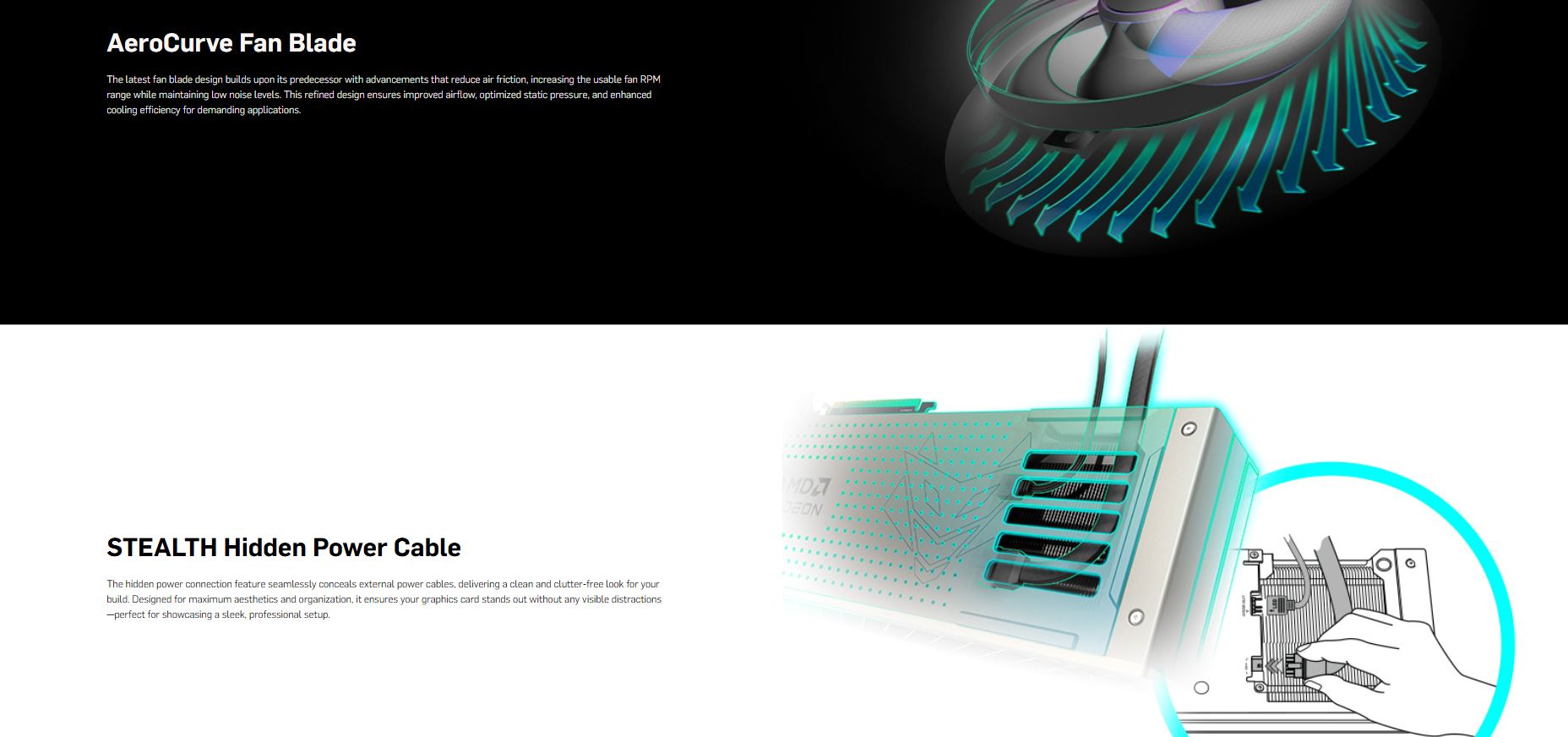

> AeroCurve Fan Blade
> Free Flow

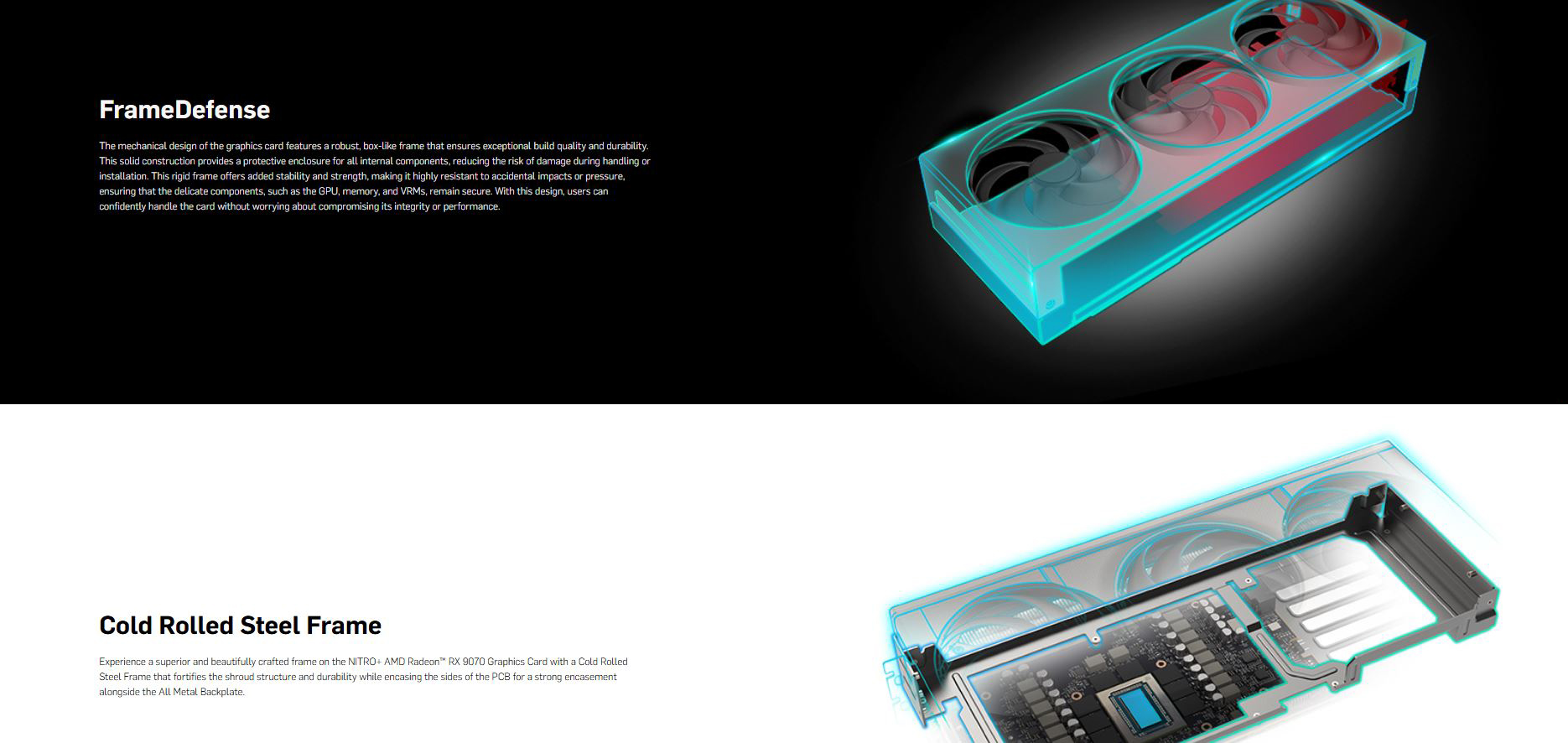

> FrameDefense
> Integrated Cooling Module
> Cold Rolled Steel Frame
> Tri-X Cooling Technology
> High TG Copper PCB

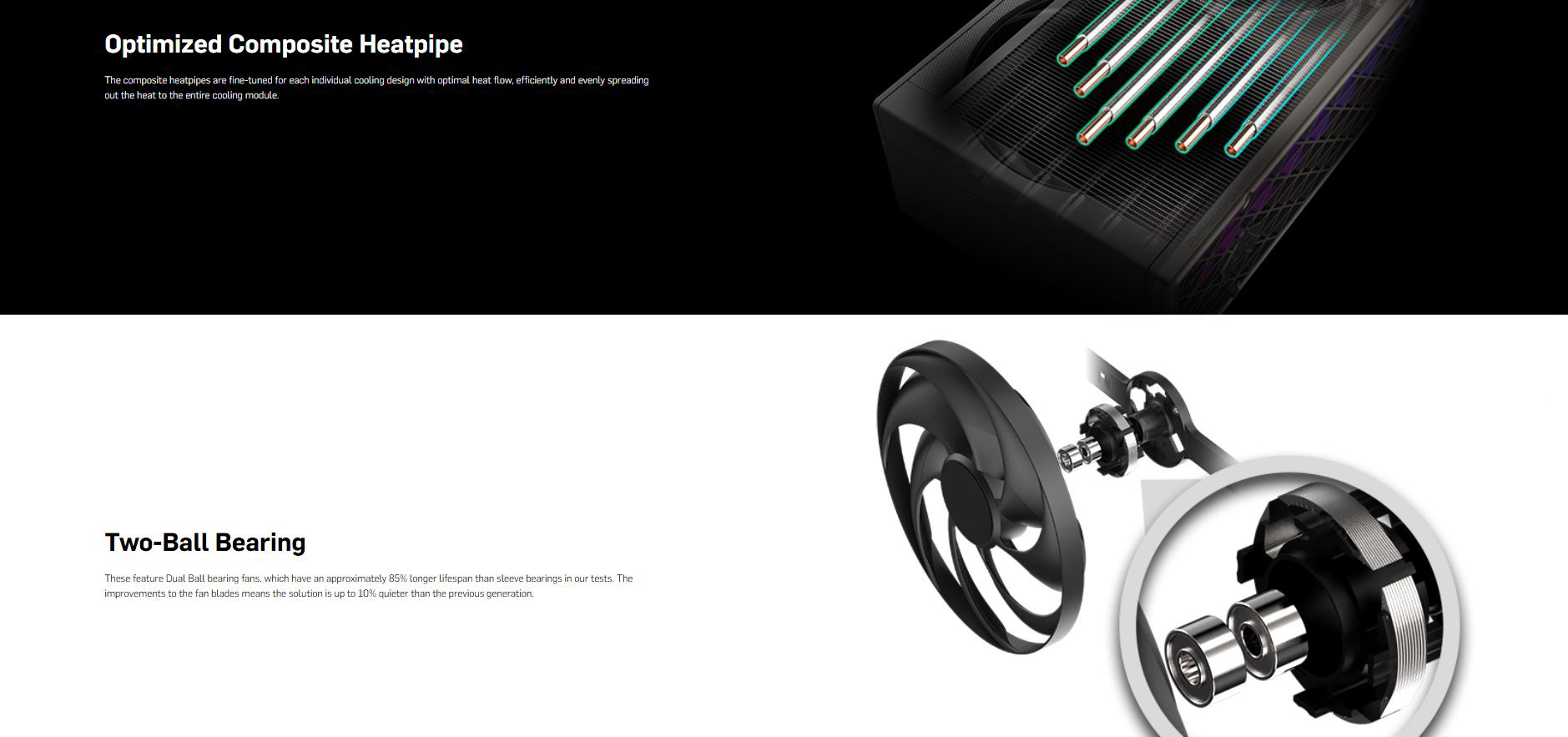

> Optimized Composite Heatpipes
> Metal Backplate

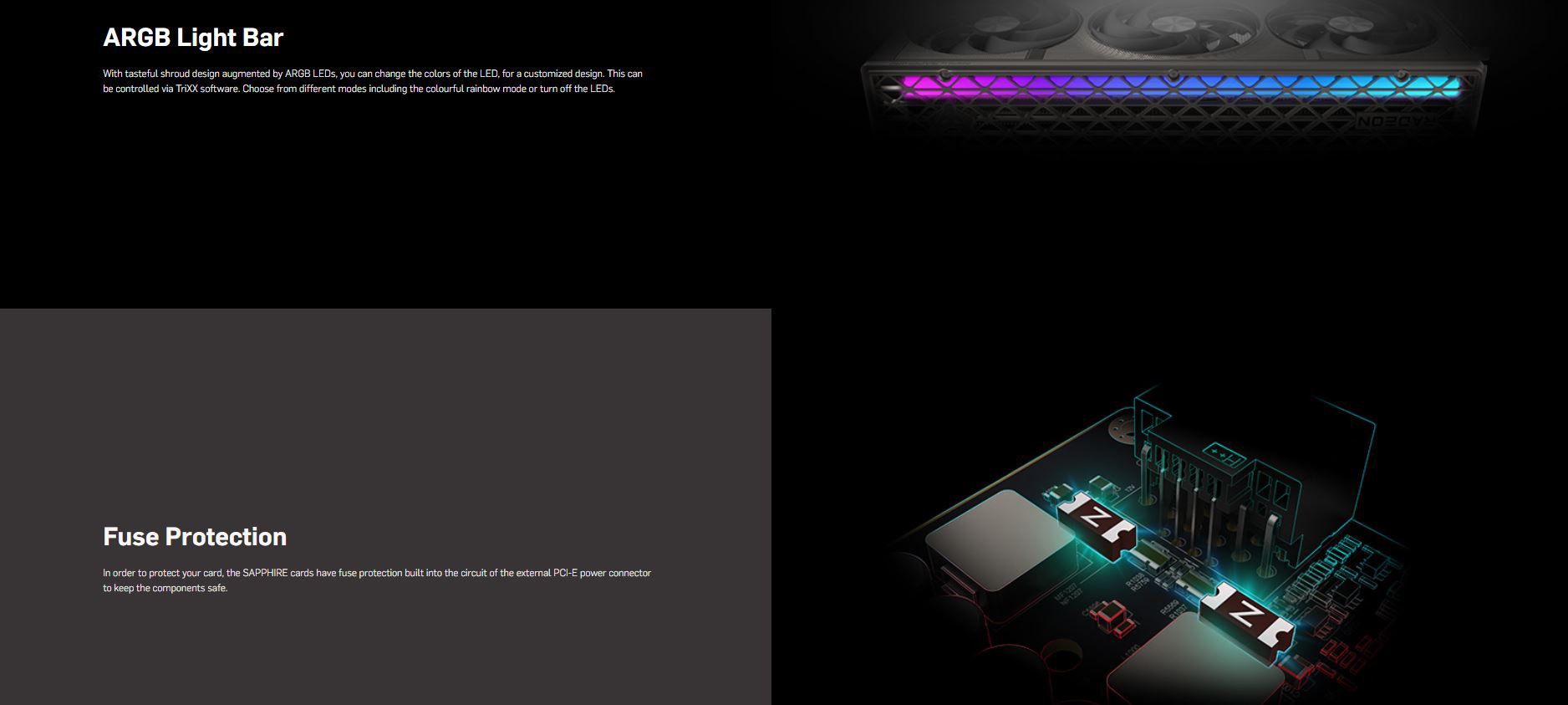

> ARGB Light Bar
> Fan Quick Connect
> Two-Ball Bearing Fans

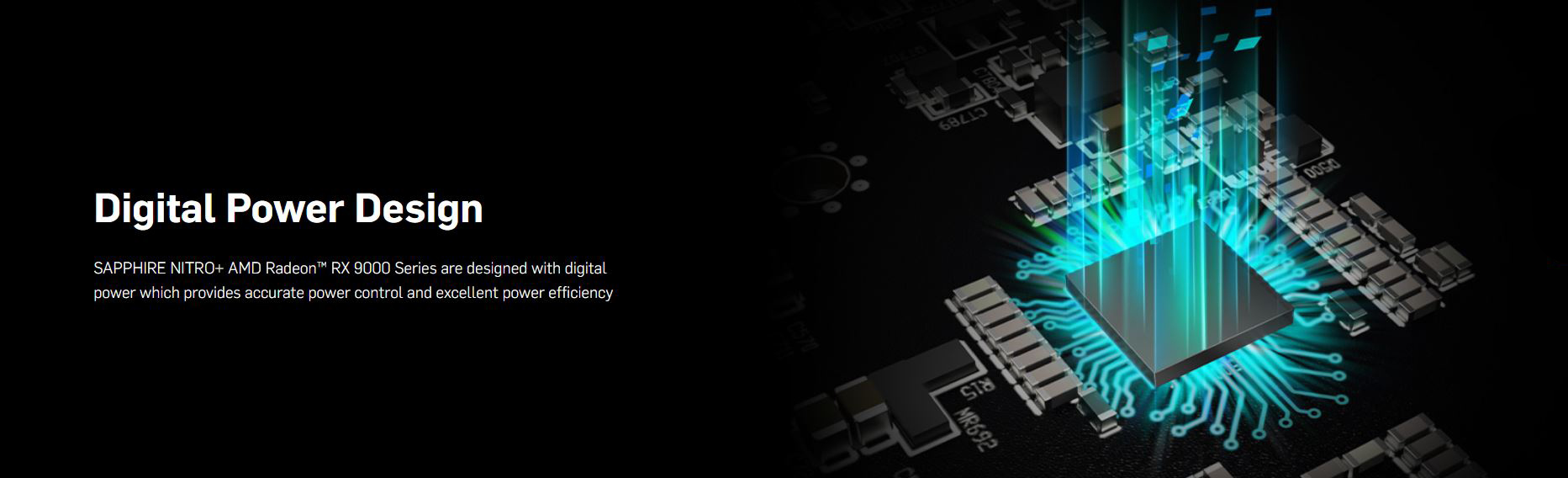

> Premium 14-Phase Digital Power Design
> Fuse Protection
> Intelligent Fan Control
> Precision Fan Control
> TriXX Supported
> Performance vs. Efficiency Quicksets
> Glow!
> Fan Check
> TriXX Boost
> External RGB LED MB Synchronization
* Accessories Bundled

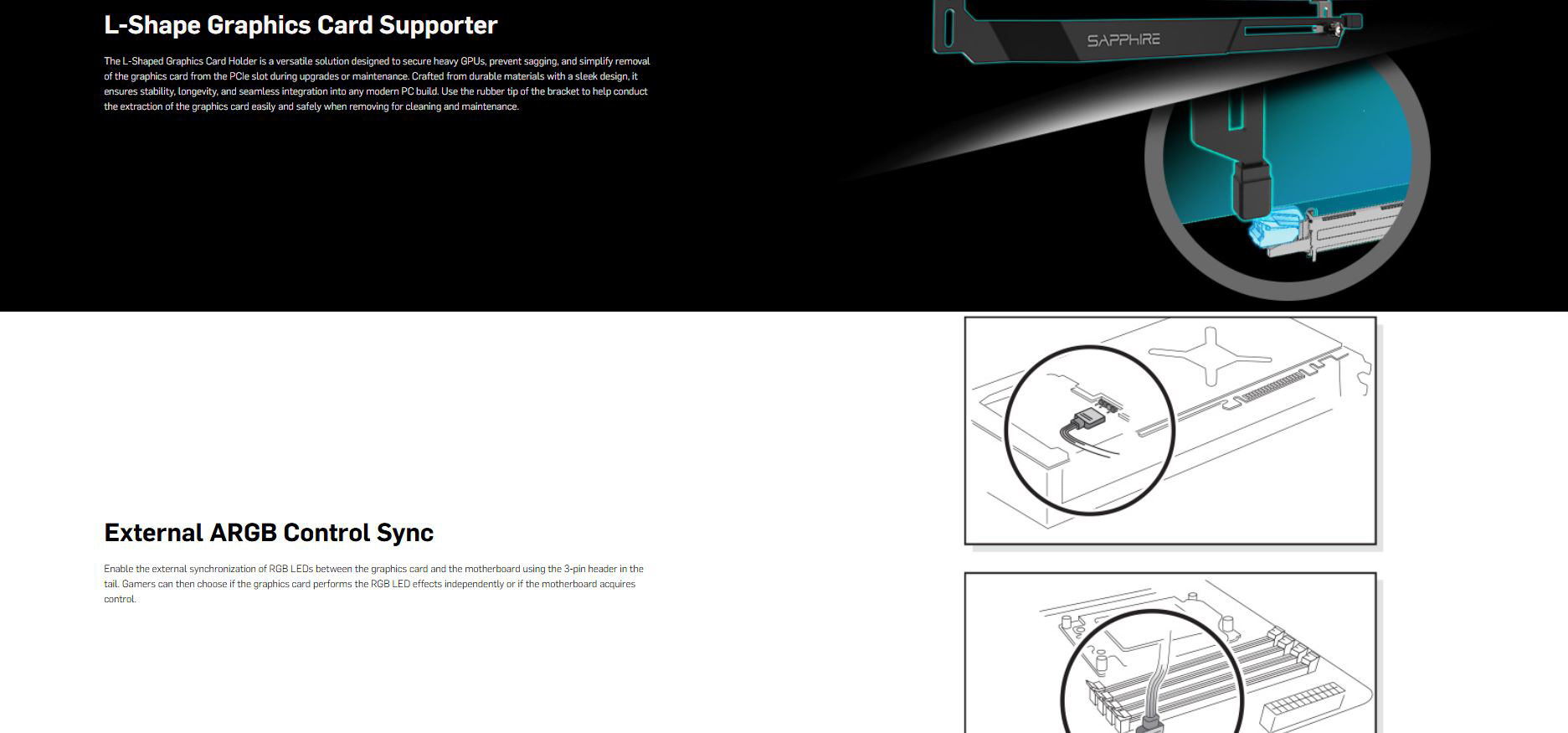

> L-Shape Support Bracket
> 3pin 5V ARGB Cable
> Magnetic Backplate
> 12V-2x6 (H++) to PCI Express 3x8-pin power adapter
* AMD Features

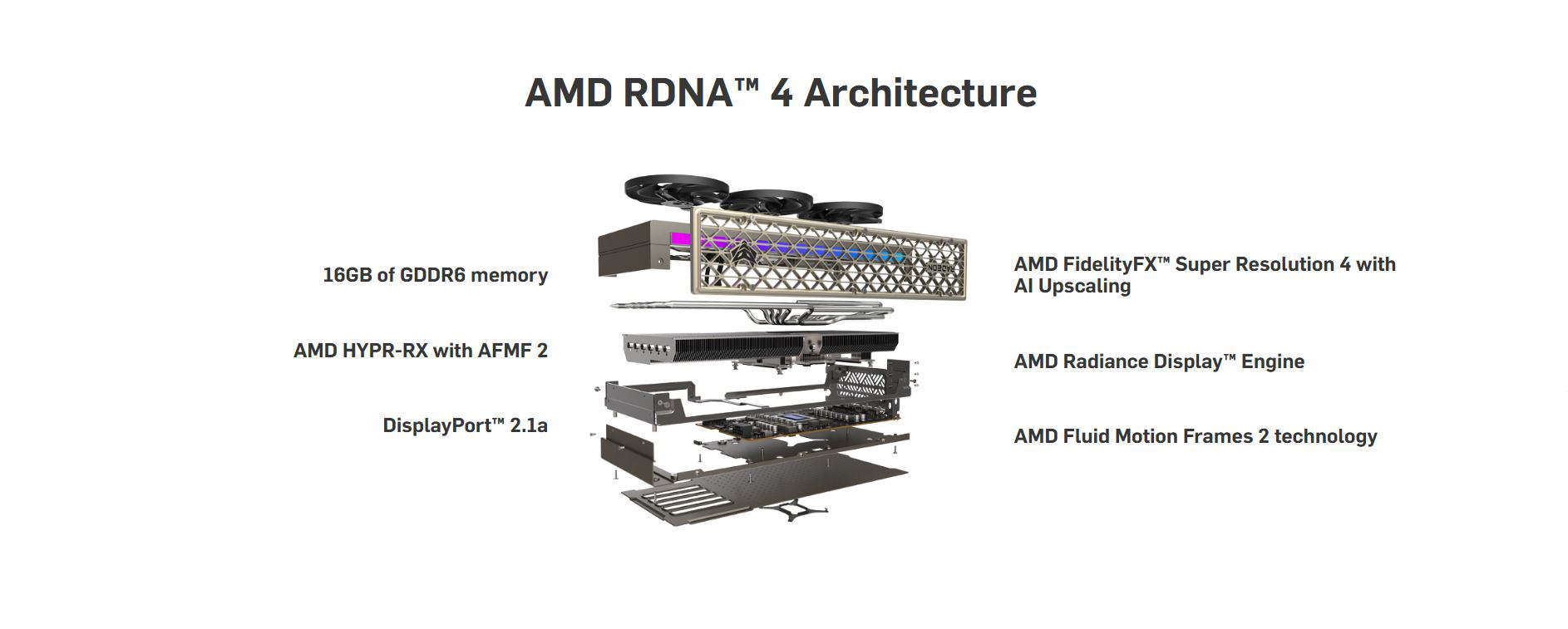

> AMD RDNA™ 4 Architecture
> 56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
> AMD HYPR-RX with AFMF 2
> AMD FidelityFX™ Super Resolution 4 with AI Upscaling
> DisplayPort™ 2.1a
> AMD Radiance Display™ Engine
> AMD Fluid Motion Frames 2 technology
> AMD Radeon™ Anti-Lag 2 technology
> AV1 Encode/Decode
> AMD FidelityFX™ technologies
> Microsoft® DirectX® 12 Ultimate
> AMD Noise Suppression
> AMD Freesync™ technology
> 16 GB of GDDR6 on 256-bit Memory Bus
> AMD smart technologies
> AMD Software: Adrenalin Edition™ application
* Cooler Type
> Tri-X Cooling
> AeroCurve Fan Blade
> Free Flow
> Integrated Cooling Module
> High TG Copper PCB
> Optimized Composite Heatpipes
> Two-Ball Bearing
* Form Factor
> 3.2 slot, ATX
> Dimension: 330.8(L) x 128.5 (W) x 65.68 (H) mm
* Power Consumption: 245W Typical Board Power
* OS: Linux®, Windows® 10, and Windows 11. 64-bit operating system required
* System Requirement
> Minimum 650 Watt Power Supply
> 12V-2x6(H++) Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
> PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
> Minimum 8GB of system memory. 16GB recommended.
