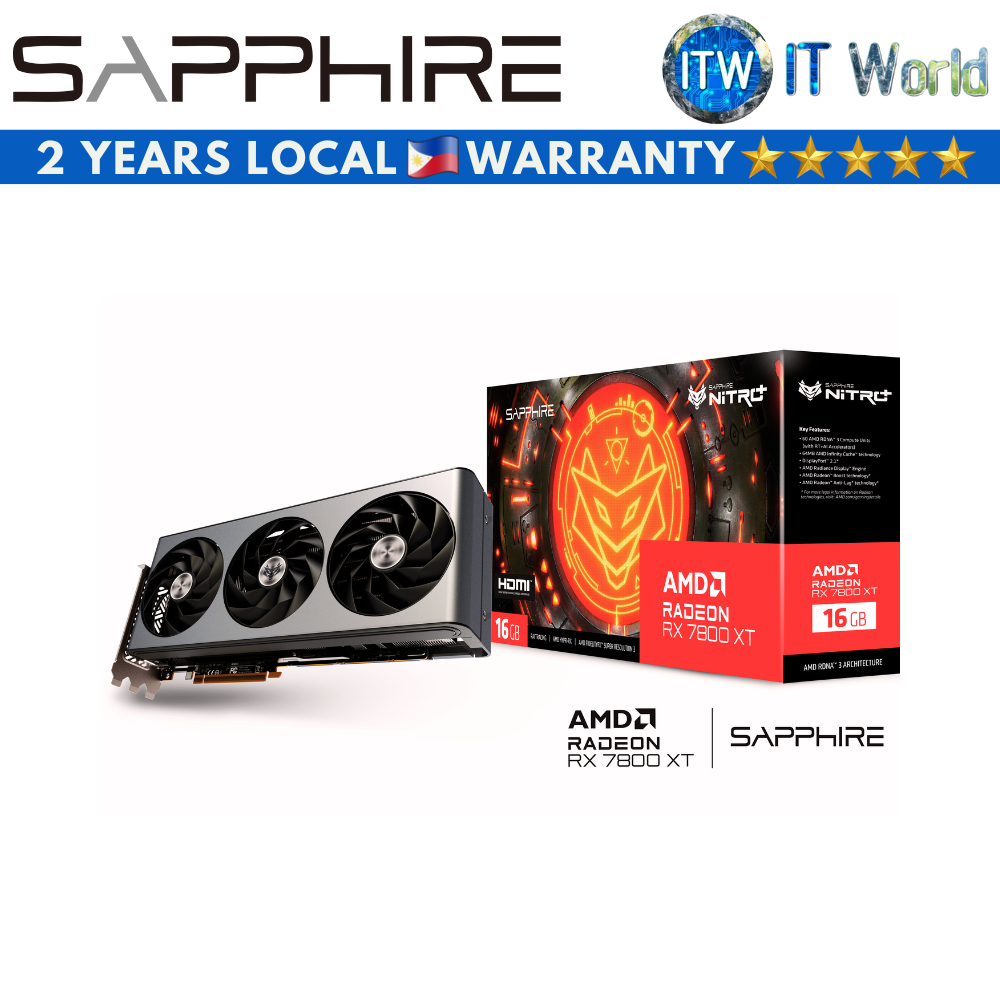

Sapphire Nitro+ AMD Radeon RX 7800 XT Gaming OC 16GB GDDR6 Graphic Card (SPR-11330-01-20G)

Product Name: Itw | Sapphire Nitro+ AMD Radeon RX 7800 XT 16GB GDDR6 Graphic Card (SPR-11330-01-20G)

Features

* GPU: Boost Clock: Up to 2565 MHz

* GPU: Game Clock: Up to 2254 MHz

* Memory: 16GB/256 bit DDR6. 19.5 Gbps Effective

* Stream Processors: 3840

* RDNA™ 3 Architecture

* Ray Accelerator: 60

Specification

* GPU

- AMD Radeon™ RX 7800 XT Graphics Card

- 5nm GPU

- AMD RDNA™ 3 Architecture

* Engine Clock

- Boost Clock: Up to 2565 MHz

- Game Clock: Up to 2254MHz

- Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

- Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

* Stream Processors: 3840

* Compute Units: 60 CU (with RT+AI Accelerators)

* Infinity Cache: 64MB

* Ray Accelerators: 60

* Memory Size/Bus: 16GB/256 bit GDDR6

* Memory Clock: 19.5 Gbps Effective

* Displays: Maximum 4 Displays

* Resolution

- HDMI™: 7680×4320

- DisplayPort 2.1: 7680×4320

* Interface: PCI-Express 4.0 x16

* Output

- 2x HDMI

- 2x DisplayPort

* BIOS Support: Dual UEFI

* Game Index: 4K

* Sapphire Features

- Dual BIOS

- TriXX Software Switch

- Premium Digital Power Design

- Ultra High Performance Conductive Polymer Aluminum Capacitors

- Fuse Protection

- Tri-X Cooling Technology

- High TG Copper PCB

- Optimized Composite Heatpipe

- Intelligent Fan Control

- Precision Fan Control

- Metal Backplate with ARGB

- ARGB Light Bar

- Two-Ball Bearing Fans

- Angular Velocity Fan Blade

- Assistive System Fan Control

- Aluminum Alloy Frame

- Dedicated VRM Cooling

- Wave Fin Design

- V Shape Fin Design for GPU Cooling

- TriXX Supported

- Fan Check

- Fan Quick Connect

- TriXX Boost

- NITRO Glow

- External RGB LED MB Synchronization

* Accessories Bundled

- Graphics Card Supporter

- ARGB Extension Cable

* AMD Features

- AMD RDNA™ 3 Architecture

- 60 AMD RDNA™ 3 Compute Units

- 64MB AMD Infinity Cache™ Technology

- DisplayPort™ 2.1 Support

- AMD Radiance Display™ Engine

- 16GB GDDR6 on 256-Bit Memory Bus

- PCI® Express 4.0 ready

- AMD FidelityFX™ Super Resolution technology

- Microsoft® DirectX® 12 Ultimate Support

- Microsoft® DirectStorage Support

- Vulkan® Optimized

- AMD Smart Technologies

- AMD Software: Adrenalin Edition™

- AMD Noise Suppression

- AMD Privacy View

- AMD Radeon™ Super Resolution technology

- AMD Link

- AMD FreeSync™ Technology

* Cooling: 3 Fans

* Form Factor

- 3 slot, ATX

- Dimension: 320(L)X 134.85(W)X 61.57 (H)mm

* Power Consumption: 288W Total Board Power

* OS: Linux®, Windows® 10, and Windows 11. 64-bit operating system required

* System Requirement

- Minimum 700 Watt Power Supply

- 2 x 8-pin Power Connector.

- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

- Minimum 8GB of system memory. 16GB recommended.
