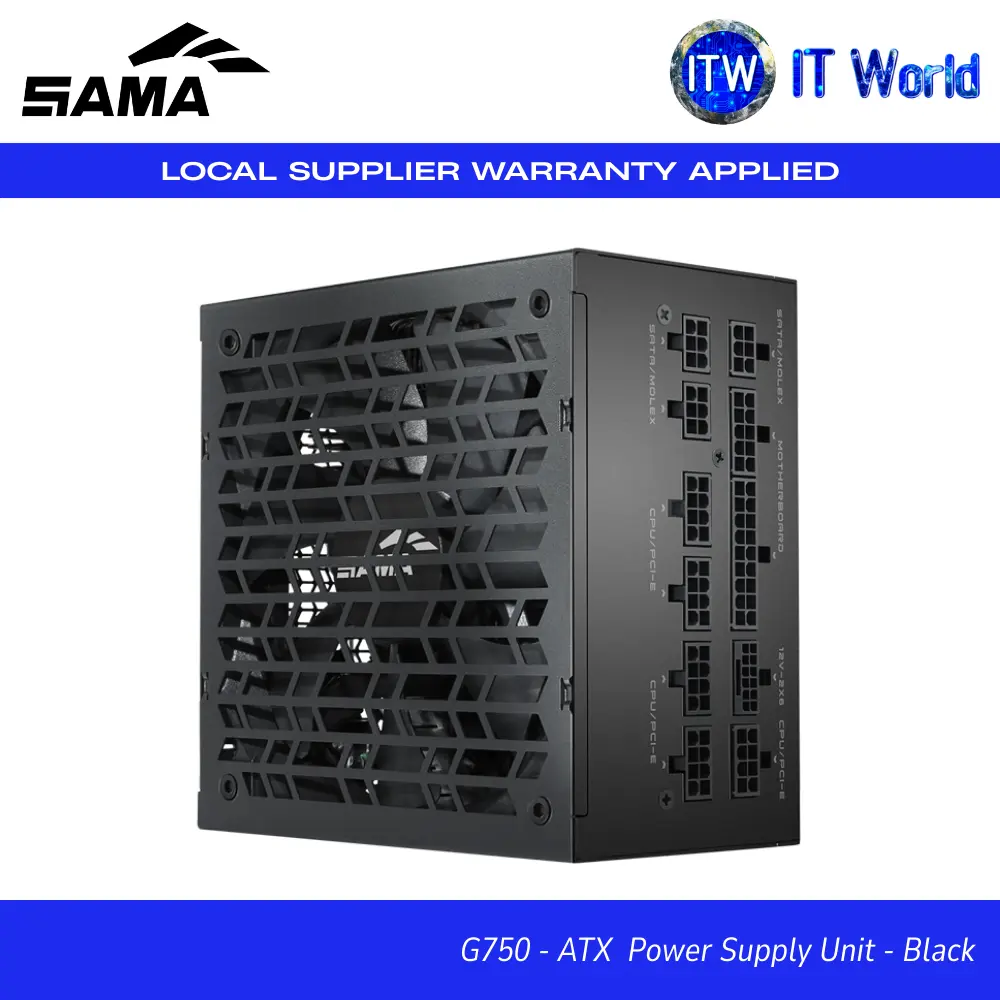

SAMA G750 750W Fully Modular Power Supply - 80+ Gold / ATX 3.1 / PCIe 5.1 | G0750 itw
🔀 PRODUCT VARIATIONS (LOCAL SUPPLIER: IT World)
🖤 Black – G0750-BKGFF001-US
🤍 White – G0750-WHGFF001-US
⚡ PRODUCT OVERVIEW
The SAMA G750 is a fully modular 750W power supply designed for modern PC builds, delivering stable, efficient, and reliable power. With 80 PLUS Gold certification, ATX 3.1 compliance, and a native PCIe 5.1 (12V-2x6) connector, it’s built to support today’s high-performance graphics cards while keeping cable management clean and organized.
🌟 KEY HIGHLIGHTS
⚡ 750W Output Power – Stable and reliable power delivery
🔌 ATX 3.1 Standard – Ready for next-gen systems
🎮 PCIe 5.1 Ready – Native 12V-2x6 (12+4) pin connector
🧩 Fully Modular Design – Flexible, clean cable management
🏅 80 PLUS Gold Certified – >90% efficiency at typical load
🧵 Braided Pattern Cables – Durable and premium feel
⚙️ TECHNICAL SPECIFICATIONS
Product Name: G750
Model Number: HAT-750yzB1G
Form Factor: ATX 3.1
Modularity: Fully Modular
Output Power: 750W
Color Options: Black / White
80PLUS Certification: Gold
Efficiency: >90% @ 50% Load
AC Input: 100–240Vac
Fan Size: 140mm
Fan Bearing: FDB
Main Capacitor: Japanese Capacitor
Operating Temperature: 0–50°C
MTBF: 100,000 Hours
🛡️ PROTECTION & COMPLIANCE
🔒 Protections: OTP / OCP / OPP / SCP / OVP / UVP / SIP / NLO
✅ Safety Certifications: CE / TUV / cTUVus / FCC / ICES / UKCA / EAC
🌱 Environmental Compliance: RoHS / WEEE / ErP 2014
🔗 CONNECTORS
🧠 MB ATX 24 Pin ×1
⚙️ CPU (4+4) Pin ×2
🎮 PCI-E (6+2) Pin ×3
🚀 12V-2x6 (12+4) Pin ×1
💽 SATA ×6
🔌 Molex 4 Pin ×2
