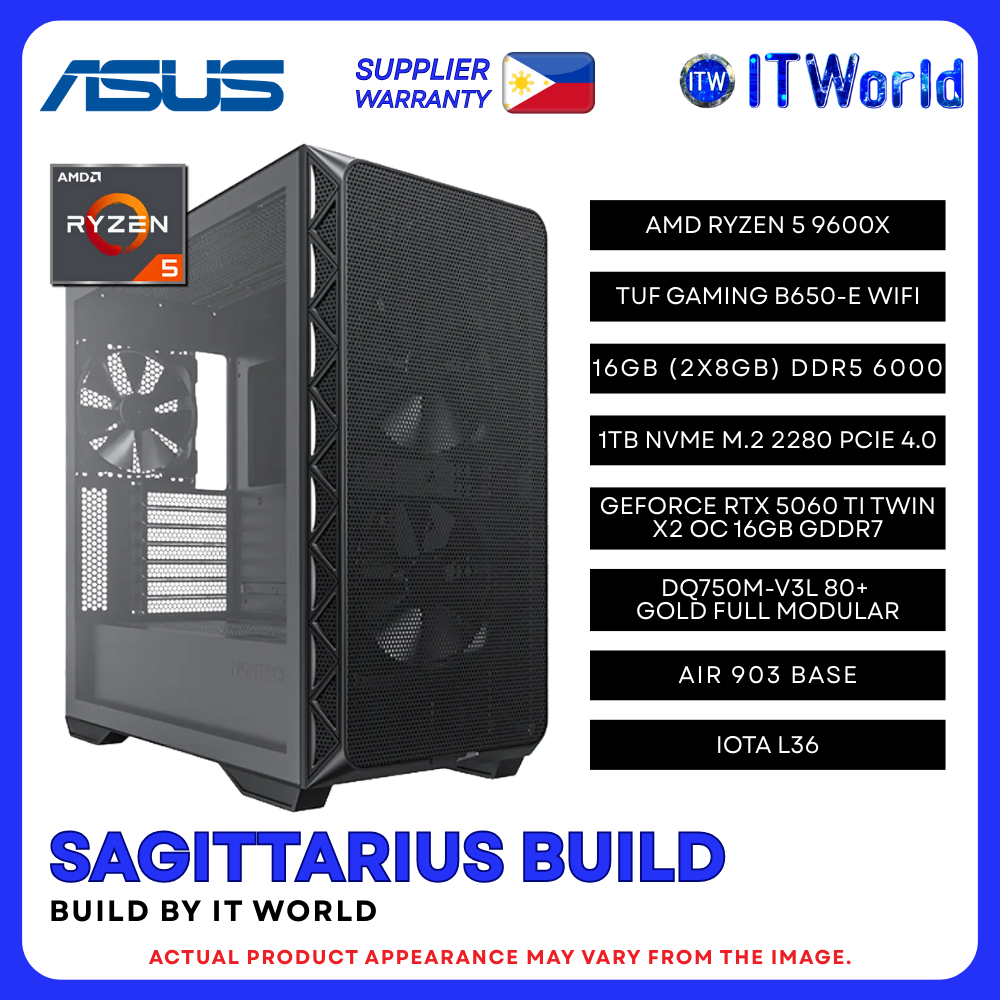

Sagittarius Build Powered by ASUS – Ryzen 5 9600X / 16GB DDR5 / 1TB NVMe / RTX 5060 Ti PC Build itw
♐ Sagittarius Build | High-Performance Gaming & Creator PC
Powered by ASUS TUF GAMING and assembled by IT World (itw), the Sagittarius Build is a next-gen desktop designed for AAA gaming, streaming, and content creation. Built on AMD’s latest Zen 5 platform with RTX 50-series graphics, this system delivers speed, stability, and future-ready performance.
🚀 Core Performance
🧠 Processor: AMD Ryzen™ 5 9600X
6 Cores / 12 Threads
Base 3.9GHz | Boost up to 5.4GHz
Zen 5 Architecture (Ryzen 9000 Series)
65W TDP | Unlocked for overclocking
Integrated AMD Radeon™ Graphics
🧊 CPU Cooling: Iota L36 360mm AIO Liquid Cooler
300W TDP cooling capacity
Triple 120mm PWM fans
Quiet ceramic-bearing pump (≤27 dBA)
ARGB lighting with floating digital display
🧩 Motherboard & Platform
🛡️ Motherboard: ASUS TUF GAMING B650-E WIFI (ATX)
AMD B650 chipset | AM5 socket
Supports Ryzen 7000 / 8000 / 9000 Series
DDR5 support up to 192GB
PCIe 5.0 M.2 + PCIe 4.0 expansion
Wi-Fi 6E + Bluetooth 5.3
2.5Gb LAN | Aura Sync RGB
⚡ Memory & Storage
🧬 RAM: Team Group 16GB (2×8GB) DDR5 6000MHz RGB
Dual-channel | CL38 | 1.25V
Optimized for AMD EXPO
💾 Storage: Kingston NV3 1TB NVMe SSD
PCIe Gen 4 x4
Up to 6000MB/s read speeds
Fast boot, game loading, and file transfers
🎮 Graphics Power
🖥️ Graphics Card: INNO3D GeForce RTX 5060 Ti TWIN X2 OC 16GB
NVIDIA Blackwell Architecture
4608 CUDA Cores
16GB GDDR7 (128-bit)
DLSS 4 + Ray Tracing (4th Gen)
Supports up to 8K @165Hz (DSC)
Dual-fan compact cooling design
🔌 Power & Reliability
⚡ Power Supply: Deepcool DQ750M-V3L
750W | 80+ Gold Certified
Fully Modular
Japanese capacitors
Complete protection suite (OVP, UVP, SCP, OPP, OTP)
🖤 Chassis & Airflow
🏠 Case: AIR 903 BASE Mid-Tower
High-airflow mesh front panel
Supports up to 360mm radiators (front/top)
Pre-installed 3× 140mm PWM fans
USB-C + USB 3.0 front I/O
Supports E-ATX / ATX / mATX / ITX
🖥️ System Compatibility
✔️ Desktop PC
✔️ Windows 11 / Windows 10 Ready (none installed yet)
✔️ Gaming, Streaming, Editing, Rendering
⚠️ Reminders:
1️⃣ Please record a full unboxing video as proof in case of issues.
2️⃣ Verify the delivery rider’s ID or take a photo with your payment for security.
