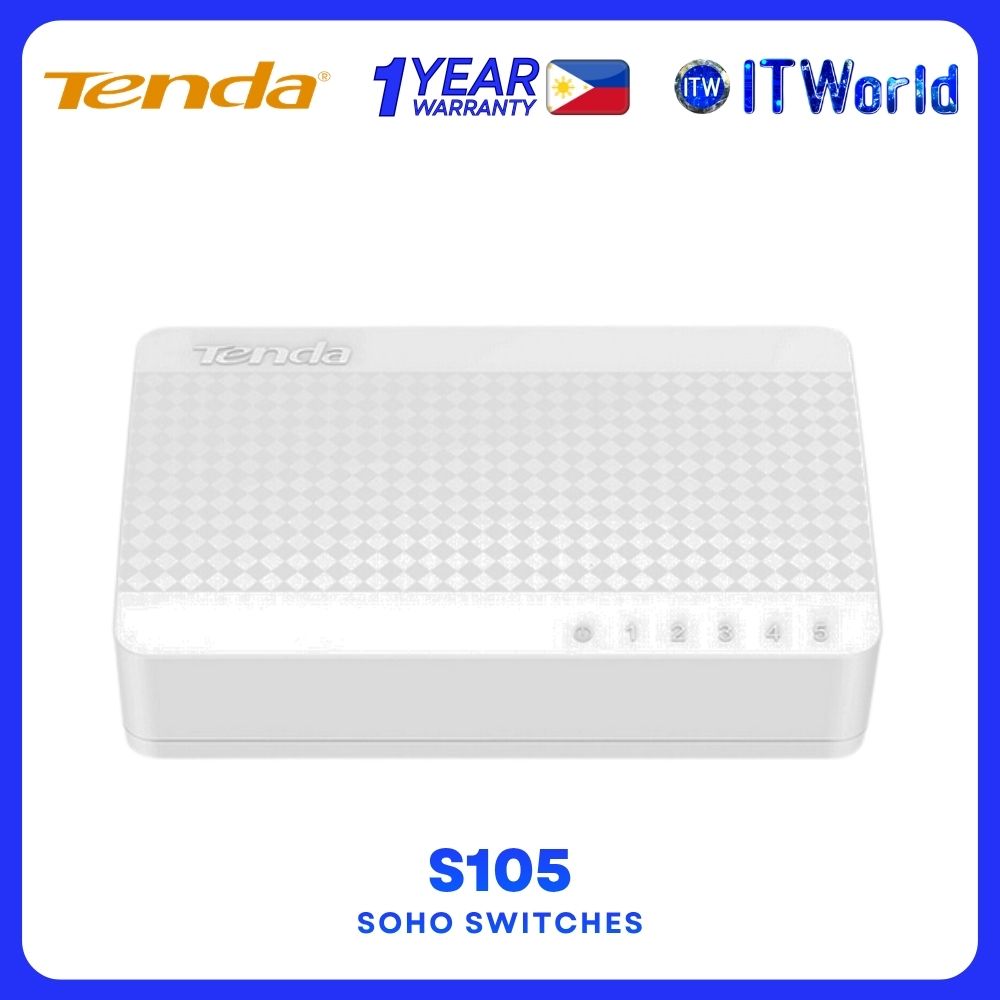

🔌 Tenda S105 v10.0 5-Port Fast Ethernet Switch
🔹 Reliable SOHO Networking | Plug & Play | Compact Design
🔹 Expand your wired network easily with the Tenda S105 v10.0 — a cost-effective 5-port Fast Ethernet switch designed for home and small office environments. Supplied by IT World (itw).
🌐 Network Performance
🔹 5× 10/100Mbps RJ-45 Ports (Auto MDI/MDIX)
🔹 IEEE 802.3 / 802.3u / 802.3x compliant
🔹 Switch Capacity: 1.0Gbps
🔹 Packet Forwarding Rate: 0.74Mpps
🔹 Forwarding Mode: Store-and-Forward
🔹 Ensures stable data transmission without loss for everyday networking needs ⚡
🖥️ Plug & Play Simplicity
🔹 No configuration required
🔹 Auto MAC address learning & aging
🔹 CDMA/CD protocol support
🔹 Quick deployment for users of all experience levels.
🏠 Designed for SOHO
🔹 Compatible with:
💻 Computers
🖨️ Printers
📺 Smart TVs
🎮 Game Consoles
📷 IP Cameras
💾 NAS
Ideal for expanding your home or small office Ethernet network.
7
🧩 Compact & Flexible Installation
🔹 Desktop Mounting ✅
🔹 Wall Mounting ✅
🔹 Rack Mounting ❌
🔹 Mini dome-shaped plastic design that blends easily into any setup.
🔒 Protection & Reliability
🔹 ESD Protection:
🔹 Air Discharge: ±8kV
🔹 Contact Discharge: ±6kV
🔹 Buffer: 448K
🔹 MAC Address Table: 1K
🔹 Stable operation for continuous networking.
🔋 Power & Efficiency
🔹 Input: 100–240V AC 50/60Hz
🔹 Output: 5.0V 0.6A (External Adapter)
🔹 Max Power Consumption: <1.6W
🔹 Energy-efficient operation for daily use ♻️
🌡️ Operating Environment
🔹 Operating Temp: 0°C – 45°C
🔹 Storage Temp: -40°C – 70°C
🔹 Operating Humidity: 10% – 90% RH (Non-condensing)
📏 Physical Specifications
🔹 Dimensions: 82.0 × 52.0 × 22.3 mm
🔹 Material: Plastic
🔹 LED Indicators: 1× Power, 5× Link/Act
🔹 Certified: CE, FCC, RoHS
