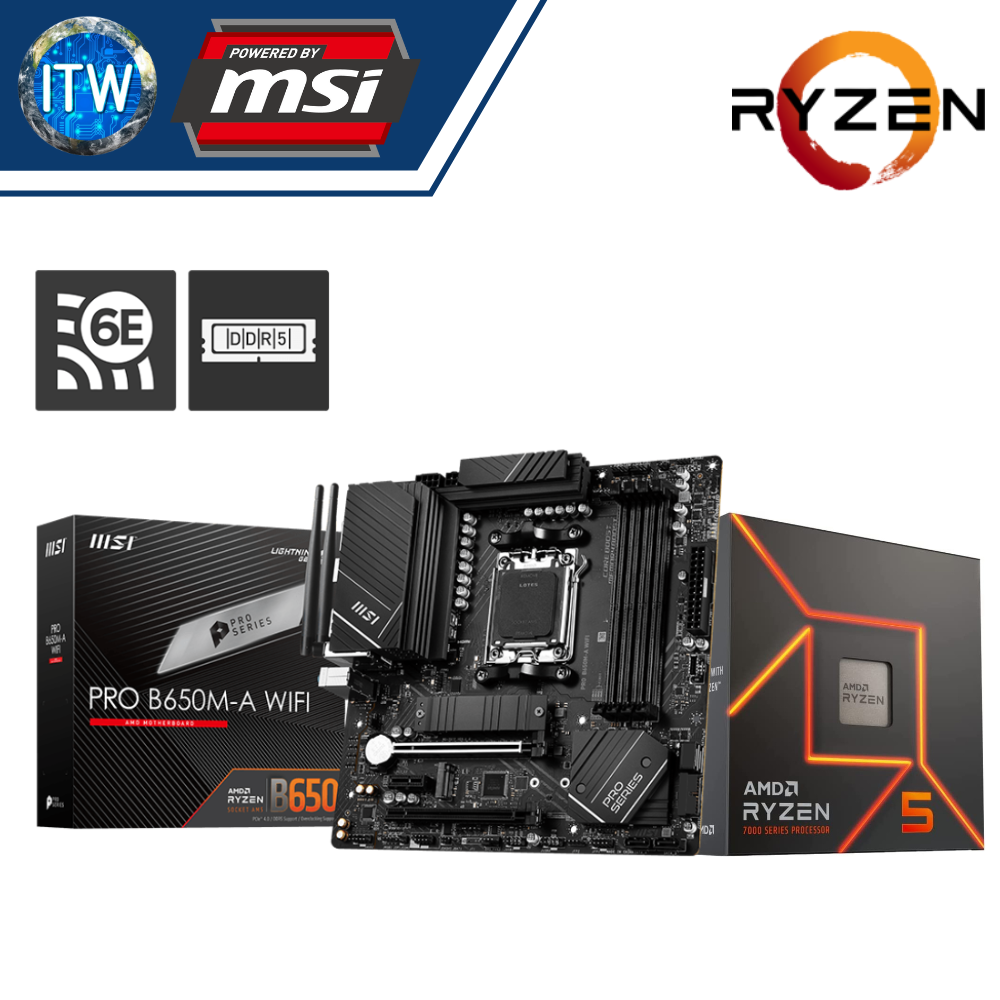

Product Name: AMD Ryzen 5 7600X Desktop Processor w/o Cooler with MSI Pro B650M-A WiFi Motherboard Bundle
■ ■ AMD Ryzen 5 7600X 6-Core, 12-Thread Desktop Processor without Cooler ■ ■
Specification
General
✎ Platform: Desktop
✎ Product Family: AMD Ryzen™ Processors
✎ Product Line: AMD Ryzen™ 5 Processors
✎ # of CPU Cores: 6
✎ # of Threads: 12
✎ Max. Boost Clock: Up to 5.3GHz
✎ Base Clock: 4.7GHz
✎ L1 Cache: 384KB
✎ L2 Cache: 6MB
✎ L3 Cache: 32MB
✎ Default TDP: 105W
✎ Processor Technology for CPU Cores: TSMC 5nm FinFET
✎ Unlocked for Overclocking: Yes
✎ CPU Socket: AM5
✎ Thermal Solution (PIB): Not included
✎ Max. Operating Temperature (Tjmax): 95°C
✎ Launch Date: 9/27/2022
✎ OS Support
■ Windows 11 - 64-Bit Edition
■ Windows 10 - 64-Bit Edition
■ RHEL x86 64-Bit
■ Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
✎ System Memory Type: DDR5
✎ Memory Channels: 2
✎ Max Memory Speed: 2x1R DDR5-5200
Graphics Capabilities
✎ Graphics Model: AMD Radeon™ Graphics
✎ Graphics Core Count: 2
✎ Graphics Frequency: 2200 MHz
✎ GPU Base: 400 MHz
Product IDs
✎ Product ID Boxed: 100-100000593WOF
✎ Product ID Tray: 100-000000593
Key Features
✎ Supported Technologies:
■ AMD EXPO™ Technology
■ AMD Ryzen™ Technologies
■ ■ MSI Pro B650M-A WiFi mATX AM5 DDR5 Motherboard ■ ■
Specification
CHIPSET
✎ AMD B650
CPU SUPPORT
✎ Supports AMD Ryzen™ 7000 Series Desktop Processors
✎ Socket AM5
MEMORY
✎ 4x DDR5, Maximum Memory Capacity 128GB
✎ Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
✎ Max. overclocking frequency:
■ 1DPC 1R Max speed up to 6400+ MHz
■ 1DPC 2R Max speed up to 5800+ MHz
■ 2DPC 1R Max speed up to 6000+ MHz
■ 2DPC 2R Max speed up to 4000+ MHz
✎ Supports Dual-Channel mode
✎ Supports non-ECC, un-buffered memory
✎ Supports AMD EXPO
ONBOARD GRAPHICS
✎ 1x HDMI™
✎ 1x DisplayPort
✎ Support HDMITM 2.1, maximum resolution of 4K 60Hz*
✎ Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
✎ 2x PCI-E x16 slot
✎ 1x PCI-E x1 slot
✎ PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
✎ PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
✎ PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE
✎ 2x M.2 slot
✎ M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
✎ M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
✎ 4x SATA 6G port
RAID
✎ Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
✎ Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
✎ 4x USB 2.0 (Front)
✎ 4x USB 3.2 Gen1 Type A (Rear)
✎ 2x USB 3.2 Gen1 Type A (Front)
✎ 4x USB 3.2 Gen2 Type A (Rear)
✎ 1x USB 3.2 Gen2 Type C (Front)
LAN
✎ Realtek® 8125BG 2.5G LAN
WIRELESS / BLUETOOTH
✎ AMD Wi-Fi 6E
✎ The Wireless module is pre-installed in the M.2 (Key-E) slot
✎ Supports MU-MIMO TX/RX
✎ Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
✎ Supports 802.11 a/ b/ g/ n/ ac/ ax
✎ Supports Bluetooth® 5.2**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO
✎ Realtek® ALC897 Codec
✎ 7.1-Channel High Definition Audio
INTERNAL I/O
✎ 1x Power Connector(ATX_PWR)
✎ 2x Power Connector(CPU_PWR)
✎ 1x CPU Fan
✎ 1x Pump Fan
✎ 3x System Fan
✎ 2x Front Panel (JFP)
✎ 1x Chassis Intrusion (JCI)
✎ 1x Front Audio (JAUD)
✎ 1x Com Port (JCOM)
✎ 1x Tuning Controller connector(JDASH)
✎ 2x Addressable V2 RGB LED connector (JARGB_V2)
✎ 2x RGB LED connector(JRGB)
✎ 1x TPM pin header(Support TPM 2.0)
✎ 4x USB 2.0
✎ 2x USB 3.2 Gen1 Type A
✎ 1x USB 3.2 Gen2 Type C
LED FEATURE
✎ 4x EZ Debug LED
BACK PANEL PORTS
✎ USB 3.2 Gen 2 10Gbps (Type-A)
✎ USB 3.2 Gen 1 5Gbps (Type-A)
✎ 2.5G LAN
✎ Wi-Fi / Bluetooth
✎ Audio connectors
✎ Flash BIOS Button
✎ DisplayPort
✎ HDMI™
✎ USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM
✎ Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION
✎ mATX / 243.84mmx243.84mm
