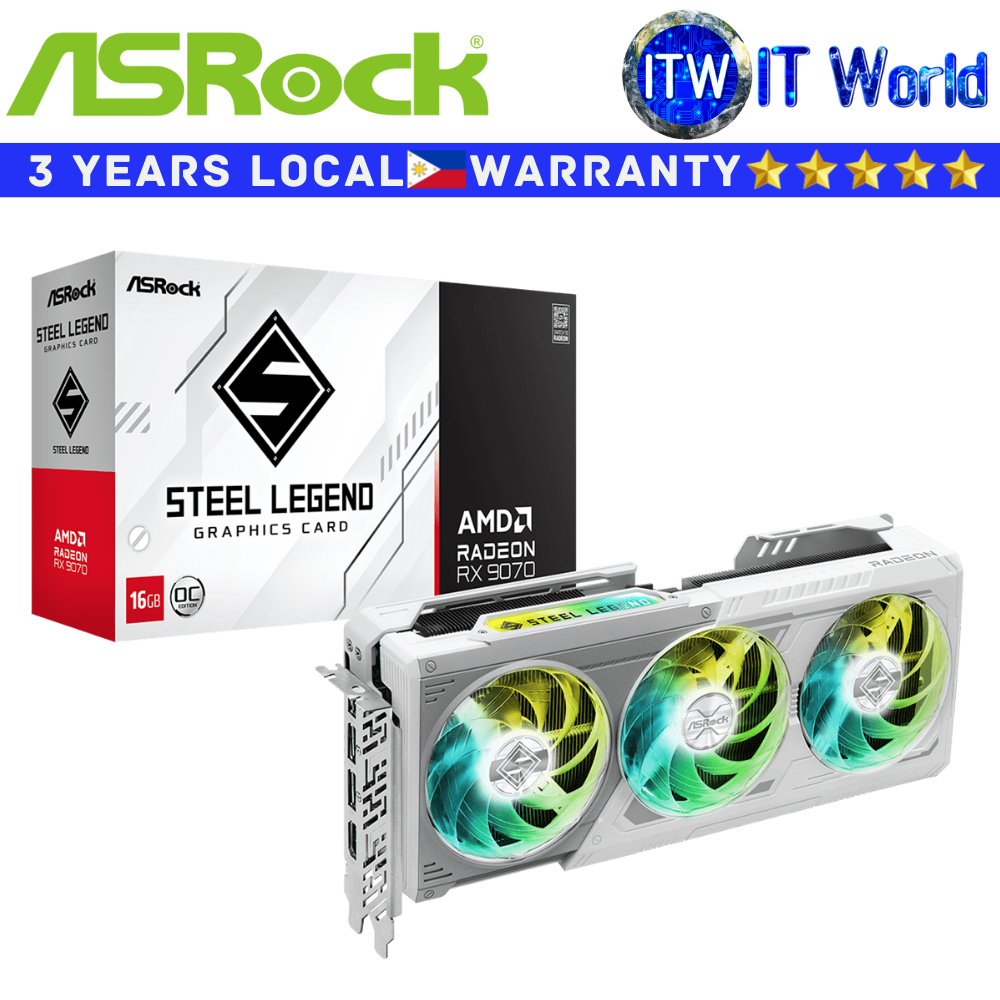

Product Name: Itw | AsRock RX9070 16GB GDDR6 Steel Legend AMD Radeon Graphic Card
* AMD Radeon™ RX 9070 Steel Legend 16GB OC
RX9070 SL 16GO
- Clock: GPU / Memory
Boost Clock*: Up to 2700 MHz / 20 Gbps
Game Clock**: 2210 MHz / 20 Gbps
- Key Specification
AMD Radeon™ RX 9070 GPU
16GB GDDR6 on 256-Bit Memory Bus
AMD RDNA™ 4 Architecture
56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express 5.0 Support
2x 8-pin Power Connectors
3x DisplayPort™ 2.1a, 1x HDMI™ 2.1b
- Key Features

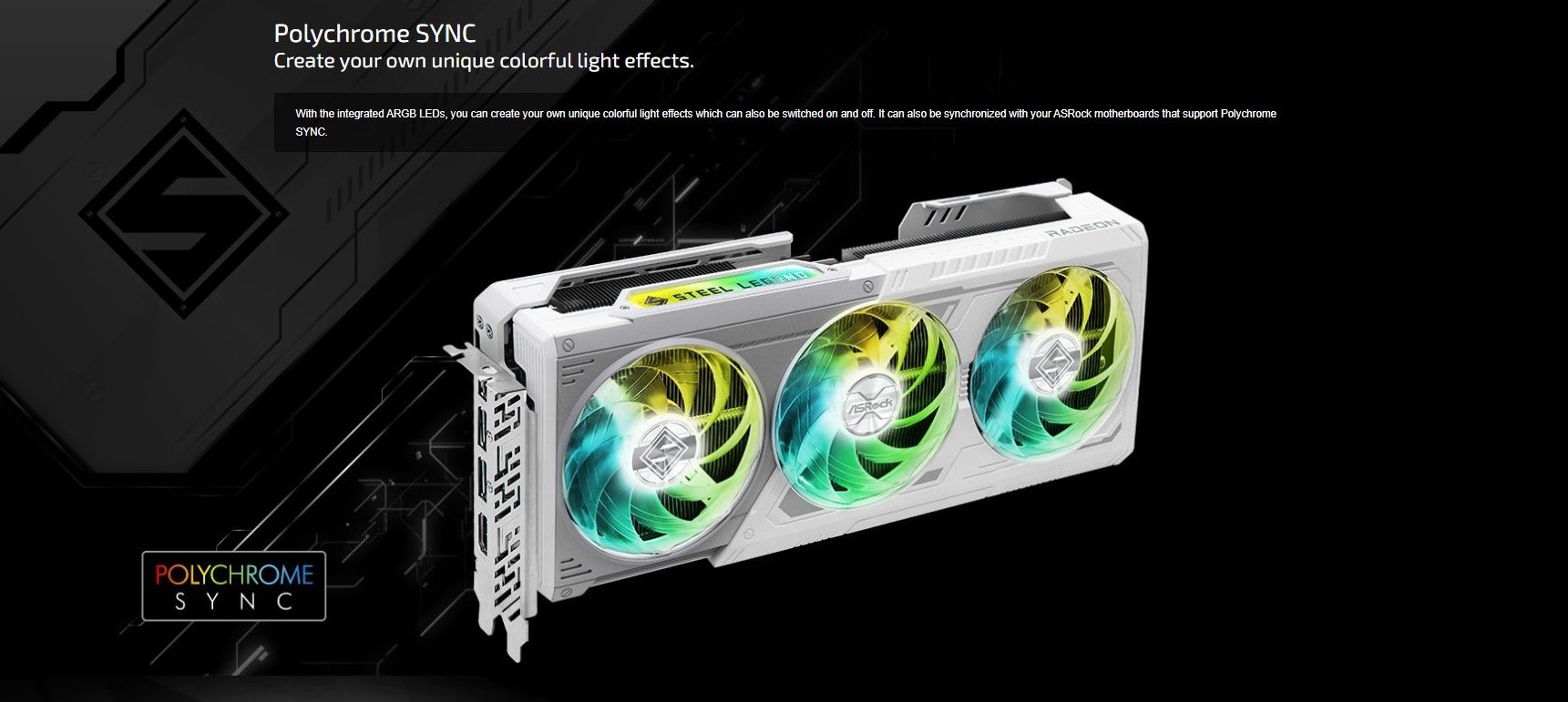

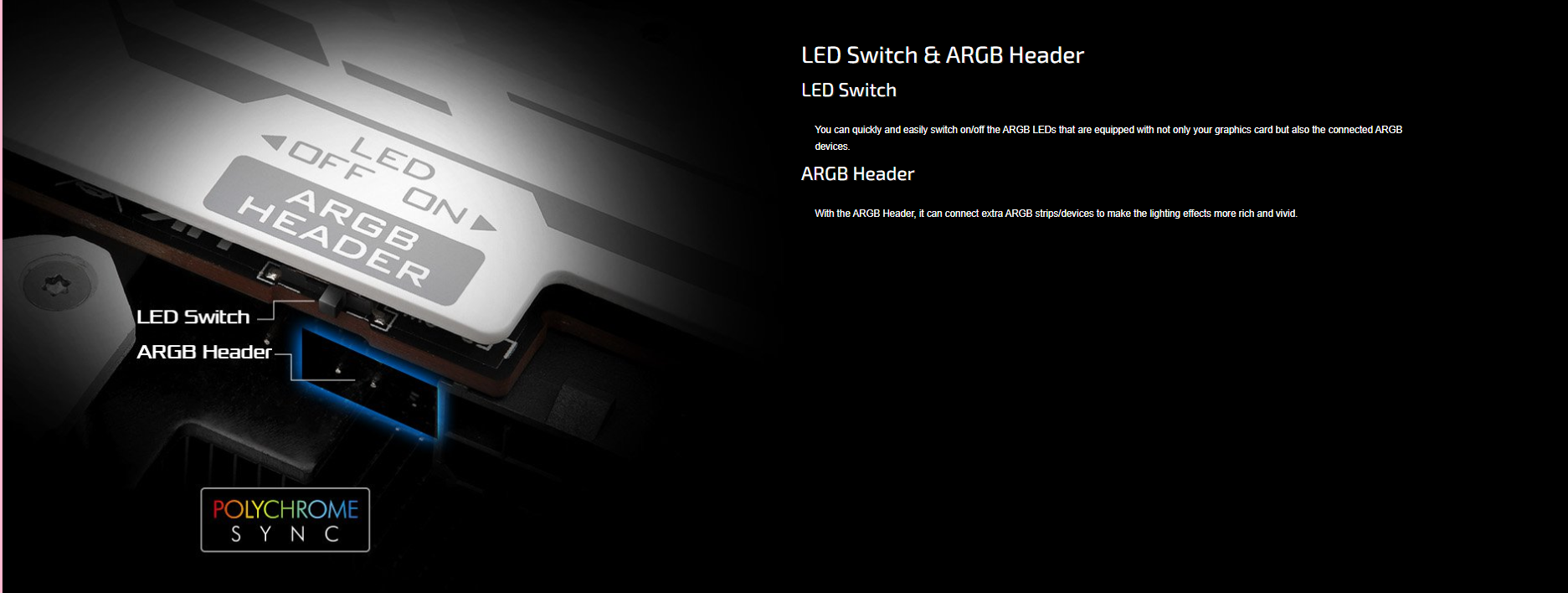

Polychrome SYNC

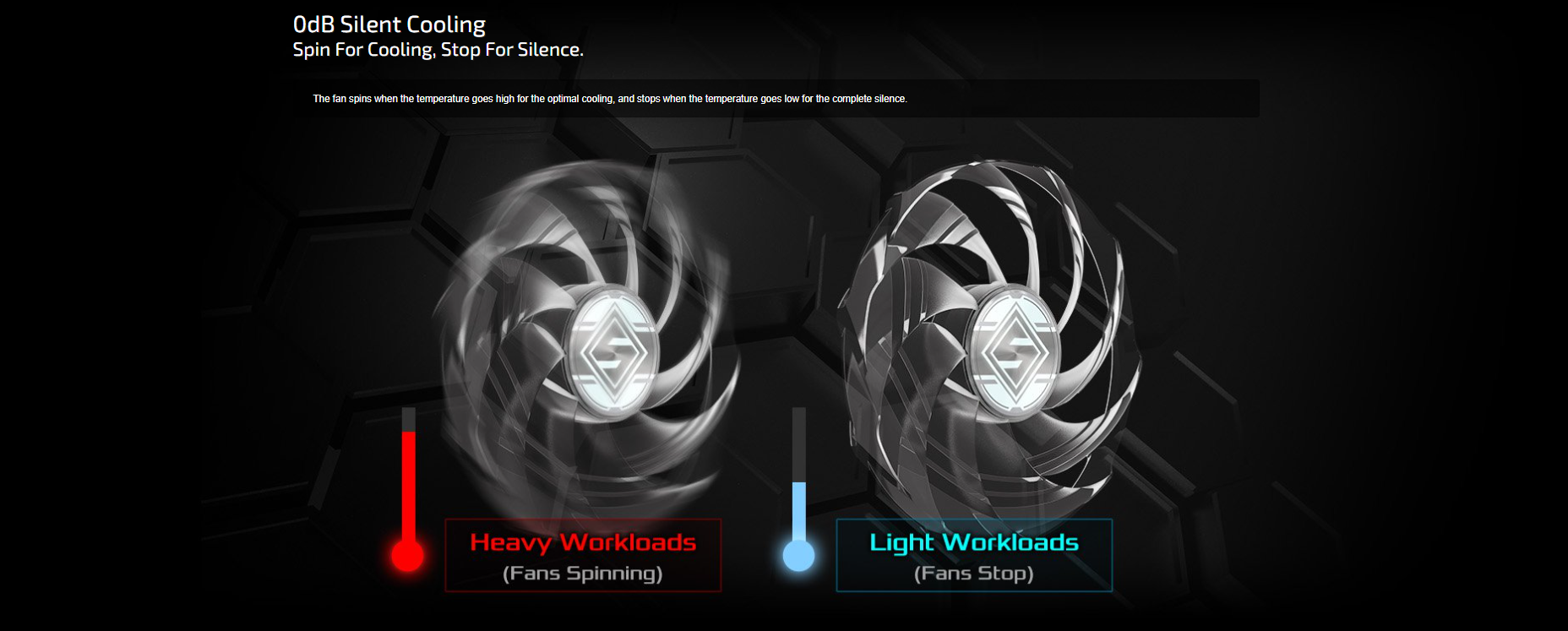

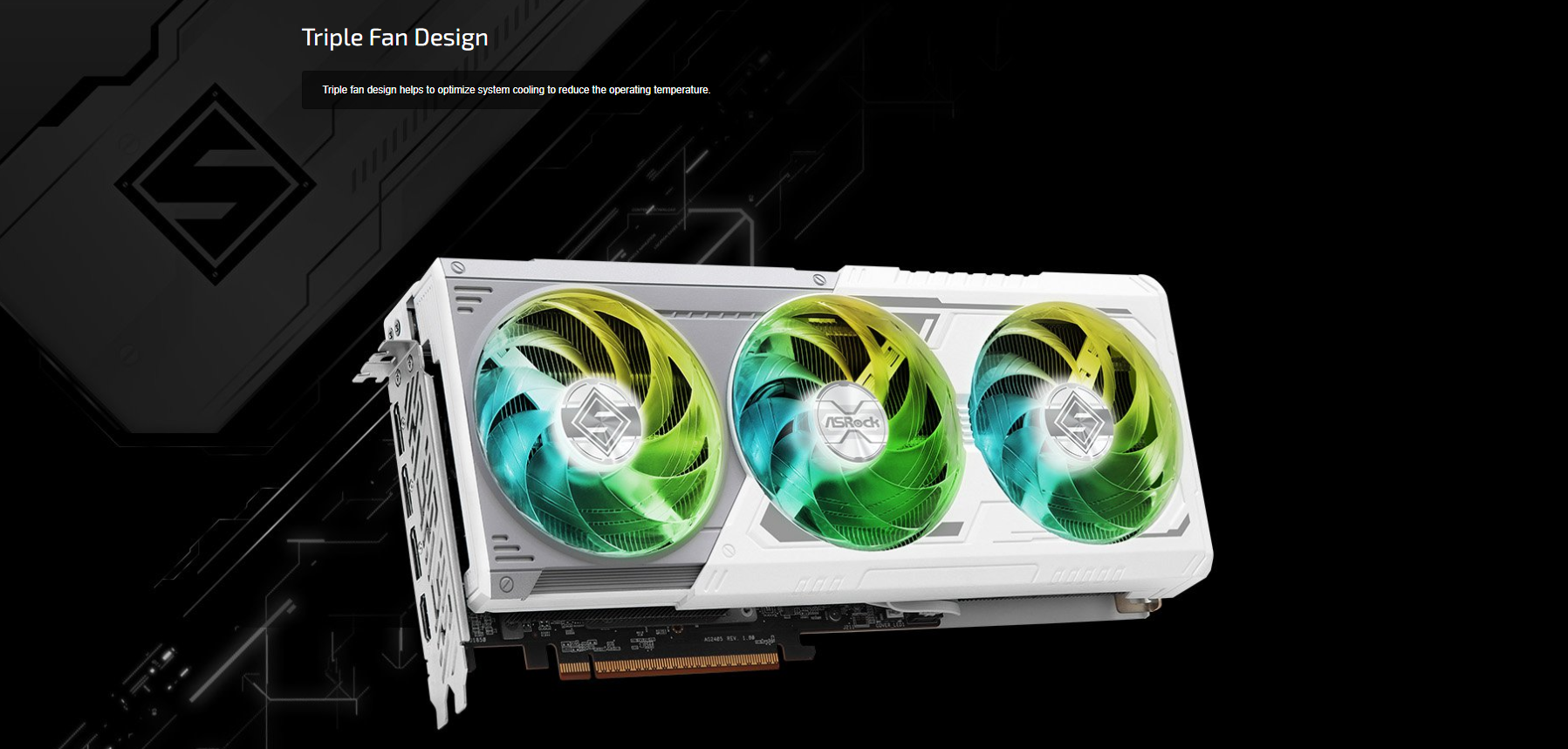

Triple Fan Design

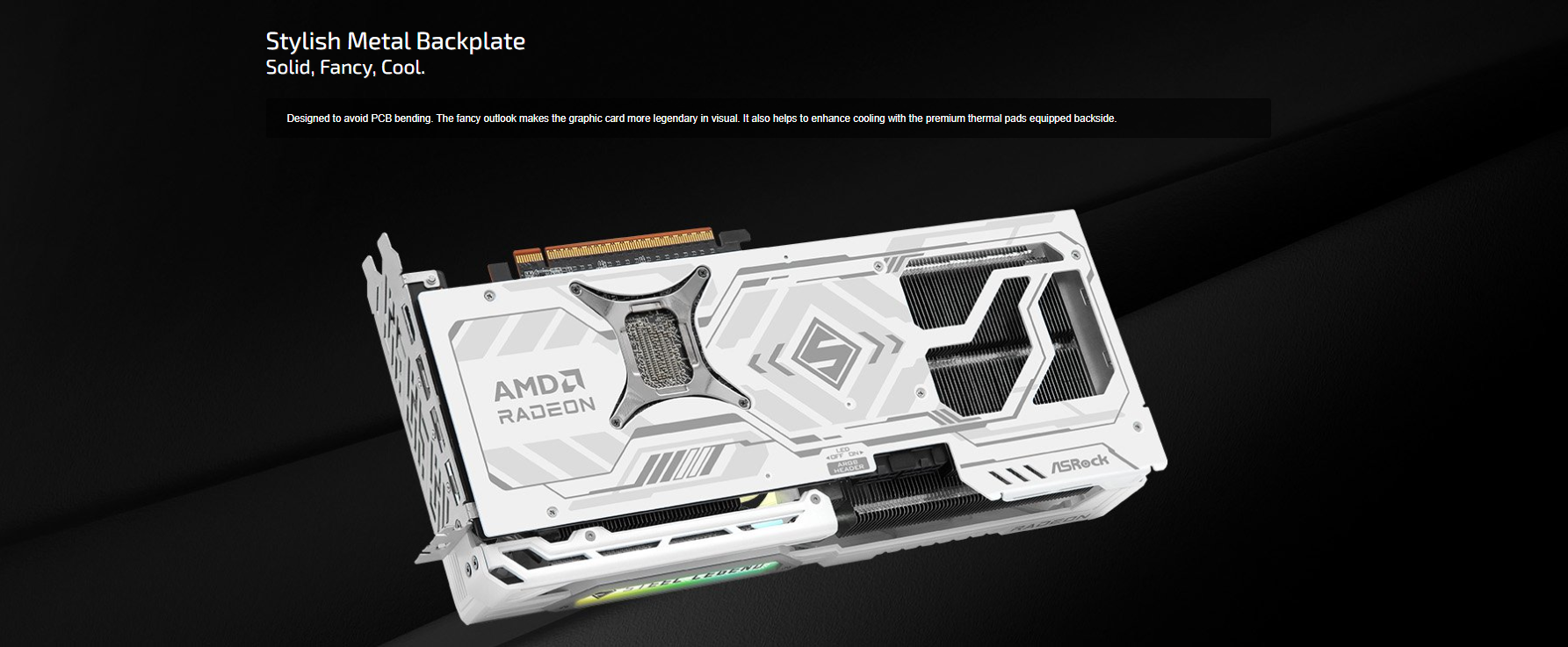

Stylish Metal Backplate

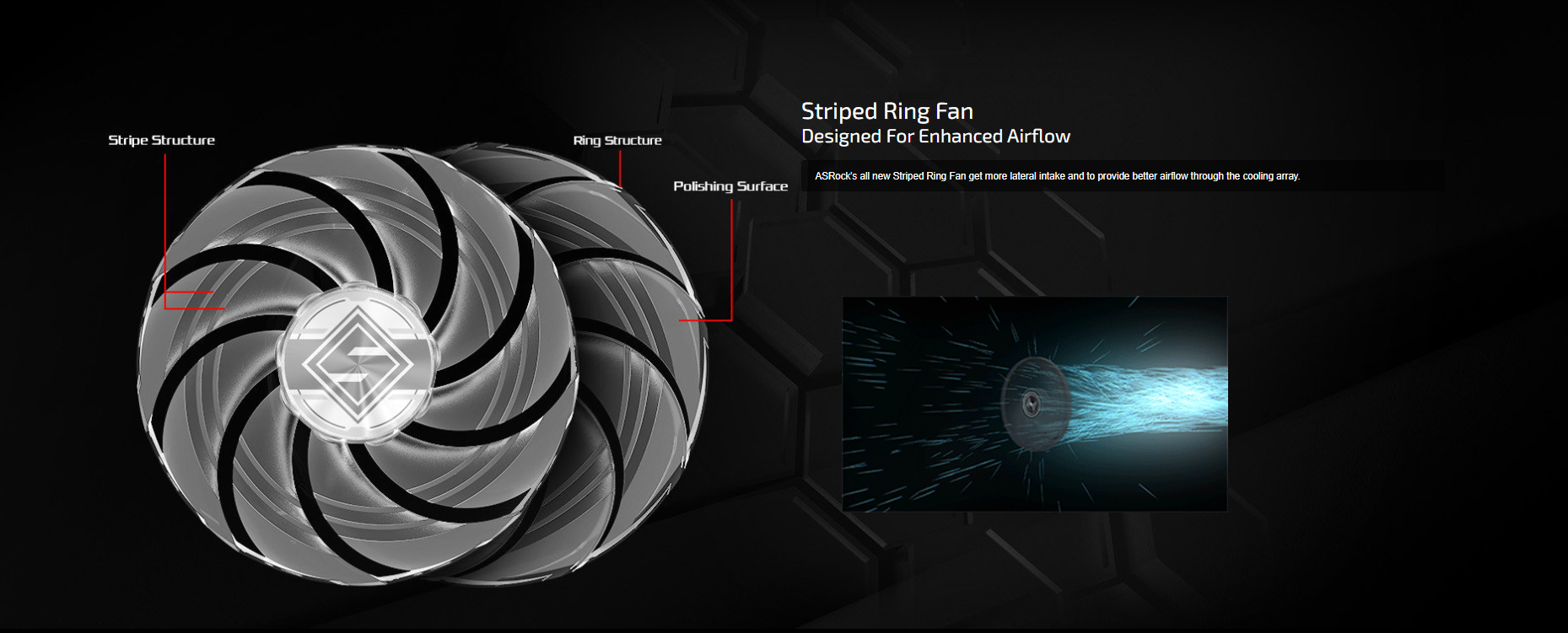

Striped Ring Fan

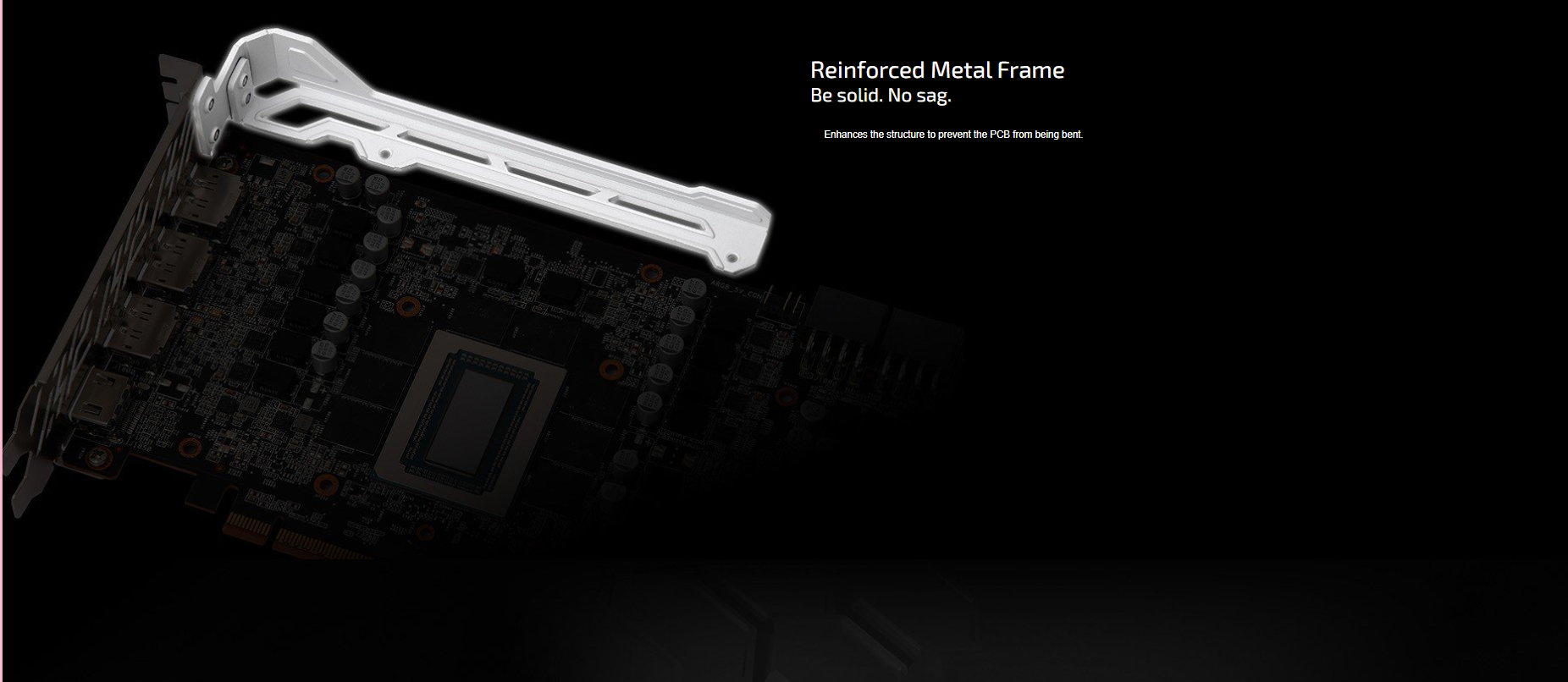

Reinforced Metal Frame

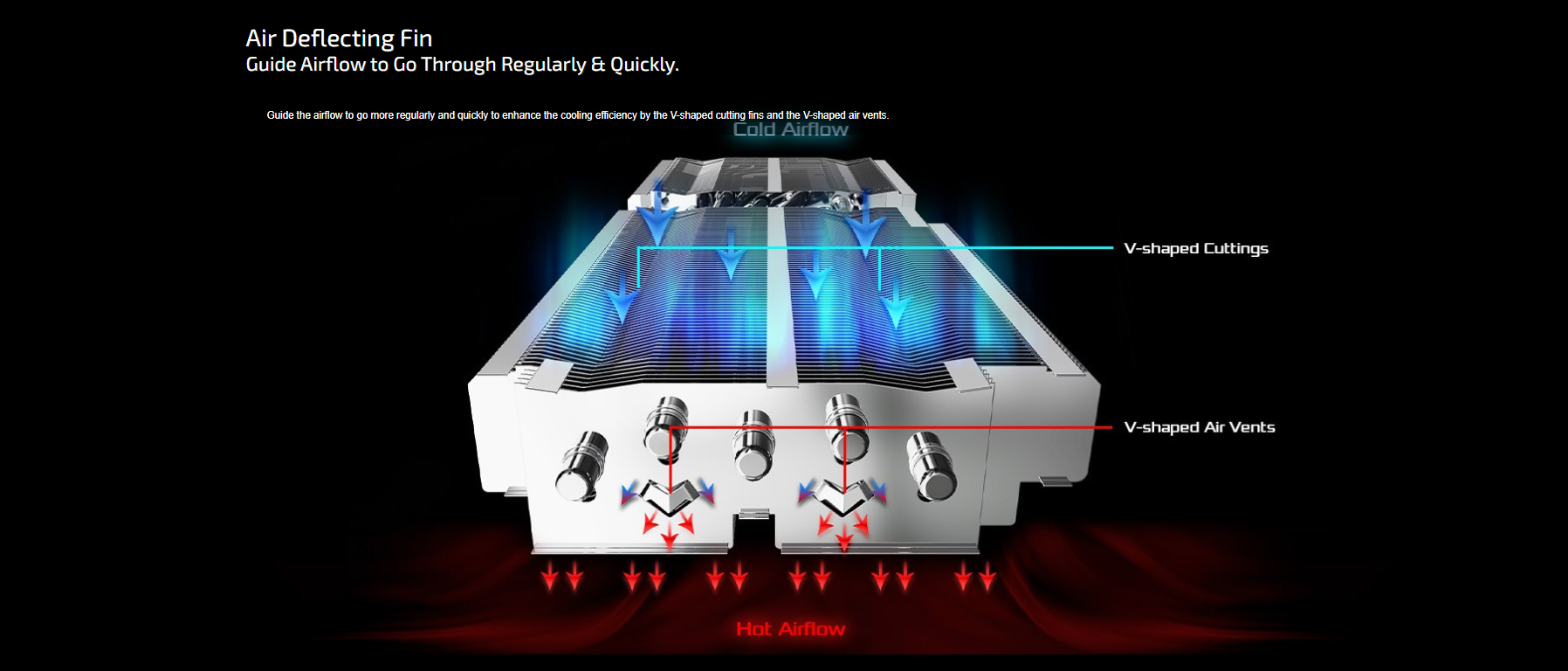

Air Deflecting Fin

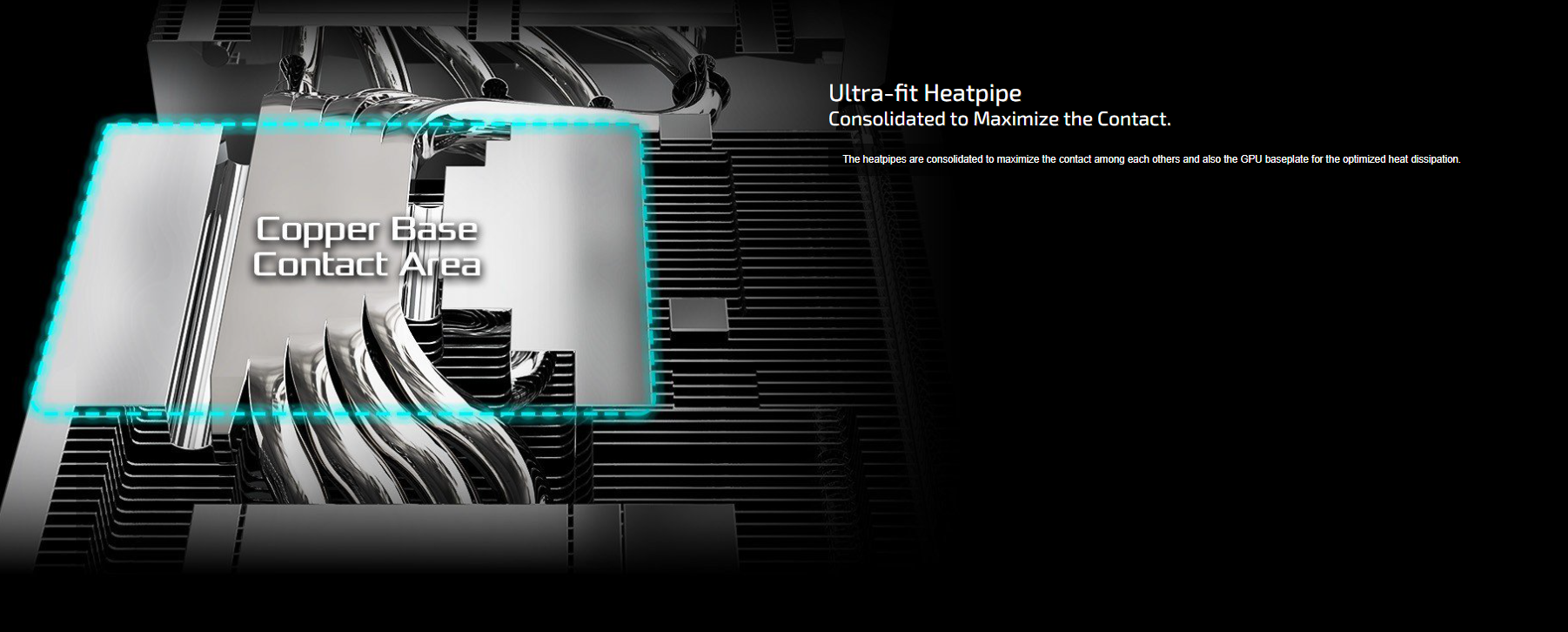

Ultra-fit Heatpipe

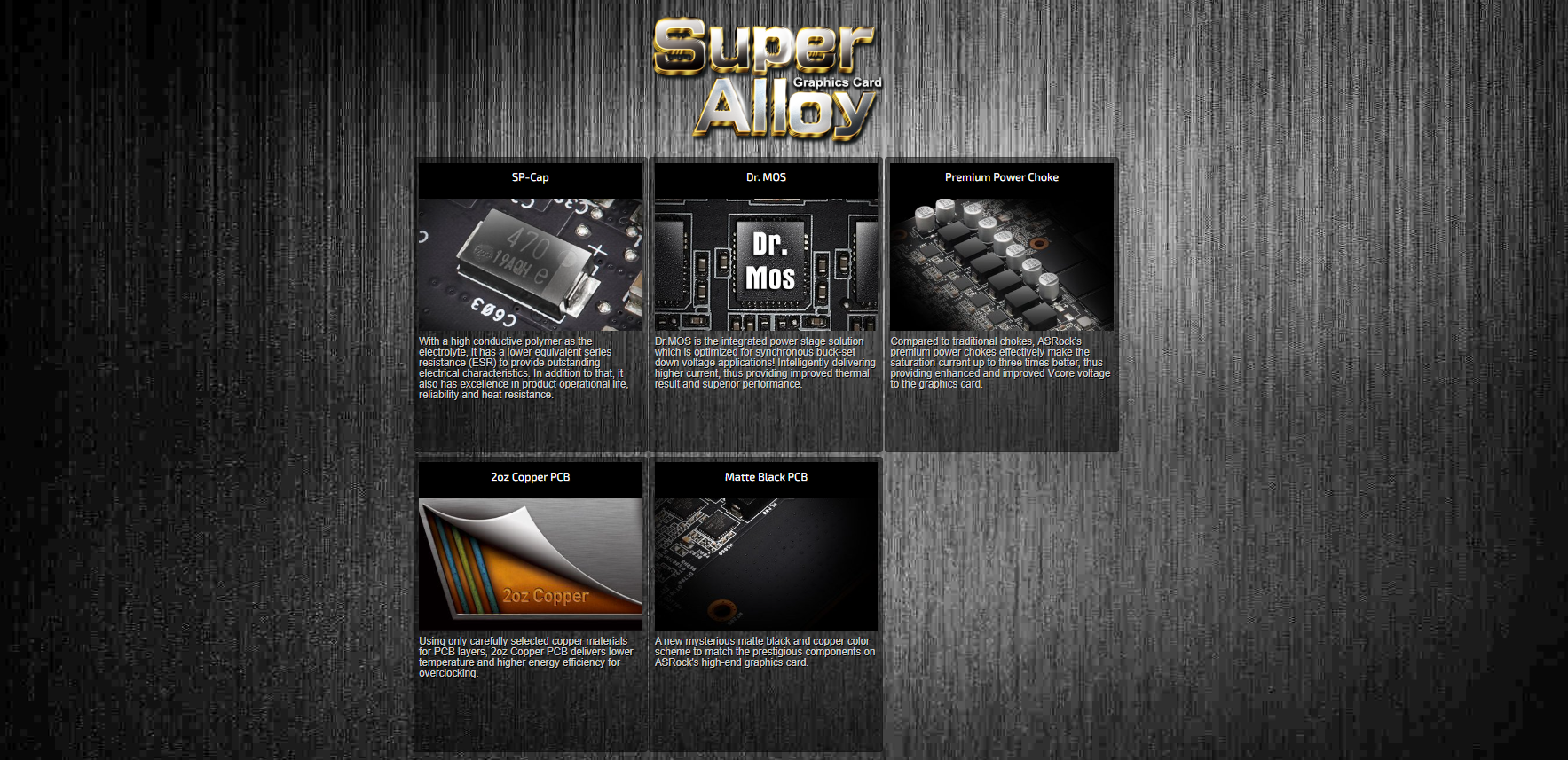

Super Alloy Graphics Card
Specification
Graphics Engine
- AMD Radeon™ RX 9070
Bus Standard
- PCI® Express 5.0 x16
DirectX
- 12 Ultimate
OpenGL
- 4.6
Memory
- 16GB GDDR6
Engine Clock
- Boost Clock: Up to 2700 MHz*
- Game Clock: 2210 MHz**
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
- 3584
Memory Clock
- 20 Gbps
Memory Interface
- 256-bit
Resolution
- Digital Max Resolution: 7680 x 4320
Interface
- 3x DisplayPort 2.1a
- 1x HDMI 2.1b
HDCP
- Yes
Multi-view
- 4
Recommended PSU
- 700W
Power Connector
- 2x 8-pin
Accessories
- 1x Quick Installation Guide
Dimensions
- 298 x 131 x 58 mm, 2.9-slot
Net Weight
- 1135 g
