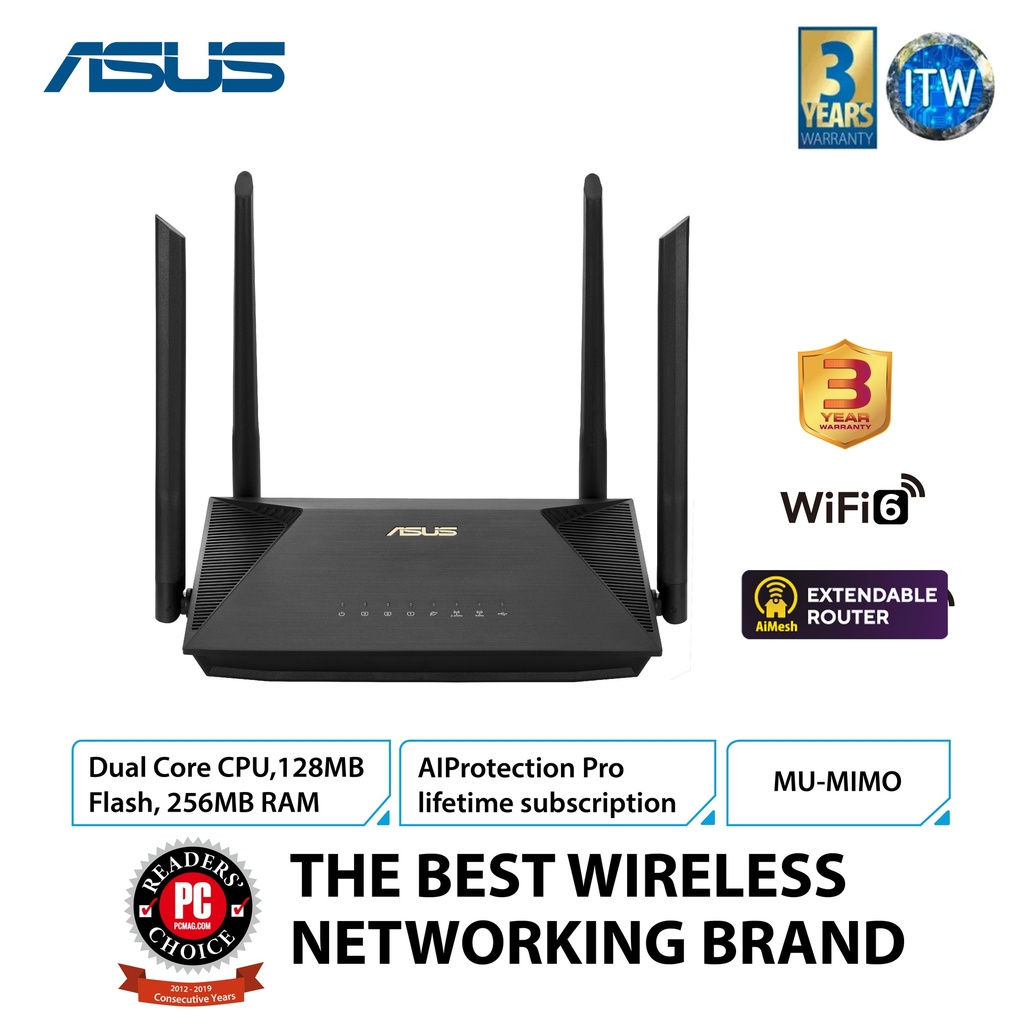

AX1800 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Classic network security powered by Trend Micro™
- New-Gen WiFi Standard –WiFi 6(802.11ax) standard supporting MU-MIMO and OFDMA technology for better efficiency and throughput.
- Connect in your way –You can share the internet from 3G/4G dongle to the router by plug the dongle in a USB port.
- Ultra-fast WiFi Speed –RT-AX53U supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.
- Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
- 4 Gigabit ports – One Gigabit WAN port and three Gigabit LAN ports, 10X faster than 100–Base T Ethernet.
- AiProtection and Parental Controls – helps keep your network protected and allow you to set the time limit for a client's network usage
SPECS:
Model Name
RT-AX53U
Network Standard
IEEE 802.11aIEEE 802.11bIEEE 802.11gWiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)IPv4IPv6
AX technology
Yes
Antenna
Ex-antennas*4
Transmit/Receive
2.4GHz 2x25 GHz 2 x 2
Processor
Dual-code
Memory
128 MB Flash256 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80 MHz bandwidth
Operating Frequency
2.4G Hz / 5 GHz
Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3,USB Port x1
Button
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 12.4G x 15G x 1LAN x 3WAN x 1USBX1
Power Supply
AC Input : 110V~240V(50~60Hz)DC Output : 12 V with max. 1.5A current
Package content
RT-AX53URJ45 x1Adapter x1QSG x1Warranty Card x1
Product Weight (g)
346g
AiMesh
AiMesh : NoPrimary AiMesh router : NoAiMesh node : No
Router APP
ASUS Router APP : Yes
Game
Game Boost/acceleration : No
Alexa
Support Alexa skil : Yes
IFTTT
Support IFTTT : No
AiProtection
AiProtection : AiProtection ClassicMalicious site blocking : YesTwo-Way IPS : NoInfected Device Prevention and Blocking ; Yes
Parental Control
Parental Control : YesParental Control Customized Internet schedule : Yes
Traffic Control
Adaptive QoS : NoBandwidth limiter : YesTraditional QoS : YesTraffic Monitor : YesReal-time traffic monitor : YesWired Traffic Monitor : YesWireless Traffic Monitor : YesWebsite history : No
Wireless
IPv6 : YesMU-MIMO : YesWi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-PersonalUTF-8 SSID : YesGuest Network : YesWPS : YesWi-Fi MAC address filter : YesWireless scheduler : YesAirtime fairness : YesRADIUS Server : YesUniversal beamforming : YesExplicit beamforming : YesIGMP snooping : Yes
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IPDual WAN : YesWAN Aggregation : No3G/4G LTE dongle : YesPort triggering : YesDMZ : YesDDNS : YesLet's Encrypt : Yes
LAN
DHCP Server : YesIPTV : YesLAN Link Aggregation : NoManually assign IP address : Yes
VPN
VPN Client L2PT : YesVPN Client OVPN : YesVPN Client PPTP : YesVPN Server IPSec : YesVPN Server OVPN : YesVPN Server PPTP : YesVPN Fusion : No
USB application
3G/4G LTE dongle : YesHDD hibernation : YesSafely Remove disk : YesAiCloud : NoDownload master : YesAiDisk : YesMedia Server : YesTime Machine : YesSamba Server : YesFTP Server : YesShared Folder privileges : Yes
Administration
Operating mode : Access Point, Media Bridge, Repeater, RouterOperating system : ASUSWRTFree OS upgrade : YesFirewall : YesWake on LAN (WOL) : YesSSH : YesConfiguration backup and restore : YesDiagnosis tools : YesFeedback system : YesSystem log : Yes
