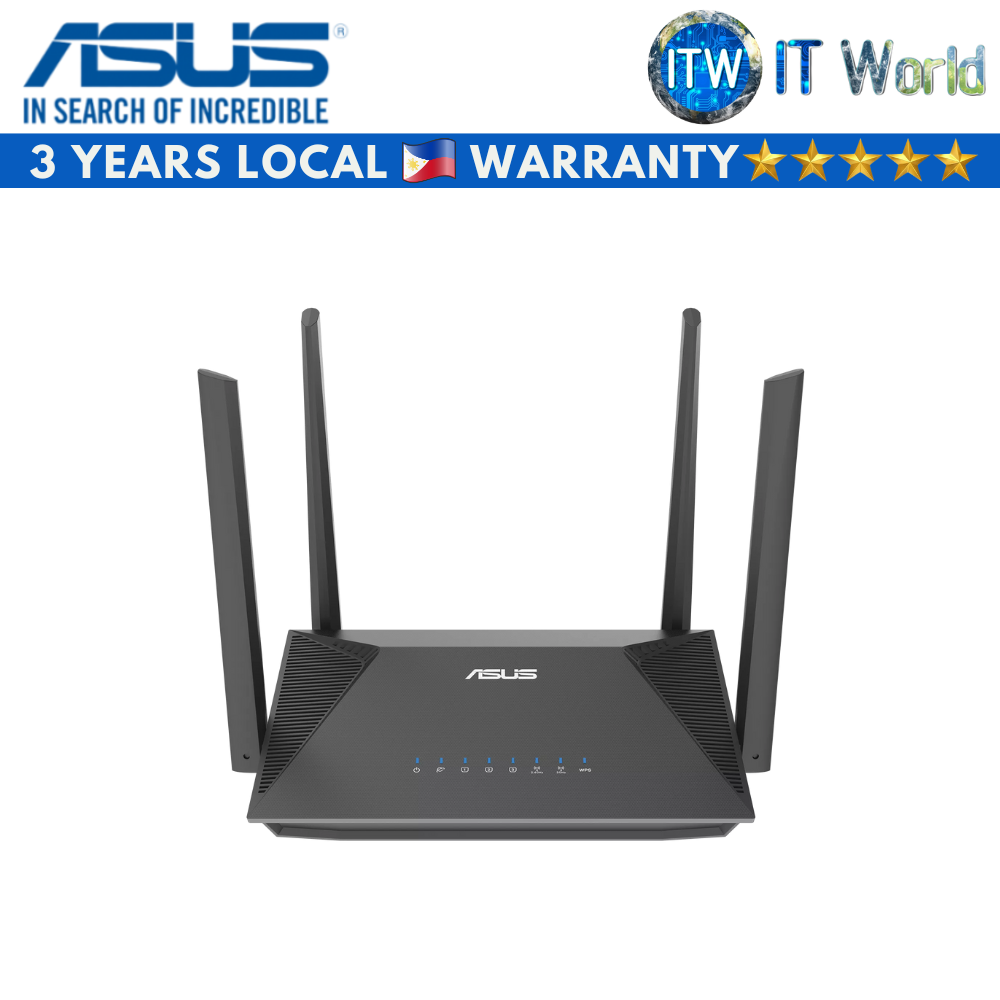

ASUS RT-AX52 (AX1800) Dual Band WiFi 6 Extendable Router

Product Name: ASUS RT-AX52 (AX1800) Dual Band WiFi 6 Extendable Router

Key Feature

• New-Gen WiFi Standard – Supporting 802.11ax WiFi standard for better efficiency and throughput.

• Ultra-fast WiFi Speed – RT-AX52 supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.

• Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicating with multiple devices simultaneously

• Easy Extendable Network – Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.

Specification

• Network Standard

• IEEE 802.11a

• IEEE 802.11b

• IEEE 802.11g

• WiFi 4 (802.11n)

• WiFi 5 (802.11ac)

• WiFi 6 (802.11ax)

• IPv4

• IPv6

Product Segment: AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps

• 802.11b : up to 11 Mbps

• 802.11g : up to 54 Mbps

• WiFi 4 (802.11n) : up to 300 Mbps

• WiFi 5 (802.11ac) : up to 867 Mbps

• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

• WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna: External antenna x 4

Transmit / Receive

• 2.4GHz 2x2

• 5GHz 2x2

Processor: 1.3GHz dual-core processor

Memory

• 128 MB Flash

• 256 MB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)

• Beamforming: standard-based and universal

• 1024-QAM high data rate

• 20/40/80 MHz bandwidth

Operating Frequency: 2.4GHz / 5GHz

Operating Mode: Access Point, AiMesh Node, Repeater, Router

I/O Ports: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

Buttons: WPS Button, Reset Button, Power Switch

LED Indicator

• Power x 1

• WAN x 1

• LAN x 3

• 2.4G x 1

• 5G x 1

• WPS x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)

• DC Output : 12 V with max. 1 A current

Product Weight (g): 298g

Product Dimensions: 192 x 126.3 x 47.5 mm (WxDxH)

AiMesh

• AiMesh

• Primary AiMesh Router

• AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps."

Customized Internet Schedule

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."

Security

• Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

• WPS

• SSH

• Firewall

VPN

• Instant Guard

• VPN Client L2TP

• VPN Client Open VPN

• VPN Client PPTP

• VPN Server IPSec

• VPN Server Open VPN

• VPN Server PPTP

Traffic Control

• Bandwidth Limiter

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

• Dual WAN

• Port triggering

• DMZ

• DDNS

LAN

• DHCP Server

• IGMP Snooping

• IPTV

• Manually Assign IP Address

• Wake on LAN (WOL)

Wireless

• UTF-8 SSID

• WiFi MAC Address Filter

• Wireless Scheduler

• Airtime Fairness

• RADIUS Client

• Universal Beamforming

• Explicit Beamforming

Administration

• Configuration Backup and Restore

• Diagnosis tools

• Feedback System

• System Log
