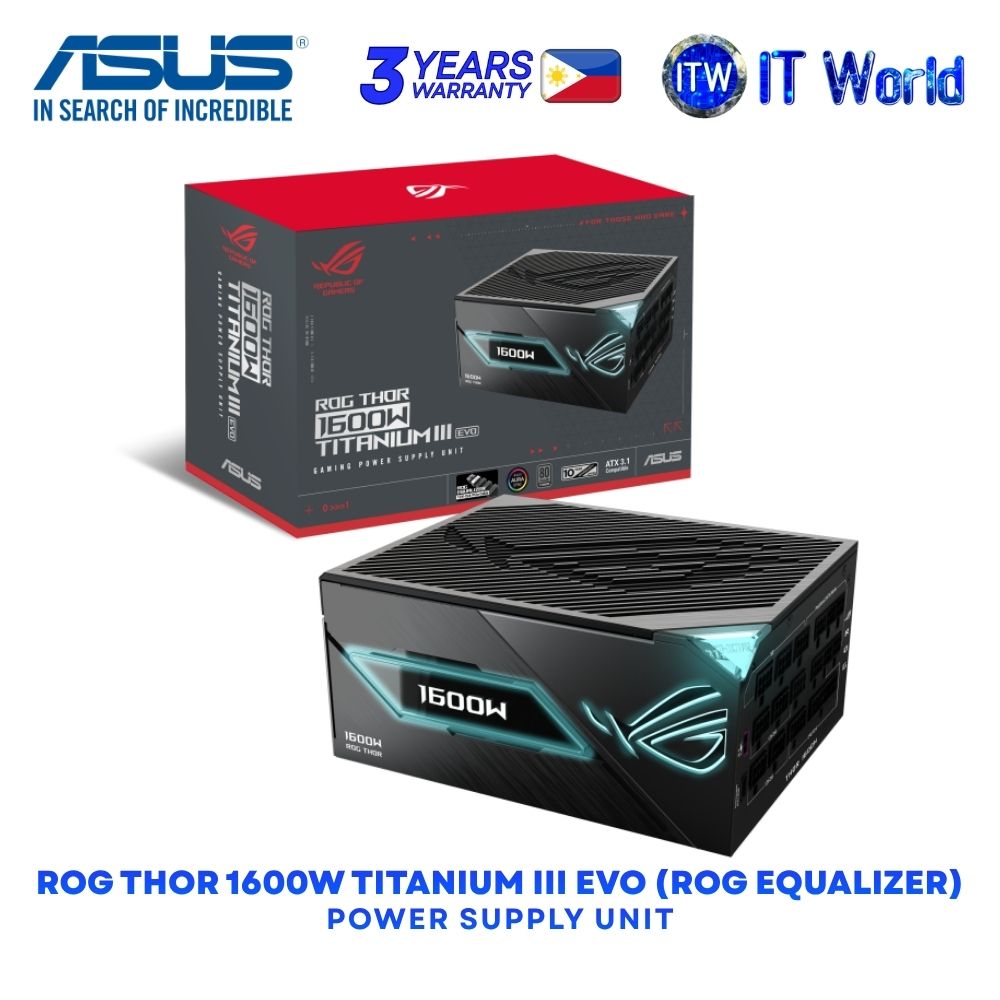

ASUS ROG Thor 1600W Titanium III EVO (ROG Equalizer) 80+ Titanium PSU ROG-THOR-1600T3-GAMING EVO
🌟 Power your high-performance gaming rig with the ASUS ROG Thor 1600W Titanium III EVO, engineered to deliver exceptional power efficiency, stable performance, and advanced cooling capabilities. Featuring next-generation GaN MOSFET technology, GPU-First voltage sensing, and the patented ROG Equalizer PCIe power cable, this premium power supply is designed to support demanding workloads and high-end graphics cards.
🌟 With full ATX 3.1 compliance, a native 12V-2x6 connector, and a signature OLED display, the ROG Thor 1600W Titanium III EVO combines advanced power delivery with flexible installation options for enthusiast PC builds.
Key Features & Highlights
⚡ 1600W Total Output – Delivers up to 1600W of power for demanding PC configurations.
🏆 80 PLUS Titanium Efficiency – Designed for high power efficiency with premium Titanium-rated performance.
🔋 Next-Generation GaN MOSFET – Enhances power supply efficiency through advanced GaN technology.
🎮 GPU-First Voltage Sensing – Works with a patented intelligent stabilizer to support stable voltage delivery.
🛡️ ROG Equalizer PCIe Power Cable – Patented 12V-2x6 cable engineered to reduce heat stress and help protect the graphics card by managing cable and connector temperatures.
❄️ Turbo Mode Cooling – Maximizes cooling for overclocking and demanding workloads.
🖥️ Signature OLED Display – Features a magnetic attachment that allows the display to be repositioned on either side of the PSU, supporting fan-up and fan-down installations.
🔌 Flexible Display Placement – Includes a Type-C extender for relocating the OLED display to the chassis front or exterior for better visibility.
🧩 ATX 3.1 Standard – Fully compliant with ATX 3.1 and equipped with a native 12V-2x6 connector.
🌈 AURA SYNC Support – Supports ASUS AURA SYNC lighting integration.
🔇 0dB Fan Button – When enabled, the fan spins only after the system reaches a certain load. When disabled, the fan operates continuously at all load levels.
🛡️ Comprehensive Protection – Includes OPP, OVP, UVP, SCP, OCP, and OTP protection features.
Technical Specifications
⚡ Model: ROG Thor 1600W Titanium III EVO (ROG Equalizer)
⚡ SKU: ROG-THOR-1600T3-GAMING EVO
⚡ Total Output: 1600W
⚡ Form Factor: ATX12V
⚡ ATX Standard: ATX 3.1
⚡ 80 PLUS Rating: Titanium
⚡ PFC Type: Active PFC
⚡ AC Input Range: 100–240Vac
⚡ DC Output Voltages: +3.3V, +5V, +12V, -12V, +5Vsb
⚡ Maximum Load: 30A (+3.3V), 25A (+5V), 133.3A (+12V), 0.3A (-12V), 3A (+5Vsb)
⚡ Combined Load: 125W (+3.3V/+5V), 1600W (+12V), 3.6W (-12V), 15W (+5Vsb)
⚡ Protection Features: OPP, OVP, UVP, SCP, OCP, OTP
⚡ AURA SYNC: Yes
⚡ 0dB Fan Button: Yes
⚡ MTBF: More than 120,000 hours at 25°C
⚡ RoHS Compliance: Yes
Cable Connectors
🔌 Motherboard: 24/20-pin × 1
🔌 CPU: 4+4-pin × 3
🔌 PCI-E: 6+2-pin × 3
🔌 PCI-E 16-pin: 12V-2x6 / ROG Equalizer × 2
🔌 SATA × 9
🔌 Peripheral × 3
Package Contents
📦 Power Cord × 1
📦 Motherboard Power Cable (610mm) × 1
📦 CPU Cable (1000mm) × 3
📦 ROG Equalizer 12V-2x6 PCI-E Cable with GPU-First (750mm) × 1
📦 ROG Equalizer 12V-2x6 PCI-E Cable (750mm) × 1
📦 PCI-E Cable 1-to-1 (750mm) × 3
📦 SATA Cable 1-to-3 (400+120+120mm) × 3
📦 Peripheral Cable 1-to-3 (400+150+150mm) × 1
📦 Addressable RGB Cable (800mm) × 1
📦 ROG OLED Stand × 1
📦 ROG Sticker × 1
📦 ROG Cable Ties × 6
📦 Chassis Screws Package × 1
📦 Cable Ties × 12
📦 User Manual × 1
Dimensions & Package Weight
📏 PSU Dimensions (W × L × H): 190 × 150 × 86 mm
📏 PSU Weight: Approximately 2.5 kg (single PSU)
Why Choose ASUS ROG Thor 1600W Titanium III EVO?
🛒 Choose the ASUS ROG Thor 1600W Titanium III EVO for its 1600W output, Titanium-rated efficiency, ATX 3.1 compliance, and innovative ROG Equalizer power cable. With GPU-First voltage sensing, Turbo Mode cooling, a repositionable OLED display, and comprehensive protection features, it is built to meet the power requirements of demanding gaming and enthusiast PC systems.
