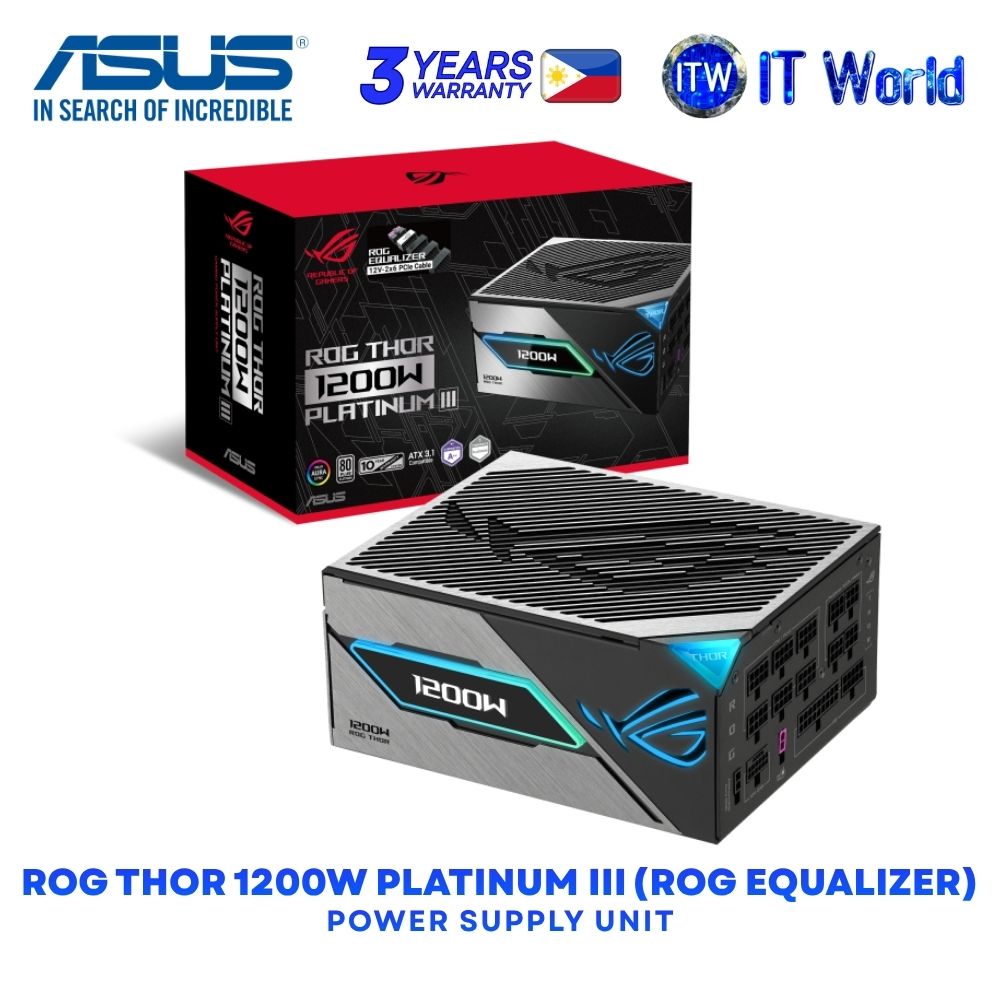

ASUS ROG Thor 1200W Platinum III (ROG Equalizer) Power Supply Unit ROG-THOR-1200P3-GAMING-E
⚡ Power your PC build with the ASUS ROG Thor 1200W Platinum III (ROG Equalizer), a 1200W power supply unit featuring 80 PLUS Platinum efficiency, the ATX 3.1 standard, and ASUS Aura Sync support. Designed with multiple protection features, versatile cable connectivity, and a selectable 0dB fan mode, it delivers power management features for demanding PC configurations.
Key Features & Specifications
⚡ 1200W Total Output – Provides a total power output of 1200W.
🏆 80 PLUS Platinum Efficiency – Features 80 PLUS Platinum certification and Cybenetics Platinum efficiency ratings at both 115V and 230V.
🔌 ATX 3.1 Standard – Supports the ATX 3.1 power supply standard with an ATX12V form factor.
🎮 ROG Equalizer 12V-2x6 Connector – Includes one 16-pin PCIe 12V-2x6 connector with a GPU-First cable.
🌈 ASUS Aura Sync – Supports Aura Sync for compatible RGB lighting synchronization.
🤫 Selectable 0dB Fan Mode – When enabled, the fan spins up only when the system reaches a certain load. When disabled, the fan runs continuously at all load levels.
🔇 Cybenetics A++ Noise Certification – Features a Cybenetics A++ noise level certification.
🛡️ Comprehensive Protection – Includes OPP (Over Power Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection), OCP (Over Current Protection), and OTP (Over Temperature Protection).
🔋 Active PFC – Equipped with Active Power Factor Correction.
🌍 Wide AC Input Range – Supports an AC input range of 100–240Vac.
🔧 Extensive Connectivity – Includes motherboard, CPU, PCIe, SATA, and peripheral power connectors for versatile system connections.
⏳ MTBF – Rated at more than 120,000 hours at 25°C.
♻️ ROHS Compliance – Complies with the listed ROHS hazardous-material requirements.
Cable Connectors
🔌 Motherboard: 24/20-pin × 1
🔌 CPU: 4+4-pin × 2
🔌 PCIe: 16-pin (12V-2x6) × 1
🔌 PCIe: 6+2-pin × 4
🔌 SATA × 7
🔌 Peripheral × 6
Package Contents
📦 Power cord × 1
📦 Motherboard power cable (610mm) × 1
📦 CPU cable (1000mm) × 2
📦 ROG Equalizer 12V-2x6 PCIe cable with GPU-First × 1 (750mm)
📦 PCIe 1-to-1 cable × 4 (750mm)
📦 SATA 1-to-4 cable × 1 (400+120+120+120mm)
📦 SATA 1-to-3 cable × 1 (400+120+120mm)
📦 Peripheral 1-to-3 cable × 2 (400+150+150mm)
📦 Addressable RGB cable (800mm) × 1
📦 ROG sticker × 1
📦 ROG cable ties × 6
📦 Chassis screws package × 1
📦 Cable ties × 12
📦 User manual × 1
Product & Package Details
📐 Model: ROG Thor 1200W Platinum III (ROG Equalizer)
📐 Product Type: Power Supply Unit (PSU)
📐 SKU: ROG-THOR-1200P3-GAMING-E
📐 Total Output: 1200W
📐 Efficiency Certification: 80 PLUS Platinum
📐 ATX Standard: ATX 3.1
📐 Product Dimensions (W × L × H): 150 × 190 × 86 mm
📐 Product Weight: 2.37 kg (single PSU)
