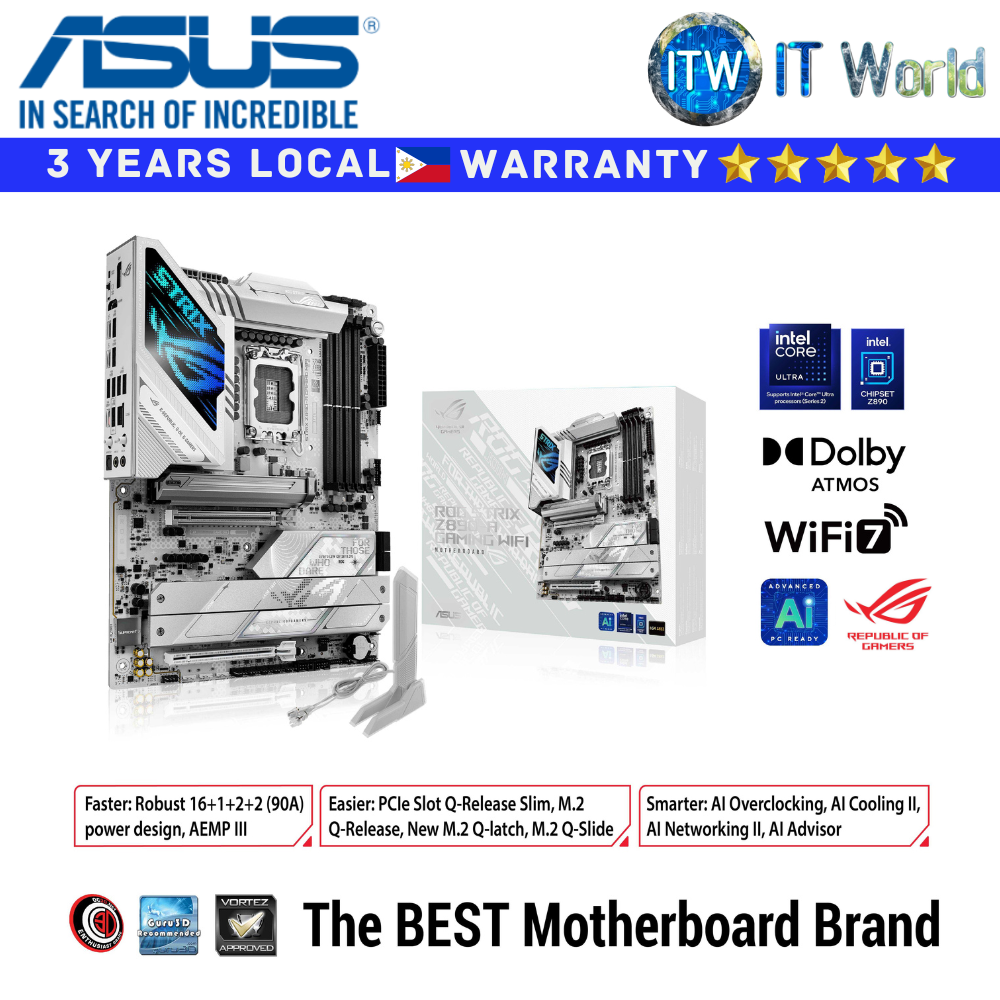

Product Name: Itw | ASUS Motherboard ROG STRIX Z890-A GAMING WIFI ATX LGA 1851 DDR5
Specification
CPU
• Support Intel® Core™ Ultra Processors (Series 2)*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
• Intel® Z890 Chipset
Memory
• 4 x DIMM slots, max. 192GB, DDR5
• Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• Supports DIMM Flex
• Supports DIMM FIT
• ASUS Enhanced Memory Profile III (AEMPIII)
Graphics
• 1 x DisplayPort*
• 1 x HDMI™ port**
• 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs***
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover
Wireless & Bluetooth
• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
• Bluetooth® v5.4***
Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
• 1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage
Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)*
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
USB
Rear USB (Total 10 ports)
• 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)**
• 2 x USB 5Gbps ports (2 x Type-A)
Front USB (Total 7 ports)
• 1 x USB 20Gbps connector (supports USB Type-C® )*
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Form Factor
• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
