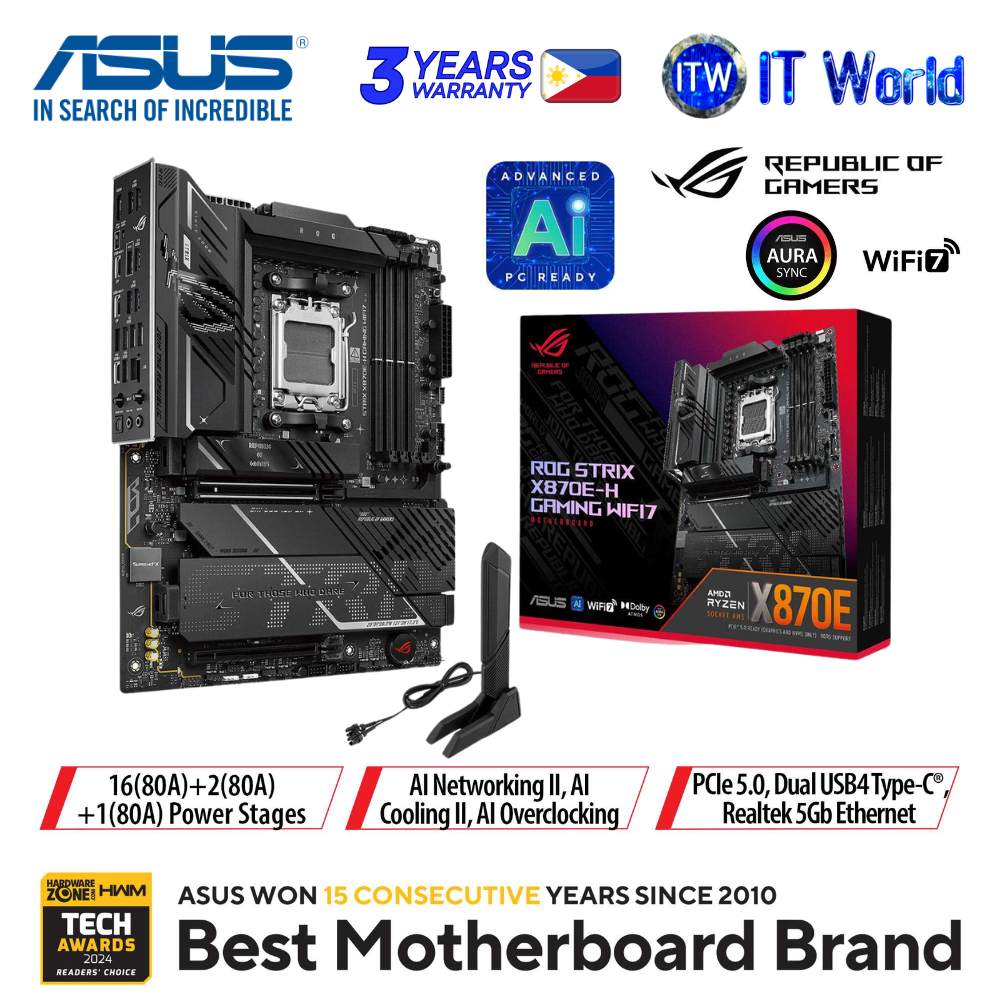

ASUS ROG Strix X870E-H Gaming WIFI7 ATX AM5 DDR5 AMD X870E Chipset Motherboard
Product Description
Power your next-generation PC build with the ASUS ROG Strix X870E-H Gaming WiFi7 Motherboard, designed for advanced AI computing, high-performance gaming, and demanding desktop applications. Featuring the AMD X870E chipset, AM5 socket, DDR5 memory support, and Wi-Fi 7 connectivity, this ATX motherboard delivers advanced features for modern PC enthusiasts and builders.
Key Features & Highlights
AI-Ready Computing
Designed for advanced AI PCs, with ASUS AI Advisor, AI Cache Boost, AI Networking II, and AEMP to simplify setup and optimize performance.
AMD AM5 Socket & X870E Chipset
⚙️ Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors, providing a platform for powerful PC configurations.
Robust 16+2+1 Power Solution
⚡ Features power stages rated for 80A per stage, dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.
High-Speed DDR5 Memory
Equipped with four DIMM slots supporting up to 256GB DDR5 memory and speeds up to 8000+ MT/s (OC), depending on the processor and memory configuration. Supports dual-channel architecture, AMD EXPO™, DIMM Fit, DIMM Fit Pro, and ASUS AEMP.
Advanced Thermal Design
❄️ Massive heatsinks, an integrated I/O cover, high-conductivity thermal pads, and M.2 cooling solutions help manage heat during demanding workloads.
Flexible Storage Expansion
Supports four M.2 slots, including two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, depending on processor compatibility, plus four SATA 6Gb/s ports.
High-Performance Expansion
Features PCIe 5.0 x16 SafeSlot support with processor-dependent expansion configurations, providing flexible options for compatible graphics cards and other components.
Next-Generation Networking
Enjoy onboard Wi-Fi 7 (802.11be), Realtek 5Gb Ethernet, and Bluetooth® 5.4 for advanced wireless and wired connectivity.
Extensive USB Connectivity
Includes two USB4® Type-C ports supporting up to 40Gbps, rear USB 10Gbps and 5Gbps ports, USB 2.0 ports, and a front-panel USB 20Gbps Type-C connector. A rear USB Type-C port supports up to 30W PD/PPS fast charging.
Display Connectivity
️ Equipped with an HDMI™ port supporting up to 4K at 60Hz and two USB4® Type-C ports supporting display output, subject to processor and display specifications.
Immersive 7.1-Channel Audio
Features the Realtek ALC1220P High Definition Audio CODEC, Savitech SV3H712 amplifier, SupremeFX Shielding Technology, premium audio capacitors, and optical S/PDIF output.
DIY-Friendly Design
️ Simplify installation and maintenance with M.2 Q-Release, M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™, Clear CMOS, and a pre-mounted I/O shield.
Aura Sync RGB Support
Includes three Addressable RGB Gen 2 headers for compatible lighting configurations through ASUS Aura Sync.
Software & System Management
Supports ASUS Armoury Crate, Aura Creator, Fan Xpert 4 with AI Cooling II, ASUS DriverHub, ROG CPU-Z, HWiNFO, ASUS GlideX, and UEFI BIOS tools. Selected software offers include trial subscriptions, subject to applicable terms.
Technical Specifications
⚙️ Brand: ASUS
⚙️ Model: ROG Strix X870E-H Gaming WiFi7
⚙️ Motherboard Chipset: AMD X870E
⚙️ CPU Socket: AMD AM5
⚙️ Supported Processors: AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors
⚙️ Form Factor: ATX
⚙️ Dimensions: 30.5 × 24.4 cm (12 × 9.6 inches)
⚙️ Memory Type: DDR5
⚙️ Memory Slots: 4 × DIMM
⚙️ Maximum Memory Capacity: 256GB
⚙️ Memory Speed: Up to 8000+ MT/s (OC), depending on configuration
⚙️ Memory Architecture: Dual-channel
⚙️ Expansion Slots: PCIe 5.0 x16 and PCIe 4.0 x16 slots, with operating modes dependent on processor and configuration
⚙️ Storage: 4 × M.2 slots and 4 × SATA 6Gb/s ports
⚙️ RAID Support: AMD RAIDXpert2, with supported RAID levels dependent on processor series
⚙️ Ethernet: Realtek 5Gb Ethernet
⚙️ Wireless: Wi-Fi 7 (802.11be), 2×2
⚙️ Bluetooth: Version 5.4
⚙️ Rear USB: 14 ports, including USB4® Type-C, USB 10Gbps, USB 5Gbps, and USB 2.0
⚙️ Front USB Expansion: Supports up to 7 additional USB ports through internal connectors and headers
⚙️ Display Output: 1 × HDMI™ and 2 × USB4® Type-C display-capable ports
⚙️ Audio: Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC
⚙️ RGB: 3 × Addressable RGB Gen 2 headers
⚙️ BIOS: 256Mb Flash ROM, UEFI AMI BIOS
⚙️ Operating System: Windows 11
Package Contents
2 × SATA 6Gb/s cables
1 × ASUS Wi-Fi Q-Antenna
1 × Cable ties package
1 × M.2 Q-Latch package
1 × ROG key chain
1 × ROG Strix stickers
4 × M.2 rubber pieces
1 × Quick start guide
