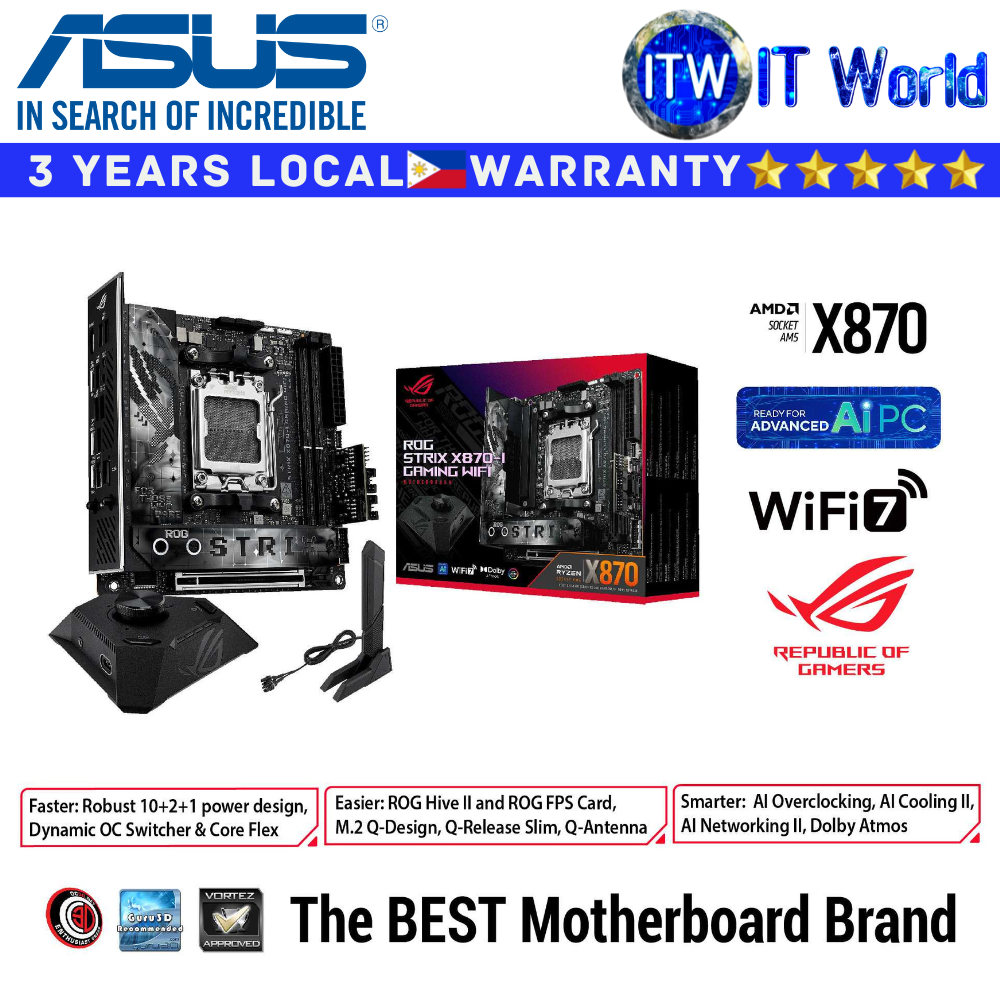

Product Name: Itw | ASUS Motherboard ROG Strix X870-I Gaming Wifi mini-ITX AM5 DDR5
ROG STRIX X870-I Gaming Wifi

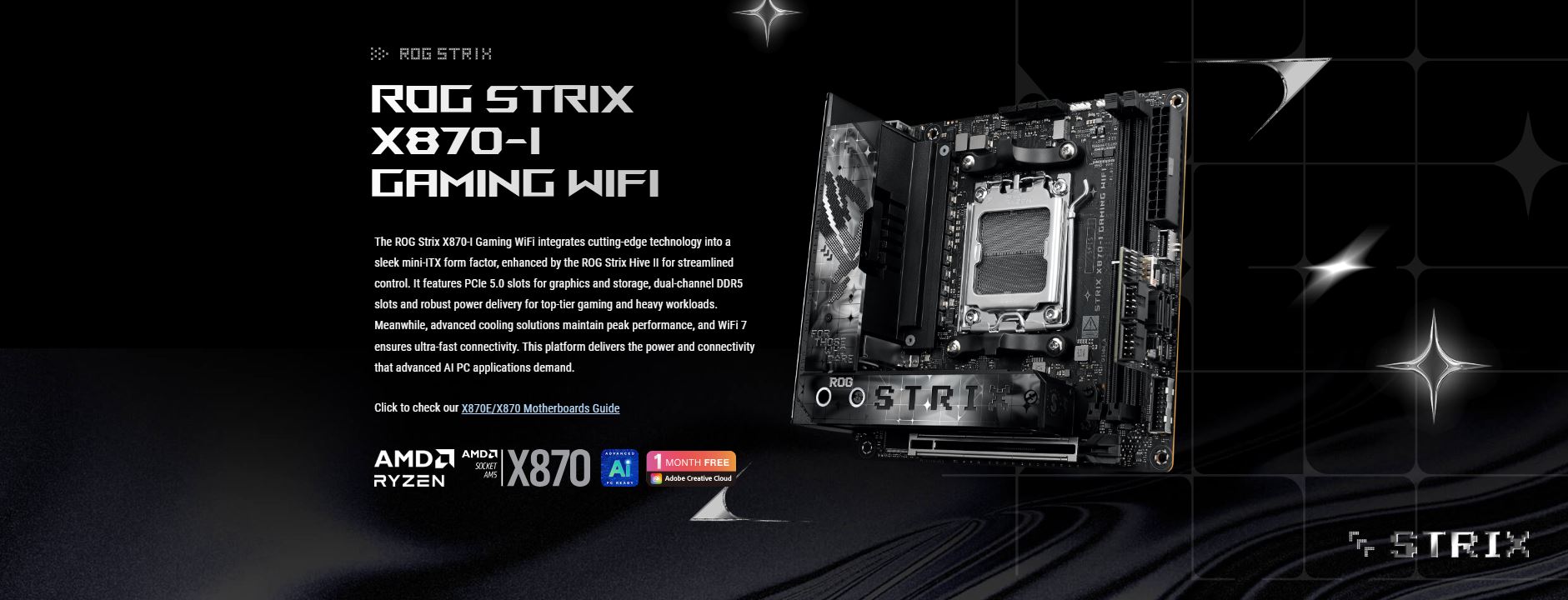

> The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specification

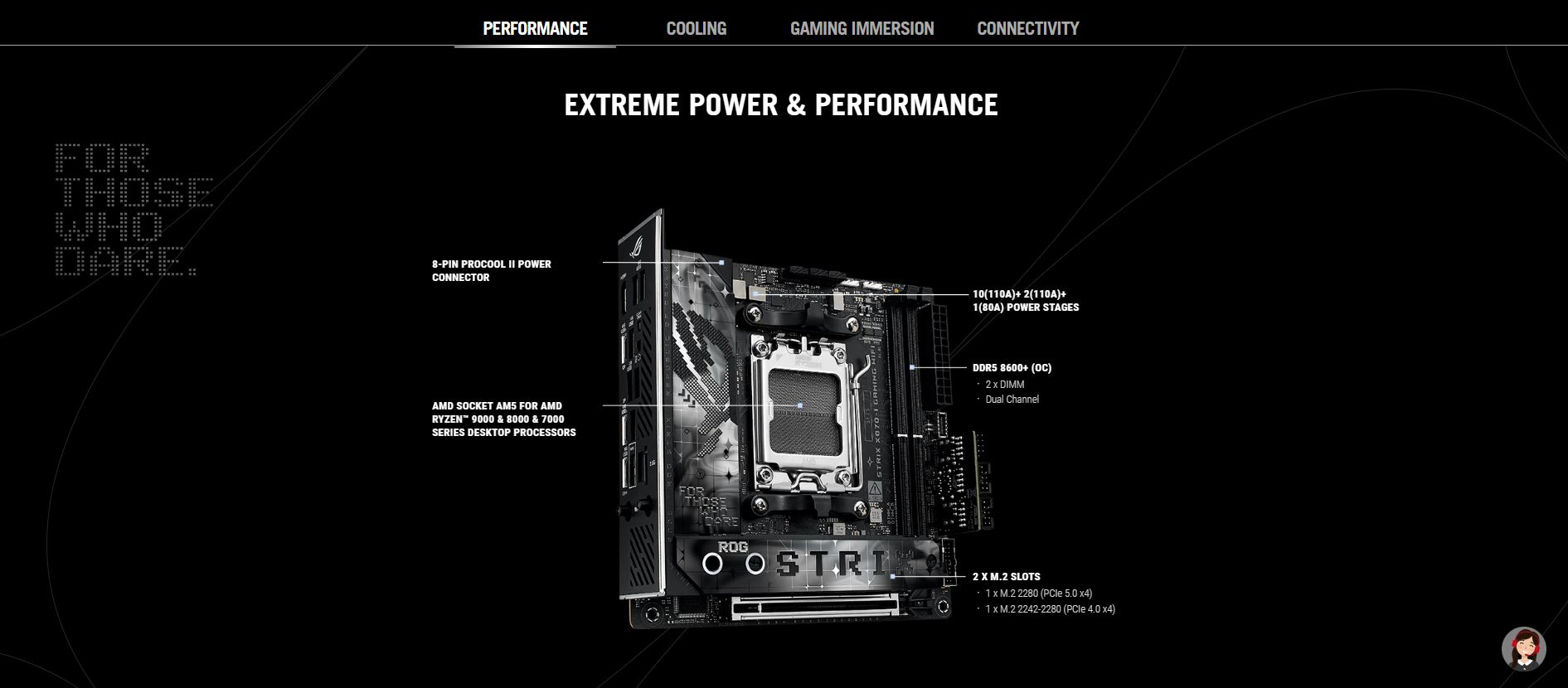

CPU
> AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset
> AMD X870
Memory
> 2 x DIMM slots, max. 128GB, DDR5 Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
> ECC and Non-ECC Un-buffered DIMM*"
> Dual channel memory architecture

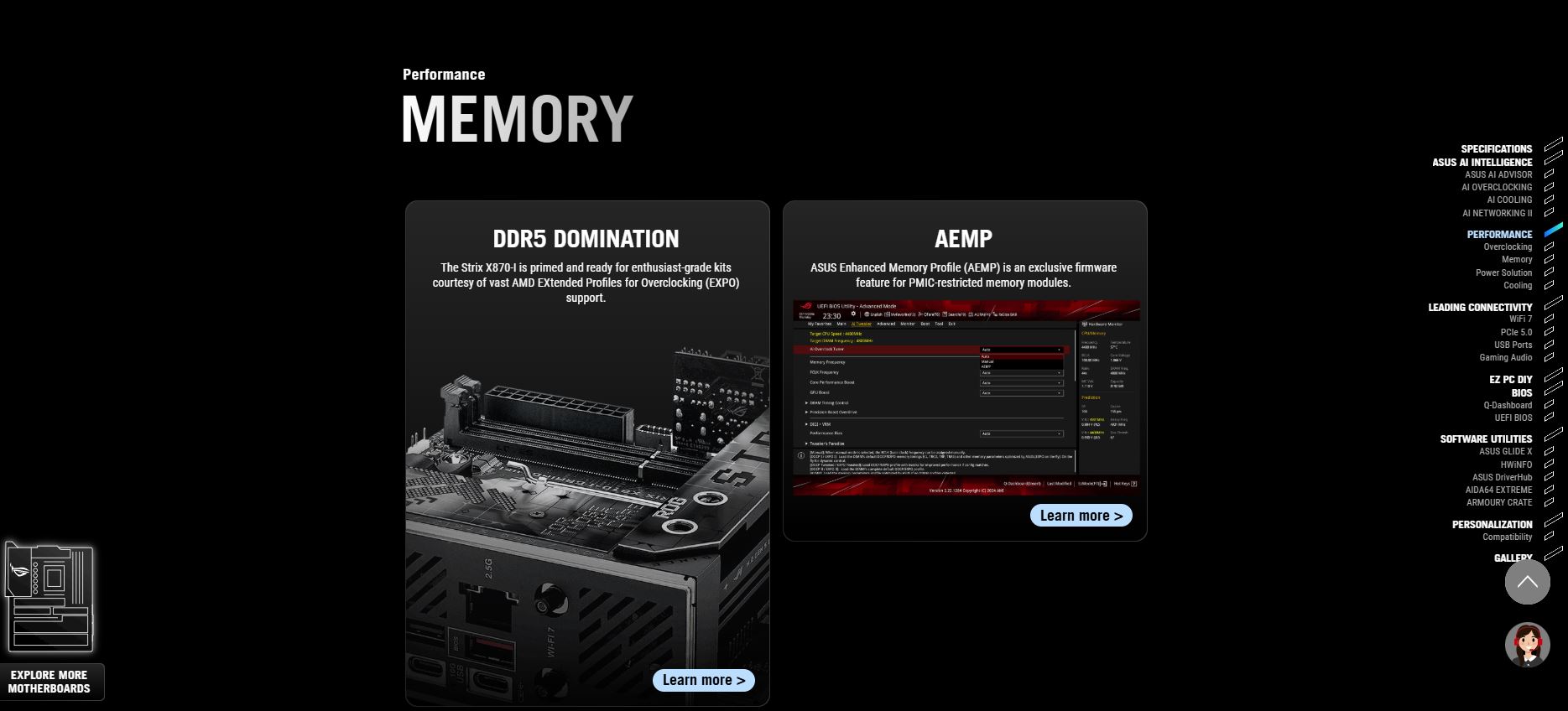

> Supports AMD Extended Profiles for Overclocking (EXPO™)
> ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
> 1 x HDMI™ port**
> 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
> AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot
> AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*
* Specifications vary by CPU types.
- To ensure compatibility of the device installed.
Storage
> Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
> AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
- M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
> AMD Ryzen™ 8000 Series Desktop Processors*
- M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
> AMD X870 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
- 2 x SATA 6Gb/s ports***
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
Ethernet
> 1 x Intel® 2.5Gb Ethernet
> ASUS LANGuard
Wireless & Bluetooth
> Wi-Fi 7*
> 2x2 Wi-Fi 7 (802.11be)
> Supports 2.4/5/6GHz frequency band**
> Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
> Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
- For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
- For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
USB
> Rear USB (Total 10 ports)
- 2 x USB4® (40Gbps) port(s)(2 x USB Type-C®)
- 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
- 3 x USB 2.0 port(s) (3 x Type-A)
> Front USB (Total 3 ports)
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- * USB Type-C® power delivery output: max. 5V/3A

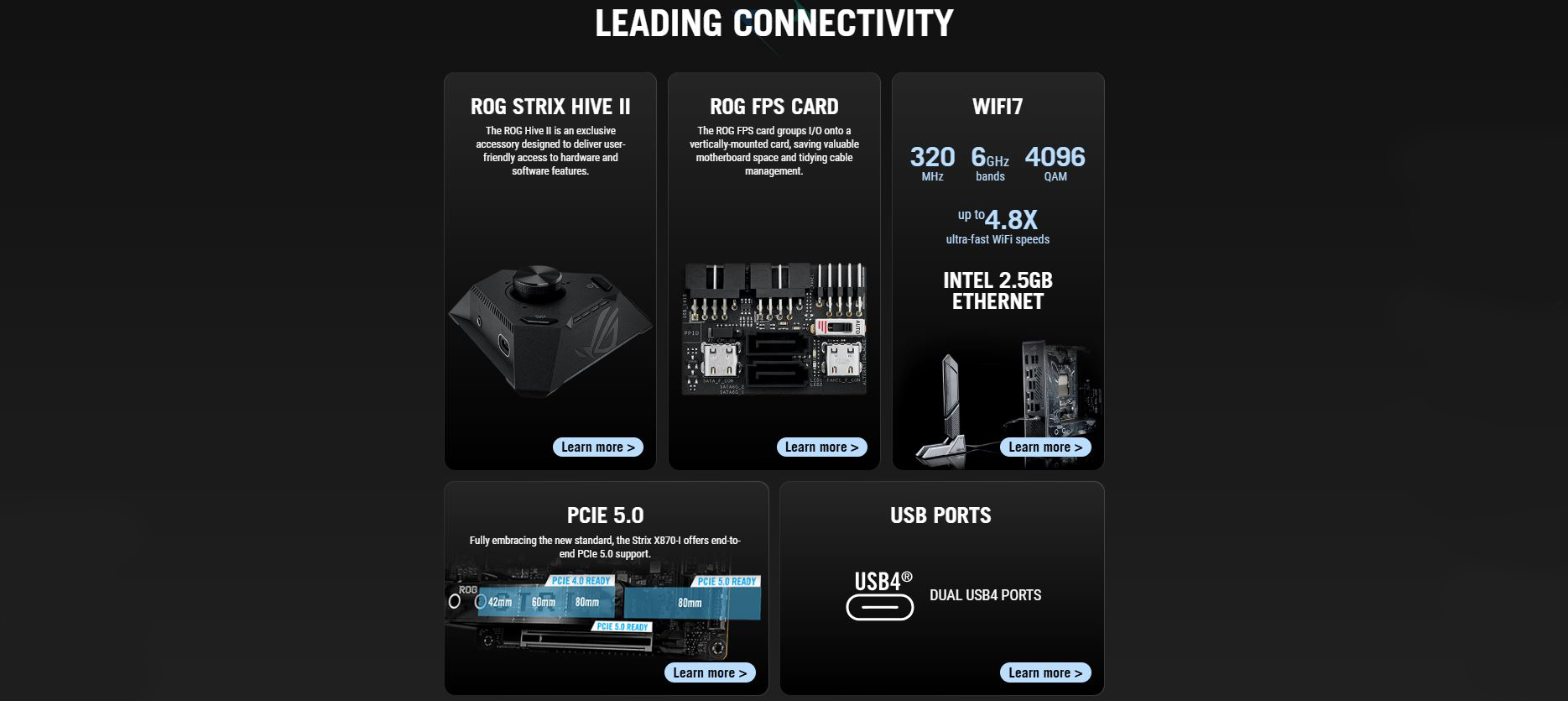

> ROG STRIX HIVE II(Total 2 ports)
- 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
> ROG FPS Card (Total 3 ports)
- 2 x USB 2.0 headers additional 3 USB 2.0 ports
Audio

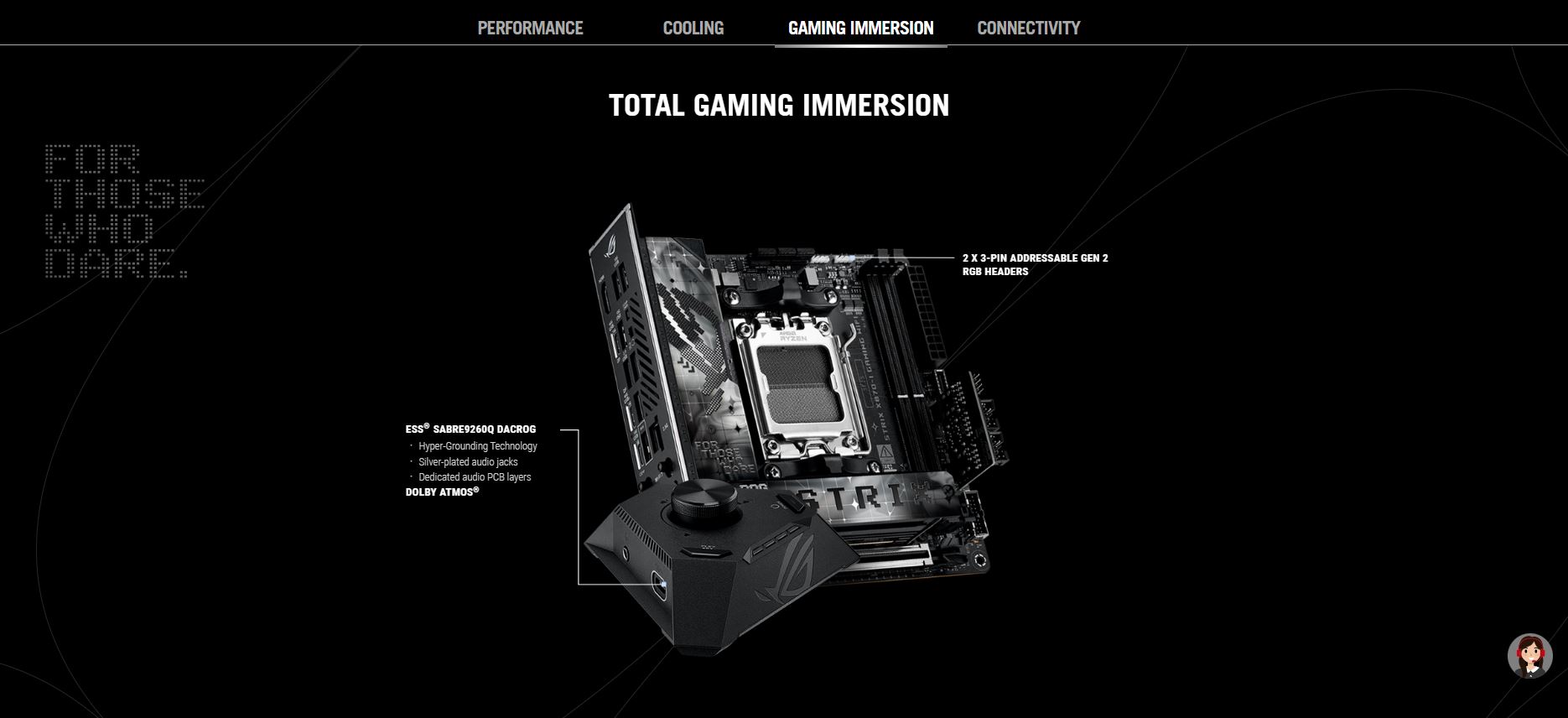

> ROG Strix Hive II Audio Features
- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Silver-plated audio jacks
- Dedicated audio PCB layers

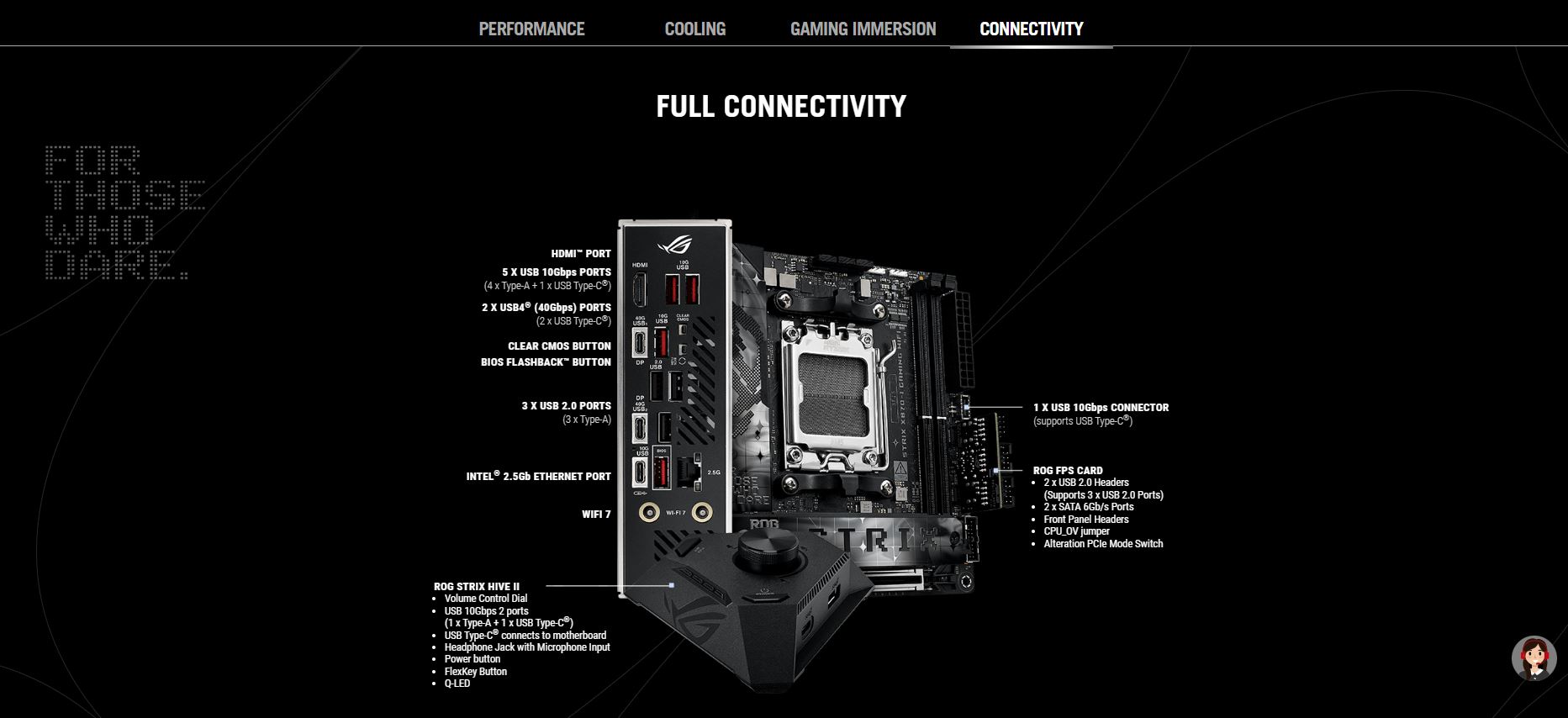

Back Panel I/O Ports
> 2 x USB4® (40Gbps)(2 x USB Type-C®)
> 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1port supports ROG STRIX HIVE II)
> 3 x USB 2.0 port(s) (2 x Type-A)
> 1 x HDMI™ port
> 1 x Wi-Fi module
> 1 x Intel® 2.5Gb Ethernet port

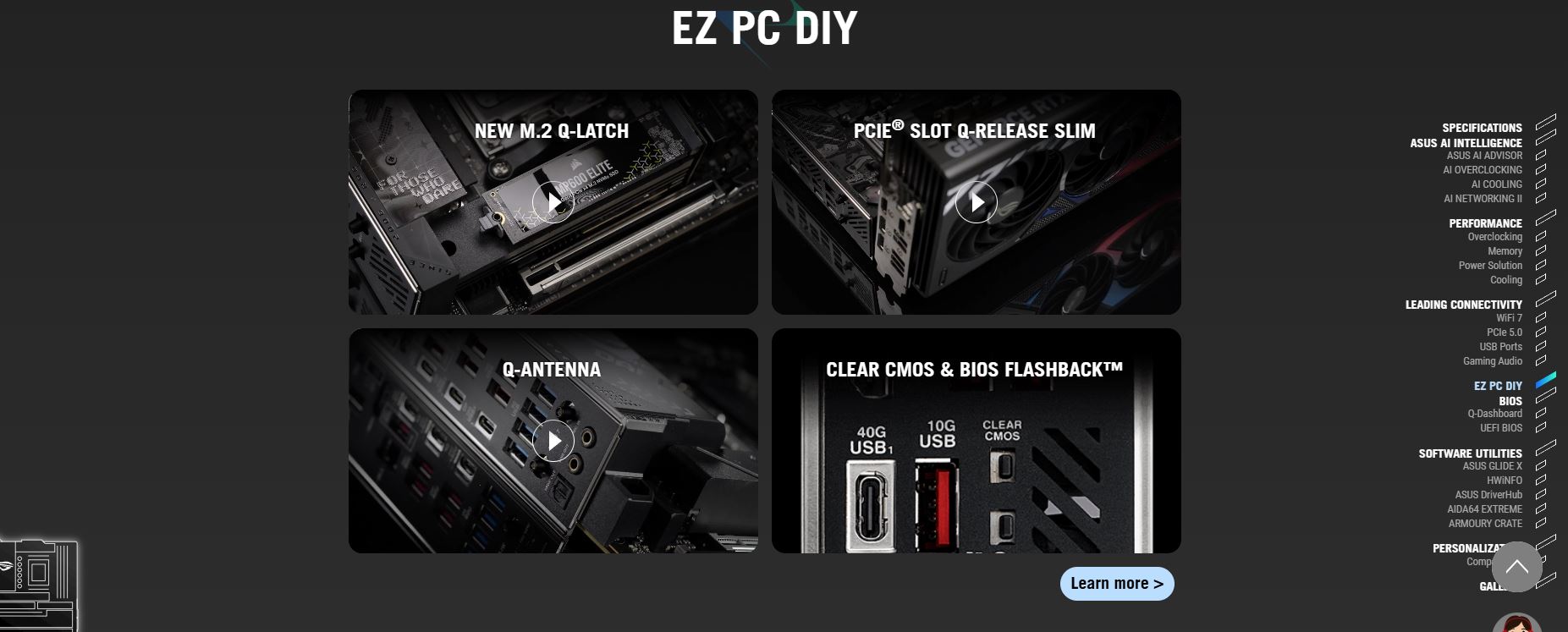

> 1 x BIOS FlashBack™ button
> 1 x Clear CMOS button
Form Factor
> Mini-ITX / 6.7 inch x 6.7 inch (17 cm x 17 cm)
