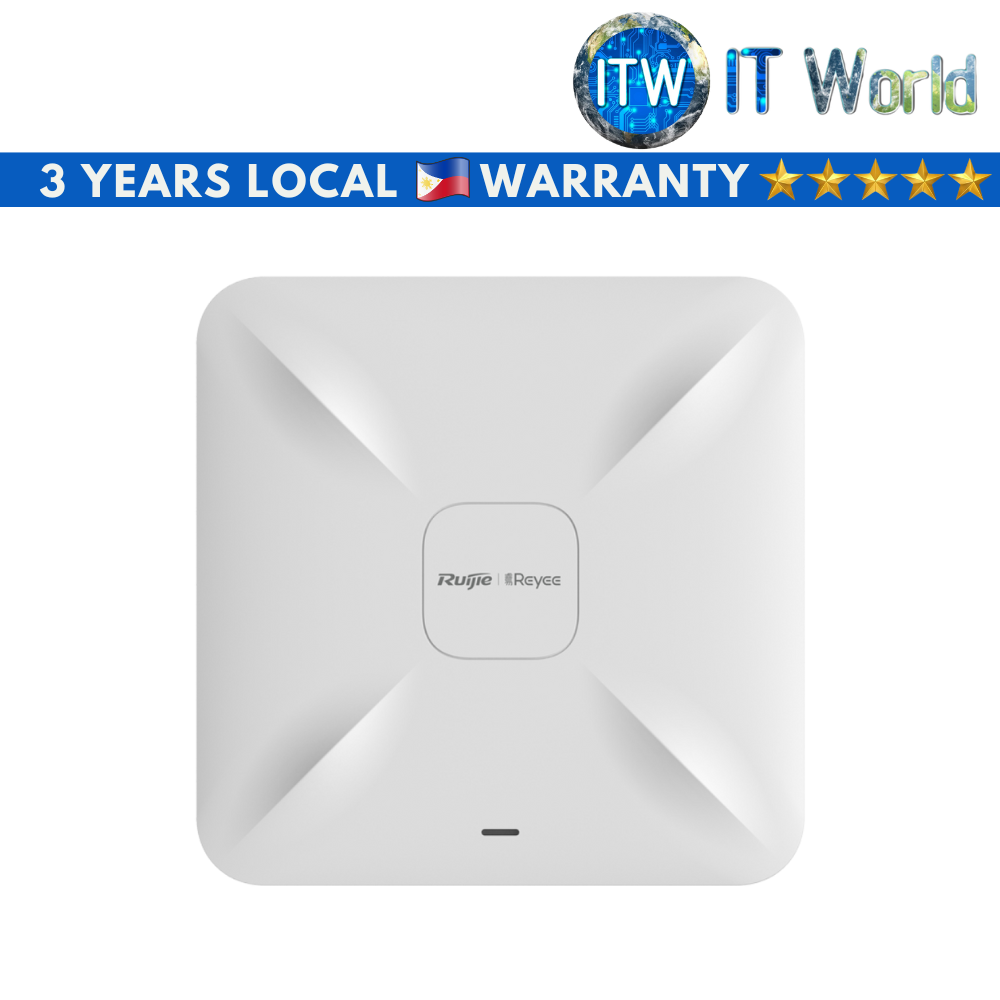

Ruijie Reyee RG-RAP2200 (E) AC1300 Dual Band Ceiling Mount Access Point

Product Name: ITW | Ruijie RG-RAP2200(E) AC1300 Dual Band Ceiling Mount Access Point

Highlight Features

■ Auto-provisioning via Self-Organizing Network：Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access;

■ Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;

■ More LAN Port: Two LAN interfaces are provided to support more services;

■ Seamless layer 3 roaming

■ Industrial Design: Robust casing, Provide better strength and safety for products;

Specification

✎ Model: RG-RAP2200(E)

Hardware specifications

✎ Radio: Dual-stream dual-band

✎ Protocol: Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n

✎ Operating Bands

■ 802.11b/g/n: 2.4G ~ 2.4835GHz

■ 802.11a/n/ac: 5G：5.150～5.250GHz，5.725～5.850GHz (country specific)

✎ Antenna: Internal antennas（2.4G: 2dBi，5G: 2dBi）

✎ Spatial Streams: 2.4G 2x2MIMO 5G 2x2MIMO

✎ Max Throughput

■ Up to 400Mbps at 2.4G

■ Up to 867Mbps at 5G

■ 1.267Gbp per AP

✎ Modulation

■ OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

■ DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps

■ MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

✎ Receive Sensitivity

■ 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)

■ 11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)

■ 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15

■ 11ac HT20: -83dBm (MCS0), -57dBm (MCS9)

■ 11ac HT40: -79dBm (MCS0), -57dBm (MCS9)

■ 11ac HT80: -76dBm (MCS0), -51dBm (MCS9)

✎ Maximum Transmit Power

■ 5.725～5.850GHz：≤20dBm (EIRP)

■ 5.150～5.250GHz：≤20dBm (EIRP)

■ 2.4～2.4835GHz：≤20dBm (EIRP)

✎ Adjustable Power: 1dBm

✎ Dimensions: 194mm×194mm×35mm (excluding mounting kits)

✎ Weight: 0.45kg (excluding mounting kits)

✎ Service Ports: 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE

✎ Management Port: NA

✎ LED Indicator: NA

✎ Power Supply: Single indicator (green light)

✎ Power Consumption

■ Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)

■ 802.3af/802.3at PoE

✎ Environment

■ ≤ 12.95W

■ Operating temperature: 0°C～40°C

■ Storage temperature: -40°C～70°C

■ Operating humidity: 5％～95％（non-condensing）

✎ Installation: Storage humidity: 5％～95％（non-condensing

✎ Safety Standard: GB4943, IEC 62368-1

✎ EMC Standard: GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035

✎ Vibration Standard: IEC61373

✎ Radio Standard: EN300 328, EN301 893

✎ MTBF: >250000H

Software Features

✎ Operating Mode: AP mode and routing mode

✎ WLAN

■ Maximum number of clients: 110

■ Recommended number of clients: 80 (16 at 2.4GHz, 64 at 5GHz)

■ Up to 8 SSIDs

■ Support SSID hiding

■ Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

■ SSID-based and radio-based STA limit

■ Support Layer 2 user isolation

✎ Roaming: Support Layer 2 and Layer 3 roaming

✎ Security

■ Support PSK authentication

■ Support static blacklist and whitelist

■ Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

✎ Routing: Support static IP address, DHCP, PPPoE Dial Up

✎ Management and maintenance

■ Support unified networking of all network equipment

■ Support local or remote management with Ruijie Cloud app

■ Support local management with web

■ Support remote management with Ruijie Cloud platform

✎ Platform management features

■ Automatic RF adjustment via the platform

■ Unified configuration via the platform

■ Unified monitoring via the platform
