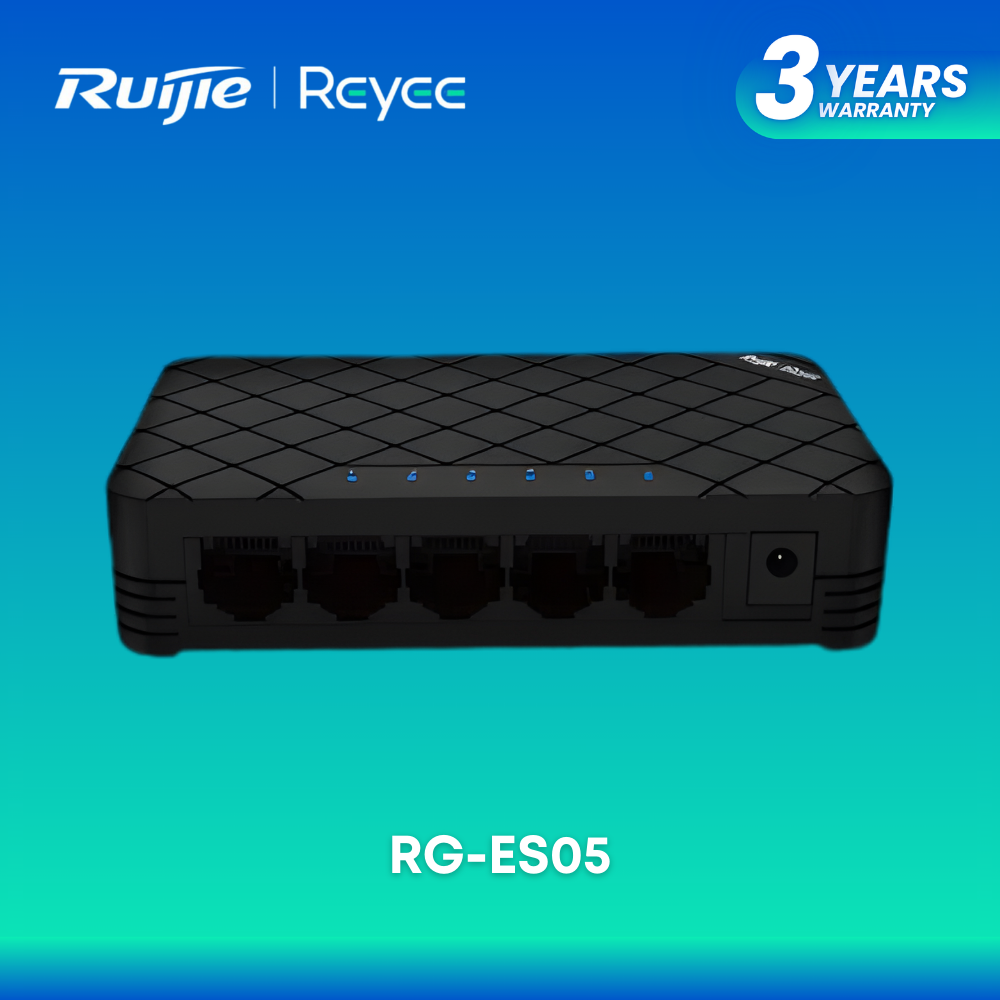

Ruijie Reyee RG-ES05 Series Plastic Case Unmanaged Desktop Switch
🌐 Ruijie Reyee RG-ES05 Series Plastic Case Unmanaged Desktop Switch
🔹 The perfect combination of quality, ease of use, and cost-effectiveness for small businesses, SOHO setups, and surveillance networks. Designed for fast and hassle-free deployment with plug-and-play functionality.
✨ Product Highlights:
🔹 5× 10/100M Base-T Ethernet Ports
🔹 Plug & Play — Zero Configuration Required
🔹 Supports PCs, Printers, Network Cameras & More
🔹 Auto-Negotiation Half/Full Duplex Mode
🔹 Auto MDI/MDIX Support for Easy Cabling
🔹 1Gbps Backplane Bandwidth for Smooth Data Transfer
🔹 0.744Mpps Packet Forwarding Rate
🔹 1K MAC Address Table

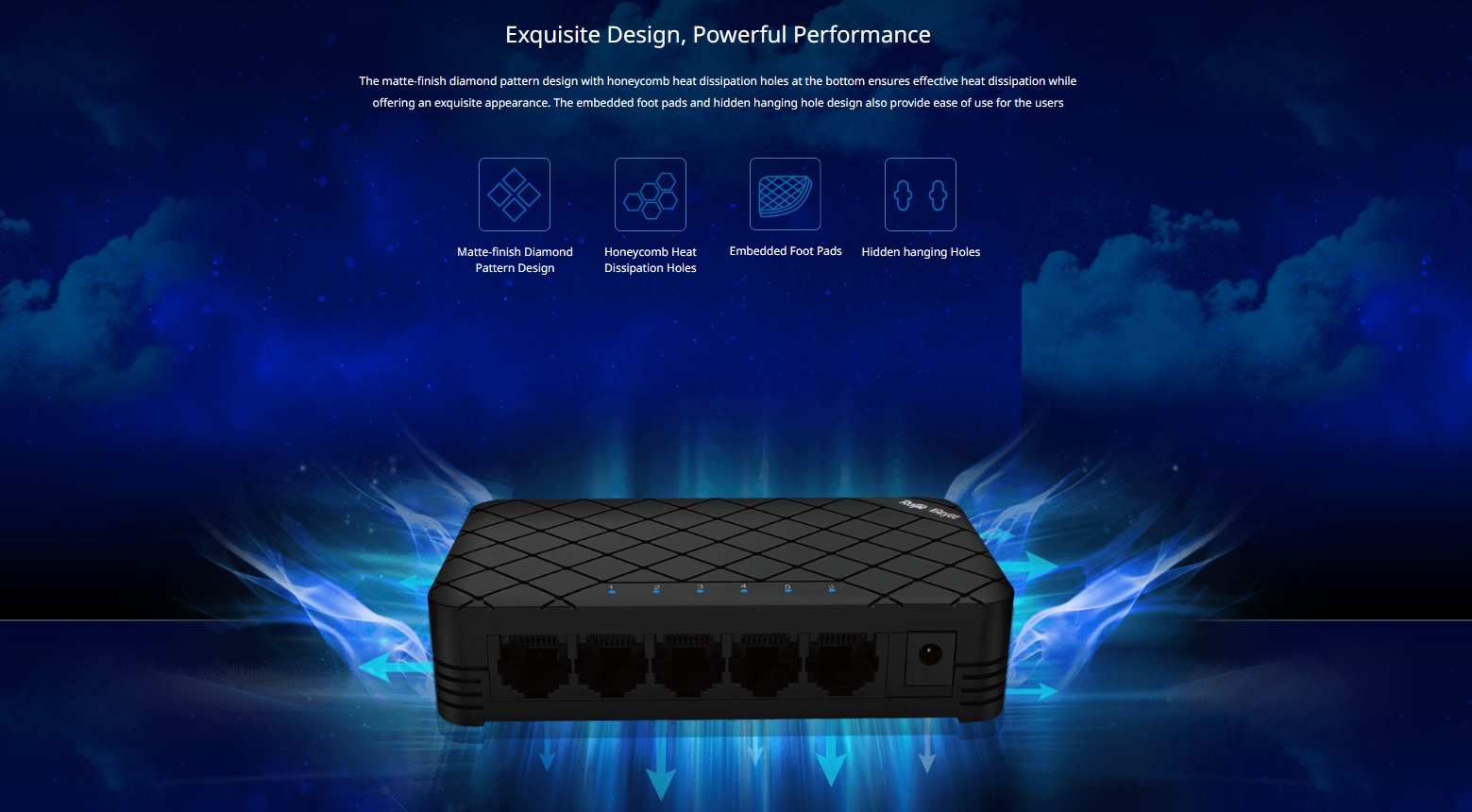

🔹 Fanless Design for Silent Operation 🔇
🔹 Low Power Consumption ≤2.5W ⚡
🔹 Compact Desktop Plastic Case Design
📌 Specifications:
📡 Ports: 5 × 10/100M Base-T Ports
⚙️ Operating Mode: Half-duplex, Full-duplex, Auto-negotiation
🔄 MDI Support: Auto MDI/MDIX
🚀 Backplane Bandwidth: 1Gbps
📦 Packet Forwarding Rate: 0.744Mpps
💾 MAC Address Capacity: 1K
🔌 Power Supply: External DC 5.0V / 600mA
⚡ Maximum Power Consumption: ≤2.5W
🔇 Cooling System: Fanless
🌡️ Operating Temperature: 0°C ~ 40°C
❄️ Storage Temperature: -40°C ~ 70°C
💧 Operating Humidity: 10% ~ 90% RH
📦 Storage Humidity: 5% ~ 95% RH
📏 Product Dimensions:
🔹 108.1 × 64 × 24.8 mm
