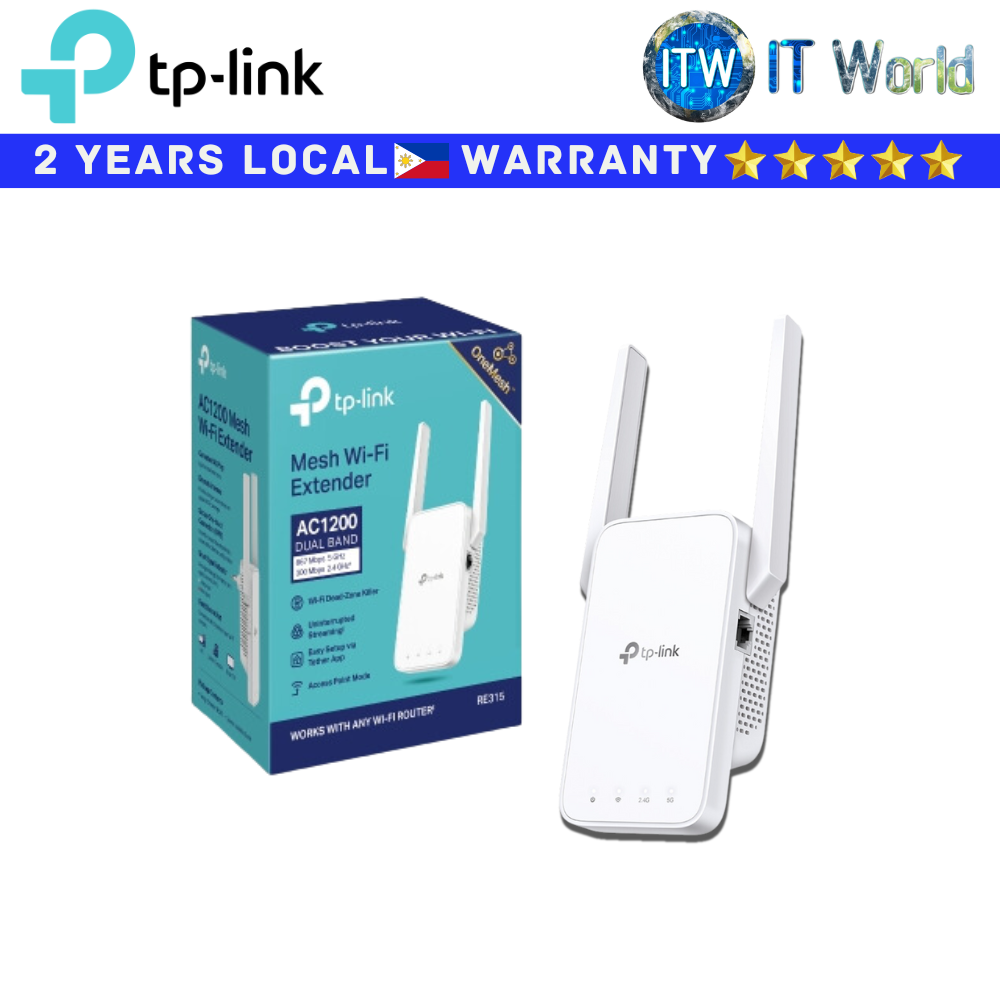

Product Name: Itw | TP-Link wifi Repeater Extender Booster RE315 AC1200 Mesh Wi-Fi Range Extender
Key Feature
• Eliminate weak signal areas with whole home WiFi coverage.
• 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band WiFi connection ensures more stable wireless experience.†
• EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
• Adaptive Path Selection – connects to the fastest connection path to the router automatically and runs at top-speed.
• AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.
• Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
• Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI.
• Works with any Wi-Fi router or wireless access point.*
Specification
HARDWARE FEATURES
Ports: 1 x 10/100Mbps Ethernet Port (RJ45)
Button: WPS Button, Reset Button
Input Power: 100-240V~50/60Hz
Power Consumption: 9.5W（max power consumption）
Dimensions ( W x D x H ): 3.5×1.4×4.9 in. (89×35.0×124.1 mm)
Antenna: 2 External Antennas
WIRELESS FEATURES
Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 300Mbps at 2.4GHz, 867Mbps at 5GHz
Working Modes: Range Extender/Access Point
Reception Sensitivity
5 GHz:
• 11a 6Mbps: -94dBm
• 11a 54Mbps: -77dBm
• 11ac HT20 MCS0: -94dBm
• 11ac HT20 MCS8: -71dBm
• 11ac HT40 MCS0: -92dBm
• 11ac HT40 MCS9: -66dBm
• 11ac HT80 MCS0: -87dBm
• 11ac HT80 MCS9: -62dBm
2.4 GHz:
• 11g 54Mbps: -78dBm
• 11n HT20 MCS7: -76dBm
• 11n HT40 MCS7: -74dBm
Wireless Functions
• Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required)
• Access Control
• LED Control
• Power Schedule
• Wi-Fi Coverage
Wireless Security: 64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions
Transmission Power: 2.4 GHz ≤20dBm, 5 GHz ≤30dBm
OTHERS
Certification: CE, RoHS
Package Contents
• Wi-Fi Range Extender RE315
• Quick Installation Guide
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
