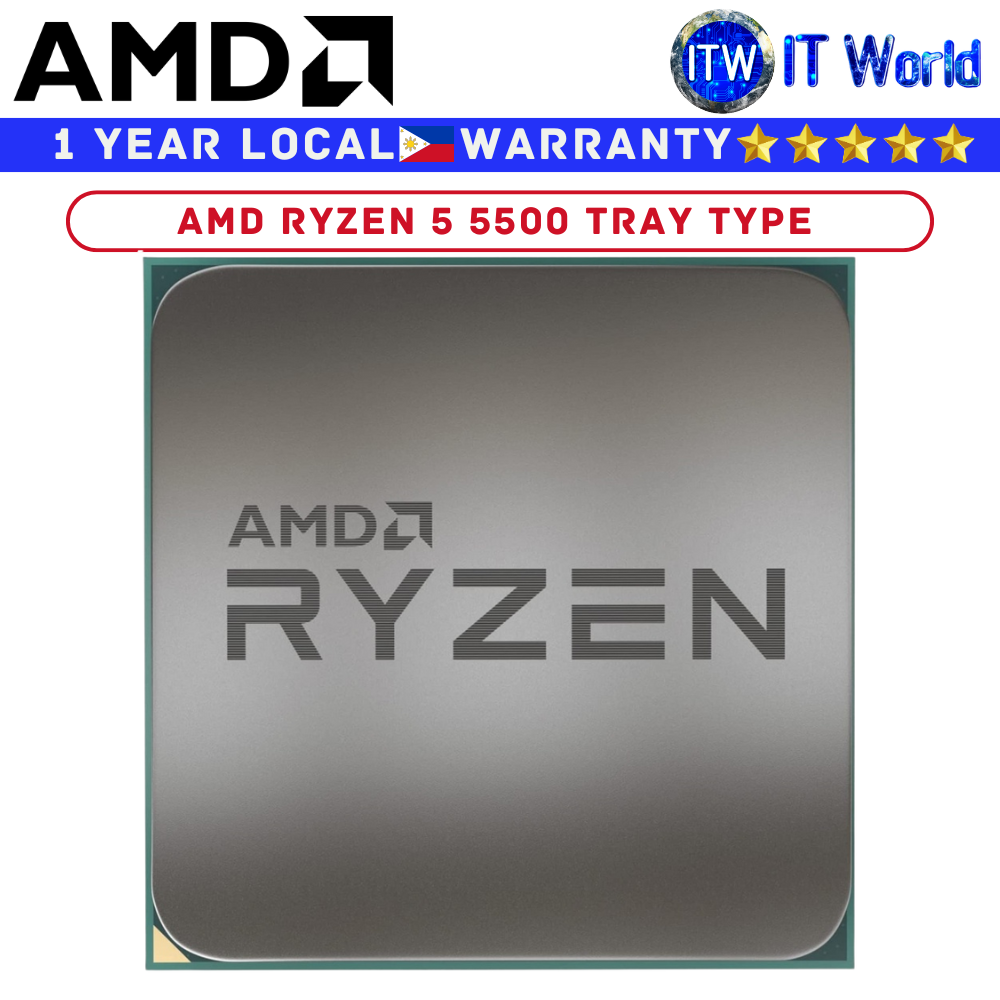

Product Name: Itw | AMD Ryzen 5 5500 6 Cores 12 Threads Desktop Processor (Box | Tray Type)
Specification
General
> Name: AMD Ryzen™ 5 5500
> Family: Ryzen
> Series: Ryzen 5000 Series
> Form Factor: Desktops, Boxed Processor
> Market Segment: Mainstream Desktop
> Regional Availability: Global, China, NA, EMEA, APJ, LATAM
> Former Codename: Cezanne
> Architecture: Zen 3
> # of CPU Cores: 6
> Multithreading (SMT): Yes
> # of Threads: 12
> Max. Boost Clock: Up to 4.2 GHz
> Base Clock: 3.6 GHz
> L1 Cache: 384 KB
> L2 Cache: 3 MB
> L3 Cache: 16 MB
> Default TDP: 65W
> Processor Technology for CPU Cores: TSMC 7nm FinFET
> CPU Compute Die (CCD) Size: 180mm²
> Package Die Count: 1
> Unlocked for Overclocking: Yes
> CPU Socket: AM4
> Supporting Chipsets: X570, X470, X370, B550, B450, B350, A520
> CPU Boost Technology: Precision Boost 2
> Instruction Set: x86-64
> Supported Extensions: AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
> Thermal Solution (PIB): AMD Wraith Stealth
> Max. Operating Temperature (Tjmax): 90°C
> Launch Date: 04/04/2022
> *OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
> Native USB 4 (40Gbps): 0
> Native USB 3.2 Gen 2 (10Gbps): 4
> Native USB 3.2 Gen 1 (5Gbps): 0
> Native USB 2.0 (480Mbps): 0
> Native SATA Ports: 2
> PCI Express® Version: PCIe® 3.0
> Native PCIe® Lanes (Total/Usable): 24, 20
> Additional Usable PCIe Lanes from Motherboard
- X570 16x Gen 3
- X470 2x Gen 3, 8x Gen 2
> NVMe Support: Boot, RAID0, RAID1, RAID10
> System Memory Type: DDR4
> Memory Channels: 2
> Max. Memory: 128 GB
> System Memory Subtype: UDIMM
> System Memory Specification: Up to 3200 MT/s
> Max Memory Speed
- 2x1R DDR4-3200
- 2x2R DDR4-3200
- 4x1R DDR4-2933
- 4x2R DDR4-2667
> ECC Support: No
Graphics Capabilities
> Graphics Model: Discrete Graphics Card Required
Key Features
> Supported Technologies: AMD StoreMI Technology, AMD Ryzen™ VR-Ready Premium
