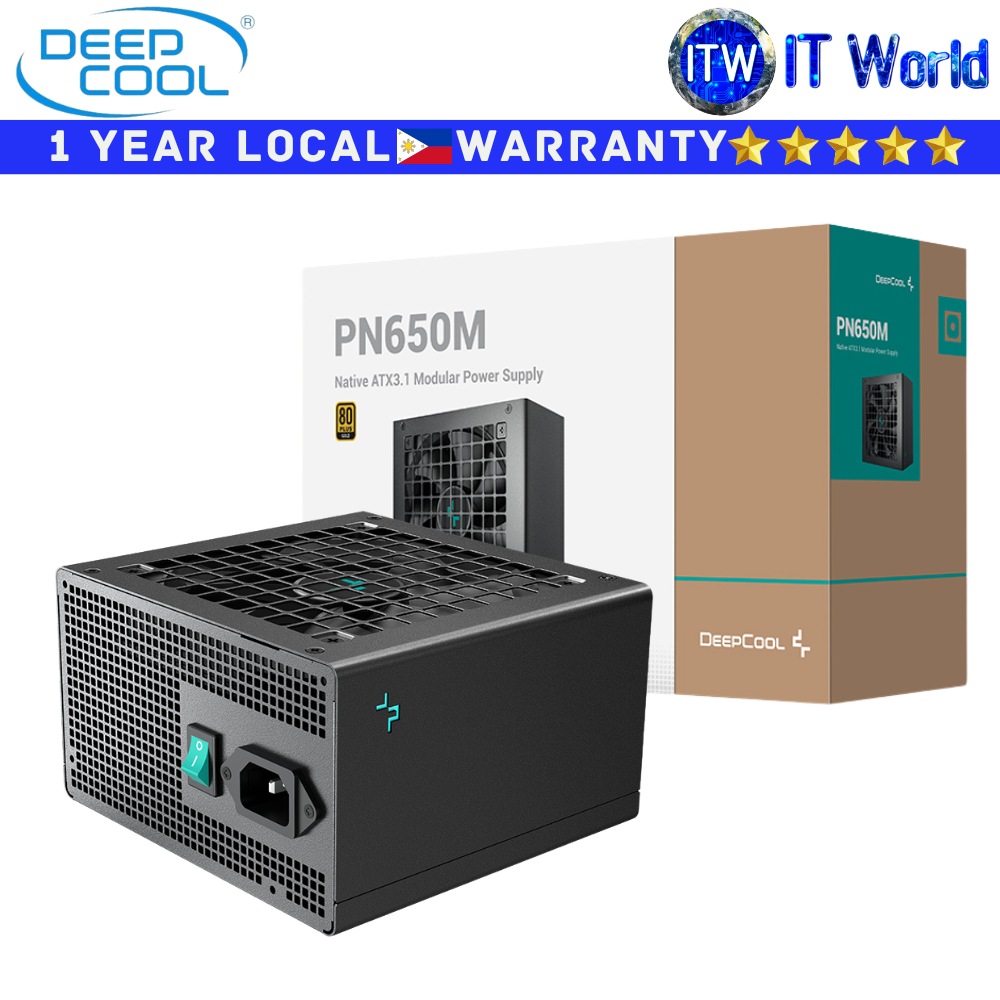

Product Name: Itw | Deepcool PSU 650W Power Supply Unit PN650M 80+ Gold Modular FDB ACtive PFC (R-PN650M-FC0B-US)
PN650M
> The DeepCool PN650M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN650M provides stable power for a wide range of modern high-power components.
Specification
* Type: ATX12V V3.1
* Product Dimensions (W x L x H): 150 × 140 × 86mm
* Efficiency certification: 80Plus Gold
* Fan Size: 120mm
* Fan Bearing: FDB (Fluid Dynamic Bearing)
* Topology: Active PFC + Full Bridge SRC LLC + DC to DC
* Capacitors: Japanese Bulk Capacitor
* Power Good Signal: 100-150ms
* Hold Up Time: ≥16ms (80% Load)
* Efficiency: ≥90% Under Typical Load (50% Loading)
* Protection: OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO
* Operation Temperature: 0 - 40℃
* Regulatory: CE / FCC / CCC / cTUVus / RCM / EAC / TUV-RH
* Erp Regulation: ErP 2014
* Environment Protection: WEEE / RoHS / Triman / P65
* MTBF: 100,000 Hours
* EAN: 6933412719267
* P/N: R-PN650M-FC0B-US
