Product Name: Itw | Deepcool CPU Cooler Fan LS520/LS720 Black ARGB Fan and Premium Liquid Fluid Dynamic Bearing

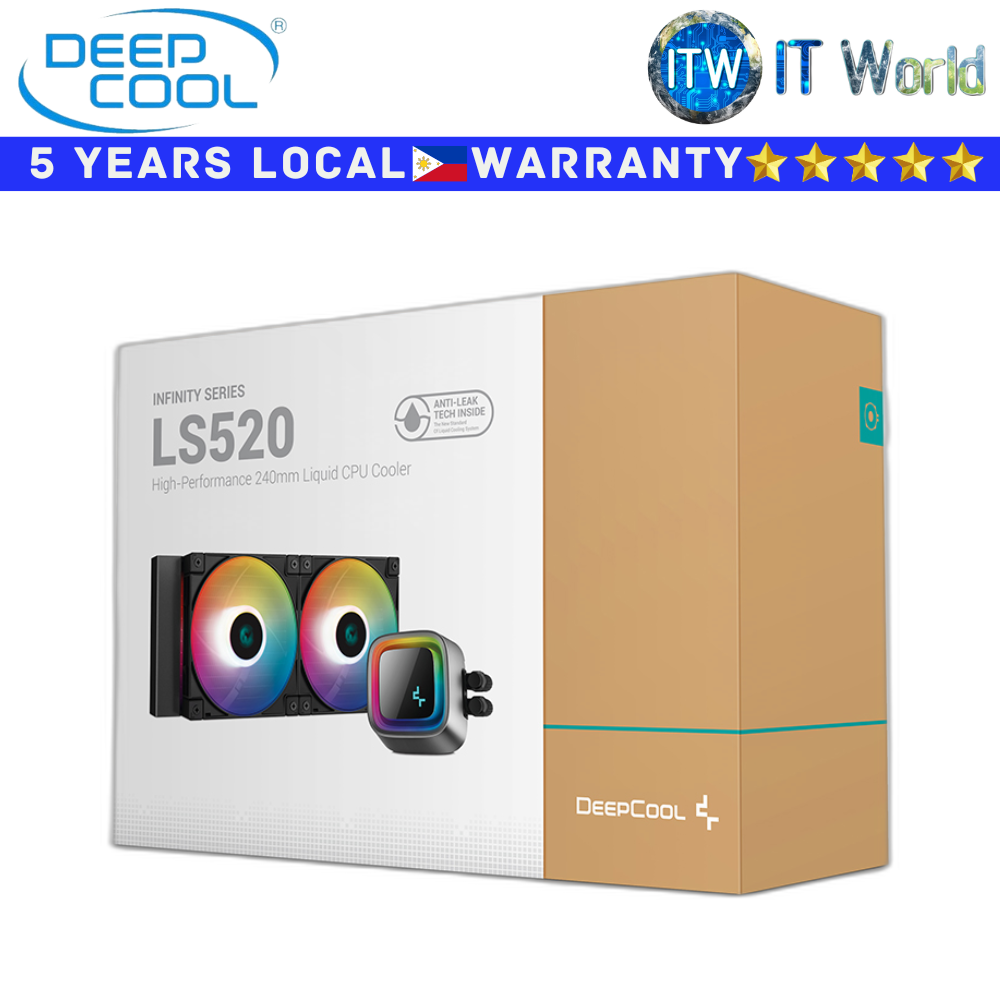

*** LS520 ***
Specification
Application For
Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD: sTRX4/sTR4/AM5/AM4
Technical
* Net Weight: 1305 g
* Radiator Dimensions: 282×120×27 mm (L×W×H)
* Radiator Material: Aluminum
* Tube length: 410 mm (L×W×H)
* Pump Dimensions: 86×74×57 mm (L×W×H)
* Pump Speed: 3100 RPM±10%
* Pump Noise: 19 dB(A)
* Pump Connector: 3-pin
* Pump Rated Voltage: 12 VDC
* Pump Rated Current: 0.47 A
* Pump Power Consumption: 5.64 W
* Fan Dimensions: 120×120×25 mm (L×W×H)
* Fan Speed: 500~2250 RPM±10%
* Fan Airflow: 85.85 CFM
* Fan Air Pressure: 3.27 mmAq
* Fan Noise: ≤32.9 dB(A)
* Fan Connector: 4-pin PWM
* Bearing Type: Fluid Dynamic Bearing
* Fan Rated Voltage: 12 VDC
* Fan Rated Current: 0.29 A
* Fan Power Consumption: 3.48 W
* LED Type: Addressable RGB LED
* LED Connector: 3-pin(+5V-D-G)
* LED Rated Voltage: 5 VDC
* LED Power Consumption: 2.2 W（PUMP）/ 3.6 W（FAN×2）
* P/N: R-LS520-BKAMNT-G-1

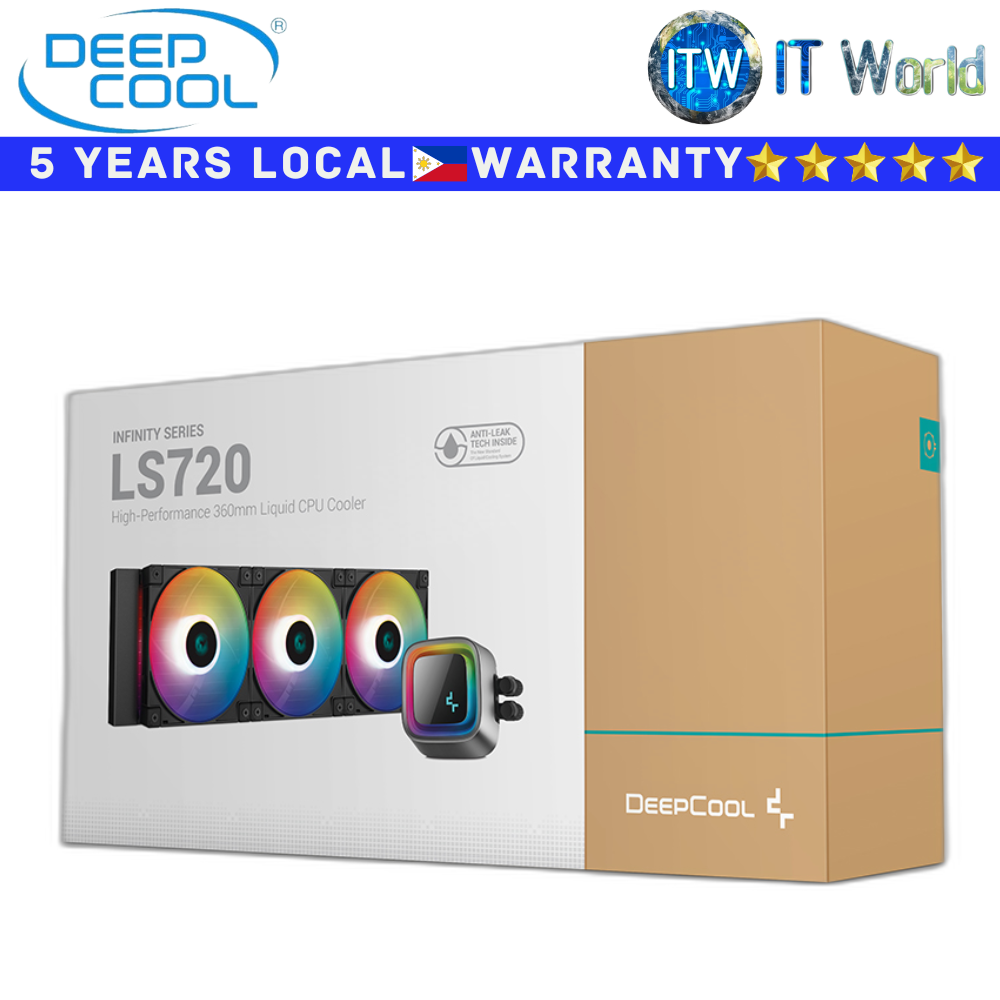

*** LS720 ***
Specification
Application For
* Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
* AMD: sTRX4/sTR4/AM5/AM4
Technical
* Net Weight: 1607 g
* Radiator Dimensions: 402×120×27 mm (L×W×H)
* Radiator Material: Aluminum
* Tube length: 410 mm (L×W×H)
* Pump Dimensions: 86×74×57 mm (L×W×H)
* Pump Speed: 3100 RPM±10%
* Pump Noise: 19 dB (A)
* Pump Connector: 3-pin
* Pump Rated Voltage: 12 VDC
* Pump Rated Current: 0.47 A
* Pump Power Consumption: 5.64 W
* Fan Dimensions: 120×120×25 mm (L×W×H)
* Fan Speed: 500~2250 RPM±10%
* Fan Airflow: 85.85 CFM
* Fan Air Pressure: 3.27 mmAq
* Fan Noise: ≤32.9 dB(A)
* Fan Connector: 4-pin PWM
* Bearing Type: Fluid Dynamic Bearing
* Fan Rated Voltage: 12 VDC
* Fan Rated Current: 0.29 A
* Fan Power Consumption: 3.48 W
* LED Type: Addressable RGB LED
* LED Connector: 3-pin (+5V-D-G)
* LED Rated Voltage: 5 VDC
* LED Power Consumption: 2.2 W (PUMP）/ 5.4 W（FAN×3）
* P/N: R-LS720-BKAMNT-G-1
