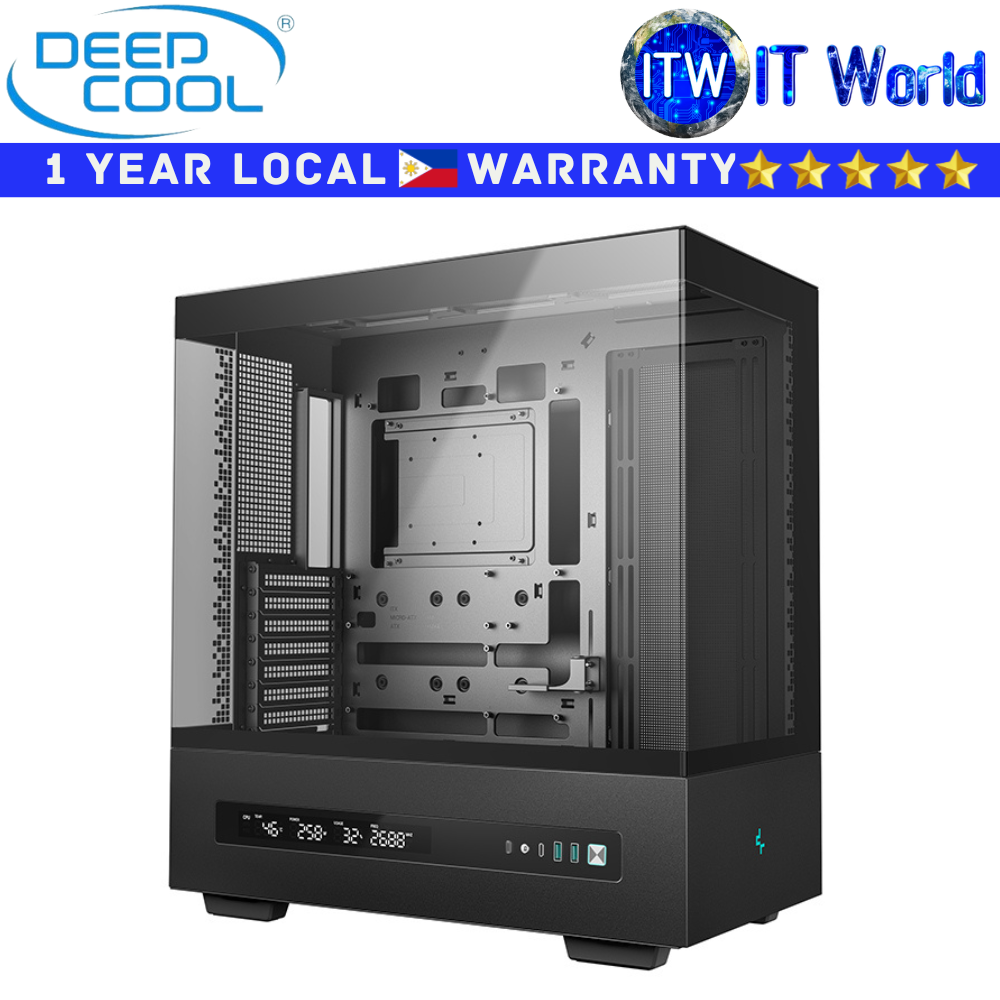

Deepcool Computer PC Case CH690 Digital ATX Mid-Tower Case Tempered Glass Black (R-CH690-BKNNA0D-G-1)

Product Name: Itw | Deepcool Computer PC Case CH690 Digital ATX Mid-Tower Case Tempered Glass (Black | White)

CH690 DIGITAL

> The CH690 DIGITAL is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.

Specifications

* Color: Black | White

* Product Dimensions (L×W×H): 552 × 332 × 589 mm

* Net Weight: 9.8Kg

* Materials: ABS + SPCC + Tempered Glass

* Motherboard Support

> Mini-ITX / Micro-ATX / ATX

> ATX (Rear Connector) / Micro-ATX (Rear Connector)

* Front I/O Ports: USB3.0×2、Gen2 Type-C x1、Audio/Mic×1

* 3.5" Drive Bays: 1

* 2.5" Drive Bays: 2+1

* Expansion Slots: 8Slots

* Pre-Installed Fans: None

* Fan Support

> Front: NA

> Top: 3×120 / 3×140mm

> Side: 3×120 / 3×140mm

> PSU Shrouded: 3×120 / 3×140mm

> Rear: 1×120 / 1×140mm

* Radiator Support

> Front: NA

> Top: 120/140/240/280/360/420mm

> Side: 120/140/240/280mm

> Bottom: 120/240/360mm

* CPU Cooler Height Limit: 182mm

* GPU Length Limit: 450mm

* Power Supply Type: ATX PS2（maximum length: 180mm）

* EAN

> Black: 6933412774037

> White: 6933412774037

* P/N

> Black: R-CH690-BKNNA0D-G-1

> White: R-CH690-WHNNA0D-G-1
