Product Name: Itw | Deepcool Computer PC Case CH170 Digital Mesh Panel / View Panel Black Tempered Glass (White)

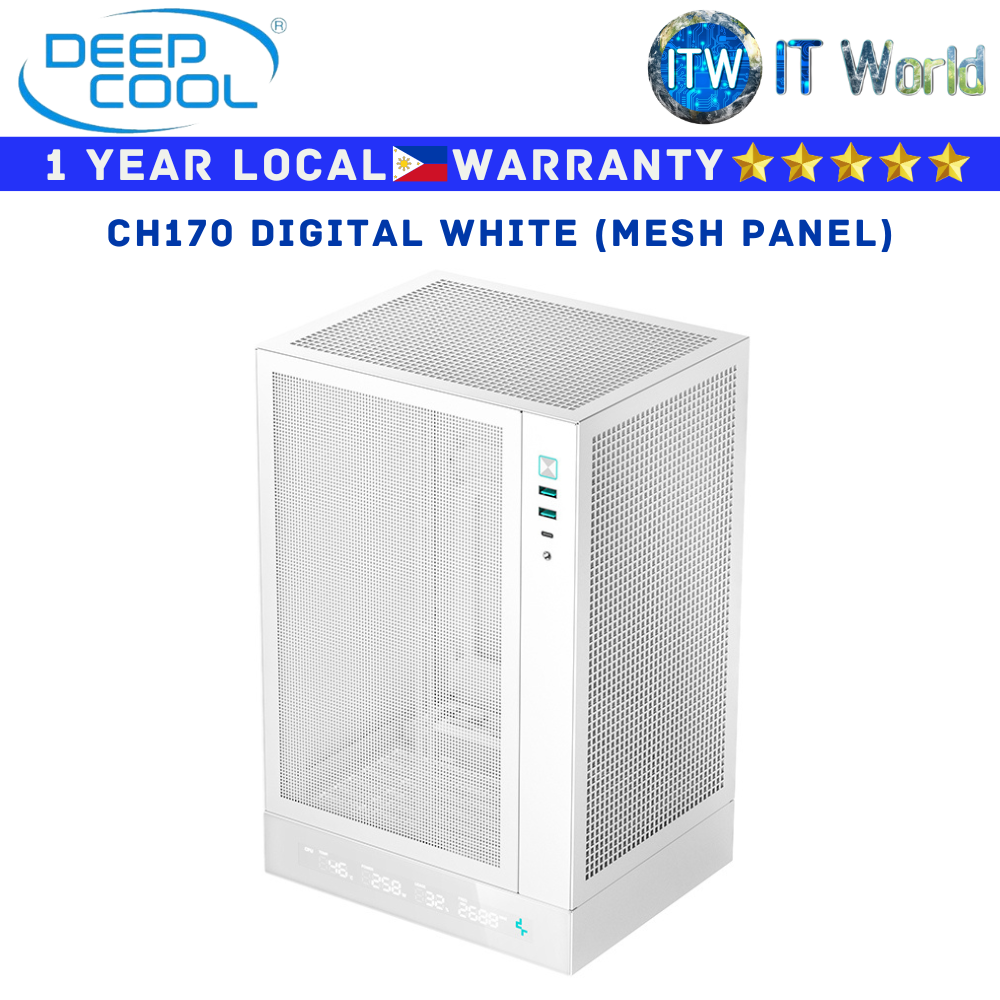

*** Deepcool Computer PC Case CH170 Digital White Mesh Panel (R-CH170-WHNPI0D-G-1) ***
CH170 DIGITAL
> The CH170 DIGITAL is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.
Specification
* Color: White
* Product Dimensions: 380 x 200 x 250 mm (L×W×H)
* Net Weight: 3.4Kg
* Materials: ABS+SPCC
* Motherboard Support: Mini-ITX
* Front I/O Ports: USB3.0×2、Audio×1、Gen2 TypeC×1
* 3.5" Drive Bays: 1 (2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
* 2.5" Drive Bays: 1 (2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
* Expansion Slots: 3 Slots
* Pre-Installed Fans: None
* Fan Support
> Top:1×120 mm
> Front: NA
> Rear: 2×120 mm
> Bottom:1×120 mm
> Side : 2×120 mm
* Radiator Support: Side: 240mm
* CPU Cooler Height Limit: 172mm
* GPU Size Limit
> Length: SFX/SFX-L: 305mm / ATX: 230mm
> Height: 138mm
> Width: 65mm (3 Slots)
* Power Supply Type: ATX PS2（maximum length: 140mm）/ SFX / SFX-L
* EAN: 6933412774228
* P/N: R-CH170-WHNPI0D-G-1
*** Deepcool View Panel 100 White Tempered Glass Panel (R-VIEW-PANEL-WH-G) ***
VIEW PANEL 100
> Are you looking to showcase the components in your CH170 DIGITAL? The VIEW PANEL 100 is the answer! A tempered glass panel will directly replace the side mesh panel that comes with your CH170 DIGITAL.
Specification
* Overall Dimension: 328.1 x 206.1 x 13.5mm (L×W×H)
* Material: Tempered Glass
* Thickness: Tempered Glass panel thickness: 3mm
* Product Color: White
* Product Weight: 500g
* EAN: 6933412796848
* P/N: R-VIEW-PANEL-WH-G
